Hantek CC65 AC/DC Current Clamp: Precision Current Measurement
Struggle with messy current tests or unreliable readings? The Hantek CC65 simplifies measurements – dual multimeter/oscilloscope compatibility + wide range for pro results!
Product At a Glance

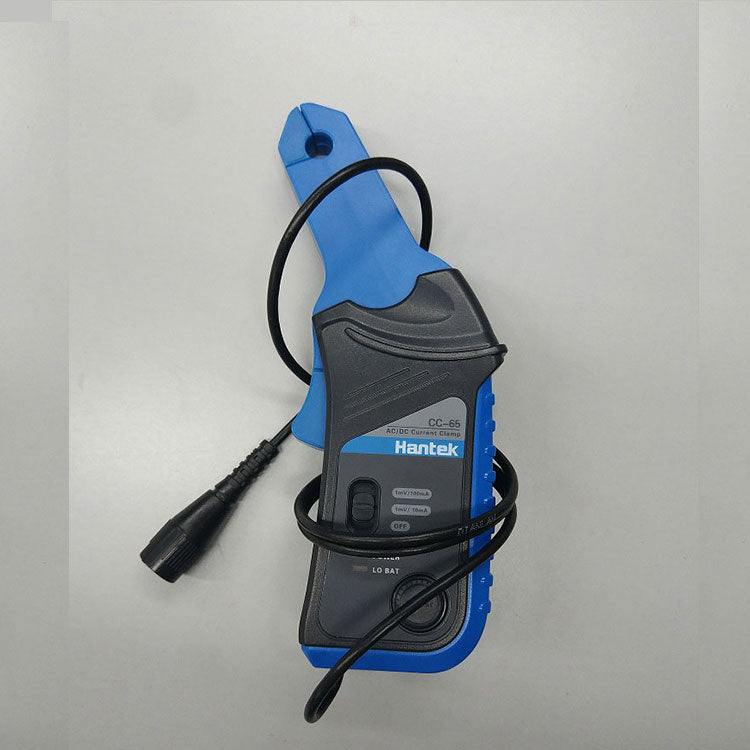

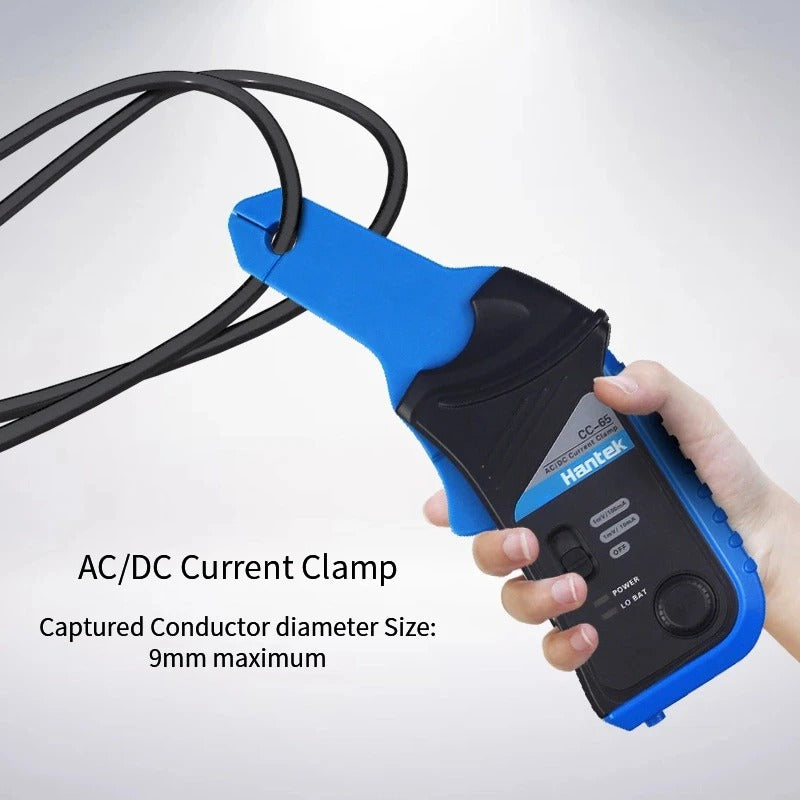

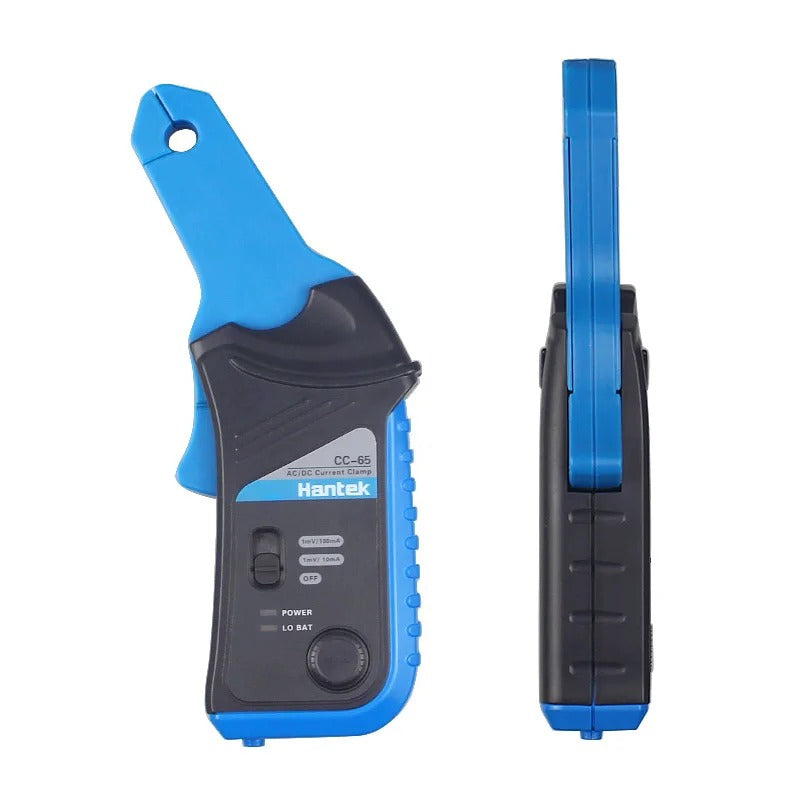

Compact, ergonomic design fits tight spaces (10mm×10mm jaw). Lightweight for easy handling, with a clear BNC/banana connector for quick setup.
Key Specifications
Parameter
Detail
Model
CC65
Measurement Range
DC: 20mA–65AAC: Up to 20kHz
Output Ratios
1mV/10mA, 1mV/100mA
Accuracy
DC: ±(1.5%±5mA) (10mA–20A, 1mV/10mA)
AC: ±(2%±5mA) (10mA–20A, 1mV/10mA)
Frequency Response
DC–20kHz (AC)
Power
9V DC (NEDA 1604/6F22/0006P), low - battery warning

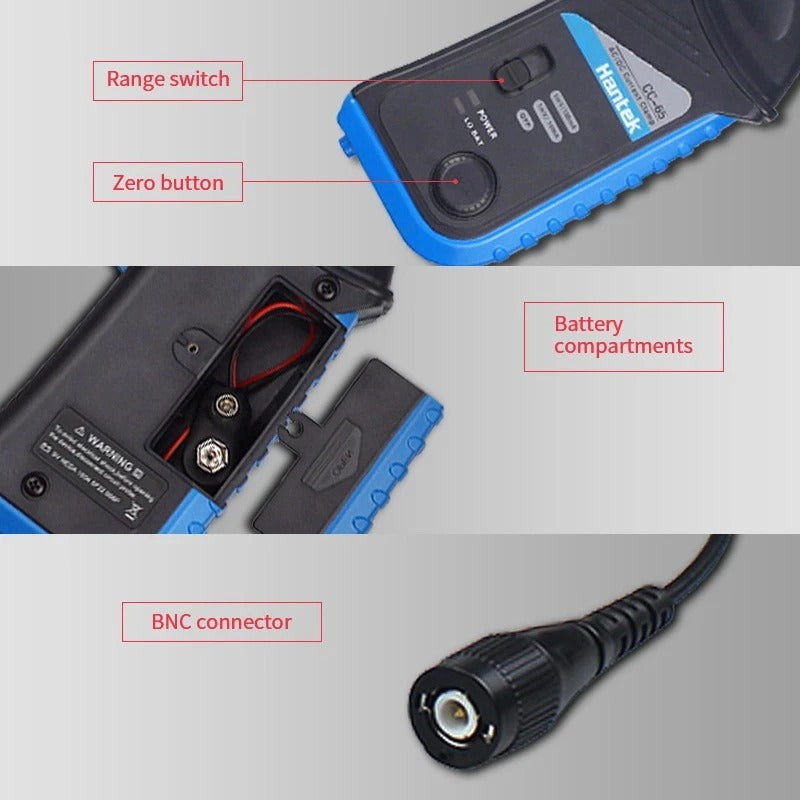

Connectors
BNC (oscilloscope) + banana (multimeter)
Core Functions

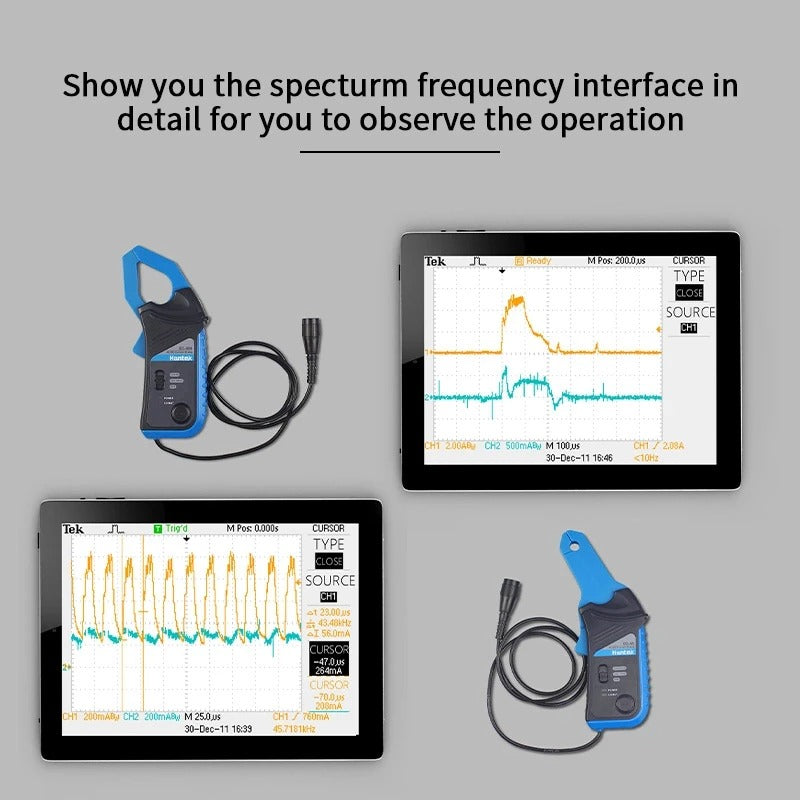

Dual Compatibility: Works with multimeters (via banana adapter) or oscilloscopes (BNC) – measure static currents or visualize dynamic waveforms.
Precise Conversion: Permalloy + Hall element linearly turns AC/DC current into voltage signals – no distortion, reliable data.
Safety & Durability: Operates 0–50℃ (70% RH); stores - 20–70℃ (80% RH). Built to withstand workshop/field use.
Ideal Scenarios
Power Circuit Debugging: Test supplies, analyze converters – catch voltage drops or spikes.
Motor Drive Testing: Measure frequency - converter signals, ensure motor efficiency.
Electronics R&D: Validate device currents in prototypes, troubleshoot malfunctions.
Why Choose CC65?
Versatile: One tool for multimeters/oscilloscopes – no need for separate clamps.
Accurate: Tight error margins (±1.5%–2%) ensure trust in readings.
Portable: Lightweight, compact – perfect for on - site or bench testing.
Ready to simplify current tests? Click “Add to Cart” – the CC65’s dual compatibility and precision make it a must - have for engineers/techs. Stock limited – grab yours for clean, reliable measurements!
