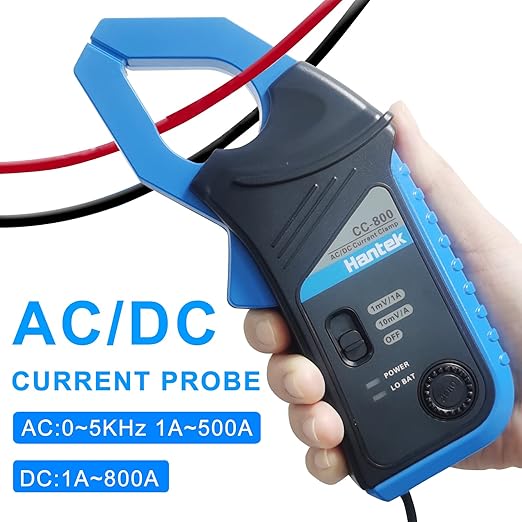

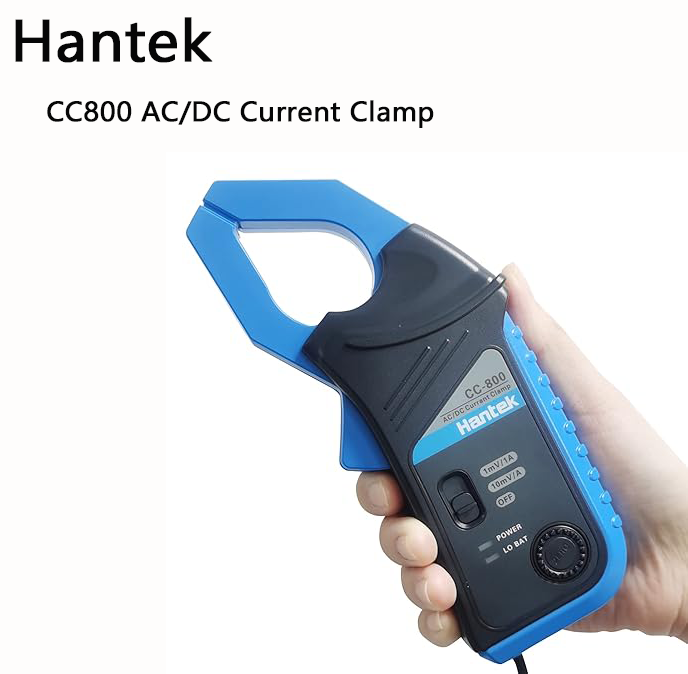

Hantek CC800 AC/DC Current Clamp: 800A High-Current Measurement Made Simple
Tired of current clamps that limit heavy-duty testing or skip waveform visibility? The Hantek CC800 handles up to 800A DC with 5kHz bandwidth—ideal for industrial and pro tasks!
Design & Build

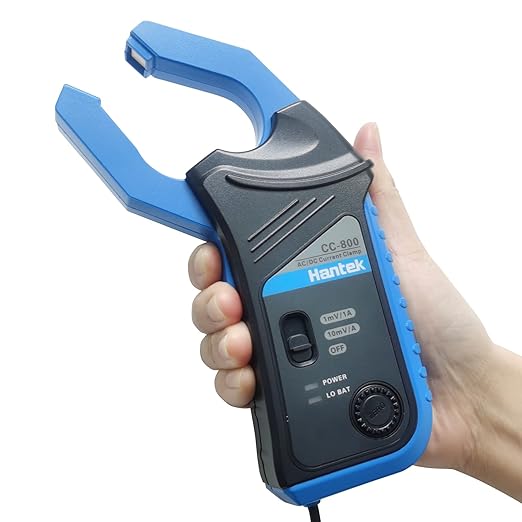

Ergonomic compact body (195×70×33mm, 250g) fits tight spaces; extended jaws work for small gaps. Durable construction resists workshop wear, with clear BNC/banana connectors for quick setup.
Key Specifications
Parameter
Detail
Model
CC800
Bandwidth
5kHz
Measurement Range
DC: 1A–800A; AC: 1A–500A (0~5kHz)
Output Ratios
10mV/A (1A–40A DC/AC rms); 1mV/A (1A–500A AC rms)
Transducer Core
Permalloy + Hall element
Connectors

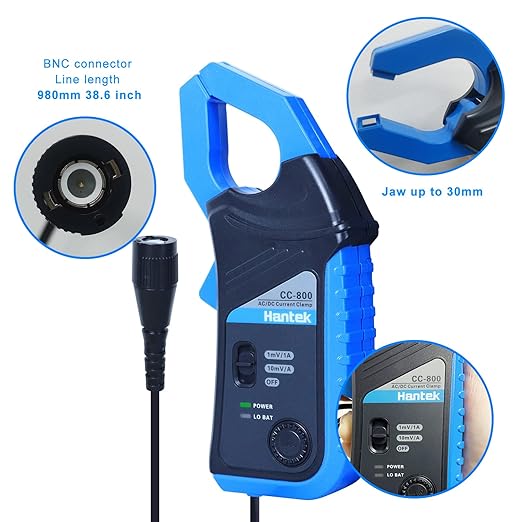

BNC (oscilloscope), banana (multimeter)
Max Conductor Diameter
30mm
Power

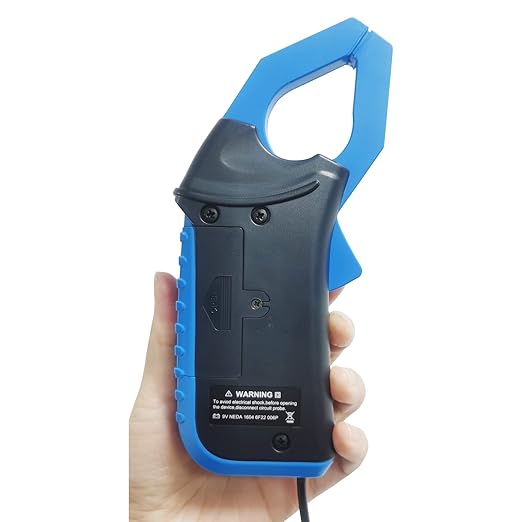

9V DC (NEDA 1604/6F22/006P), 100hr typical battery life
Operating Temp
0℃–50℃ (70% RH); Storage: -20℃–70℃ (80% RH)
Core Functions
Dual Compatibility: Connect to multimeters for precise current data, or oscilloscopes via BNC to view dynamic waveforms—no circuit breaking or insulation peeling.
High-Current Precision: 1A–800A DC / 1A–500A AC range covers industrial needs; permalloy + Hall element ensures linear current-to-voltage conversion (no distortion).
User-Friendly: Green LED for power-on, red LED for low battery; zero-adjust knob for accurate DC measurements.
Applicable Scenarios
Industrial Power Testing: Analyze high-current circuits, troubleshoot power malfunctions in heavy machinery.
Motor Drive Measurement: Test frequency converter motor drives, validate stable performance.
Power Electronics Check: Inspect inverters, generators, and high-power equipment for reliability.
Why Choose CC800?
Heavy-Duty Range: 800A DC / 500A AC handles industrial high-current tasks.
Dual Use: One tool for multimeter data + oscilloscope waveforms.
Durable & Portable: Lightweight design works for on-site and bench testing.
Ready to tackle high-current jobs? Click “Add to Cart”—only 1 left in stock! The CC800’s 5kHz bandwidth and 800A capacity make it a pro’s must-have.
