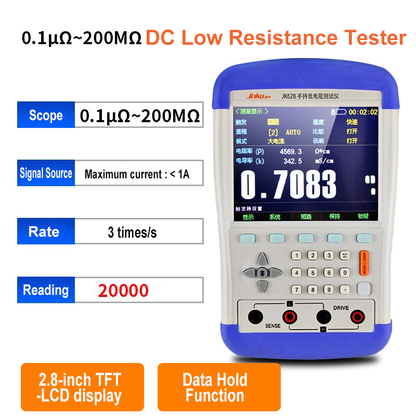

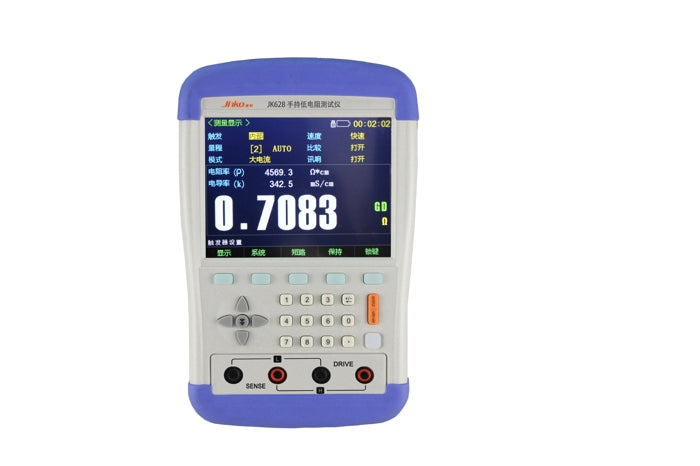

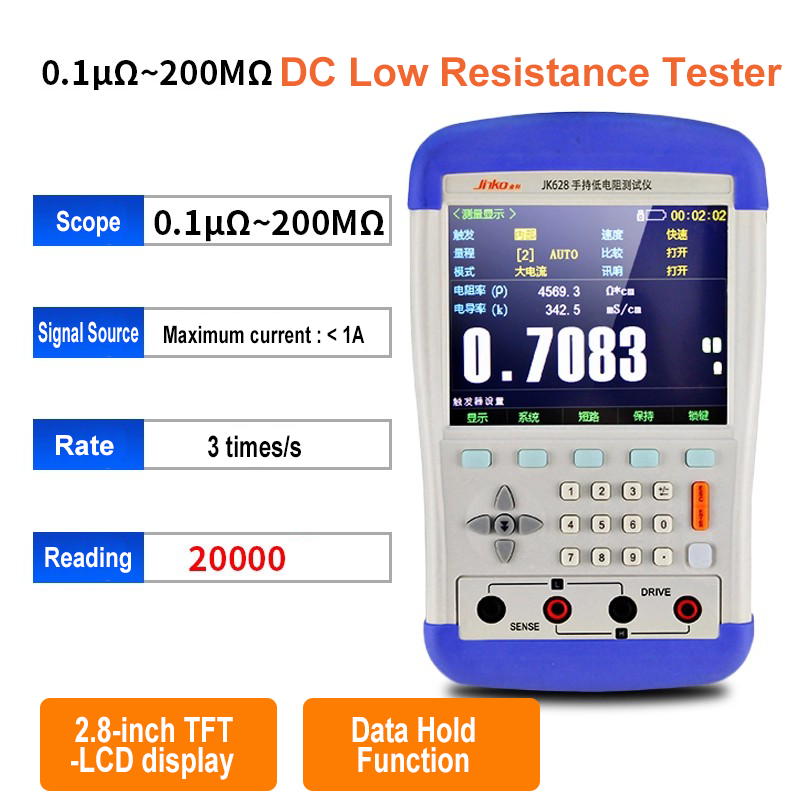

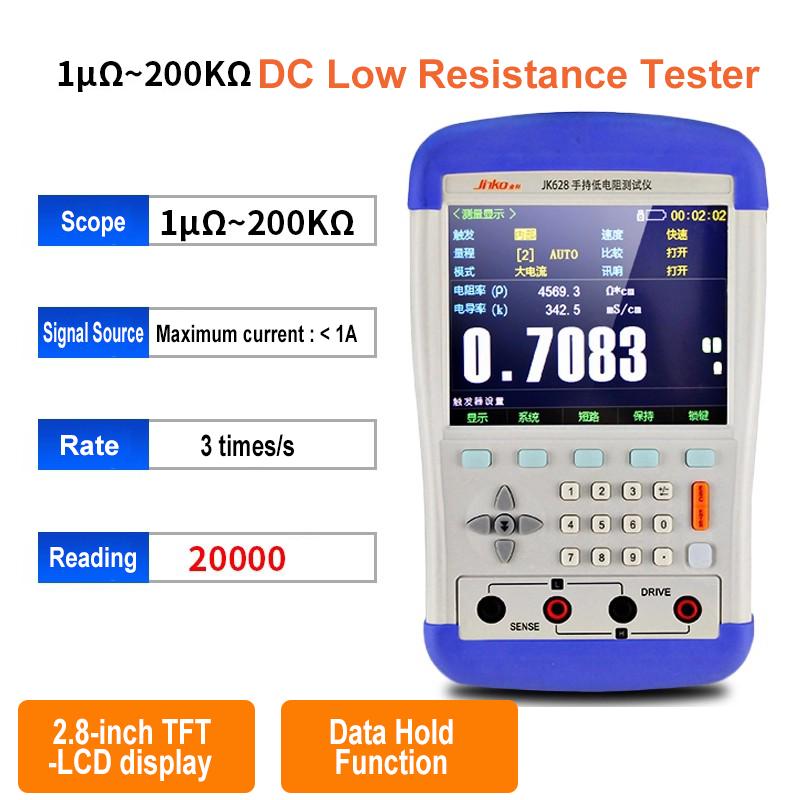

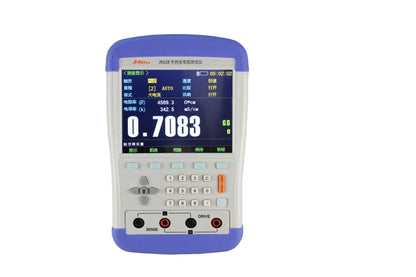

Handheld DC Milliohmmeter 1μΩ ~ 200KΩ 0.1μΩ ~ 200MΩ DC Low Resistance Tester Meter 5.6 - inch TFT - LCD Four Wire Kelvin Measurement
Handheld DC Milliohmmeter 1μΩ ~ 200KΩ 0.1μΩ ~ 200MΩ DC Low Resistance Tester Meter 5.6 - inch TFT - LCD Four Wire Kelvin Measurement
Regular price
$849.00 USD
Regular price
Sale price
$849.00 USD
Unit price
/
per
Couldn't load pickup availability
The 1μΩ ~ 200KΩ and 0.1μΩ ~ 200MΩ DC Resistance Testers deliver precise DC resistance measurement. With two models covering different wide ranges, they're perfect for diverse industrial and lab testing needs.
Key Features
- High Accuracy: Ensures reliable results with precise basic accuracy specs.
- Multiple Ranges & Modes: Nine - range auto, manual, and nominal testing for flexibility.
- Fast Measurement: 3 times per second for efficient testing.
- Clear Display: 5.6 - inch true - color 16M - color TFT - LCD with large fonts for easy reading.
- Convenient Functions: Full - range short - circuit zeroing, built - in sorting record, keyboard lock, data hold, and auto - shutdown.
- Connectivity: Built - in Mini - USB (virtual serial port) and WIFI for seamless data transfer.
- Temperature Compensation: Available for more accurate measurements.
Technical Specifications
|
Parameter
|
1μΩ ~ 200KΩ
|
0.1μΩ ~ 200MΩ
|
|
Measurement Parameter
|
DC Resistance
|
DC Resistance
|
|
Basic Accuracy
|
1μΩ ~20KΩ: ±(0.05% + 3 digits); 20kΩ~20MΩ: ±(0.1% + 3 digits); 20MΩ~200MΩ: ±(3% + 3 digits)
|
0.1μΩ ~200MΩ: Refer to JK628's accuracy logic for relevant ranges
|
|
Measurement Range
|
1μΩ ~ 200KΩ
|
0.1μΩ ~ 200MΩ
|
|
Signal Source
|
Max current: <1A, large - current mode
|
Max current: <1A, large - current mode
|
|
Range
|
Nine - range auto, manual, nominal testing
|
Nine - range auto, manual, nominal testing
|
|
Measurement Speed
|
3 times/s
|
3 times/s
|
|
Display Result
|
Absolute deviation (ABS), relative deviation (PER), sequence (SEQ) comparison
|
Absolute deviation (ABS), relative deviation (PER), sequence (SEQ) comparison
|
|
Max Reading
|
20000 counts
|
20000 counts
|
|
Calibration
|
Full - range short - circuit zeroing
|
Full - range short - circuit zeroing
|
|
Comparator
|
Built - in sorting record, GD/NG sorting result display
|
Built - in sorting record, GD/NG sorting result display
|
|
Trigger Mode
|
Internal, manual
|
Internal, manual
|
|
Interface
|
Built - in Mini - USB interface (virtual serial port)
|
Built - in Mini - USB interface (virtual serial port)
|
|
Wireless Signal
|
WIFI
|
WIFI
|
|
Temperature Compensation
|
Yes
|
Yes
|
|
Test Terminal
|
4 - terminal shielding (2 detection + 2 drive terminals) and external shielding ground terminal
|
4 - terminal shielding (2 detection + 2 drive terminals) and external shielding ground terminal
|
|
Power Requirements
|
Input: 100 - 240V~50/60Hz 0.35A; Output: DC9V 1A, 8.4V, 2200mAh lithium battery
|
Input: 100 - 240V~50/60Hz 0.35A; Output: DC9V 1A, 8.4V, 2200mAh lithium battery
|
|
Size & Weight
|
130.23 (W)×210.76 (H)×37.88 (D) mm, 650g
|
130.23 (W)×210.76 (H)×37.88 (D) mm, 650g
|
|
Accessories
|
4 - terminal Kelvin test clip, DC power adapter, portable bag, lithium battery
|
4 - terminal Kelvin test clip, DC power adapter, portable bag, lithium battery
|
|
Optional Accessories
|
Mini - USB communication cable, data acquisition software
|
Mini - USB communication cable, data acquisition software
|
|
Others
|
5.6 - inch true - color 16M - color TFT - LCD large - font display; keyboard lock, data hold; Chinese/English switch; backlight adjustment; auto - shutdown
|
5.6 - inch true - color 16M - color TFT - LCD large - font display; keyboard lock, data hold; Chinese/English switch; backlight adjustment; auto - shutdown
|
Application Scenarios
- Electronics Manufacturing: Test resistance of resistors, capacitors, and integrated circuits.
- Automotive Industry: Measure resistance in wiring, sensors, and electrical systems.
- Aerospace: Check resistance of aerospace - grade components for reliability.
- Power Industry: Monitor resistance in cables, transformers, and electrical equipment.
- Research Labs: Conduct precise resistance experiments and data analysis.
- Quality Control: Ensure products meet resistance specs in various sectors.
Get the 1μΩ ~ 200KΩ or 0.1μΩ ~ 200MΩ now for accurate DC resistance testing!
