RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter

$428.00
$428.00
Please hurry! Only 10 left in stock
Model: DG821 Pro
Subtotal: $428.00
10 customers are viewing this product

Storewide Discounts

Spend $200+ for 5% OFF | $400+ for 8% OFF | $800+ for 10% OFF. Discounts will be automatically deducted at checkout.

Free Shipping

We offer free express shipping on all orders.

You'll receive your order an estimated 7-15 working days after shipment.

Free Returns

30-Day return and refund guarantee refer to our refund policy.

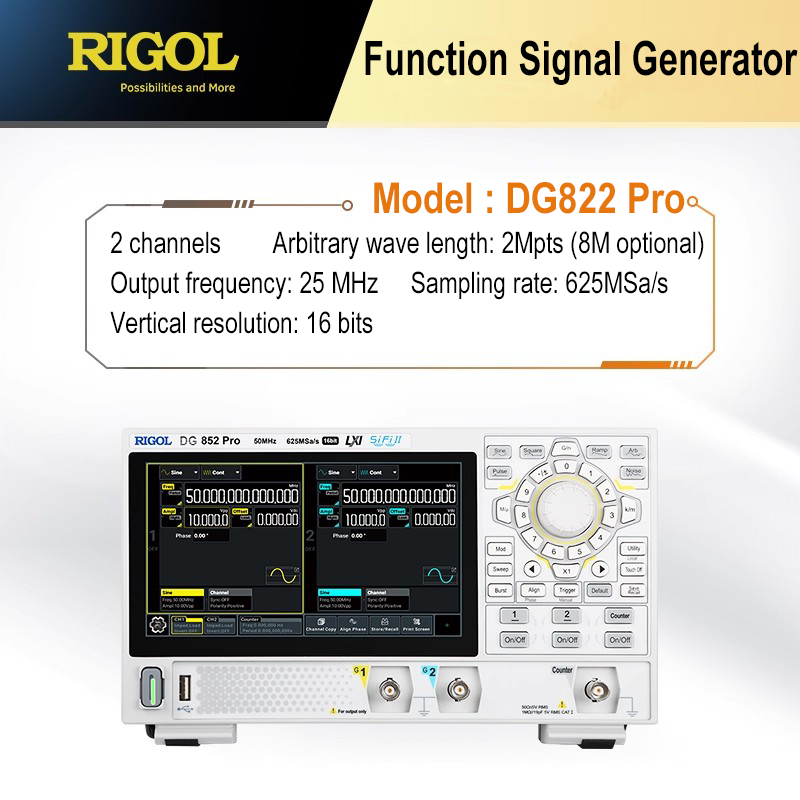

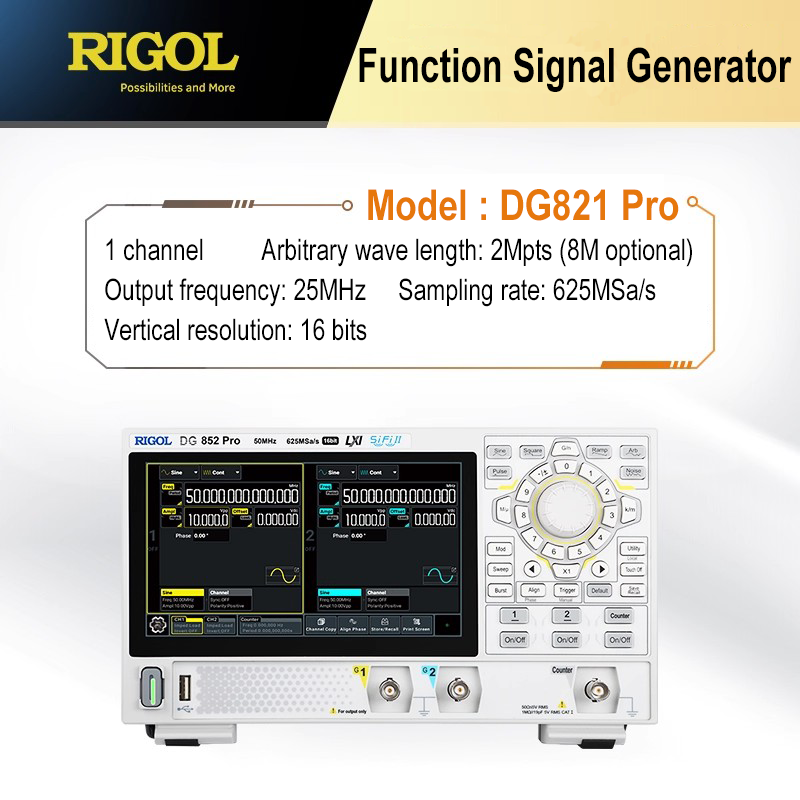

RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter

RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter

$428.00

RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter

$428.00
Model: DG821 Pro

Overview

RIGOL's DG821 Pro, DG822 Pro, and DG852 Pro are high - performance function signal generators, ideal for precise signal generation in electronics, telecommunications, and research.

Key Features

  • High Resolution & Sampling Rate: 16 - bit vertical resolution and 625 MSa/s sampling rate for accurate signal output.
  • Rich Built - in Waveforms: Include sine, square, sawtooth, pulse, noise, and 148 arbitrary waveforms like Sinc, exponential rise/fall, ECG, and Gaussian.
  • Diverse Output Modes & Modulation: Support continuous wave, modulation, sweep, burst, and sequence modes, with modulation types such as AM, FM, PM, ASK, FSK, PSK, PWM, and SUM.
  • Intuitive Operation & Connectivity: 7 - inch 1024*600 touchscreen, support for Web Control, and interfaces like LAN, USB Host, and USB Device.
  • Portable & Flexible Power Supply: Compact size (26616580mm) and weight (1.78kg), with power supply options of mains or mobile power (DC 15V, 3A).

Technical Specifications

Parameter
DG821 Pro
DG822 Pro
DG852 Pro
Channels
1
2
2
Frequency Range
1uHz - 25MHz
1uHz - 25MHz
1uHz - 50MHz
Storage Depth
2 Mpts/CH (8 Mpts/CH optional)
2 Mpts/CH (8 Mpts/CH optional)
2 Mpts/CH (8 Mpts/CH optional)
Sampling Rate
625 MSa/s
625 MSa/s
625 MSa/s
Vertical Resolution
16bit
16bit
16bit
Amplitude Range
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
Frequency Counter
500MHz
500MHz
500MHz
Modulation Types
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
Remote Control
Support Web Control
Support Web Control
Support Web Control
Interfaces
LAN, USB Host, USB Device
LAN, USB Host, USB Device
LAN, USB Host, USB Device
Screen
7 - inch touchscreen (1024*600)
7 - inch touchscreen (1024*600)
7 - inch touchscreen (1024*600)
Dimensions
26616580mm
26616580mm
26616580mm
Weight
1.78kg
1.78kg
1.78kg
Power Supply
Mains/mobile power (DC 15V, 3A)
Mains/mobile power (DC 15V, 3A)
Mains/mobile power (DC 15V, 3A)
Power Consumption
≤ 45W
≤ 45W
≤ 45W

Selection Tips

  • Choose DG821 Pro if you need a single - channel signal generator with a frequency range up to 25MHz.
  • Opt for DG822 Pro when you require dual - channel signal generation with a frequency range up to 25MHz.
  • Select DG852 Pro if dual - channel signal generation with a frequency range up to 50MHz is needed.

Application Scenarios

  1. Electronics R & D: Generate test signals for circuit design and debugging.
  1. Telecommunications Testing: Test communication systems with modulated signals.
  1. Education: Demonstrate signal generation principles in electronics courses.
  1. Industrial Automation: Provide control signals for automated systems.
  1. Audio Testing: Generate audio frequency signals for speaker and amplifier testing.
  1. Research Labs: Create custom waveforms for scientific experiments.
Get RIGOL function signal generators now for precise signal generation!
