Product Details

Overview

This benchtop battery inte rnal resistance tester is a high - precision and high - stability instrument designed for accurate battery parameter measurement. It caters to diverse battery testing needs in various scenarios, ensuring reliable assessment of battery conditions.

Key Features

  • Vector Measurement: Adopts vector measurement method, enabling simultaneous measurement of multiple parameters for comprehensive battery analysis.
  • Comparator Function: Equipped with comparator (sorting) function, facilitating efficient battery sorting based on different parameters.
  • Test Line Damage Detection: Features test line damage detection to ensure the reliability of measurement setup.
  • SCPI Command Set Compatibility: Compatible with SCPI command sets, allowing seamless integration into automated testing systems.
  • Advanced Sampling Circuit: Utilizes a newly improved sampling circuit, capable of measuring any type of battery accurately.
  • Professional Fuel Cell Testing: Specially designed for professional fuel cell testing, meeting specific testing requirements.
  • Bilingual Display: Comes with a true - color TFT - LCD display supporting both Chinese and English, making operation more convenient.
  • Data Management Functions: Includes keyboard lock and data hold functions, as well as internal flash memory and U - disk data recording for efficient data management.

Technical Specifications

Parameter
Model 1
Model 2
Test Parameters
AC resistance, DC voltage
AC resistance, DC voltage
Basic Accuracy (Resistance)
0.5%
0.5%
Basic Accuracy (Voltage)
0.05%
0.05%
Resistance Measurement Range
0.001mΩ - 33.000kΩ
0.001mΩ - 33.000kΩ
Voltage Measurement Range
0.00001V - 60.000VDC
0.00001V - 120.000VDC
Signal Source
AC 1kHz, open - circuit voltage < 20mV, test current < 150mA
AC 1kHz, test current < 150mA
Range Modes
5 - range automatic, manual
7 - range automatic, manual
Test Speed
30 times/second, 10 times/second, 1 time/second
30 times/second, 10 times/second, 1 time/second
Display Results
Direct reading, ΔABS, Δ%, θ, sorting results
Direct reading, ΔABS, Δ%, θ, sorting results
Maximum Readings (Resistance)
33,000 counts
33,000 counts
Maximum Readings (Voltage)
60,00 counts
120,000 counts
Calibration
Full - range short - circuit zeroing
Full - range short - circuit zeroing
Comparator Outputs
RHI/RNG/RL0 output, VHI/VNG/VL0 output, absolute value tolerance ±TOL sorting, percentage tolerance ±TOL sorting, sequence comparison sorting
Optional 18 - gear sorting: RHI/RNG/RL0 output, VHI/VNG/VL0 output, absolute value tolerance ±TOL sorting, percentage tolerance ±TOL sorting, sequence comparison sorting
Triggers
Internal trigger, manual trigger, remote trigger
Internal trigger, manual trigger, external trigger, remote trigger

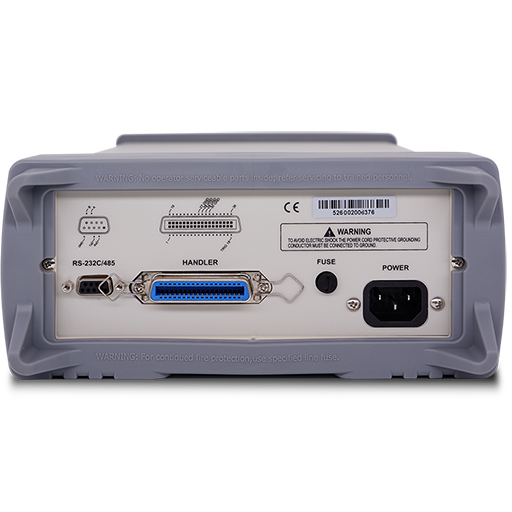

Interfaces
RS - 232C, USB
RS - 232C, Handler (PLC), USB
Dimensions (mm)
264 (W) × 107 (H) × 350 (D)
264 (W) × 107 (H) × 350 (D)
Weight
4kg
4kg

Application Scenarios

  1. Contact Resistance Testing: Tests various contact resistances for quality control.
  1. Battery Aging and Life Assessment: Determines the aging condition and assesses the life of alkaline batteries, lead - acid batteries, and lithium batteries.
  1. UPS Online Detection: Performs online detection of UPS systems to ensure reliable power supply.
  1. Battery Factory Inspection: Conducts factory inspection of storage batteries to ensure product quality.
  1. Supercapacitor ESR Measurement: Measures the equivalent series resistance (ESR) of supercapacitors for performance evaluation.
  1. Fuel Cell Testing: Carries out professional testing of fuel cells to meet specific research and production needs.
Get this benchtop battery internal resistance tester now for accurate and efficient battery parameter measurement!
