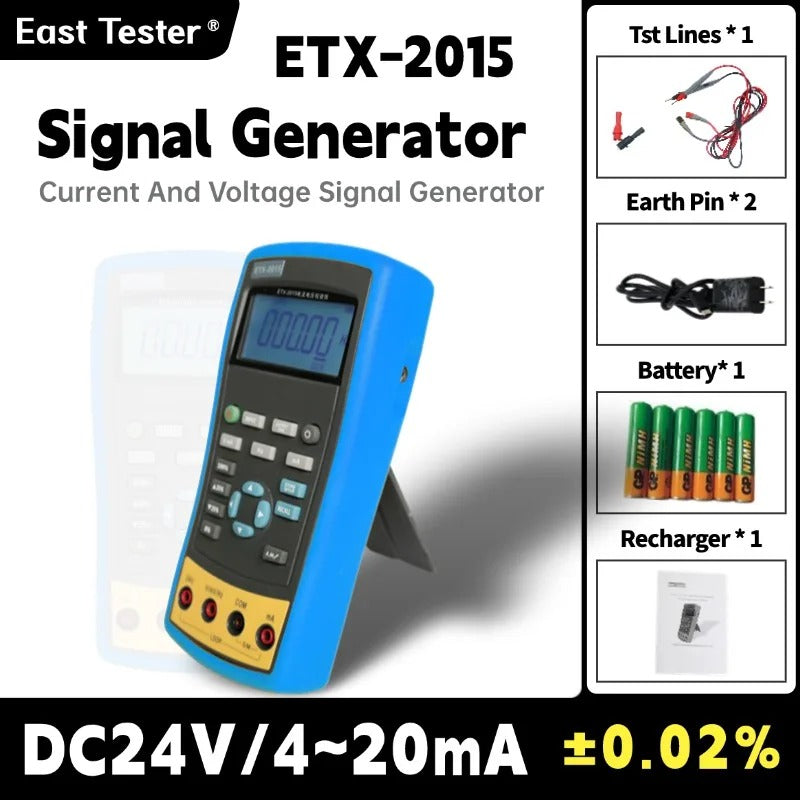

Need top-tier electrical parameter calibration? The ETX-2015 delivers 0.02% accuracy, multi-function testing (voltage/current/frequency/millivolt), and IP67 waterproofing—ideal for industrial on-site debugging, precision instrument calibration, and process control.
User-Friendly & Durable Design

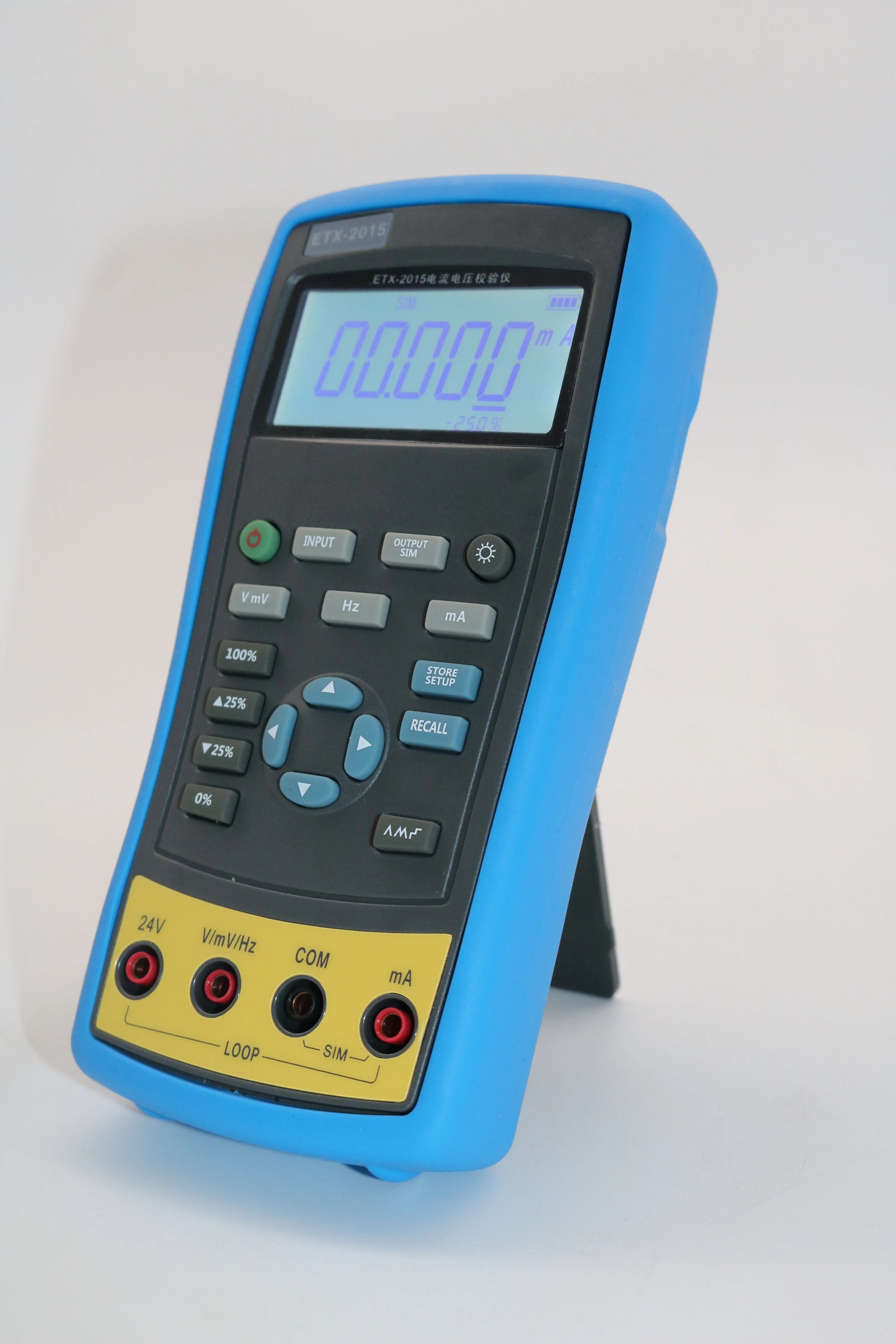

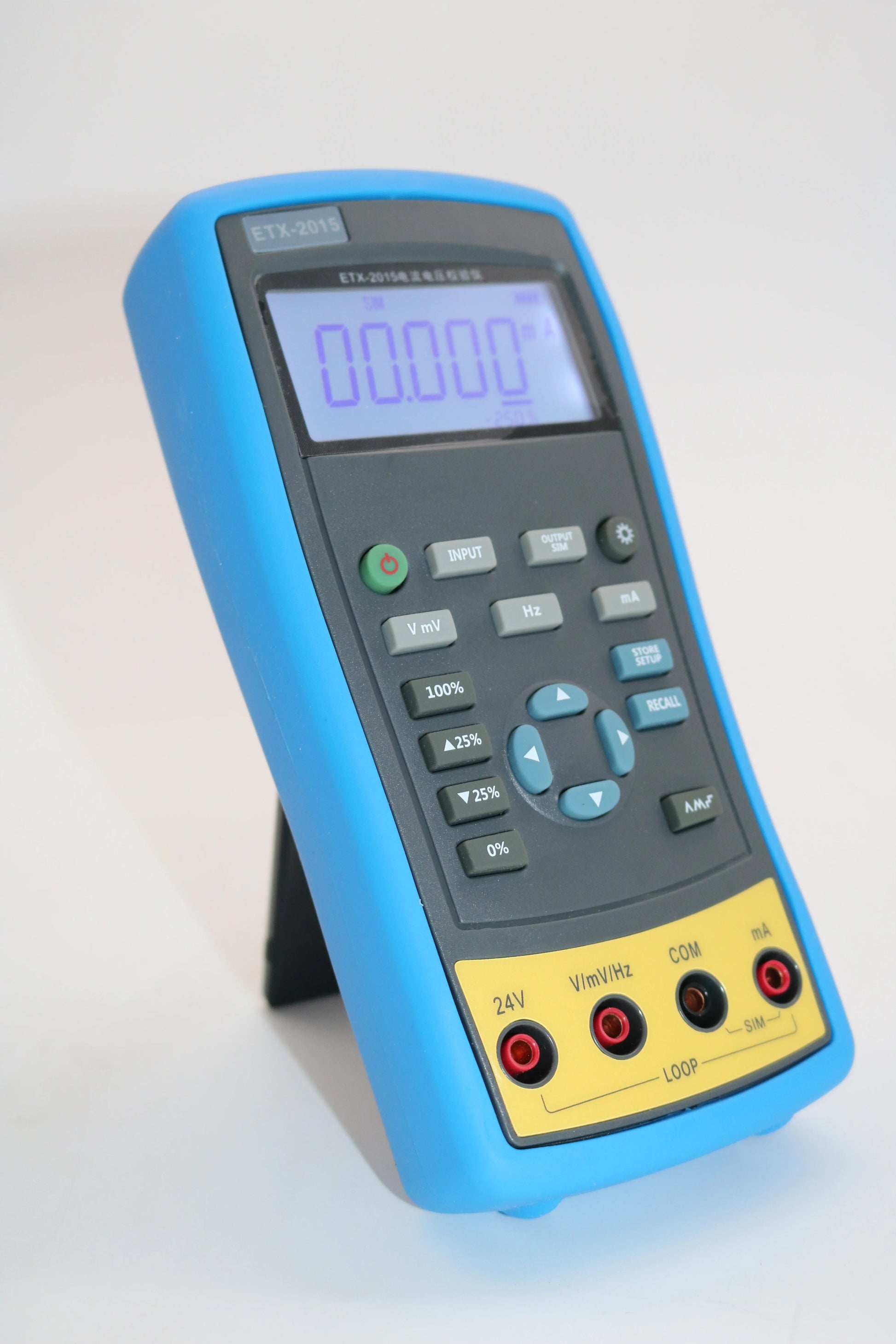

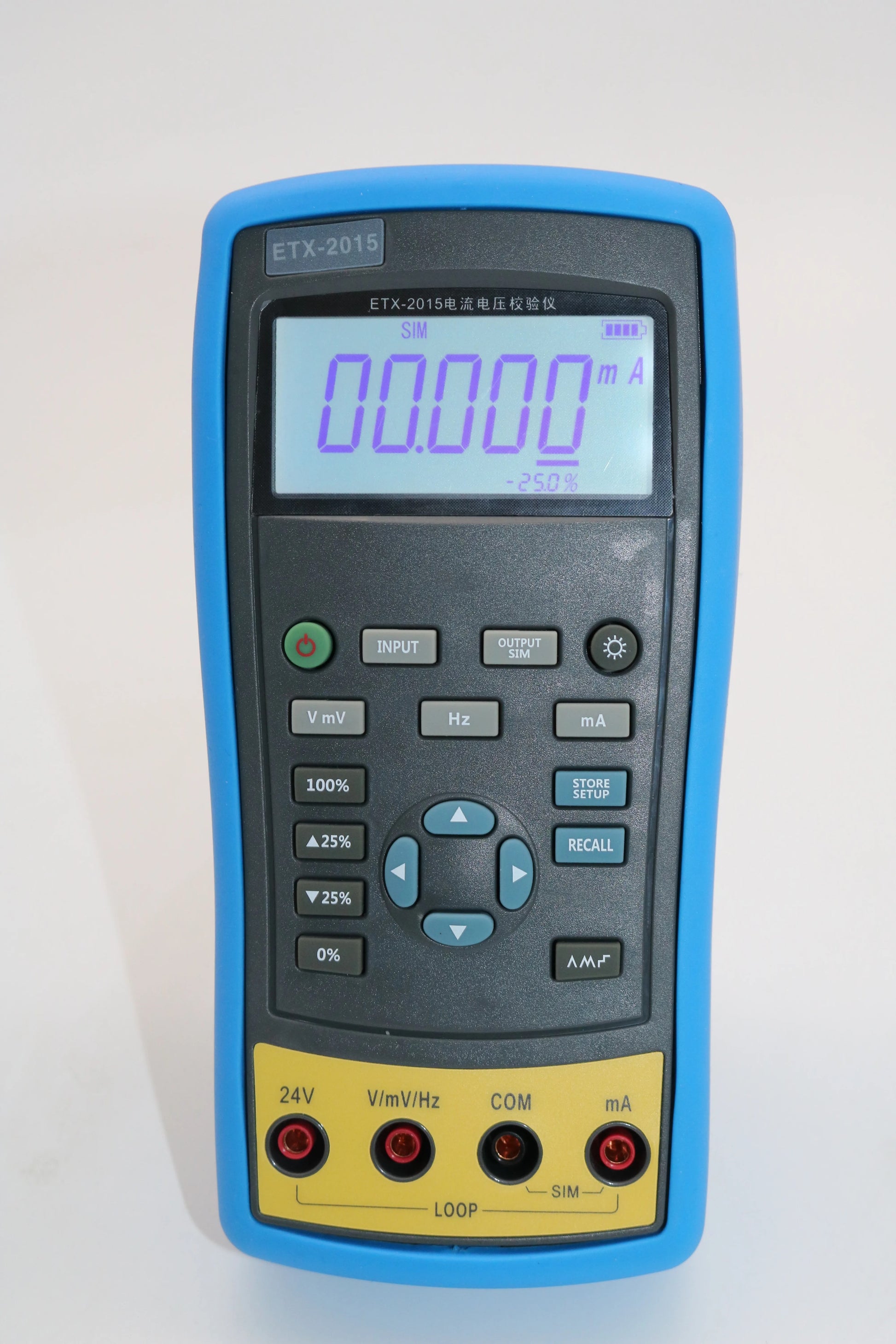

Clear Display: Large LCD with adjustable white LED backlight (easy read in dark); compact handheld size.
Easy Operation: Supports manual/auto stepping, slope/step output; built-in 24V loop power for on-site use.

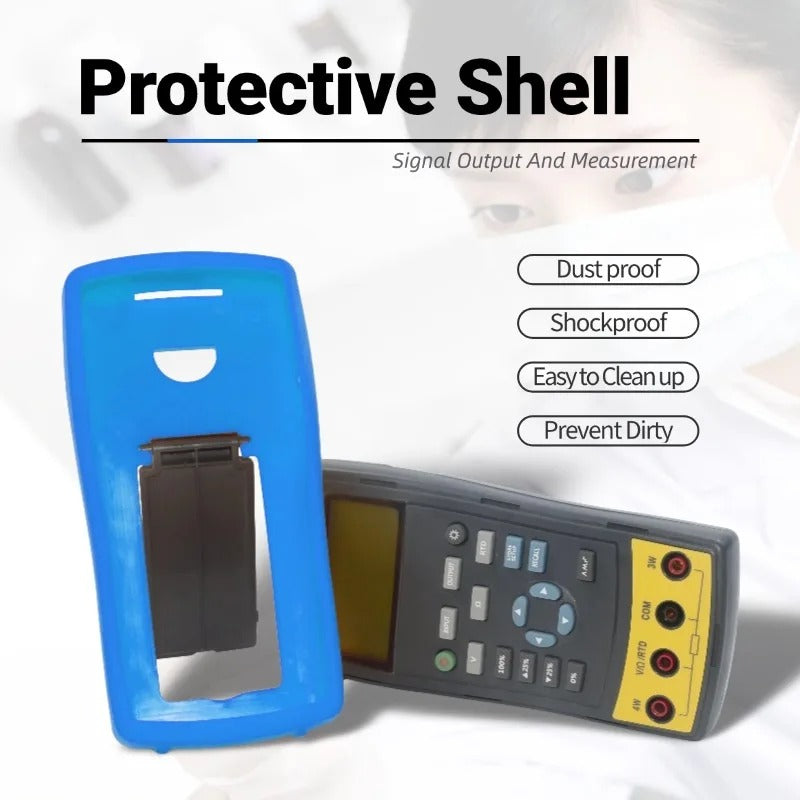

Sturdy Build: IP67 waterproof; 220V misconnection protection; runs on batteries or AC adapter (flexible for fieldwork).
Key Specifications
Parameter
Detail
Model
ETX-2015
Accuracy
0.02% (readings)
Measurement Functions
DC voltage: 0~31V (0.001V resolution)
DC millivolt: 15~125mV (0.001mV/0.01mV resolution)
DC current: 0~24mA (0.001mA resolution)
Frequency: 1Hz~99.999kHz (0.001Hz~1Hz resolution)
Output Functions
DC voltage: 0~11V (0.001V) / -15~125mV (0.001mV/0.01mV)

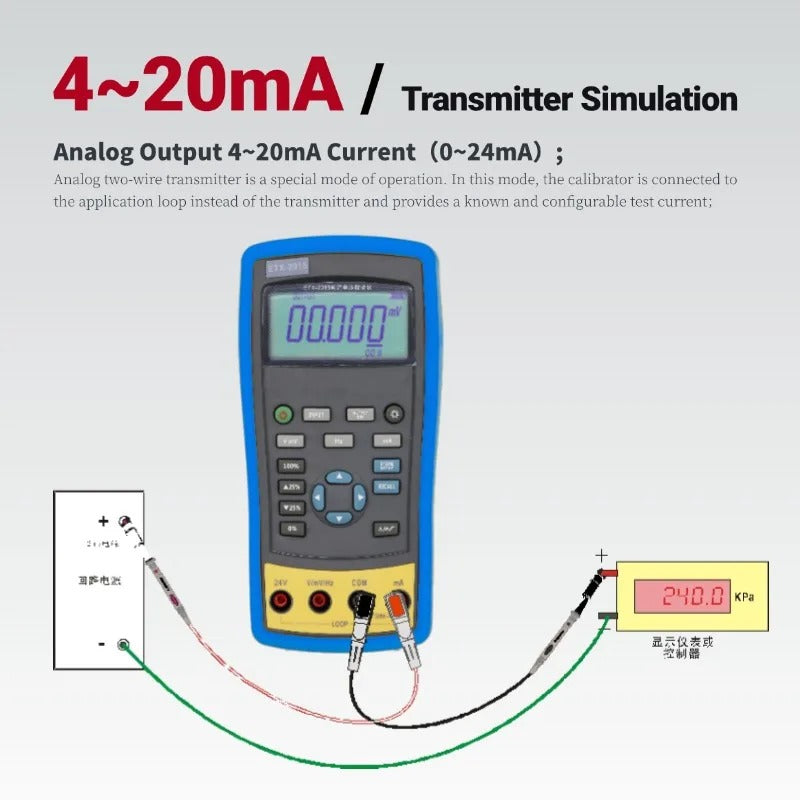

DC current: 0~24mA (0.001mA, active/passive + transmitter simulation)
Frequency: 0~20kHz (0.01Hz~1Hz resolution)
Step/slope/0~100% step output
Extra Features

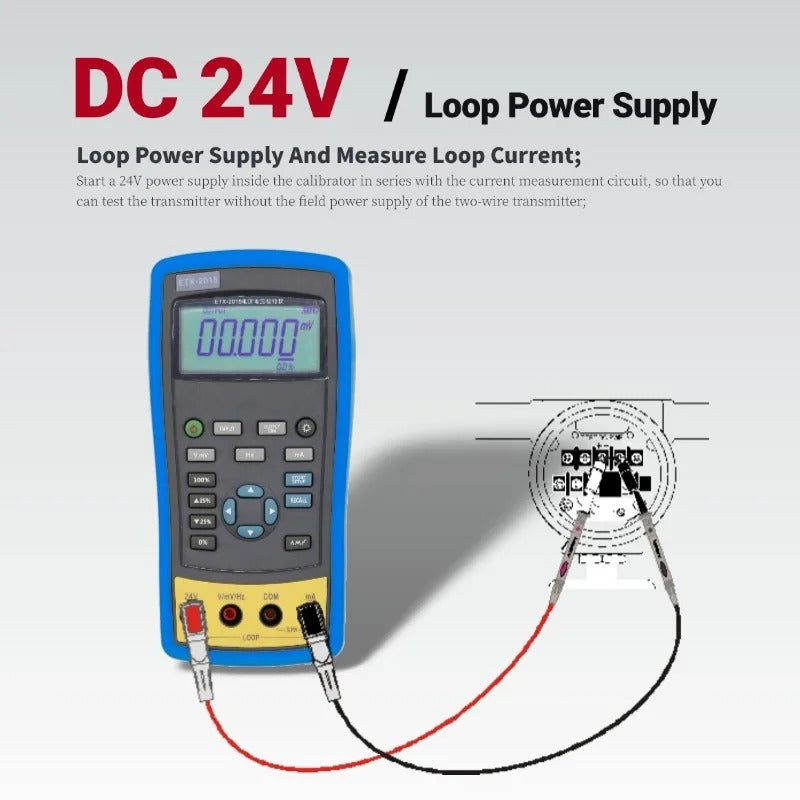

24V loop power; IP67 waterproof;
220V misconnection protection;
auto power-off
Power

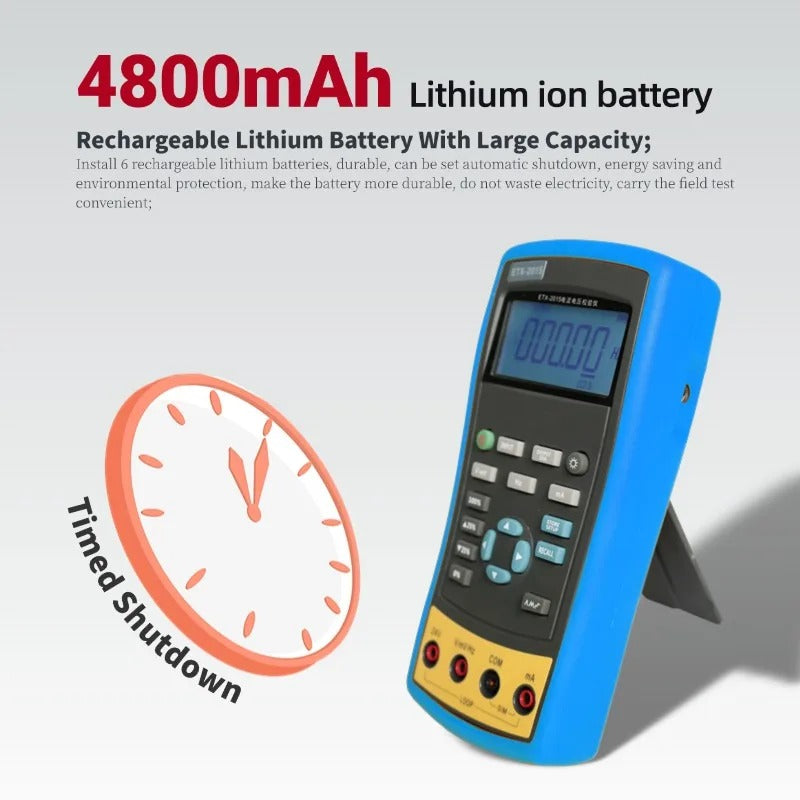

Batteries or AC adapter
Core Advantages
Ultra-Precision: 0.02% accuracy ensures reliable data for high-demand calibration tasks.
