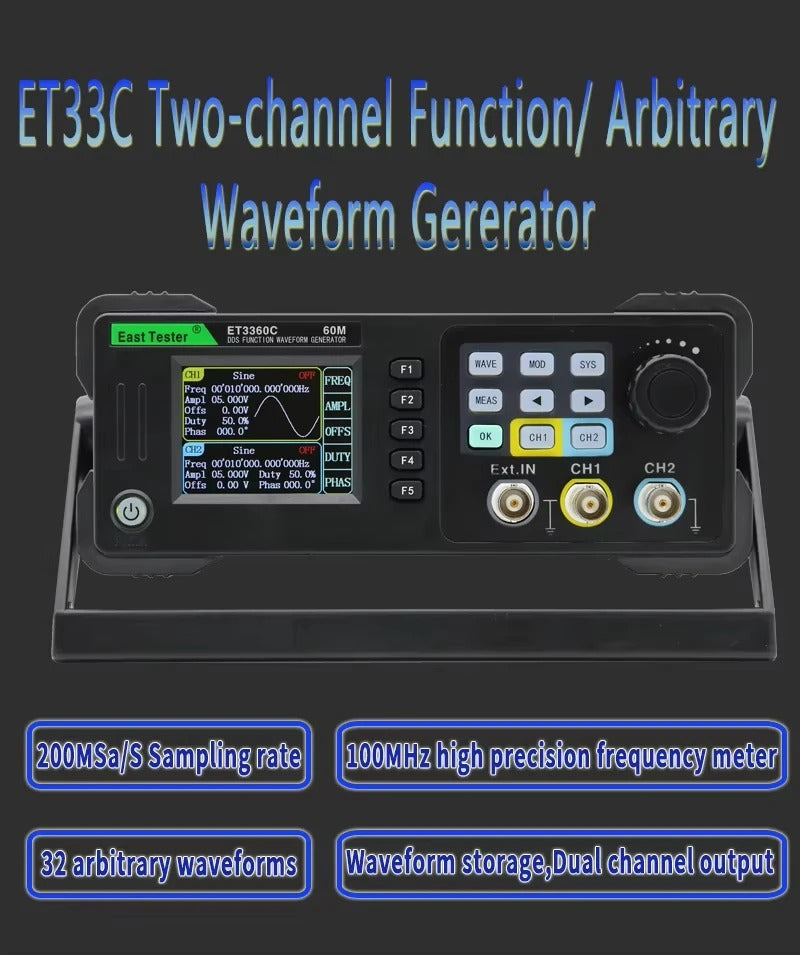

ET3360C Two-Channel Function/ Arbitrary Waveform Generator 60Mhz Frequency Meter ET3360C Signal Source

ET3360C Two-Channel Function/ Arbitrary Waveform Generator 60Mhz Frequency Meter ET3360C Signal Source

$189.99 USD
$189.99 USD
Sale Sold out

English Manual

ET3360C Dual-Channel Function/Arbitrary Waveform Generator: High-Freq Precision Signal Solution

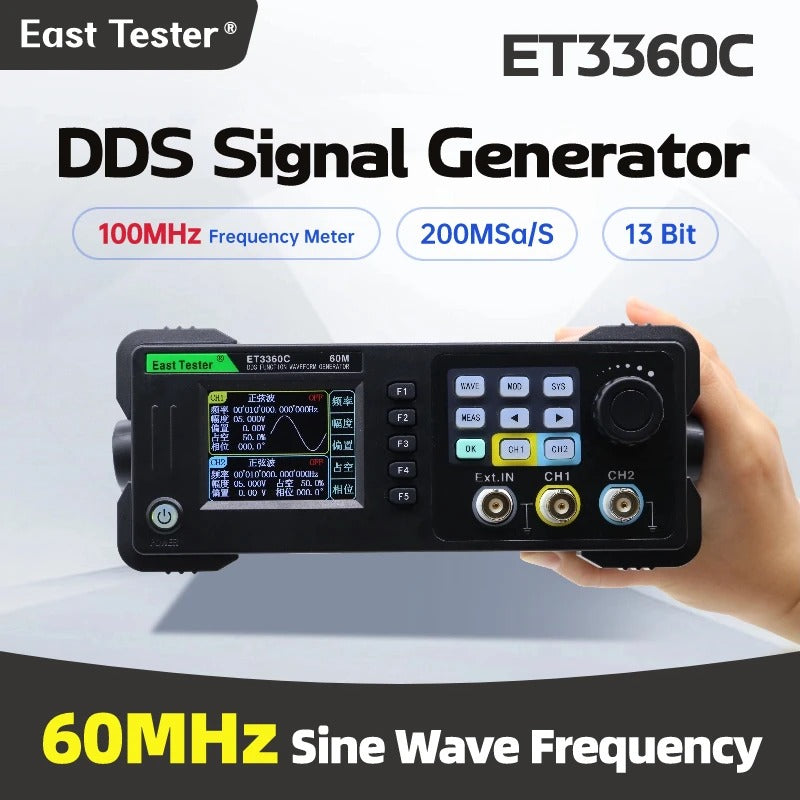

Need high-frequency, ultra-stable signals for advanced testing? The ET3360C adopts direct digital frequency synthesis (DDS) tech, delivering 60MHz max output frequency with low distortion and high accuracy—ideal for R&D, high-frequency lab testing, and advanced electronics manufacturing.

User-Friendly Design

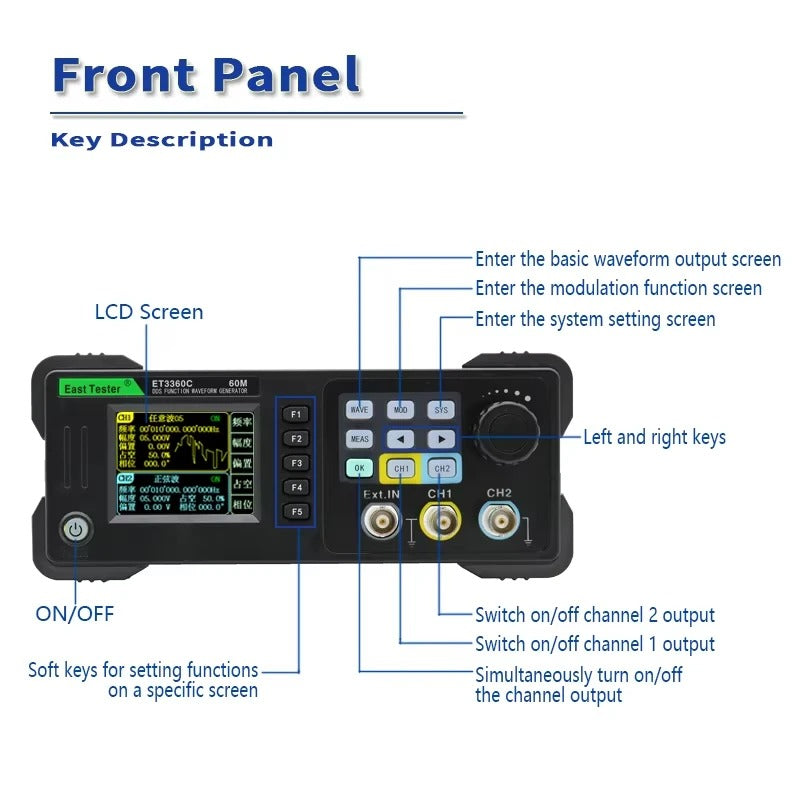

  • Clear Visualization: 2.4-inch 320×240 TFT LCD with Chinese/English menus; intuitive graphical interface for easy parameter adjustment.
  • Dual-Channel Flexibility: Independent dual channels with phase synchronization, supporting coordinated high-frequency signal generation.

Key Specifications

Parameter
Detail
Model
ET3360C
Max Output Frequency
60MHz (covers high-frequency testing needs for advanced electronics)
Sampling Rate
200MSa/s (ensures precise reproduction of high-frequency waveforms)
Vertical Resolution
13 bit (fine control over signal amplitude for accurate testing)
Storage Depth
8k (stores ample waveform data; supports 50 groups of user-defined waveforms)
Waveform Types
5 basic waveforms + 32 arbitrary waveforms (built-in); user-editable for custom testing scenarios
Modulation Functions
Internal AM/FM/PM; internal/external ASK/FSK/PSK (adapts to communication signal testing)
Output Capabilities
Linear/logarithmic sweep, burst (pulse train) waveforms (expands application scope)
Frequency Meter
100MHz high-precision meter + 32-bit counter (for accurate frequency measurement)

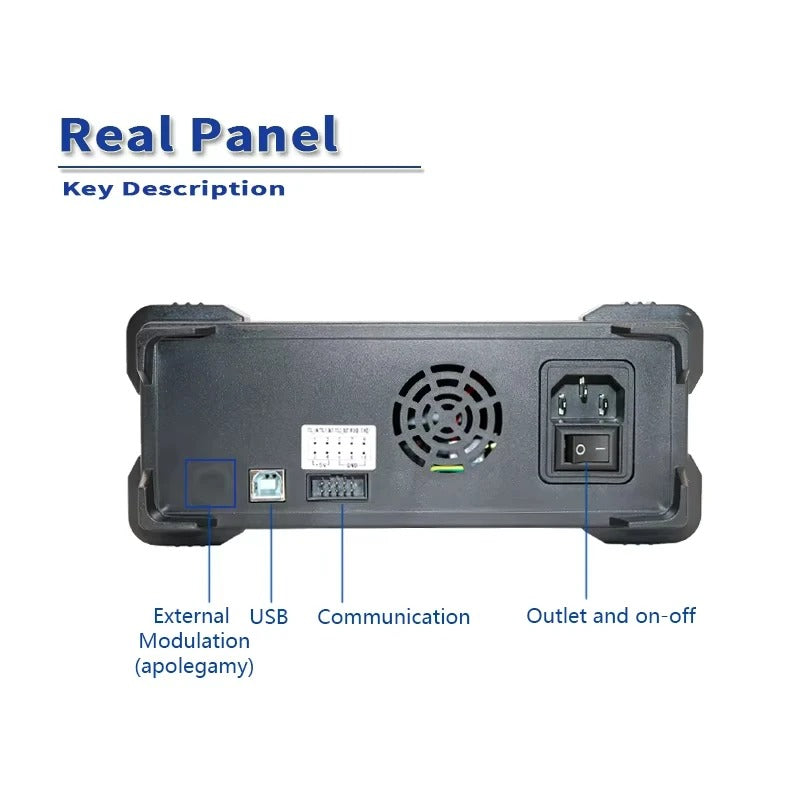

Interface
Standard USB; includes arbitrary waveform editing software (easy data sync and waveform customization)
Power Supply
AC 110-240V, 50-60Hz; <15W (energy-efficient for long-term use)
Operating Env
Temp: 10°C-40°C; Humidity: ≤90% RH (<35°C), ≤60% RH (35°C-40°C)

Core Advantages

  • High-Freq Precision: 60MHz output + low distortion ensures reliable signals for high-frequency component testing.
  • Versatile Testing: Rich waveforms and modulation functions fit communication, sensor, and IC high-frequency R&D.
  • Easy Operation: Dual-language interface + software support reduces learning curve for engineers.

Applicable Scenarios

  1. High-Freq R&D: Generates test signals for 5G-related components, high-speed ICs, and RF modules.
  1. Advanced Lab Testing: Verifies performance of high-frequency electronics (e.g., oscillators, amplifiers).
  1. Electronics Manufacturing: Quality control for high-frequency products (e.g., communication devices).

Why Choose ET3360C?

  • High-Freq Performance: 60MHz output meets advanced testing needs that lower-frequency generators can’t cover.
  • Cost-Effective: All-in-one design replaces multiple high-frequency tools, saving budget.
  • Reliable: Wide environmental adaptability ensures stable operation in lab/production environments.
Upgrade your high-frequency signal generation! Click “Add to Cart” to get the ET3360C.
