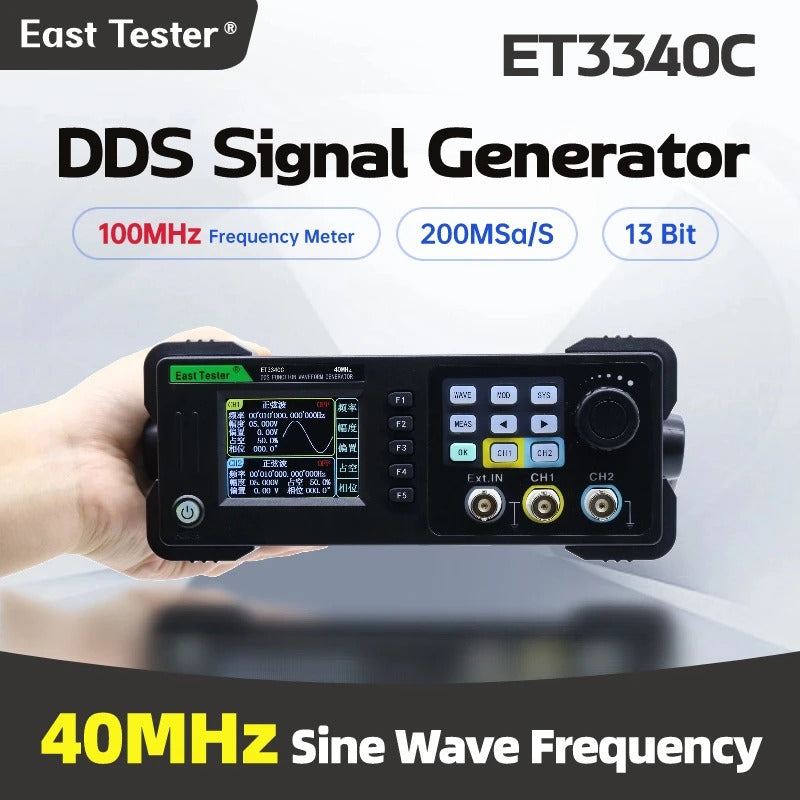

ET3340C Dual-Channel Function/Arbitrary Waveform Generator: Precision Signal Solution
Introduction
When it comes to obtaining accurate and stable signal outputs for various applications, the ET3340C is your go - to choice. Leveraging direct digital frequency synthesis technology, this generator offers high - accuracy, stability, and low - distortion signals, making it a must - have for R&D, laboratory testing, and electronics manufacturing.
User - Friendly Design

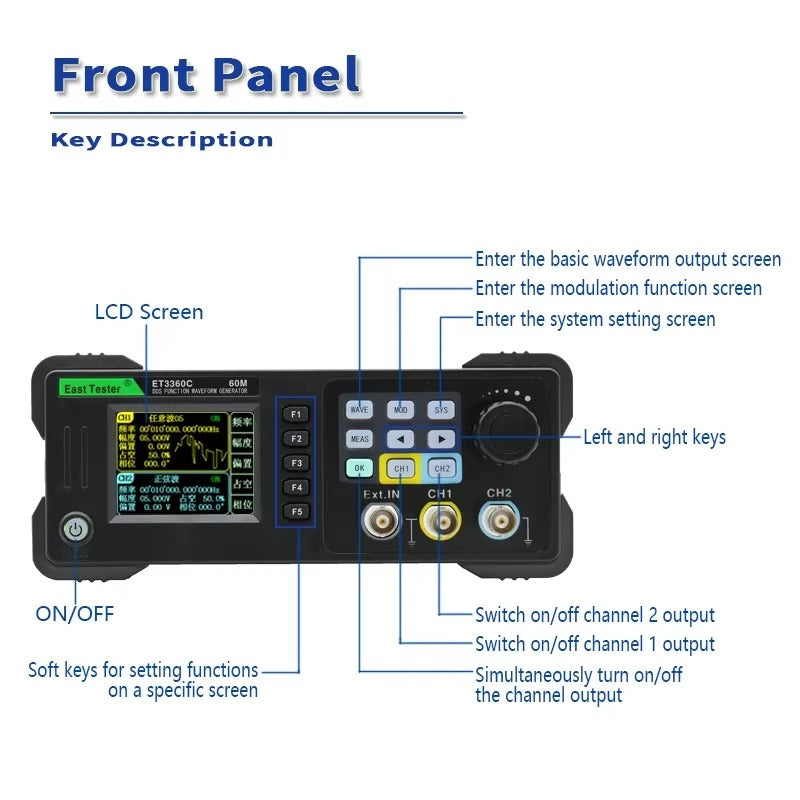

Clear Visualization: Features a 2.4 - inch 320×240 TFT LCD screen that presents a clear graphical interface. The Chinese and English menu options ensure easy operation for a wide range of users.
Dual - Channel Independence: Both channels function independently of each other and are equipped with a phase synchronization function. This allows for more complex and coordinated signal generation scenarios.
Key Specifications
Parameter
Detail
Model
ET3340C
Maximum Output Frequency
40MHz, enabling the generation of high - frequency signals required for advanced applications.
Sampling Rate
200MSa/s, ensuring detailed and accurate signal reproduction.
Vertical Resolution
13 bit, providing fine - grained control over the signal amplitude.
Storage Depth
8k, allowing for the storage of a significant amount of waveform data.
Waveform Types
Comes with 5 basic waveforms and 32 arbitrary waveforms built - in. Also supports internal storage of 50 groups of user - defined edited waveforms, offering great flexibility in signal creation.
Modulation Functions
Internal AM, FM, PM modulation functions, as well as internal/external ASK, FSK, PSK modulation, enabling the creation of a wide variety of modulated signals.
Output Waveforms
Capable of outputting linear/logarithmic sweep and burst (pulse train) waveforms, expanding its application scope.
Frequency Meter
Equipped with a 100MHz high - precision frequency meter and a 32 - bit counter for accurate frequency measurement.

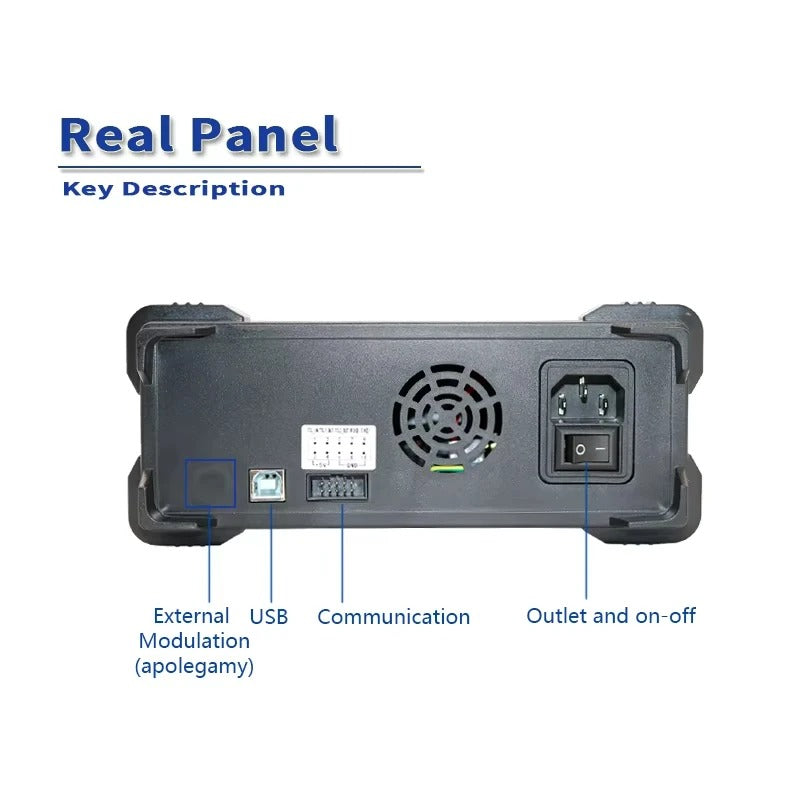

Interface
Standard USB device interface for easy connection to external devices, and is equipped with multifunctional arbitrary waveform editing software for convenient waveform modification.
Power Supply
Operates on AC 110 - 240V, 50 - 60Hz, with a power consumption of less than 15W, ensuring energy - efficient operation.
Display
2.4 - inch TFT LED for clear display of waveform and parameter information.
Temperature Range
Can operate at 10°C - 40°C and can be stored non - operationally at - 10°C - 60°C.
High - Precision Signals: With a low - distortion design and accurate frequency control, the ET3340C provides reliable signals for even the most demanding testing and measurement tasks.
Versatility: The wide range of waveform types and modulation functions make it suitable for a diverse set of applications, from basic circuit testing to advanced communication system research.
Ease of Use: The intuitive graphical interface, dual - language menu, and user - friendly software make it accessible for both experienced engineers and beginners.
Applicable Scenarios
Research and Development: Ideal for generating test signals during the development of new electronic products, such as integrated circuits, communication modules, and sensors.
Laboratory Testing: Used to verify the performance of electronic components and systems, ensuring they meet the required specifications.
Electronics Manufacturing: Helps in the production line testing to ensure the quality and reliability of manufactured products.
Why Choose ET3340C?
Performance - Driven: Its high - end specifications, such as the 40MHz maximum output frequency and high - resolution sampling, make it a top performer in its class.
Cost - Effective: Offering a comprehensive set of functions at a competitive price, it provides great value for money, eliminating the need for multiple signal - generation devices.
Reliable and Durable: Designed to operate in a wide range of environmental conditions, it ensures long - term, stable performance.
Upgrade your signal - generation capabilities today! Click “Add to Cart” to bring the ET3340C dual - channel function/arbitrary waveform generator into your workspace.
