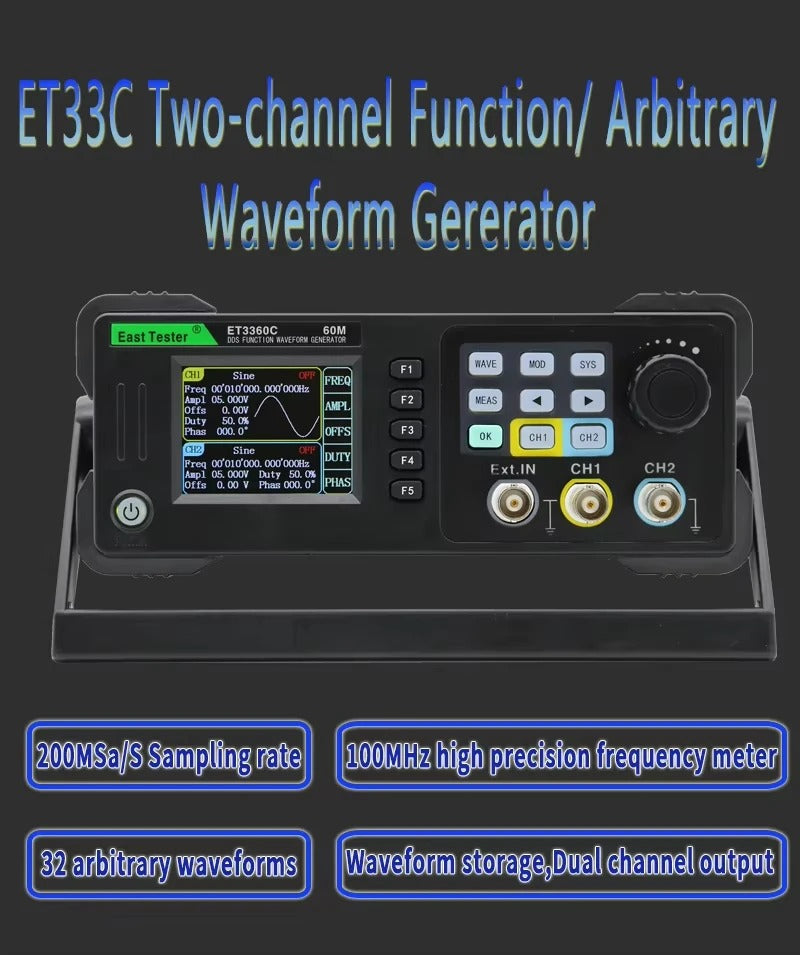

ET3320C Two-Channel Function/Arbitrary Wave Generator: High-Precision Signal Output

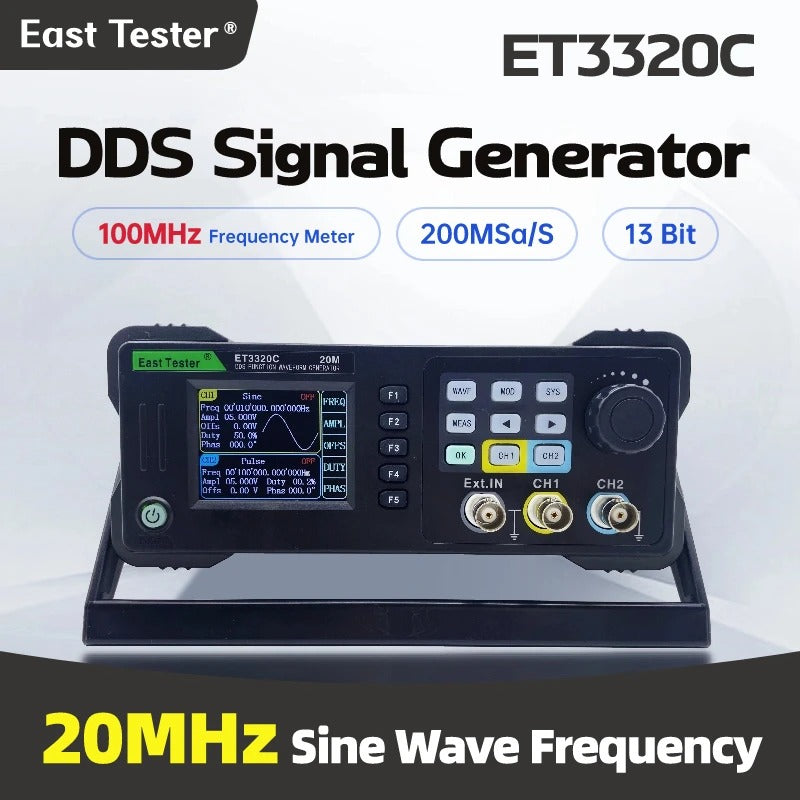

Need high-accuracy, stable signals? The ET3320C uses direct digital frequency synthesis for 20MHz max output , low distortion, and versatile modulation—ideal for R&D, lab testing, and electronics design.
Key Features

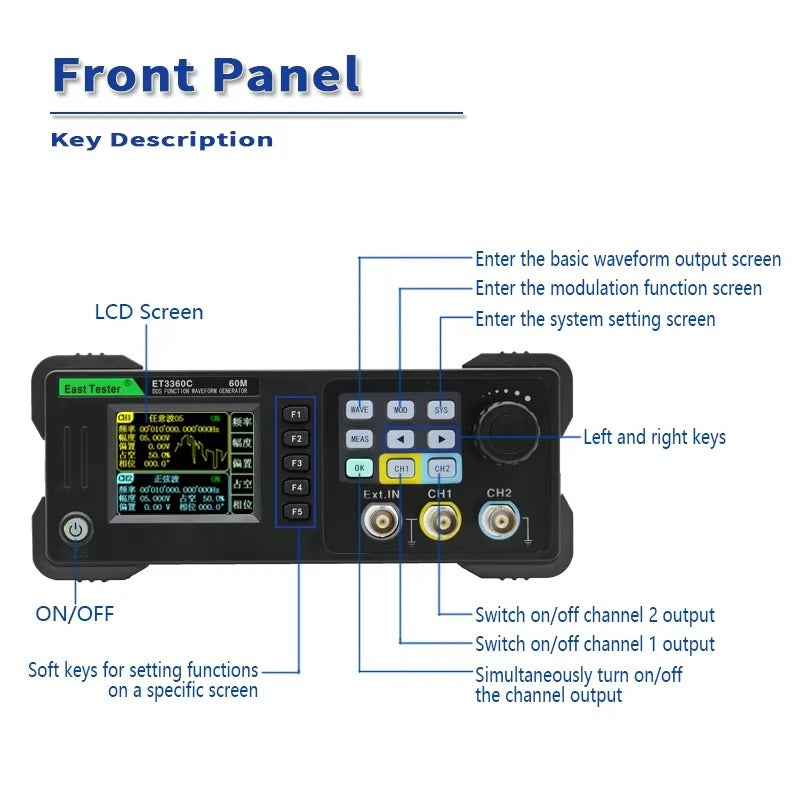

Clear Display : 12.4-inch 320×240 TFT LCD with Chinese/English menus.
Dual Independent Channels : Phase synchronization supported; sample rate 200MSa/s, 13-bit vertical resolution, 8k storage depth.

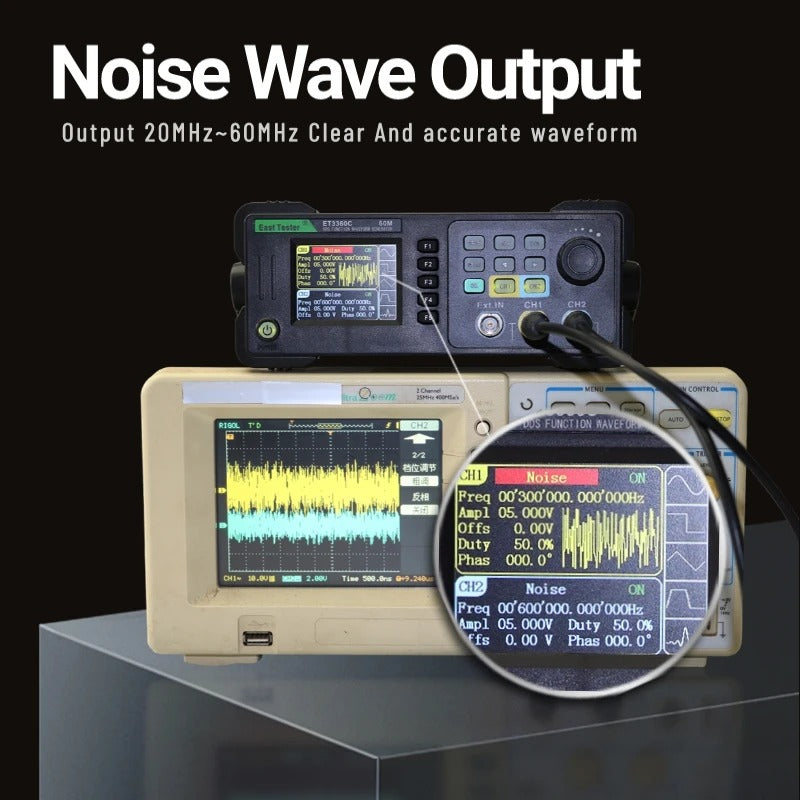

Versatile Waveforms : 5 basic + 32 arbitrary waveforms; store 50 user-edited groups.
Modulation Options : Internal AM/FM/PM; internal/external ASK/FSK/PSK.

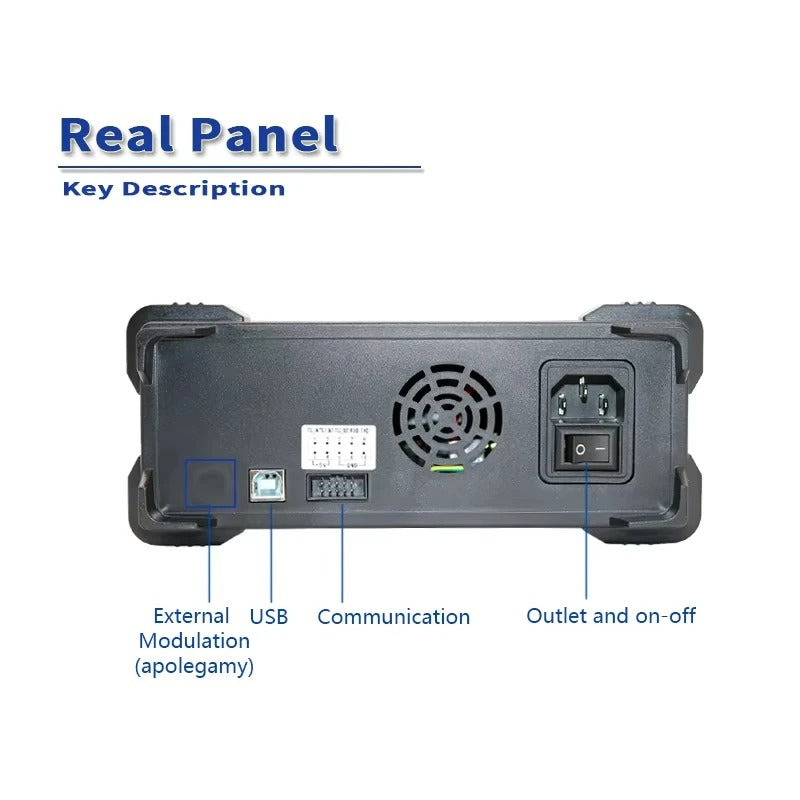

Convenient Interfaces : 100MHz frequency counter; standard USB; multifunctional waveform editing software included.
Specifications
Parameter
Detail
Model
ET3320C
Max Output Frequency
20MHz
Sampling Rate
200MSa/s
Vertical Resolution
13 bit
Storage Depth
8k
Waveforms
5 basic, 32 arbitrary; 50 user-defined groups storage
Modulation
AM/FM/PM (internal); ASK/FSK/PSK (internal/external)
Interfaces
100MHz frequency counter; standard USB; waveform editing software included
Power
AC 110~240V, 50~60Hz; <15W
Display
12.4-inch TFT LCD
Temperature Range
Operation: 10℃~+40℃; Non-operation: -10℃~+60℃
Humidity Range
+35℃ below: ≤90% RH; +35℃~+40℃: ≤60% RH
Ideal For
R&D Labs : Generate precise test signals for circuit design.
Electronics Testing : Verify component performance with stable waveforms.
Education : Teach signal generation/modulation in engineering courses.
Why Choose ET3320C?
High Precision : Low distortion, accurate frequency for reliable tests.
Versatile : Wide waveform/modulation options fit diverse applications.
User-Friendly : Clear display, dual-language menus, easy software integration.
Upgrade your signal generation! Click “Add to Cart” for the ET3320C.
