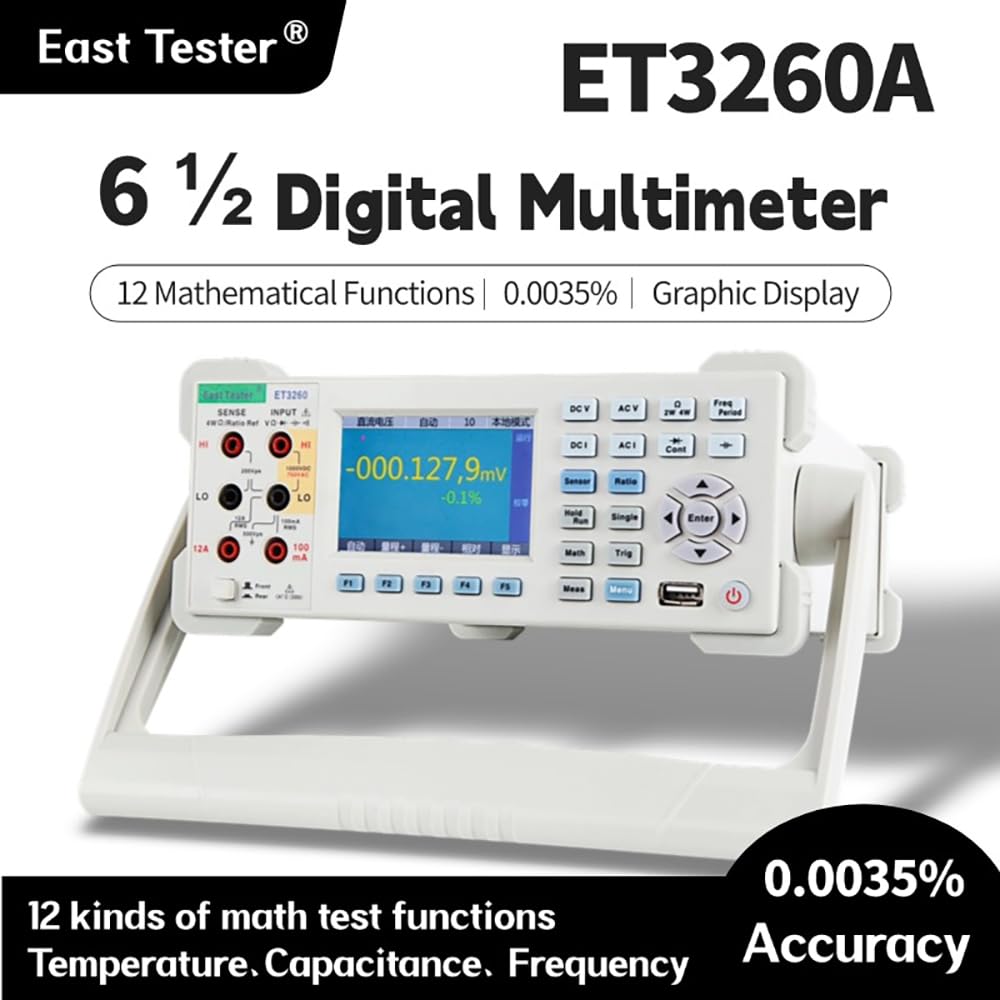

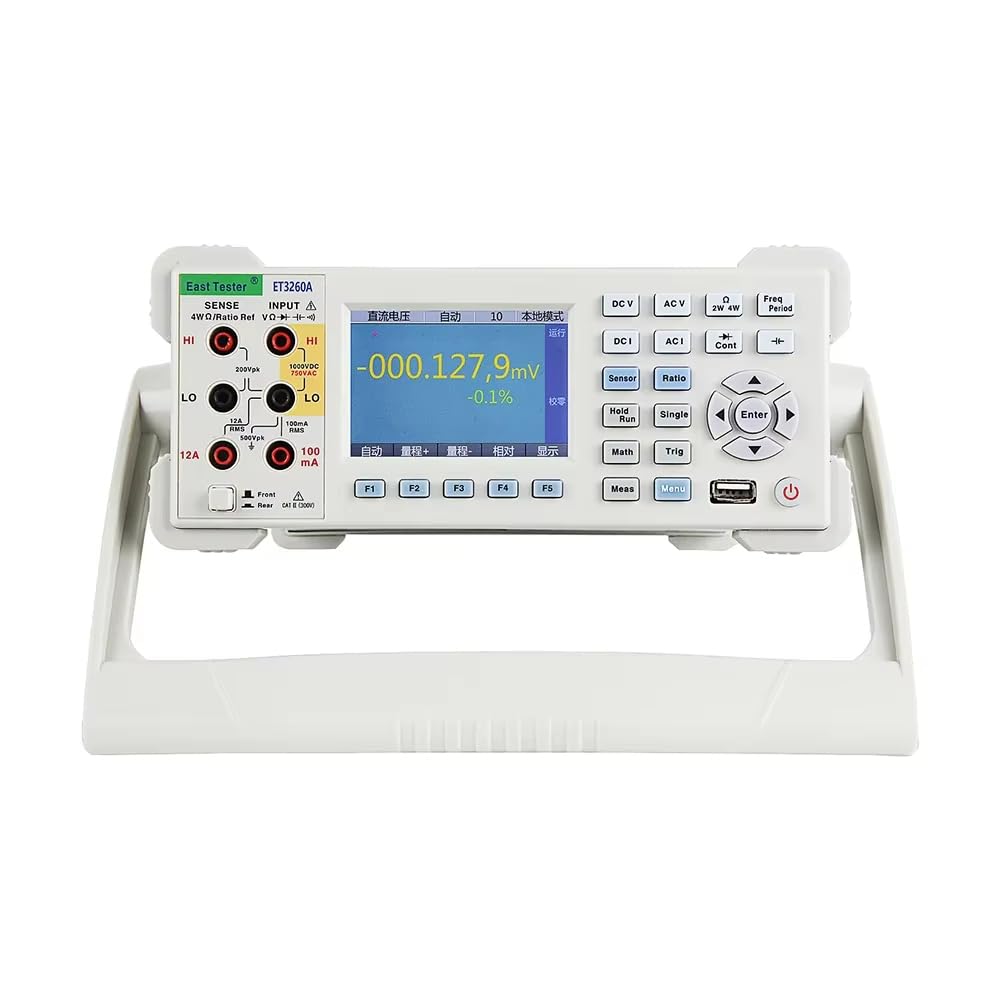

ET3260A Digital Benchtop Multimeter: 6½-Digit Ultra-Precision Testing
Need top-tier precision for critical electrical testing? The ET3260A offers 6½-digit resolution (2,400,000 counts) , true RMS measurement, and wide-range detection—ideal for metrology labs, high-end electronics R&D, and industrial calibration.
User-Friendly Design

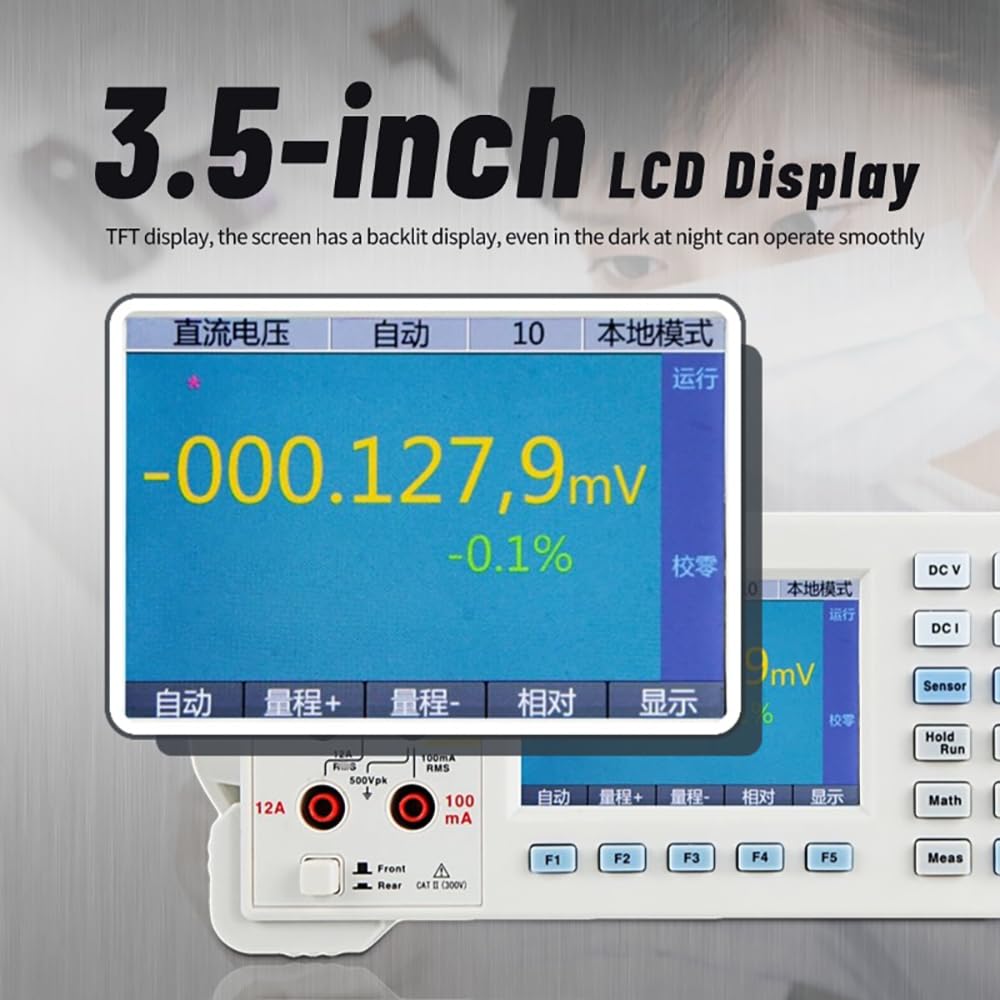

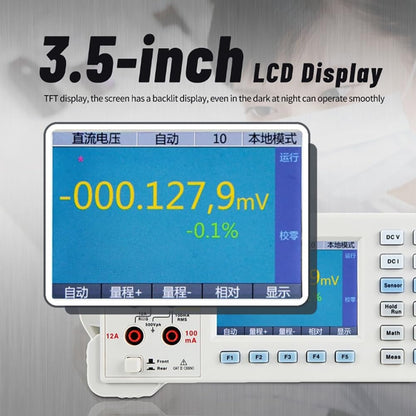

Clear Display : 3.5-inch 480×320 TFT LCD (16M color, brightness adjustable); supports 2-parameter sync display (e.g., DCV + temperature).
Easy Operation : Chinese/English menus; 3 measurement speeds (fast/medium/slow); auto/manual range; 12 math functions (MAX/MIN/average/dB, etc.).
Practical Features : Data storage/readback (10,000 groups); reading hold; built-in cold-end compensation (auto/manual).
Key Specifications
Parameter
Detail
Model
ET3260A
Resolution
6½-digit (2,400,000 counts)
Core Measurements
DCV: 1μV~1000V (±0.005%+2), 1μV resolution
DCI: 1nA~10A (±0.02%+5), 1nA resolution
ACV: 1μV~750V (20Hz~100kHz, ±0.05%+20), true RMS
ACI: 1nA~10A (20Hz~10kHz, ±0.05%+20), true RMS
Resistance: 1mΩ~200MΩ (±0.008%+2), 2/4-line support
Capacitance: 1pF~10mF (±0.5%+5)
Frequency: 1Hz~20MHz (±0.001%+1), 0.0001Hz resolution
Special Functions

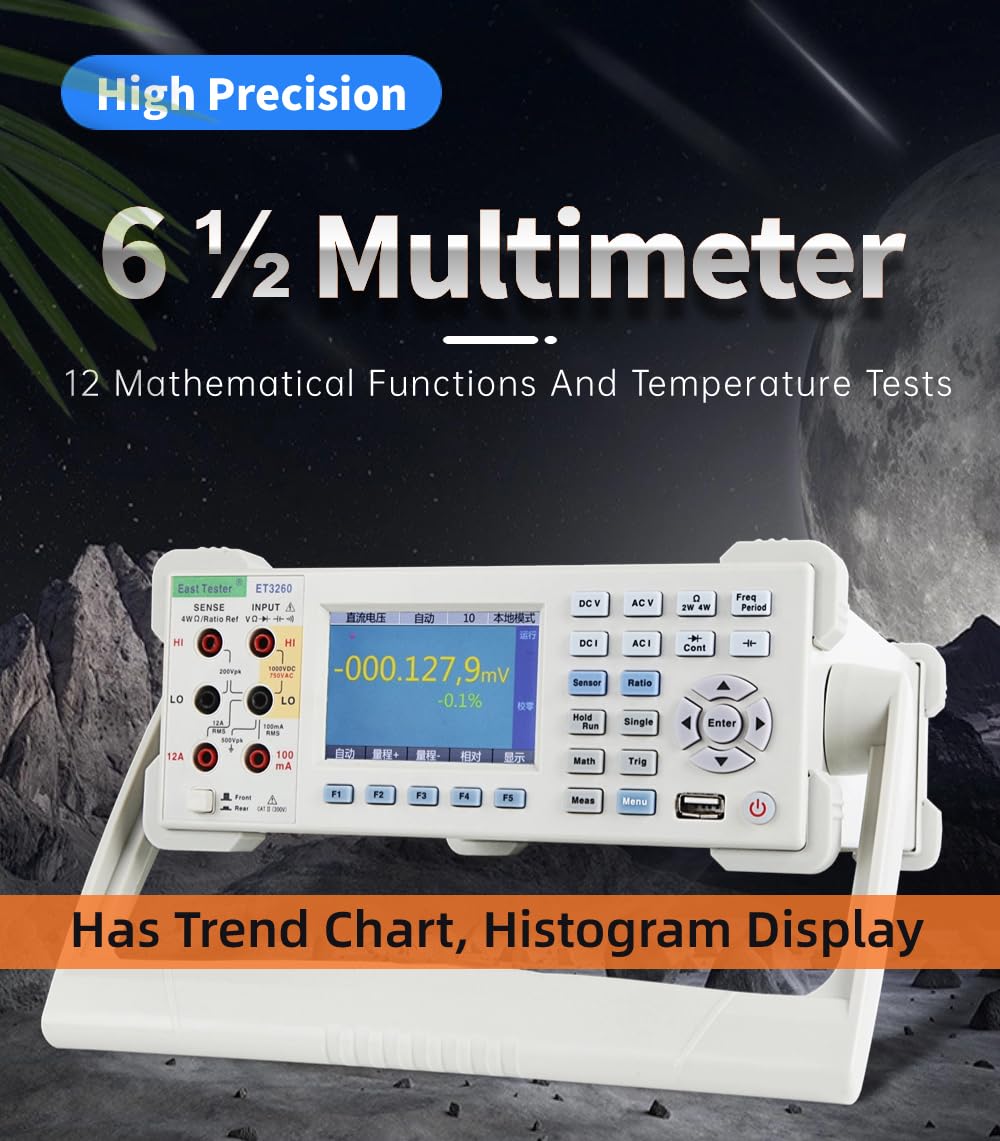

Square wave output (1Hz~100kHz, 3V); duty cycle (0.1%~99.9%); graphic display (real-time curve/histogram)
Temperature: 10 thermocouples (K/N/R/S/T/B/E/J/WRe325/WRe526), 4 thermal resistors (PT100/PT50/Cu100/Cu50); custom sensor calibration
Protection & Reliability
Full-range overload protection; anti-interference design; high-stability power supply
Interface

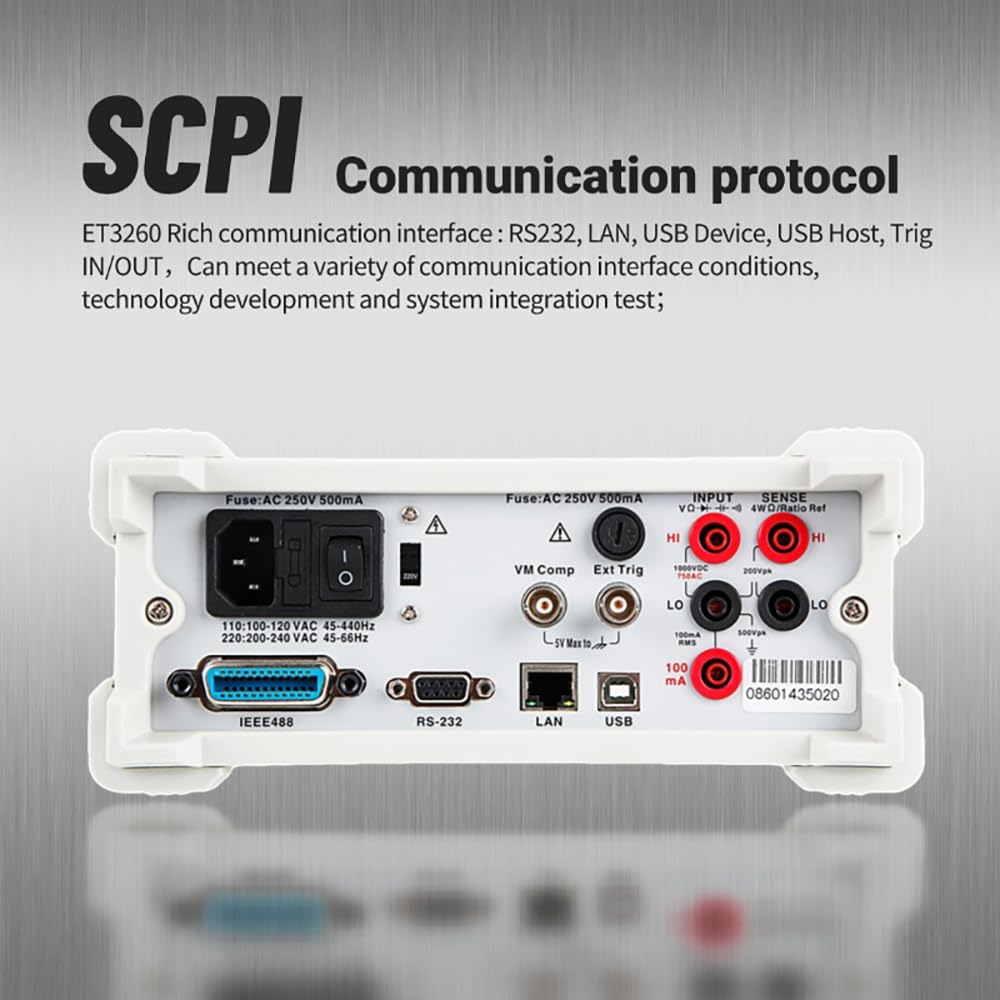

Standard: USB Device, RS232; Optional: USB Host, GPIB, LAN, WIFI, Bluetooth
Power
AC 110~220V±10%, 45~65Hz; Low power consumption
Env Adaptability
Operating temp: 0~40℃; Storage temp: -10~50℃; Humidity: <80% RH; Weight: 2.5kg; Size: 280×110×320mm
Core Advantages
Ultra-High Precision : 6½-digit resolution + low uncertainty (e.g., DCV ±0.005%) for metrology-grade testing.
All-in-One Versatility : Covers voltage, current, resistance, capacitance, frequency, temperature—no extra tools.
Reliable & Durable : Overload protection + anti-interference design suits harsh lab/industrial environments.
Applicable Scenarios
Metrology Labs : Calibrate precision instruments (e.g., standard multimeters, sensors).
High-End R&D : Test aerospace/medical electronics, high-speed ICs, and precision power supplies.
Industrial Calibration : Ensure accuracy of manufacturing-line testing equipment.
Advanced Education : Teach precision measurement principles in engineering universities.
Why Choose ET3260A?
Top-Tier Performance : 6½-digit resolution meets strict metrology standards.
Cost-Effective : Replaces multiple high-precision tools, cutting equipment budget.
Flexible Connectivity : Optional WIFI/GPIB supports automated testing systems.
Upgrade your ultra-precision testing! Click “Add to Cart” to get the ET3260A.
