Electroplating Process Evaluation High-Power DC

Power Source NICE-POWER R-SPS6050 60V 50A

3000W with Adjustable Output

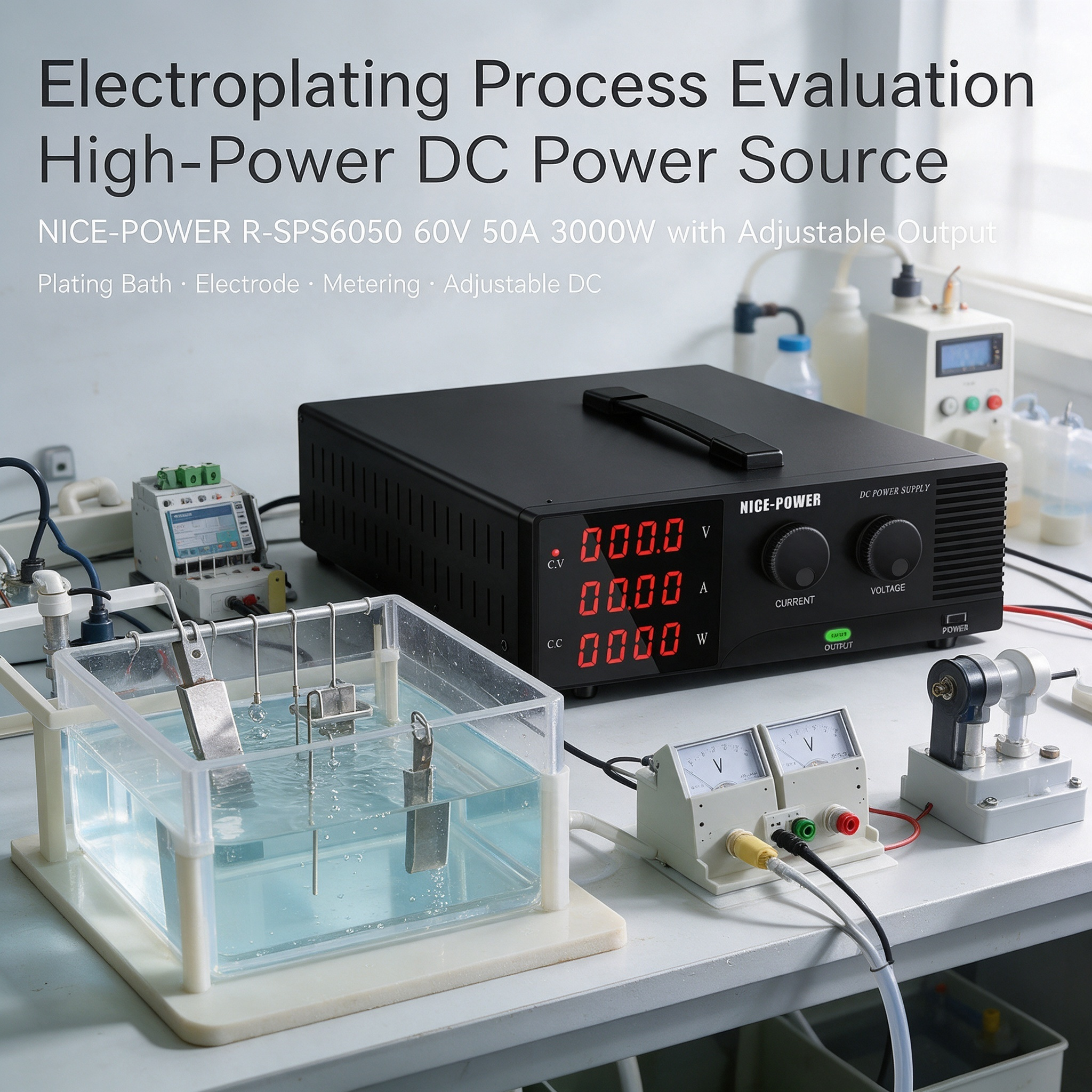

The NICE-POWER R-SPS6050-R is a high-power adjustable DC power source suitable for electroplating process evaluation setups that require a regulated, adjustable DC supply. With an output voltage range of 0–60V, an adjustable output current range of 0–50A, and a rated output power of 3000W, it provides a configurable power source for evaluating compatible electroplating equipment, test cells, and process arrangements within the supply's rated limits. Users can adjust the voltage and current settings according to the requirements of the test setup. The digital voltage, current, and power displays help technicians monitor the power supply's output conditions, while the CV/CC indicators show whether it is operating in constant-voltage or constant-current mode. The front-panel Output ON/OFF control allows convenient switching of the DC output. The R-SPS6050-R also comes equipped with USB, RS-232, and RS485 communication interfaces for connection to compatible external programmable-control systems.

Key Features

Adjustable 0–60V Output for Electroplating Process Evaluation

The NICE-POWER R-SPS6050-R provides an adjustable DC output voltage from 0V to 60V, allowing users to configure the power source for compatible electroplating process evaluation setups. The adjustable voltage range supports testing at different voltage settings within the requirements of the connected equipment and process arrangement. Technicians can observe the supply's output readings while evaluating suitable electroplating test conditions in a laboratory or workshop environment. Before operation, confirm that the selected voltage, polarity, and electrical connections are appropriate for the electroplating equipment and materials being tested.

High-Current 0–50A Output with 3000W Rated Power

With an adjustable output current range of 0–50A and a rated output power of 3000W, the R-SPS6050-R provides a high-power DC source for compatible electroplating process evaluation applications. The output settings can be adjusted to suit the electrical requirements of the test arrangement, provided that the selected voltage, current, and total output power remain within the power supply's ratings. This capability can support laboratory trials and process evaluation tasks that require different DC supply settings. Actual available output current depends on the selected voltage, connected load, and 3000W power limit.

CV/CC Indicators for Monitoring DC Output Mode

The built-in constant-voltage (CV) and constant-current (CC) indicators help users identify the power supply's operating mode during electroplating process evaluation. These indicators provide useful information about whether the unit is operating in constant-voltage or constant-current mode as the connected load and output conditions change. Together with the digital voltage and current displays, they help technicians observe the power supply during a test. The indicators show the supply's operating mode; they do not automatically measure plating thickness, bath chemistry, deposition rate, or coating quality.

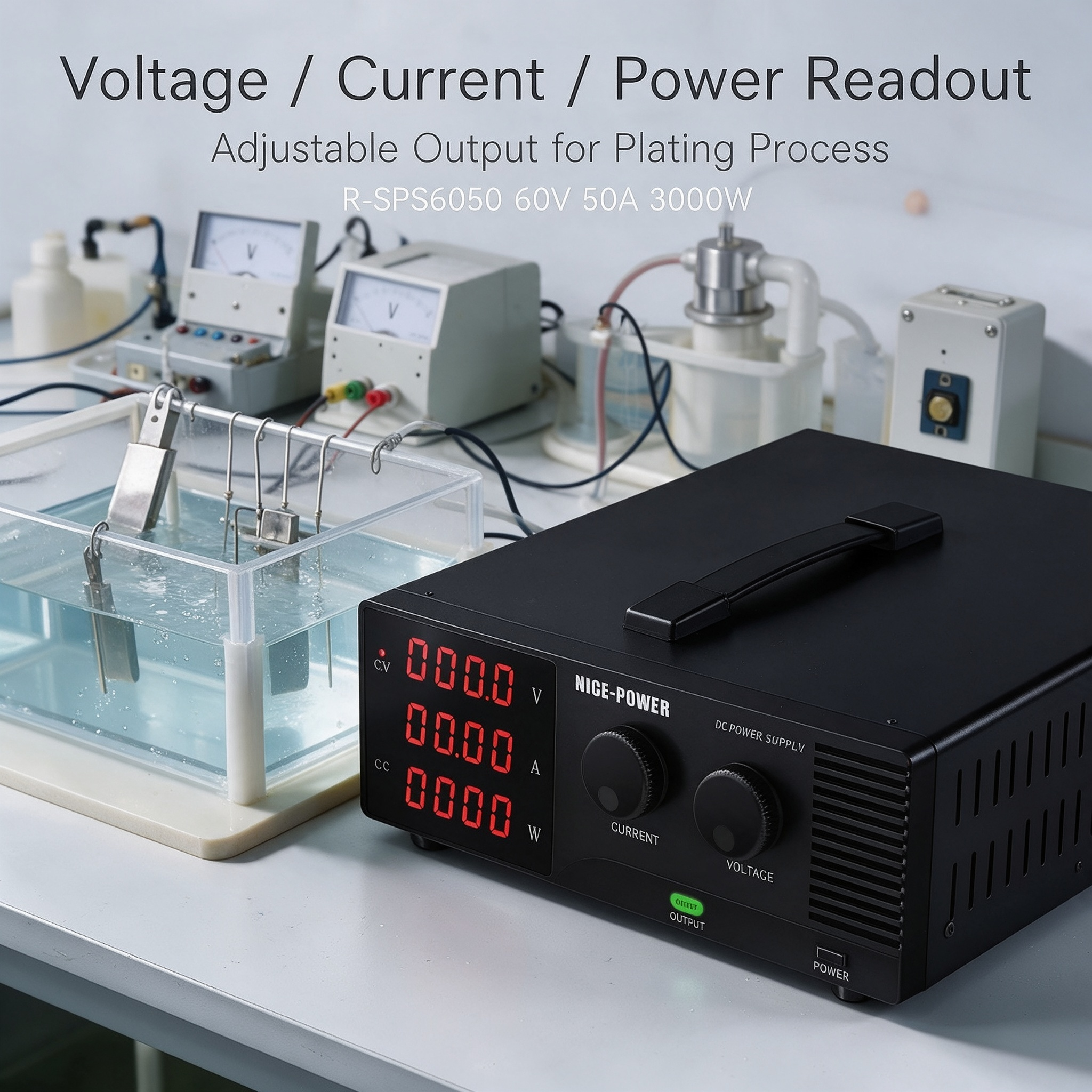

Digital Voltage, Current, and Power Display

The four-digit voltage and current displays allow users to monitor the power supply's output readings, while the power display provides a convenient view of output power. These readings help technicians observe the DC source's operating conditions during process evaluation and make adjustments as required by the test procedure. Encoder knobs provide manual adjustment of the voltage and current settings, supporting practical operation when testing different suitable electroplating conditions. The displays indicate the power supply's output values and do not replace specialized instruments for measuring electroplating results or chemical process parameters.

Output ON/OFF Control for Convenient Process Setup

The front-panel Output ON/OFF control allows users to enable or disable the DC output without switching off the entire power supply. This is useful when preparing a compatible electroplating evaluation setup or switching the output as required by the test procedure. The output control provides convenient manual switching and should be used in accordance with the operating procedures of the connected equipment. It is not an automatic electroplating sequence controller, and appropriate electrical safety precautions must still be followed.

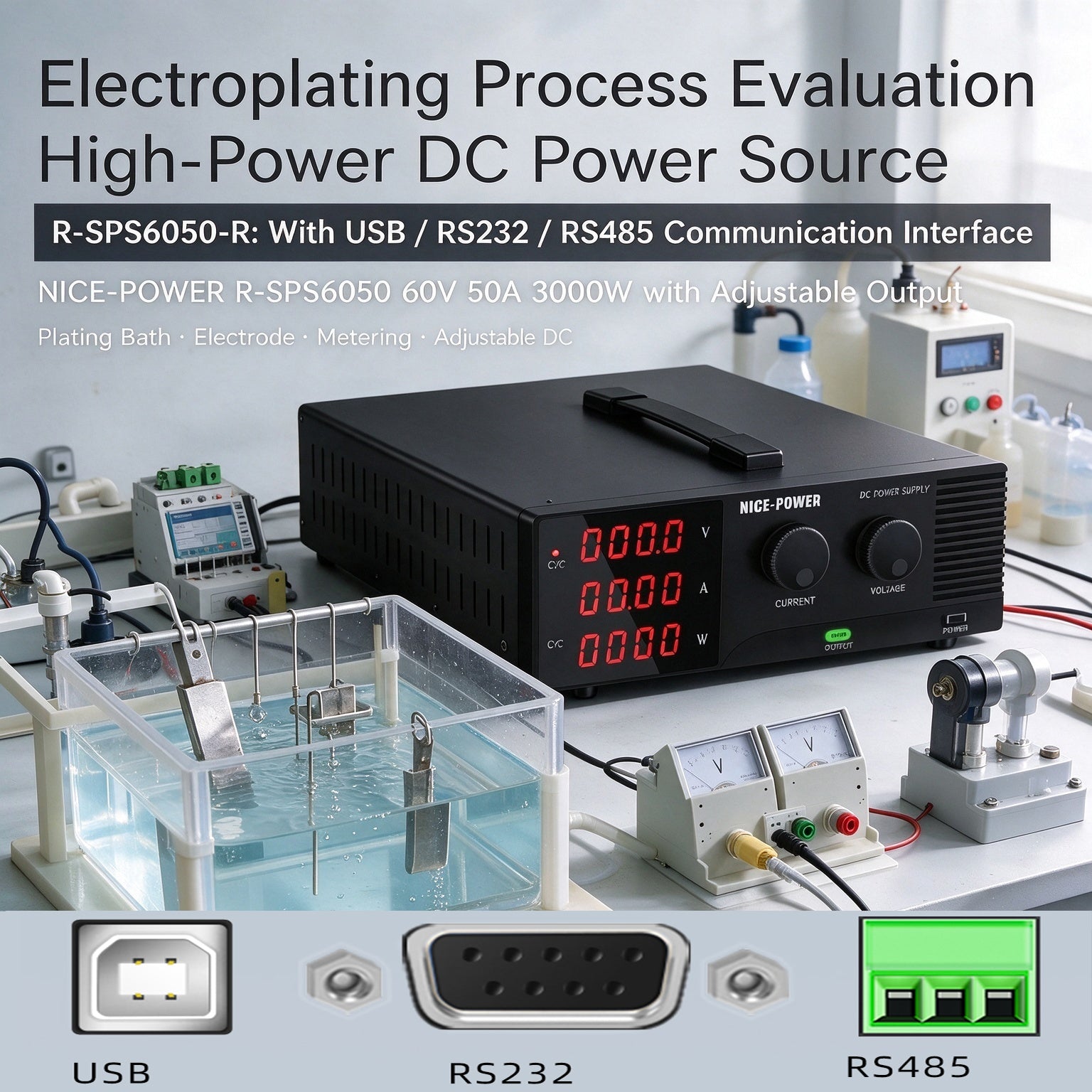

USB, RS-232, and RS485 Interfaces for Programmable Control

The R-SPS6050-R is the programmable-control version of the R-SPS series and is equipped with USB, RS-232, and RS485 communication interfaces. These interfaces support connection to compatible external control equipment for programmable power-supply operation. In an electroplating process evaluation setup, the power supply can be integrated into a suitable system where compatible external software or equipment manages supported power-supply commands. Remote operation depends on communication compatibility, supported commands, and the configuration of the external control system. These interfaces do not independently provide automatic bath monitoring or electroplating process analysis.

Applications

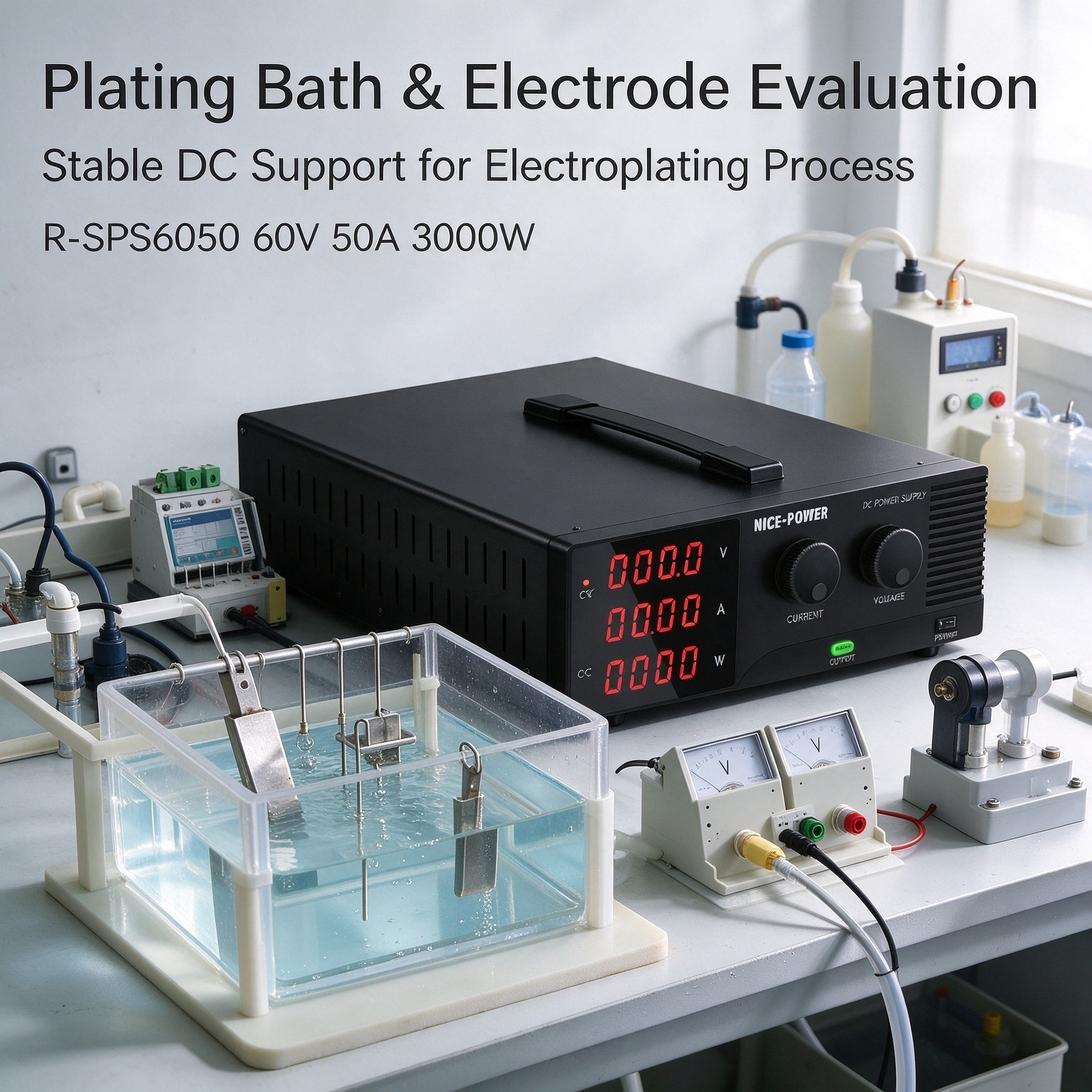

Electroplating Process Parameter Evaluation

Use the R-SPS6050-R as an adjustable DC power source when evaluating compatible electroplating setups that require configurable voltage and current settings. Technicians can adjust the supply within its rated output range and monitor the displayed voltage, current, and power while conducting process trials according to the requirements of the connected equipment.

Laboratory Electroplating Equipment Testing

The adjustable 0–60V output and 0–50A current range make the R-SPS6050-R suitable for testing compatible electroplating equipment and DC-powered test arrangements within its ratings. Its digital displays and CV/CC indicators help technicians observe the supply's operating conditions during bench evaluation. Suitability for a particular plating bath or process depends on the equipment's electrical requirements, the required current characteristics, and the compatibility of the materials and connections.

High-Power DC Supply Testing for Plating Setups

The 3000W rated power provides a high-power DC source for compatible electroplating evaluation setups that require substantial electrical output. Users can adjust the output to match the intended test conditions while keeping voltage, current, and total power within the power supply's operating limits. The R-SPS6050-R provides a regulated DC source; it does not include confirmed dedicated features such as reverse-polarity operation or pulsed-current plating.

Programmable Test Bench Integration

For electroplating-related laboratory and engineering test benches that require external power-supply control, the R-SPS6050-R provides USB, RS-232, and RS485 communication interfaces. When connected to compatible external equipment and software, these interfaces can support integration into a programmable test arrangement. Available control functions depend on the supported communication commands and the wider system configuration; process monitoring and electroplating result measurement may require separate instruments.

Quality Check and Terms of Service:

Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.

Certifications: Has passed CE & FCC Certification.

Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.

Customer Support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER R-SPS6050-R?

The NICE-POWER R-SPS6050-R combines an adjustable 0–60V output, 0–50A output current, and 3000W rated power in a high-power DC power source for compatible electroplating process evaluation setups. Its digital voltage, current, and power displays help users monitor output conditions, while the CV/CC indicators show the power supply's operating mode. Encoder knobs and front-panel Output ON/OFF control support convenient manual operation, and the built-in USB, RS-232, and RS485 communication interfaces allow connection to compatible programmable-control systems. For engineers, technicians, and laboratories evaluating electroplating equipment or process arrangements, the R-SPS6050-R offers an adjustable regulated DC source for test setups that operate within its rated electrical specifications.
