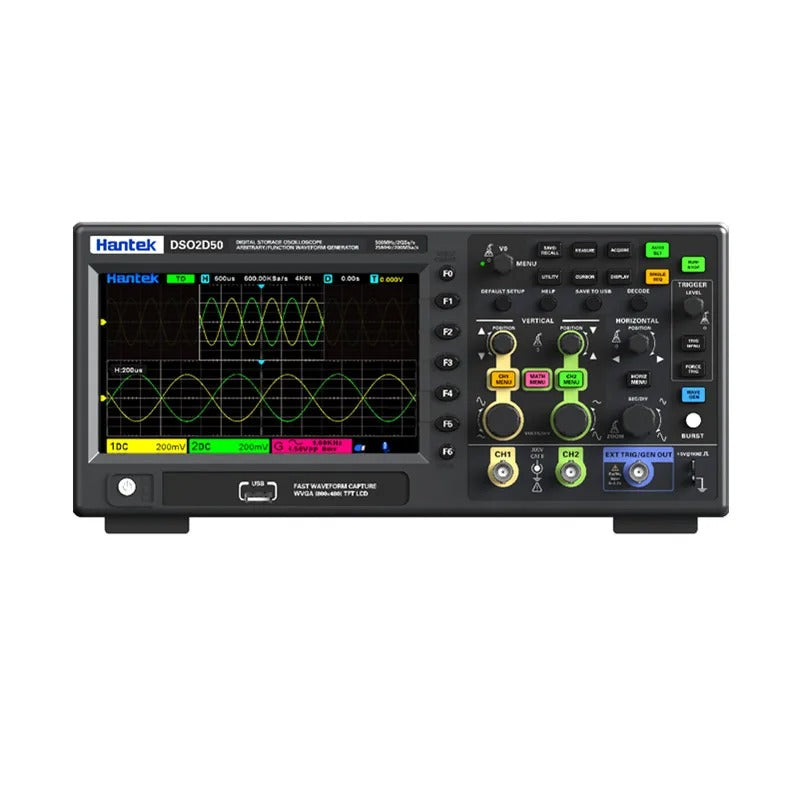

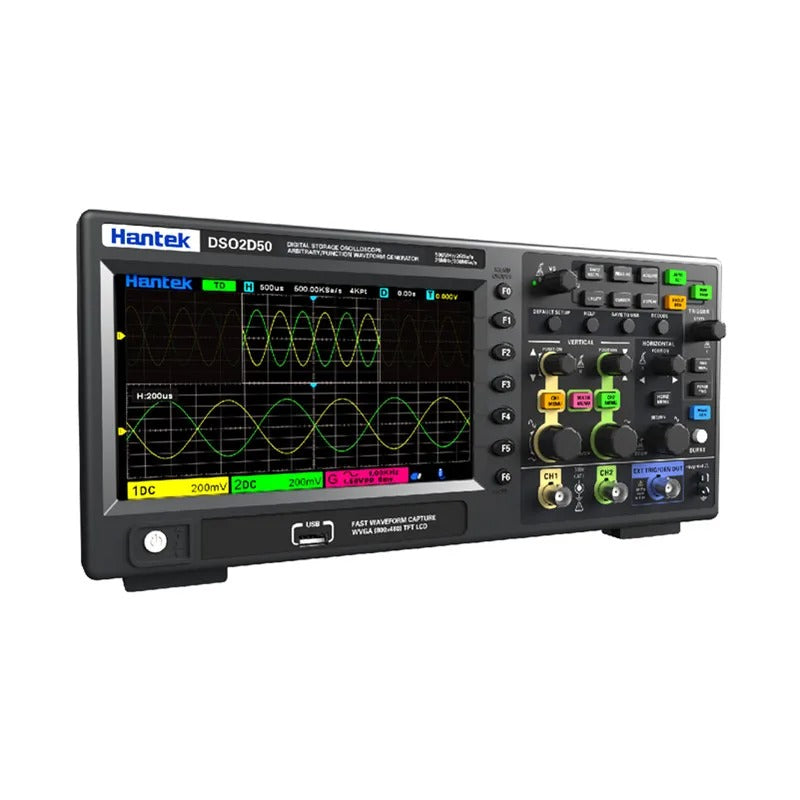

Hantek DSO2D50 Digital Storage Oscilloscope: 2CH 500MHz
Need ultra-high-frequency testing for top-tier electronics? The Hantek DSO2D50 delivers 2-channel 500MHz bandwidth + 4GSa/s sampling rate with high-performance built-in AWG—ideal for 5G core R&D, aerospace/medical electronics, and premium lab testing.
User-Friendly Design
-
Clear Display: 7-inch 800×480 TFT LCD (adjustable brightness); intuitive knobs for vertical sensitivity (500μV/div~10V/div), time base (500ps/div~100s/div).
-
Dual-Channel Control: Independent adjustment for simultaneous capture & comparison of ultra-high-freq signals.
-
Portable Quiet: Fanless design (noise-free); ~2.3kg for lab/on-site high-speed testing.
Key Specifications
|
Parameter
|
Detail
|
|
Model
|
DSO2D50
|
|
Bandwidth/Sampling Rate
|
500MHz (2CH); 4GSa/s (single CH), 2GSa/s (dual CH)
|
|
Memory Depth
|
32Mpts (single CH), 16Mpts (dual CH)
|
|
Vertical Resolution
|
8 bits (12-bit high-res mode standard)
|
|
Built-in AWG
|
80MHz freq range; 200MSa/s sampling; sine/square/ramp/noise/arb waveforms
|
|
Trigger/Decoding
|
Edge/pulse/window/slope/CAN FD/Ethernet triggers; decodes I2C/SPI/UART/CAN/CAN FD
|
|
Math Functions
|
+, -, ×, ÷, FFT (spectral analysis); 36 auto-measurements
|
|
Input Specs
|
1MΩ‖12pF; 300VRMS (CAT II)
|
|
Interface
|
USB Host (U-disk) + USB Device (PC); SCPI remote control
|
Core Advantages
-
Ultra-High-Freq Capture: 500MHz bandwidth + 4GSa/s sampling grabs 5G/RF signals without distortion.
-
Powerful AWG: 80MHz output meets ultra-high-freq circuit stimulation needs.
-
Advanced Debugging: Ethernet/CAN FD support + high-res mode speeds up complex testing.
-
Cost-Saving: Combines top-tier scope + AWG, no need for separate high-end tools.
Applicable Scenarios
-
5G Core R&D: Tests 5G base station modules, high-speed serial buses.
-
Aerospace/Medical: Validates ultra-high-freq control signals in precision equipment.
-
Premium Labs: Analyzes microwave components, high-speed ADC/DAC.
-
High-End QC: Ensures signal specs of medical devices/industrial controllers.
Why Choose DSO2D50?
-
Top-Tier Performance: 500MHz bandwidth + 80MHz AWG leads high-freq scope market.
-
Easy Operation: Intuitive design fits pro engineers/advanced users.
-
Hantek Reliability: Industrial-grade build for long-term stable use.
Elevate ultra-high-freq testing—click “Add to Cart” for Hantek DSO2D50!
