Hantek DSO2D35 Digital Storage Oscilloscope 2CH multi-function 2GSa/s sampling rate up to350MHz ideal for high-speed RF R&D

Hantek DSO2D35 Digital Storage Oscilloscope 2CH multi-function 2GSa/s sampling rate up to350MHz ideal for high-speed RF R&D

$499.90 USD
$499.90 USD
Sale Sold out

English Manual

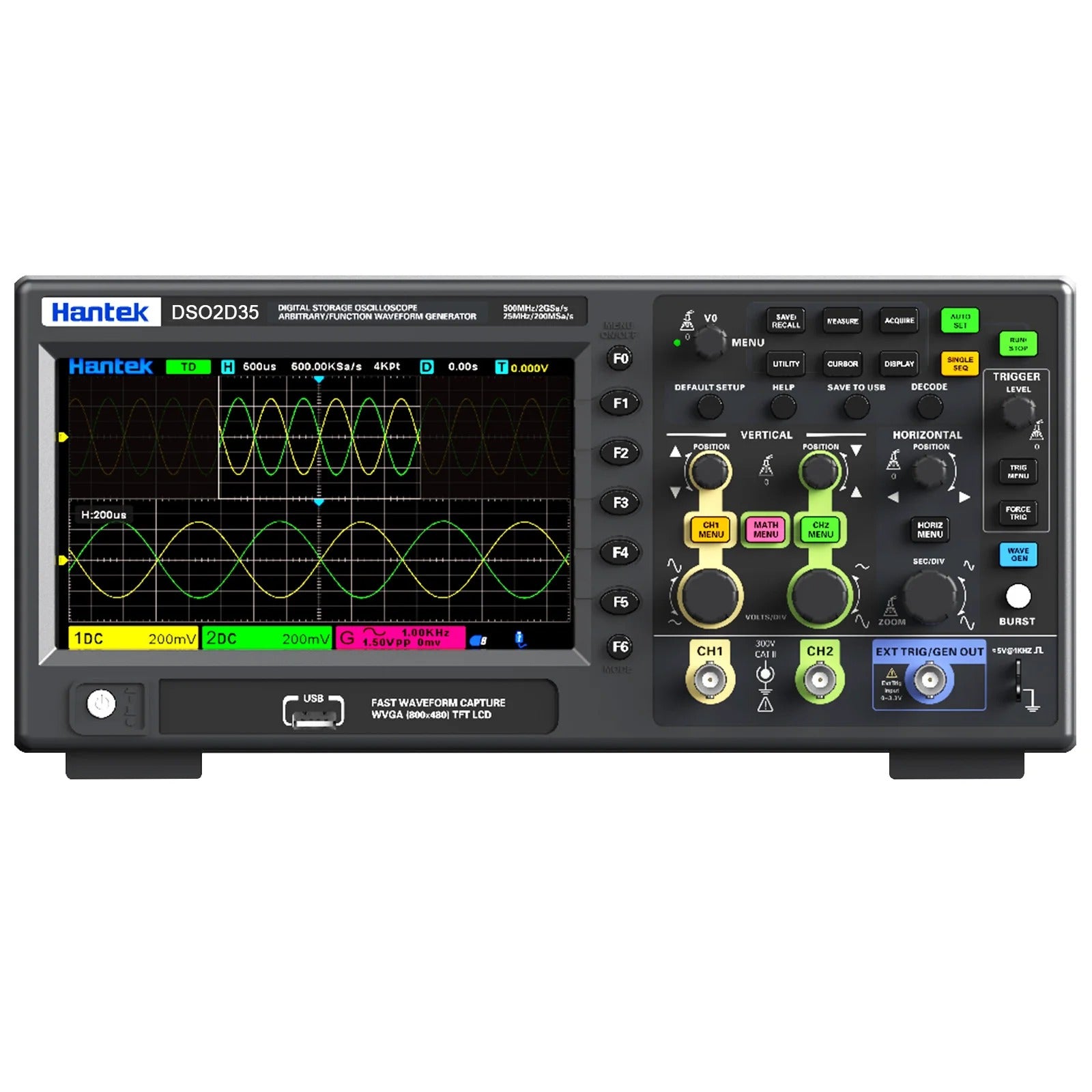

Hantek DSO2D35 Digital Storage Oscilloscope: 2CH 350MHz

Need ultra-high-frequency testing for professional electronics? The Hantek DSO2D35 delivers 2-channel 350MHz bandwidth + 4GSa/s sampling rate with built-in high-performance AWG—ideal for high-speed RF R&D, aerospace electronics testing, and premium lab use.

User-Friendly Design

  • Clear Display: 7-inch 800×480 TFT LCD (adjustable brightness); intuitive knobs for vertical sensitivity (1mV/div~10V/div), time base (500ps/div~100s/div).
  • Dual-Channel Flexibility: Independent control for simultaneous signal capture & comparison.
  • Portable Quiet: Fanless design (noise-free); ~2.1kg for lab/on-site high-freq testing.

Key Specifications

Parameter
Detail
Model
DSO2D35
Bandwidth/Sampling Rate
350MHz (2CH); 4GSa/s (single CH), 2GSa/s (dual CH)
Memory Depth
16Mpts (single CH), 8Mpts (dual CH)
Vertical Resolution
8 bits (12-bit high-res mode optional)
Built-in AWG
60MHz freq range; 200MSa/s sampling; sine/square/ramp/noise/arb waveforms
Trigger/Decoding

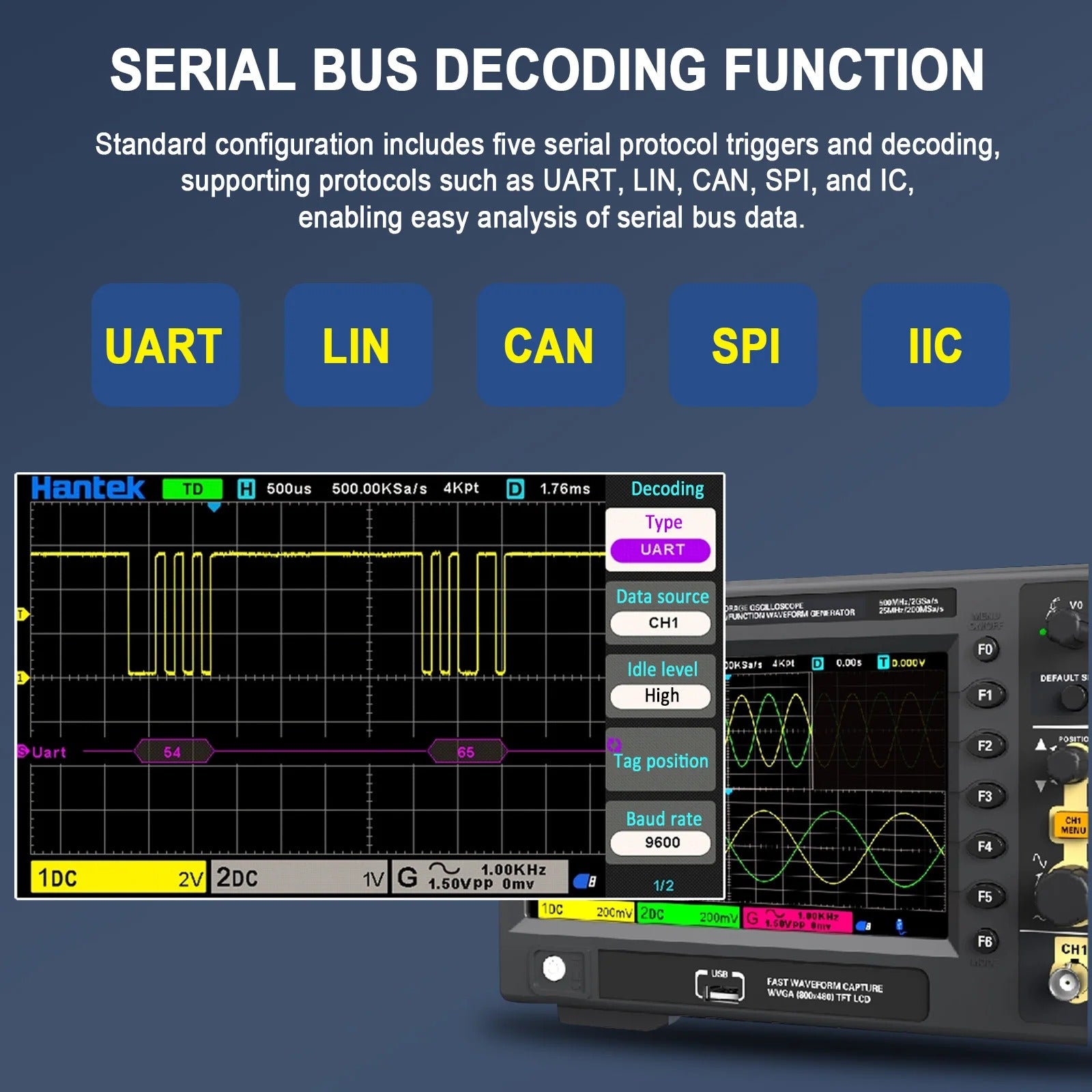

Edge/pulse/window/slope/CAN FD triggers; decodes I2C/SPI/UART/CAN/CAN FD
Math Functions
+, -, ×, ÷, FFT (spectral analysis); 36 auto-measurements
Input Specs

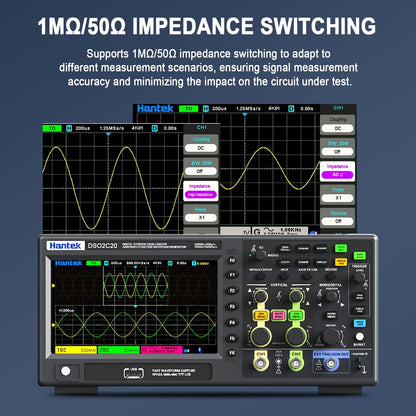

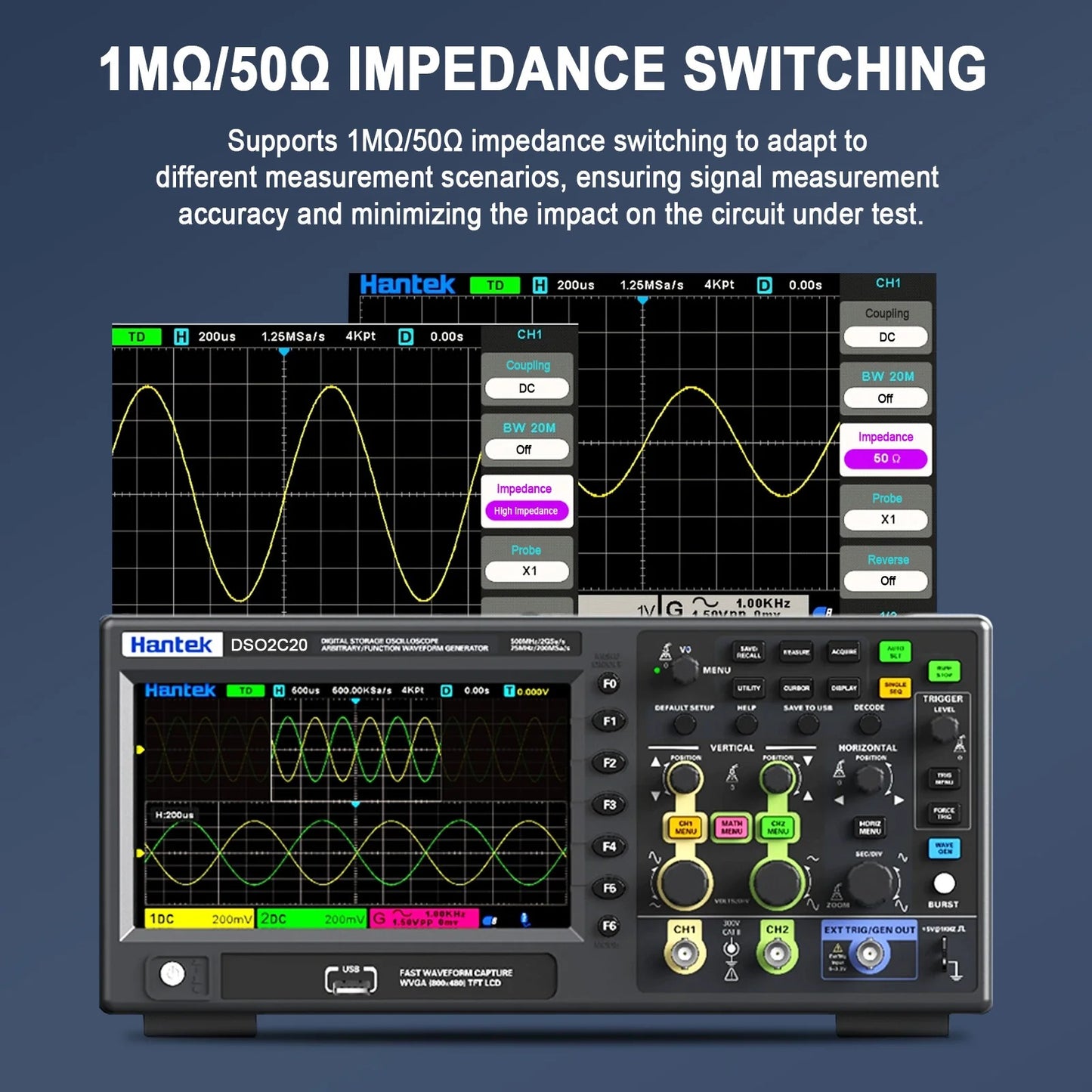

1MΩ‖15pF; 300VRMS (CAT II)
Interface
USB Host (U-disk) + USB Device (PC); SCPI remote control

Core Advantages

  • Ultra-High-Freq Capture: 350MHz bandwidth + 4GSa/s sampling grabs fast RF/serial signals without distortion.
  • Powerful AWG: 60MHz output meets high-freq circuit stimulation needs.
  • Efficient Debugging: CAN FD support + auto-measurements speed up complex testing.
  • Cost-Saving: Combines scope + high-end AWG, no need for separate tools.

Applicable Scenarios

  1. High-Speed R&D: Tests 5G RF modules, high-speed ADC/DAC, aerospace electronics.
  1. Premium Labs: Validates microwave components, high-frequency sensors.
  1. Industrial QC: Ensures signal specs of high-end controllers/medical devices.

Why Choose DSO2D35?

  • Top-Tier Performance: 350MHz bandwidth + 60MHz AWG leads mid-range scope market.
  • Easy Operation: Intuitive design fits pro engineers/advanced users.
  • Hantek Reliability: Industrial-grade build for long-term stable use.
Elevate high-freq testing—click “Add to Cart” for Hantek DSO2D35!
