Hantek Digital Oscilloscope DSO2D20 2 Channels 200Mhz/350Mhz USB Osciloscopio Tester Lab Digital Oscillator

Hantek Digital Oscilloscope DSO2D20 2 Channels 200Mhz/350Mhz USB Osciloscopio Tester Lab Digital Oscillator

$429.90 USD
$429.90 USD
Sale Sold out

English Manual

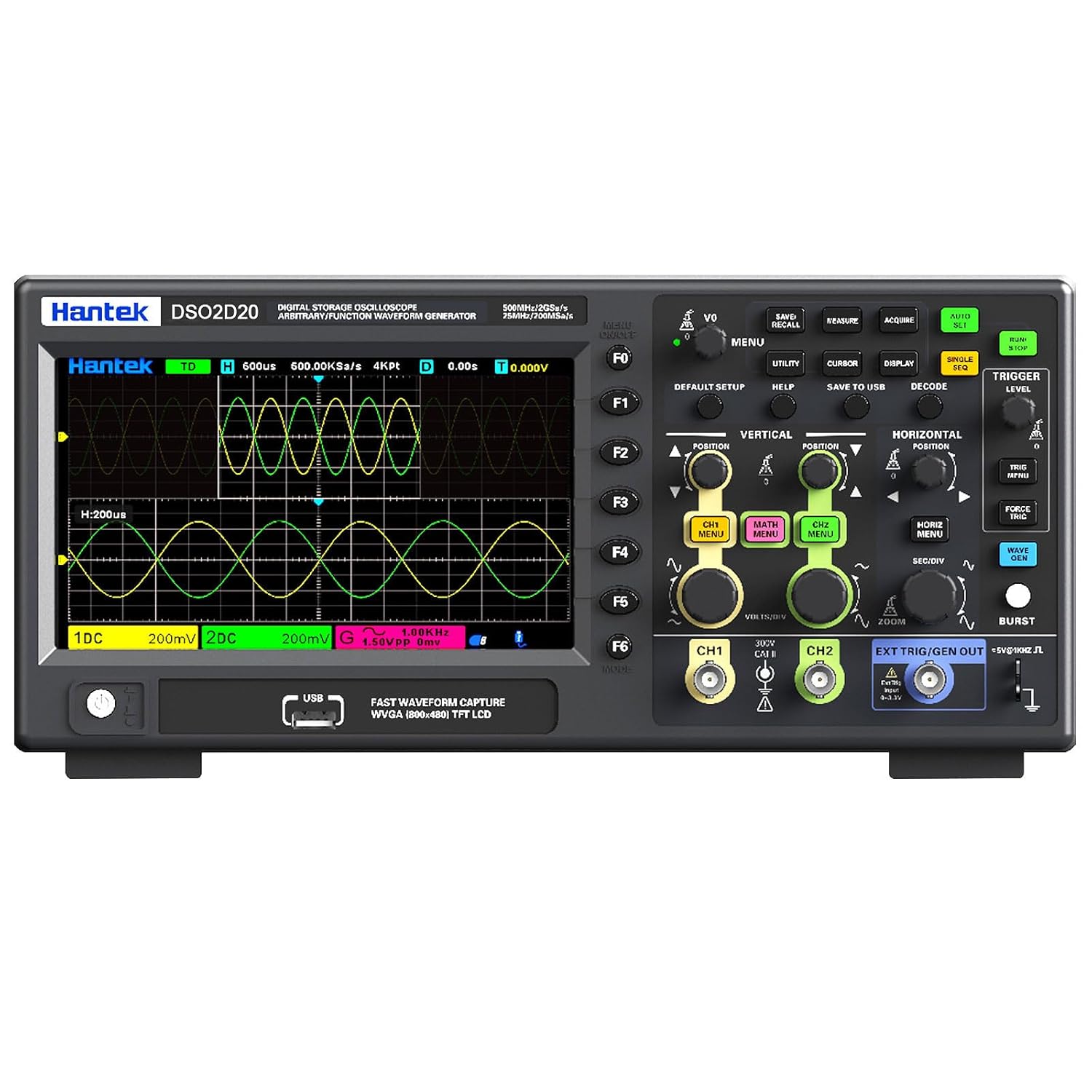

Hantek DSO2D20 Digital Storage Oscilloscope: 2CH 200MHz

Need a high-performance scope for advanced electronics testing? The Hantek DSO2D20 offers 2-channel 200MHz bandwidth + 2GSa/s sampling rate with built-in AWG—ideal for R&D engineers, tech educators, and electronics QC teams.

User-Friendly Design

  • Clear Interface: 7-inch 800×480 TFT LCD (adjustable brightness); knobs for vertical sensitivity (2mV/div~10V/div), time base (2ns/div~100s/div), and triggers.
  • Dual-Channel Control: Independent channel adjustment for simultaneous signal comparison.
  • Portable & Quiet: Fanless design (noise-free); ~1.9kg for lab/on-site use.

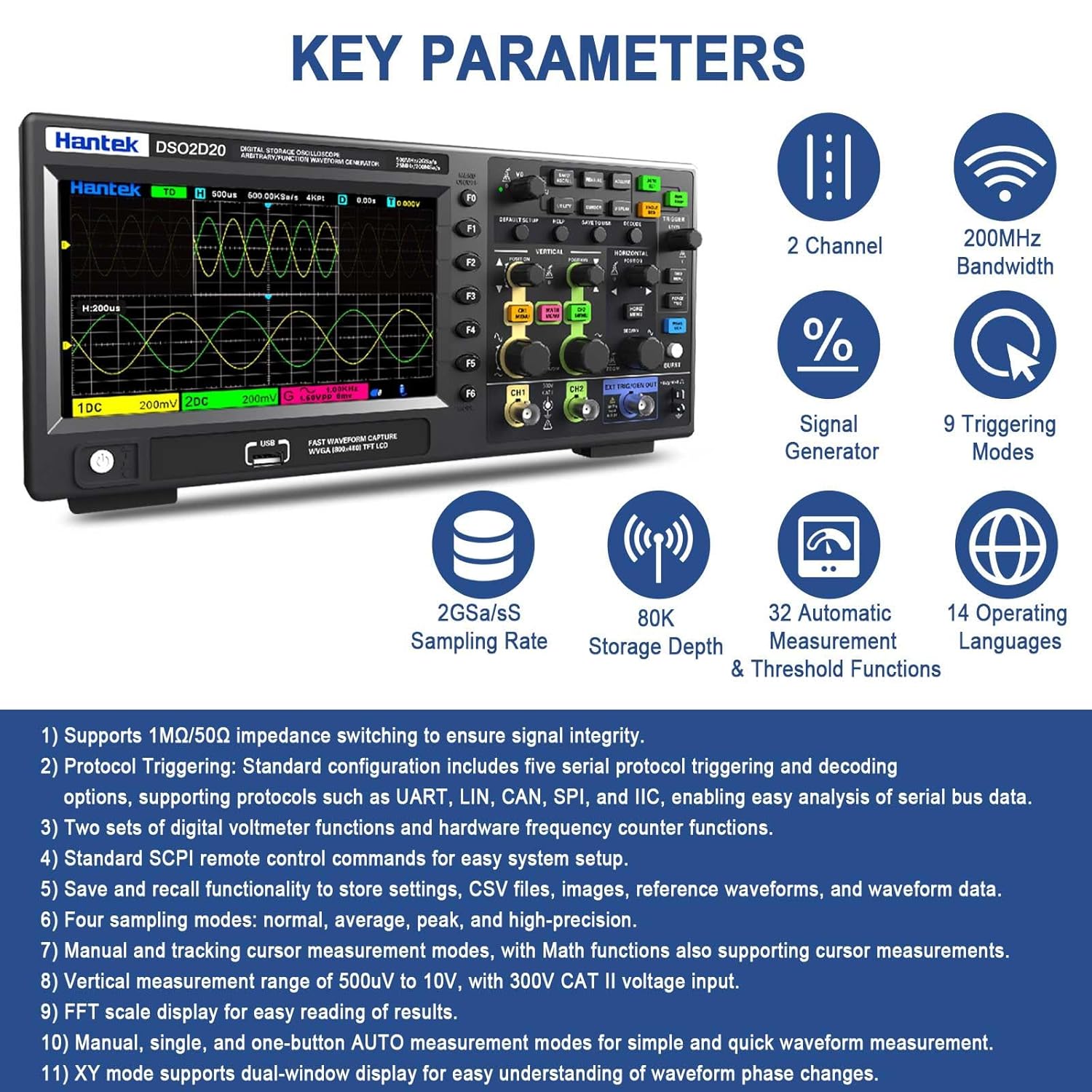

Key Specifications

Parameter
Detail
Model
DSO2D20
Bandwidth/Sampling Rate
200MHz (2CH); 2GSa/s (single CH), 1GSa/s (dual CH)
Memory Depth
8Mpts (single CH), 4Mpts (dual CH)
Vertical Resolution
8 bits
Built-in AWG
40MHz freq range; 200MSa/s sampling; sine/square/ramp/noise/arb waveforms
Trigger/Decoding

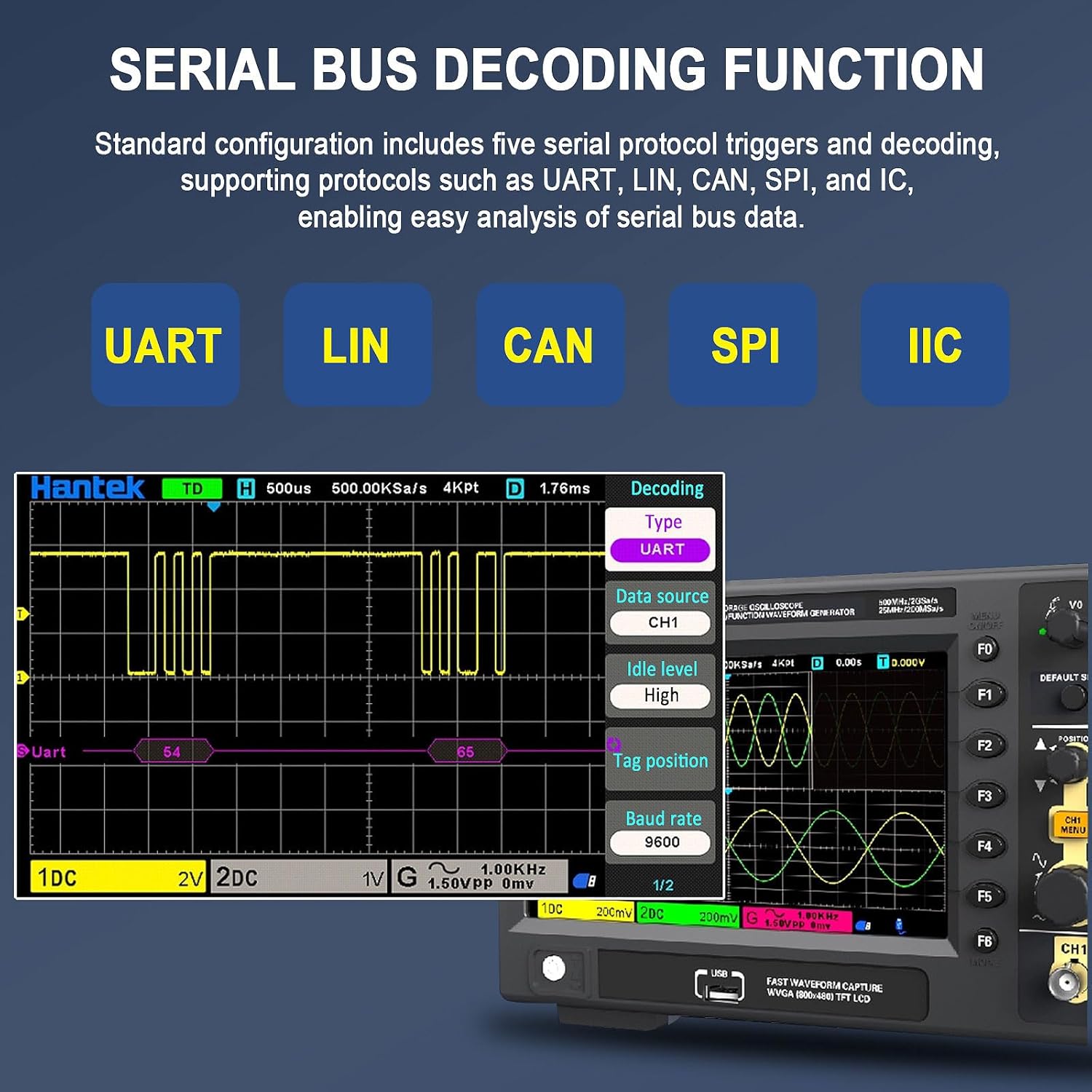

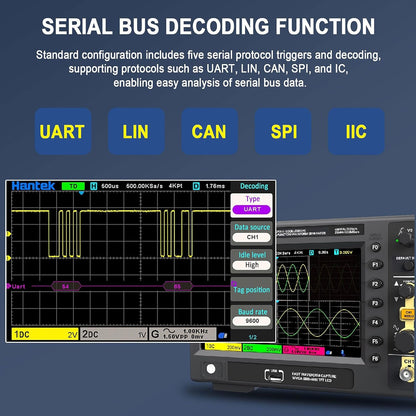

Edge/pulse/window/slope triggers; decodes I2C/SPI/UART/CAN
Math Functions
+, -, ×, ÷, FFT (spectral analysis)

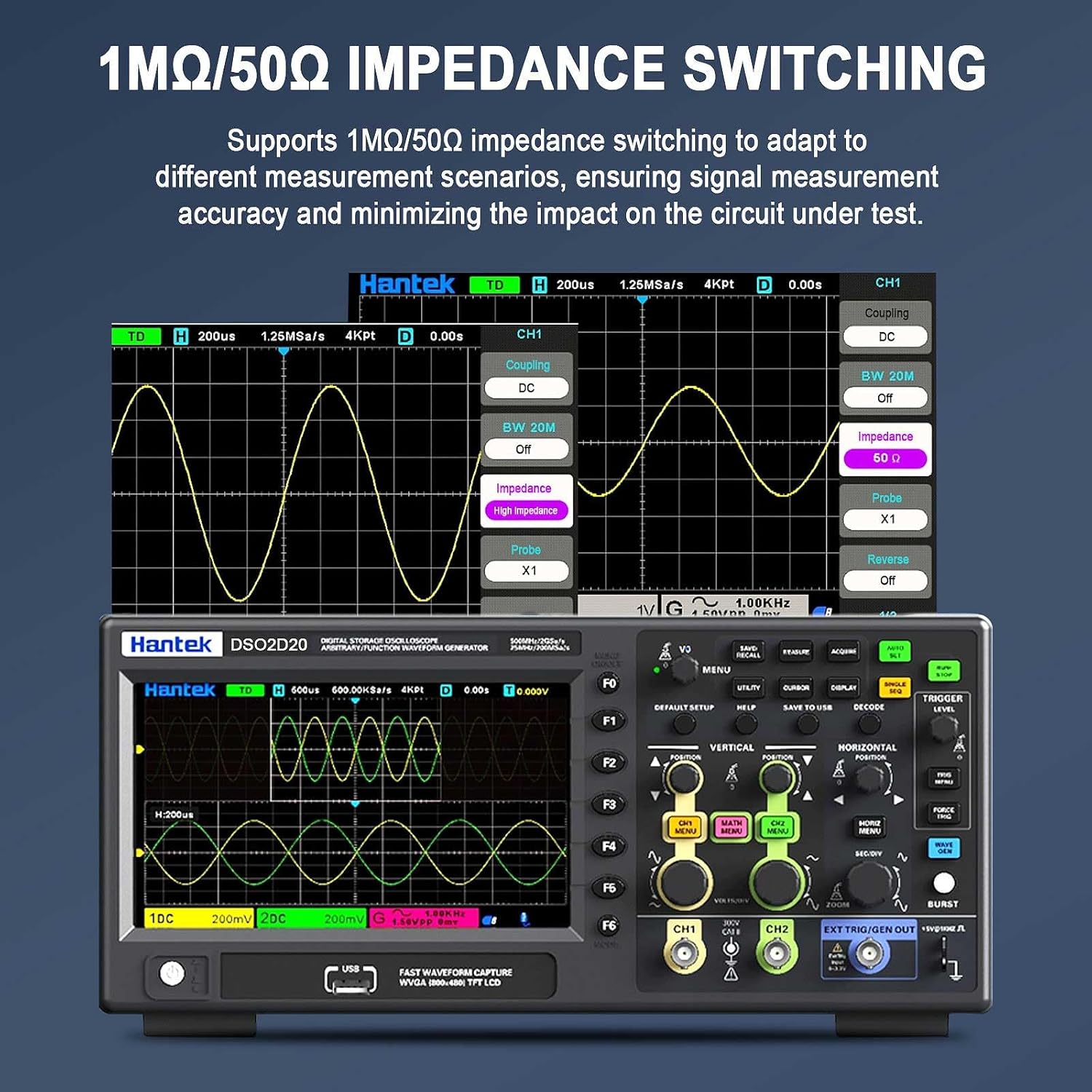

Input Specs
1MΩ‖17pF; 300VRMS (CAT II)
Interface
USB Host (U-disk) + USB Device (PC); SCPI remote control

Core Advantages

  • High-Freq Precision: Captures high-speed digital/RF signals without detail loss.
  • All-in-One Value: Oscilloscope + AWG eliminates external signal sources.
  • Efficient Debugging: Comprehensive triggers/decoding speed up complex circuit testing.
  • Cost-Effective: Saves budget vs. separate scope + AWG.

Applicable Scenarios

  1. R&D: Tests 5G modules, high-speed MCUs, and RF components.
  1. Education: Teaches waveform analysis, signal processing, and protocol debugging.
  1. QC: Validates component/finished product signal specs.

Why Choose DSO2D20?

  • Top Performance: Outperforms peers in bandwidth, sampling rate, and AWG functionality.
  • Easy to Use: Intuitive design suits engineers/beginners.
  • Trusted Brand: Hantek’s industrial-grade reliability for long-term use.
Upgrade signal analysis—click “Add to Cart” for Hantek DSO2D20!
