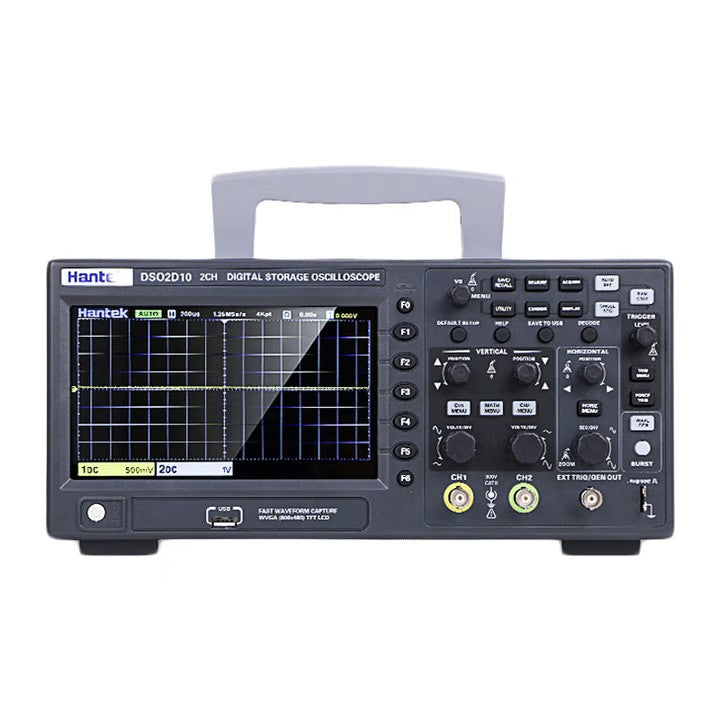

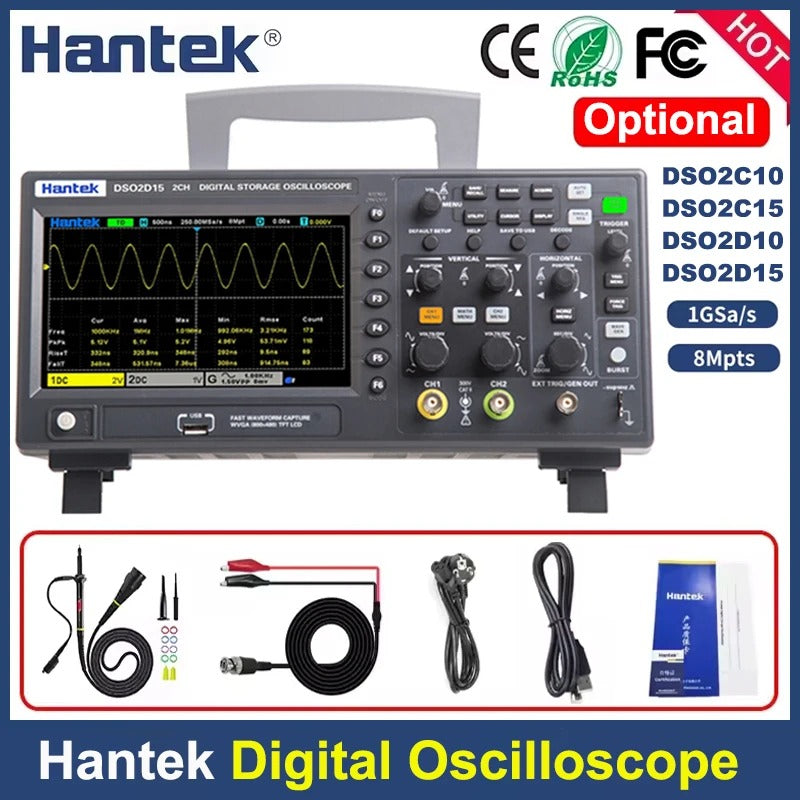

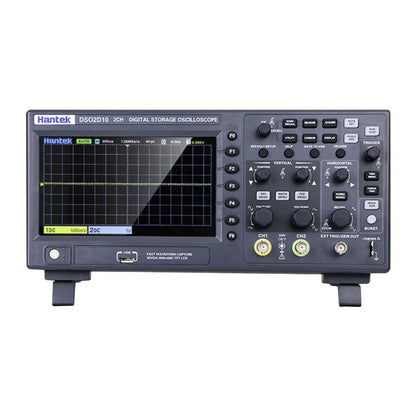

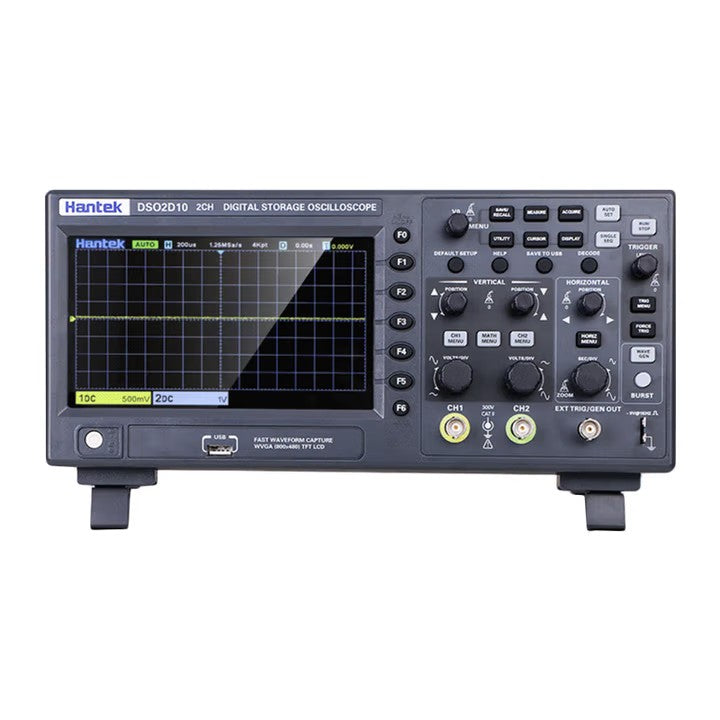

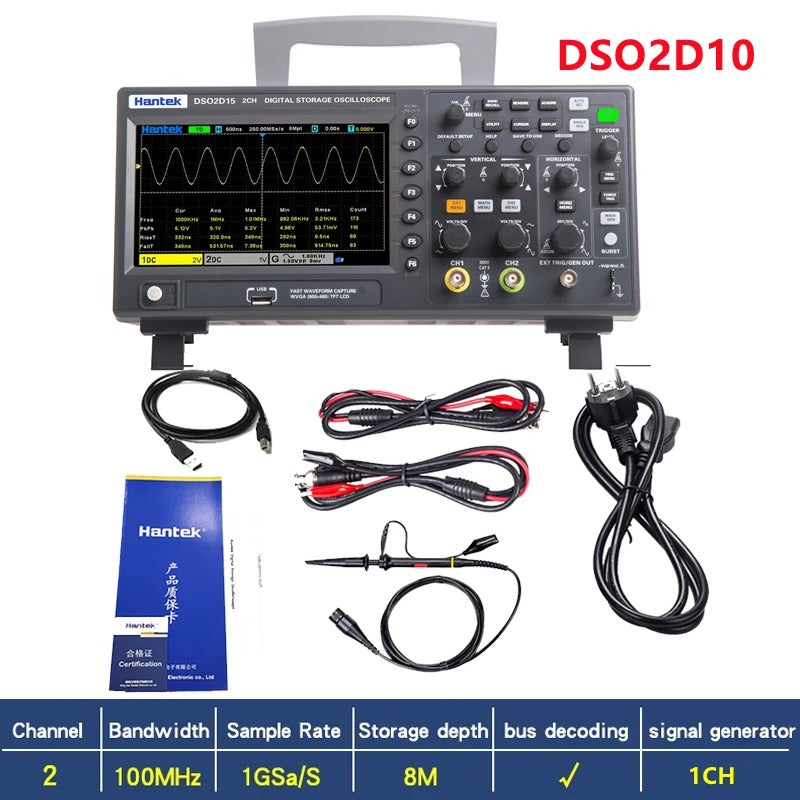

Hantek DSO2D10 Digital Storage Oscilloscope: 2CH 100MHz with Built-in Signal Generator
Need a cost-effective oscilloscope with versatile functions? The Hantek DSO2D10 offers 2-channel 100MHz bandwidth + 1GSa/s sampling rate, along with a built-in function generator (AWG). Ideal for electronics hobbyists, students, and small-scale R&D, it's equipped with decoding and trigger options for serial protocols.
User-Friendly Design
Dual-Channel Control : Each of the 2 channels has independent knob controls, allowing for easy adjustment of signals.
Clear Visualization : 7-inch 800×480 TFT LCD (16M color) with adjustable brightness and grid, enabling clear waveform viewing.
Quiet Operation : Fanless design ensures silent operation, suitable for noise-sensitive environments.
Key Specifications
Parameter
Detail
Model
Hantek DSO2D10
Oscilloscope Core
Bandwidth: 100MHz (2 channels); Sampling rate: 1GSa/s (single CH), 500MSa/s (dual CH); Memory depth: 8Mpts (single CH), 4Mpts (dual CH)
Vertical Performance
Sensitivity: 2mV/div - 10V/div; Vertical resolution: 8 bits; Rise time: 3.5ns
Horizontal Control
Scale range: 2ns/div - 100s/div
Decoding & Trigger
Supports I2C, SPI, UART/RS232, and CAN protocols for decoding and triggering
Math Operations
+, -, ×, ÷, FFT for signal analysis
Max Input Voltage
300VRMS, CAT II 300V
Function Generator (AWG)
Frequency range: 25MHz; Sampling rate: 200MSa/s; Waveforms: sine, square, ramp, exp, noise, DC, arb

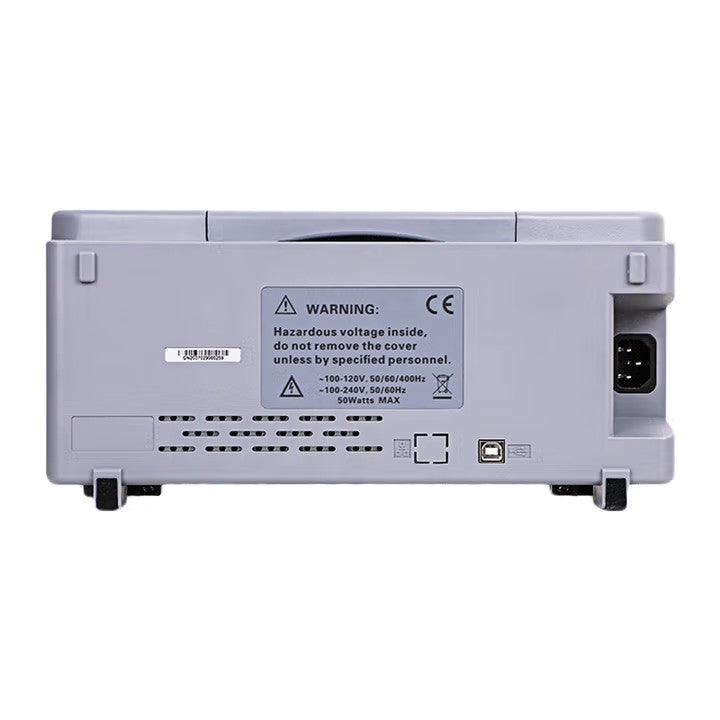

Interface
USB - Host and USB - Device for data transfer to PC or USB memory stick
Weight
~1.9kg
Core Advantages
Cost-Effective : Combines oscilloscope and function generator functions at an affordable price.
Rich Functionality : Serial protocol decoding and triggering capabilities enhance debugging efficiency.
Portable & Silent : Compact 1.9kg design and fanless operation make it suitable for various workspaces.
Applicable Scenarios
Electronics Hobbyists : Test and debug circuits, generate signals for experiments.
Educational Institutions : Teach basic electronics concepts, waveform analysis, and protocol decoding.
Small-Scale R&D : Validate simple circuit designs, perform quick signal measurements.
Why Choose DSO2D10 ?
Value for Money : Offers a wide range of features without a high price tag.
User-Centric Design : Intuitive controls and clear display reduce the learning curve.
Reliable Brand : Hantek's reputation ensures quality and long-term use.
Upgrade your electronics testing setup! Click “Add to Cart” to get the Hantek DSO2D10.
