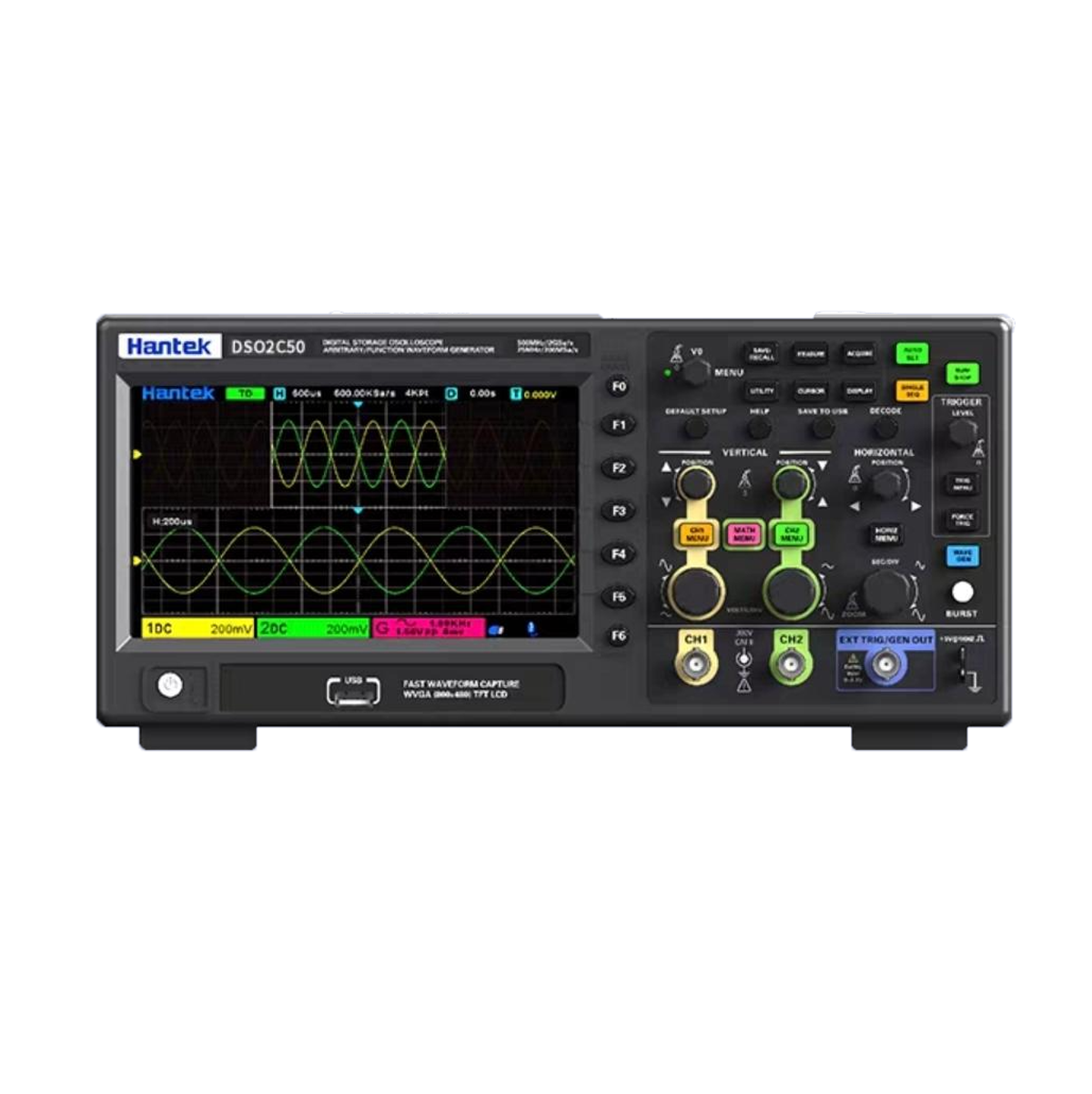

Hantek DSO2C50 Digital Storage Oscilloscope: 2CH 500MHz Ultra-High-Freq Testing
Need to capture ultra-high-frequency signals for professional electronics testing? The Hantek DSO2C50 delivers 2-channel 500MHz bandwidth + 4GSa/s sampling rate, with advanced trigger/decode functions—ideal for high-speed RF circuit R&D, 5G core module testing, aerospace electronics, and premium labs.
User-Friendly Design
Clear Display : 7-inch 800×480 TFT LCD (16M color); adjustable brightness/grid; dual-window display for waveform comparison & overlay analysis.
Easy Operation : 36+ auto-measurements (frequency/rising time/jitter, etc.) with real-time statistics; 2-set DVM (DC/AC RMS) + 7-digit hardware frequency meter.
Practical Features : USB Host/Device for data storage (settings/waveforms/CSV/pictures); supports SCPI remote control for automated testing workflows.
Key Specifications
Parameter
Detail
Model
Hantek DSO2C50
Core Performance
Bandwidth: 500MHz (2 channels);
Sampling rate: 4GSa/s (single CH), 2GSa/s (dual CH);
Memory depth: 160K (single CH), 80K (dual CH)
Acquisition Modes
Normal, Peak, Average (4-256x), High Resolution (up to 12bit)
Trigger Functions
16+ types: Edge/Pulse/Video/Slope/Overtime/Window/Pattern + UART/LIN/CAN/SPI/IIC/CAN FD serial triggers
Protocol Decode

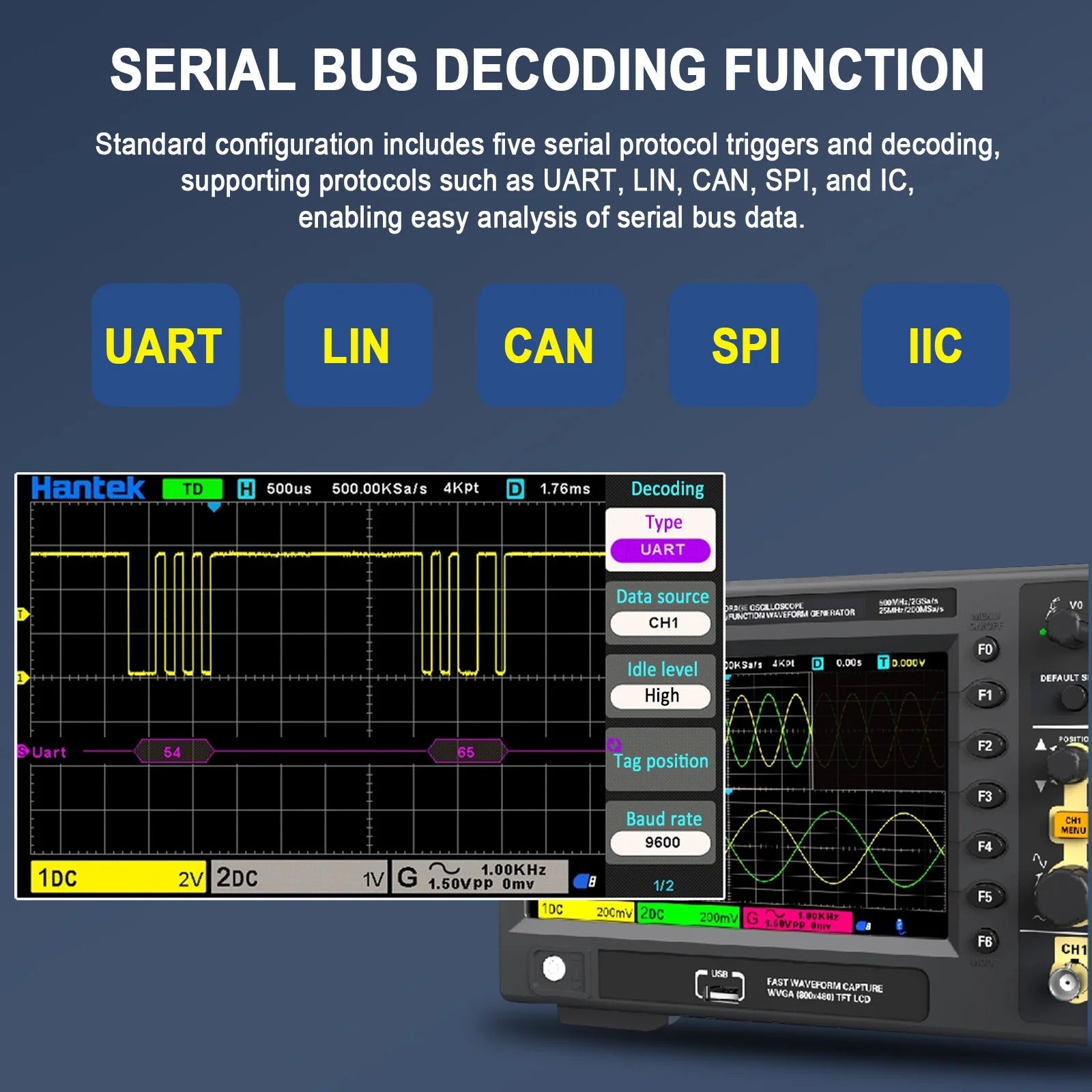

RS232/UART, I2C, SPI, CAN, LIN, CAN FD (hex format; baud rate/custom frame customizable)
Vertical Performance
Sensitivity: 200μV/div~10V/div;
Offset range: ±1V (≥200mV/div), ±50V (<200mV/div);
Gain accuracy: ±2% (10V/div~10mV/div)
Input Specifications

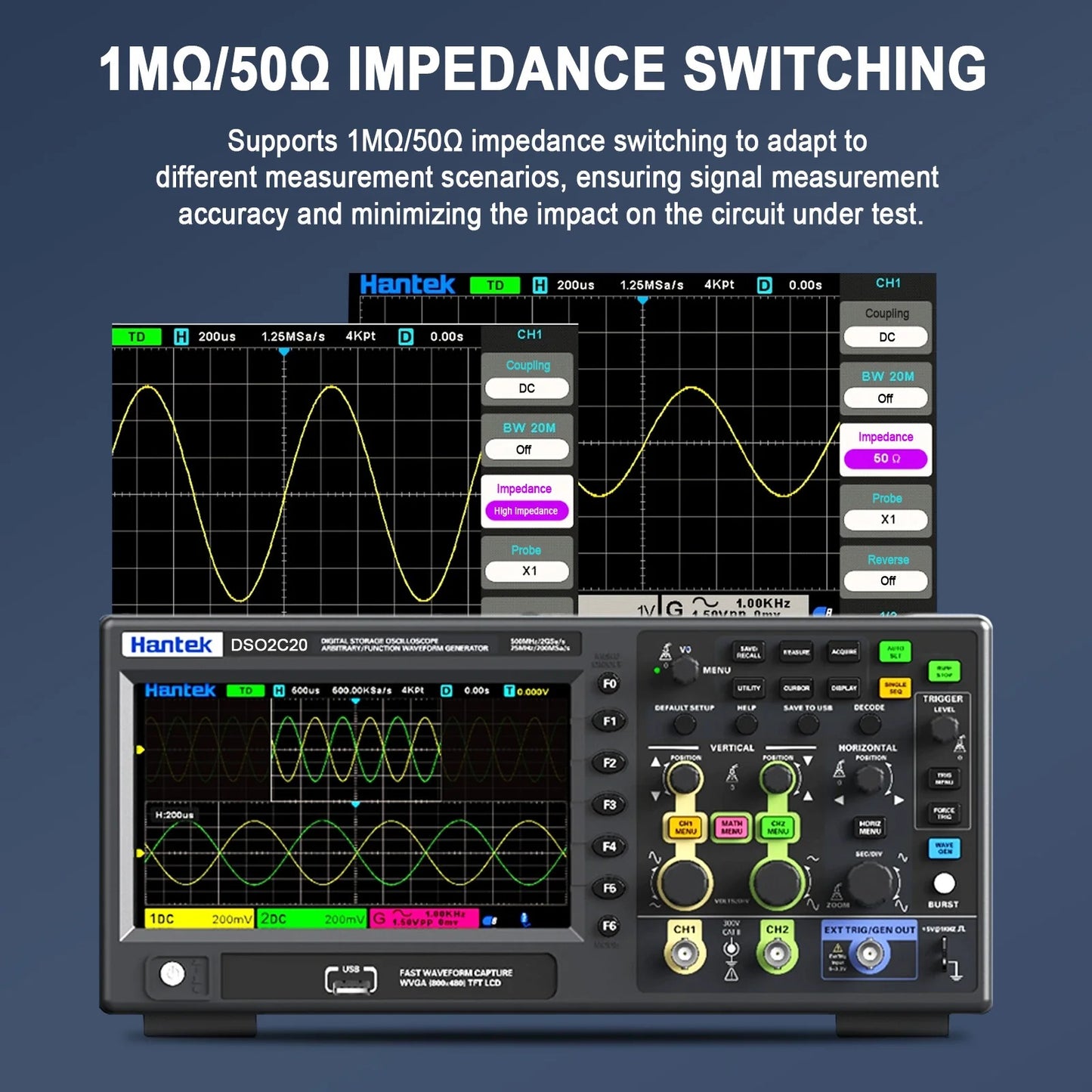

Coupling: DC/AC/GND; Impedance: 1MΩ±1% ‖15pF±3pF;
Max input voltage: 300VRMS (10X probe);
Probe attenuation: 1X/10X/100X/1000X
Horizontal Control
Scale range: 500ps/div~1ks/div;
Time base modes: Y-T, X-Y, Roll;
Delta time accuracy: ±(1 sample interval+20ppm×reading+2ppm/year)
Power & Env
AC 100-240V±10% (45-66Hz);
Power consumption: <40W;
Operating temp: 0~50℃; Weight: ~2.5kg;
Size: 335×125×165mm
Core Advantages
Ultra-High-Freq Capture : 500MHz bandwidth + 4GSa/s sampling rate captures fast signals (e.g., 5G RF, high-speed serial buses) with minimal distortion.
Versatile Professional Debugging : Extended protocol decode (CAN FD) + 36+ auto-measurements fit complex industrial/aerospace testing needs.
Portable & Durable : Compact ~2.5kg design suits on-site debugging; 300V CAT II rating ensures safe operation in harsh environments.
Applicable Scenarios
High-Speed RF R&D : Debug 500MHz-range circuits (5G core modules, RF power amplifiers, high-speed ADC/DAC).
Aerospace/Automotive : Analyze high-frequency control signals & CAN FD buses in advanced vehicle/avionics systems.
Premium Labs : Validate precision of ultra-high-frequency components (microwave oscillators, high-speed sensors).
High-End Production QC : Ensure performance of premium electronics (industrial controllers, medical imaging devices).
Why Choose DSO2C50?
Ultra-High-Freq Value : 500MHz bandwidth at cost-effective price vs. high-end specialized scopes.
User-Friendly : Intuitive interface reduces learning curve for engineers/technicians.
Reliable Brand : Hantek’s industrial-grade build ensures long-term stable use for professional tasks.
Elevate your ultra-high-frequency testing! Click “Add to Cart” to get the Hantek DSO2C50.
