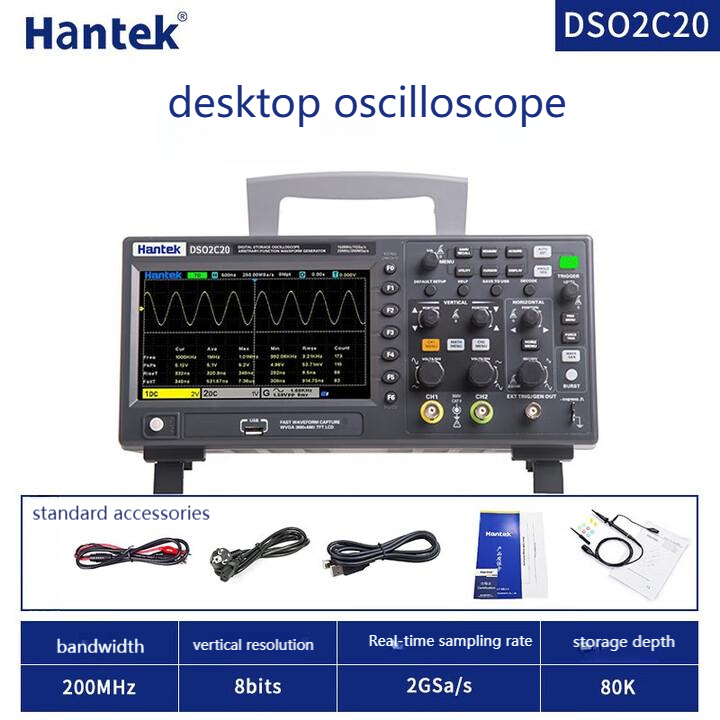

Hantek DSO2C20 Digital Storage Oscilloscope: 2CH 200MHz High-Speed Testing
Need to capture ultra-fast signals for high-end electronics testing? The Hantek DSO2C20 delivers 2-channel 200MHz bandwidth + 2GSa/s sampling rate, with advanced trigger/decode functions—ideal for high-speed circuit R&D, RF module testing, automotive electronics, and professional labs.
User-Friendly Design

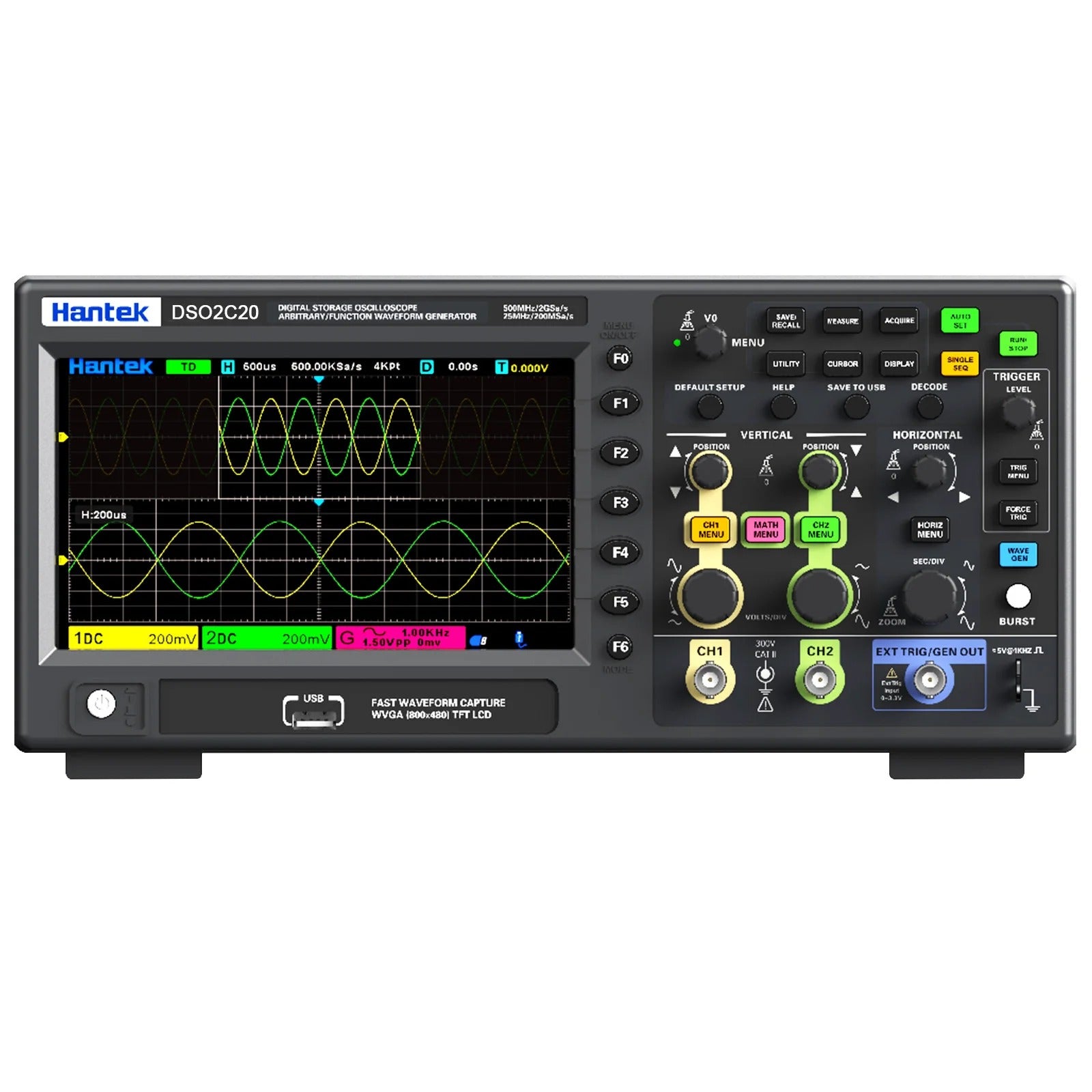

Clear Display : 7-inch 800×480 TFT LCD (16M color); adjustable brightness/grid; dual-window display for side-by-side waveform comparison.
Easy Operation : 32 auto-measurements (frequency/rising time/peak-to-peak, etc.) with real-time statistics; 2-set DVM (DC/AC RMS) + 6-digit hardware frequency meter.
Practical Features : USB Host/Device for data storage (waveforms/settings/CSV/images); supports SCPI remote control for automated testing workflows.

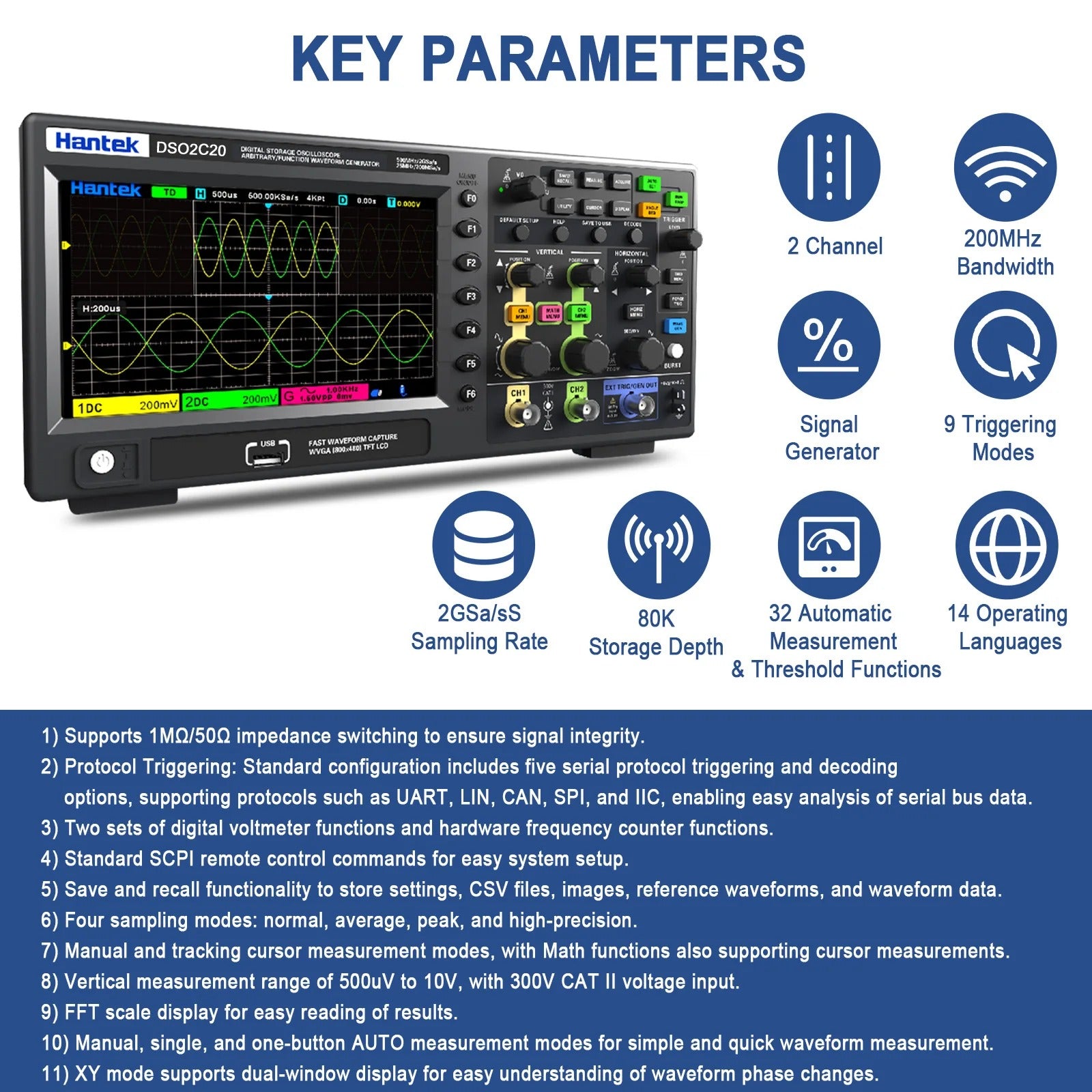

Key Specifications
Parameter
Detail
Model
Hantek DSO2C20
Core Performance
Bandwidth: 200MHz (2 channels);
Sampling rate: 2GSa/s (single CH), 1GSa/s (dual CH);
Memory depth: 16M (single CH), 8M (dual CH)
Acquisition Modes
Normal, Peak, Average (4-128x), High Resolution (up to 12bit), Roll
Trigger Functions
15 types: Edge/Pulse/Video/Slope/Overtime/Window/Pattern/Interval/Under Amp + UART/LIN/CAN/SPI/IIC/CAN FD serial triggers
Protocol Decode

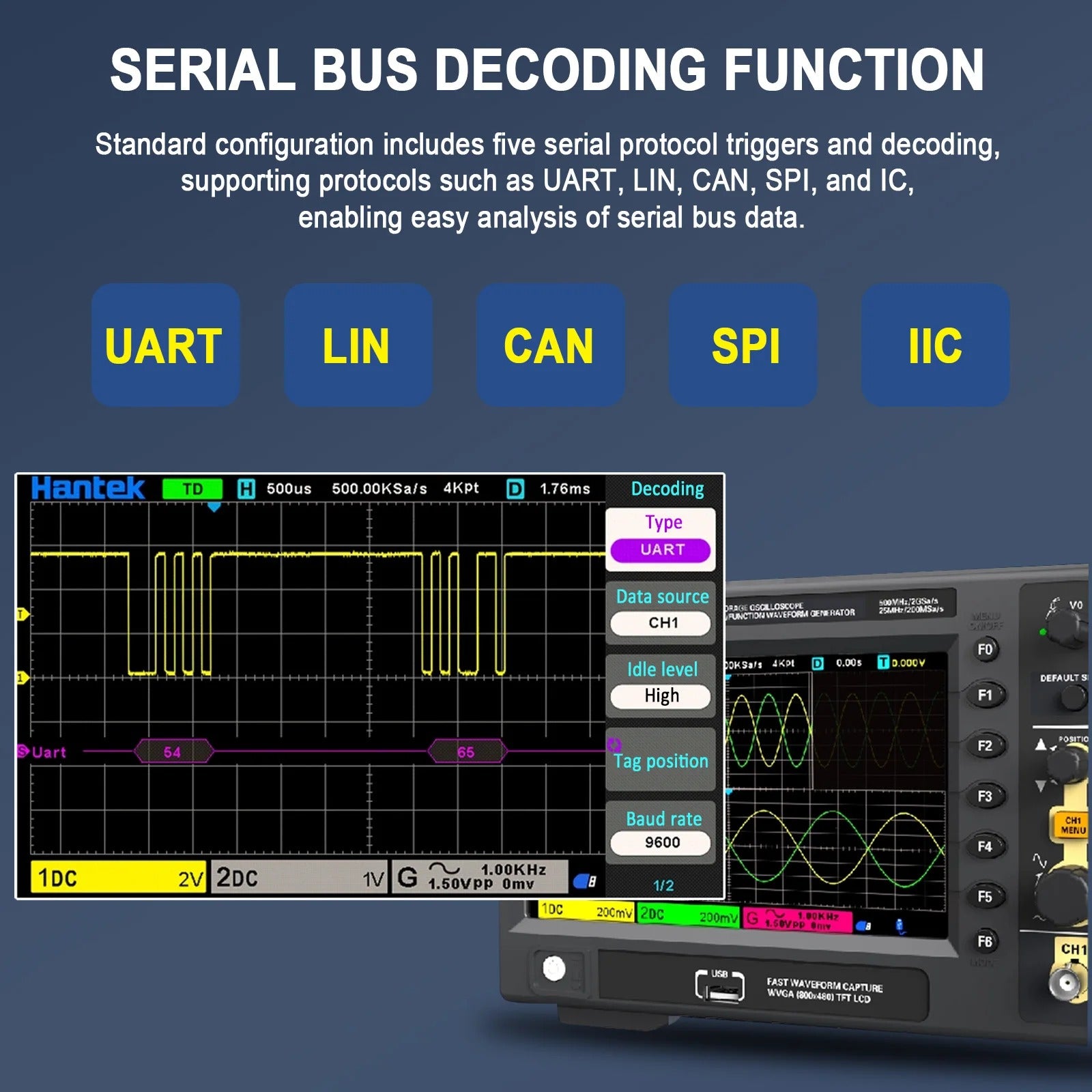

RS232/UART, I2C, SPI, CAN, LIN, CAN FD (hex/decimal format; baud rate/custom frame customizable)
Vertical Performance
Sensitivity: 1mV/div~10V/div;
Offset range: ±1V (≥200mV/div), ±50V (<200mV/div);
Gain accuracy: ±2% (10V/div~10mV/div)
Input Specifications
Coupling: DC/AC/GND; Impedance: 1MΩ±2% ‖12pF±3pF; Max input voltage: 300VRMS (10X probe); Probe attenuation: 1X/10X/100X/1000X
Horizontal Control
Scale range: 1ns/div~100s/div;
Time base modes: Y-T, X-Y, Roll;
Delta time accuracy: ±(1 sample interval+50ppm×reading+0.5ns)
Power & Env
AC 100-240V±10% (45-66Hz);
Power consumption: <35W;
Operating temp: 0~50℃;
Weight: 2.1kg; Size: 325×115×155mm
Core Advantages
Ultra-High Speed : 200MHz bandwidth + 2GSa/s sampling captures fast signals (e.g., 5G modules, high-speed ADC/DAC) without distortion.
Advanced Debugging : CAN FD decode + extended trigger types fit complex industrial/automotive electronics testing.
Reliable & Portable : Compact 2.1kg design suits on-site debugging; 300V CAT II rating ensures operational safety.
Applicable Scenarios
High-Speed R&D : Debug 200MHz-range circuits (RF amplifiers, IoT high-speed modules, FPGA designs).
Automotive Electronics : Analyze CAN FD/LIN bus signals in new-energy vehicle control systems.
Professional Labs : Validate high-frequency component performance (e.g., oscillators, data converters).
Production QC : Ensure quality of high-speed electronics in manufacturing lines.
Why Choose DSO2C20?
Top-Tier Performance : 200MHz bandwidth + 16M memory depth meets professional testing needs.
Cost-Effective : Balances high-end functions with affordable pricing vs. premium brands.
Brand Reliability : Hantek’s industrial-grade build ensures long-term stable operation.
Upgrade your high-speed signal testing! Click “Add to Cart” to get the Hantek DSO2C20.
