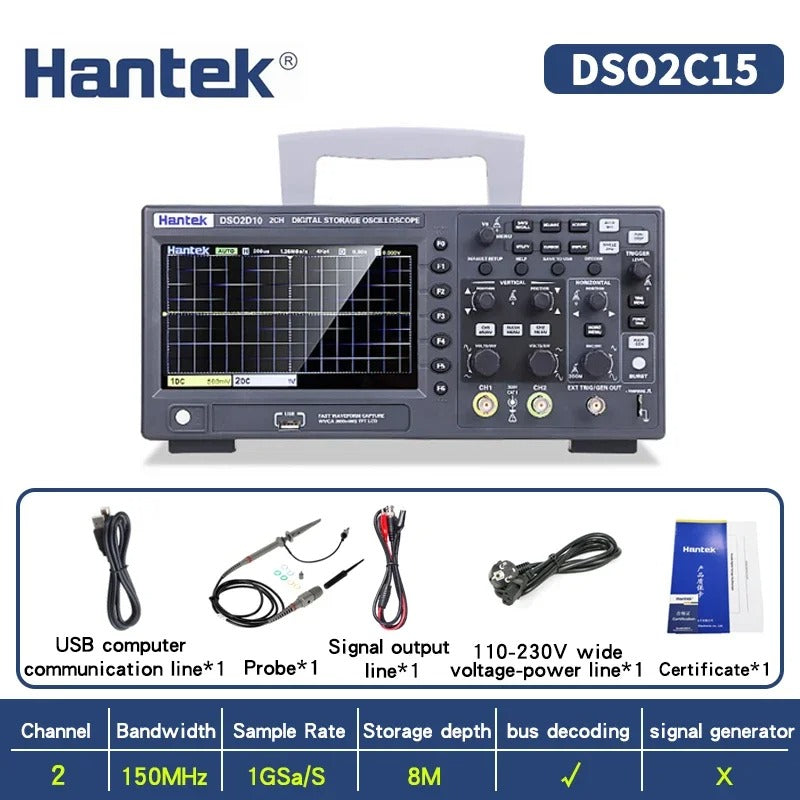

Hantek DSO2C15 Digital Storage Oscilloscope: 2CH 150MHz High-Freq Testing
Need to capture high-frequency signals for advanced electronics testing? The Hantek DSO2C15 delivers 2-channel 150MHz bandwidth + 1GSa/s sampling rate, with rich trigger/decode functions—ideal for high-speed circuit R&D, communication debugging, industrial electronics, and lab teaching.

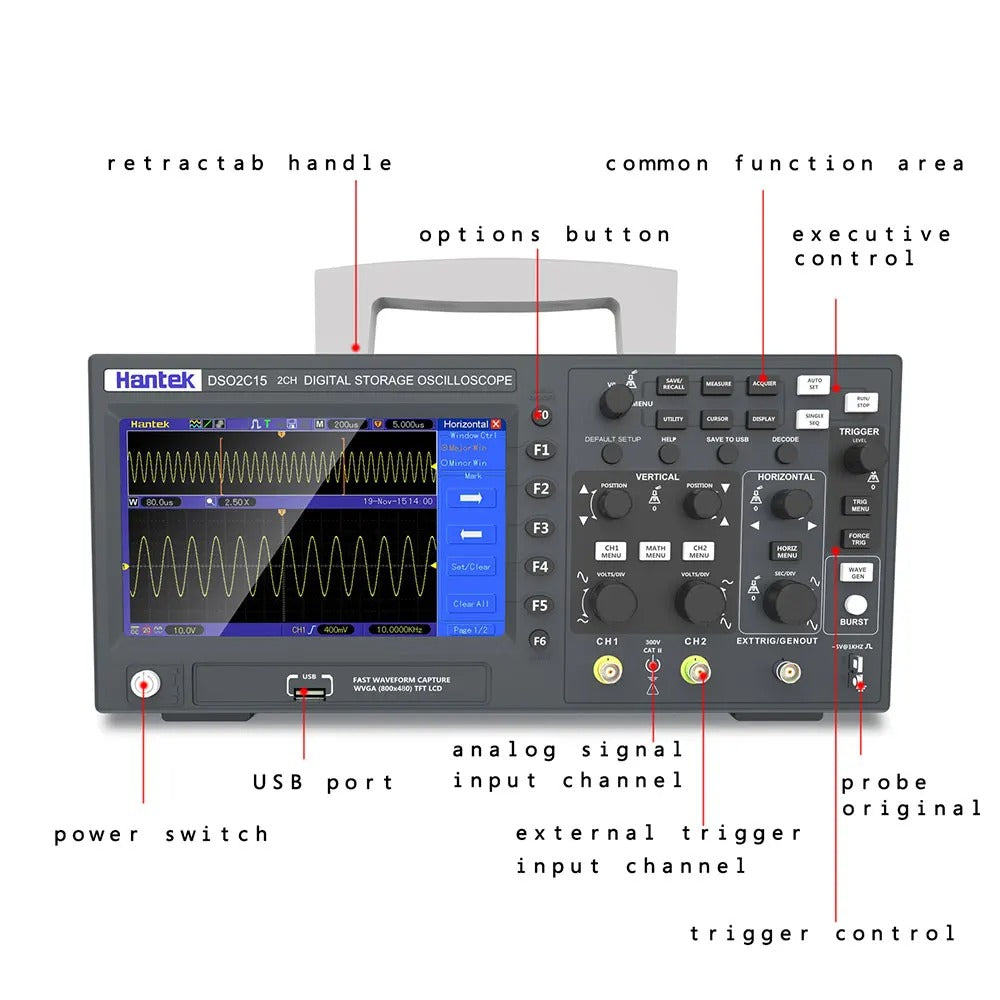

User-Friendly Design
Clear Display : 7-inch 800×480 TFT LCD (16M color); adjustable brightness/grid; dual-window display for waveform comparison.
Easy Operation : 32 auto-measurements (frequency/peak-to-peak/rising time, etc.) with statistics; 2-set DVM (DC/AC RMS) + 6-digit hardware frequency meter.
Practical Features : USB Host/Device for data storage (settings/waveforms/CSV/pictures); SCPI remote control support for automated testing.
Key Specifications
Parameter
Detail
Model
Hantek DSO2C15
Core Performance
Bandwidth: 150MHz (2 channels); Sampling rate: 1GSa/s (single CH), 500MSa/s (dual CH); Memory depth: 8M (single CH), 4M (dual CH)
Acquisition Modes
Normal, Peak, Average (4-128x), High Resolution (up to 12bit)
Trigger Functions
14 types: Edge/Pulse/Video/Slope/Overtime/Window/Pattern/Interval/Under Amp + UART/LIN/CAN/SPI/IIC serial triggers
Protocol Decode
RS232/UART, I2C, SPI, CAN, LIN (hex format; baud rate customizable)
Vertical Performance
Sensitivity: 2mV/div~10V/div;
Offset range: ±1V (≥200mV/div), ±50V (<200mV/div);
Gain accuracy: ±3% (10V/div~10mV/div)
Input Specifications
Coupling: DC/AC/GND;
Impedance: 1MΩ±2% ‖13pF±3pF;
Max input voltage: 300VRMS (10X probe);
Probe attenuation: 1X/10X/100X/1000X
Horizontal Control
Scale range: 2ns/div~100s/div;
Time base modes: Y-T, X-Y, Roll;
Delta time accuracy: ±(1 sample interval+100ppm×reading+0.6ns)

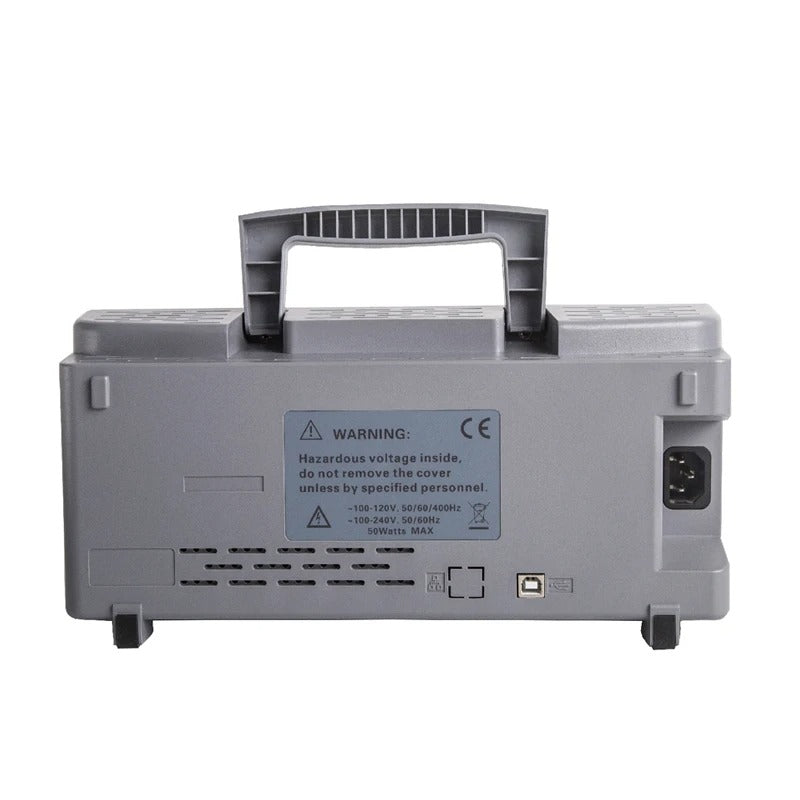

Power & Env
AC 100-240V±10% (45-66Hz);
Power consumption: <30W;
Operating temp: 0~50℃; Weight: 1.9kg;

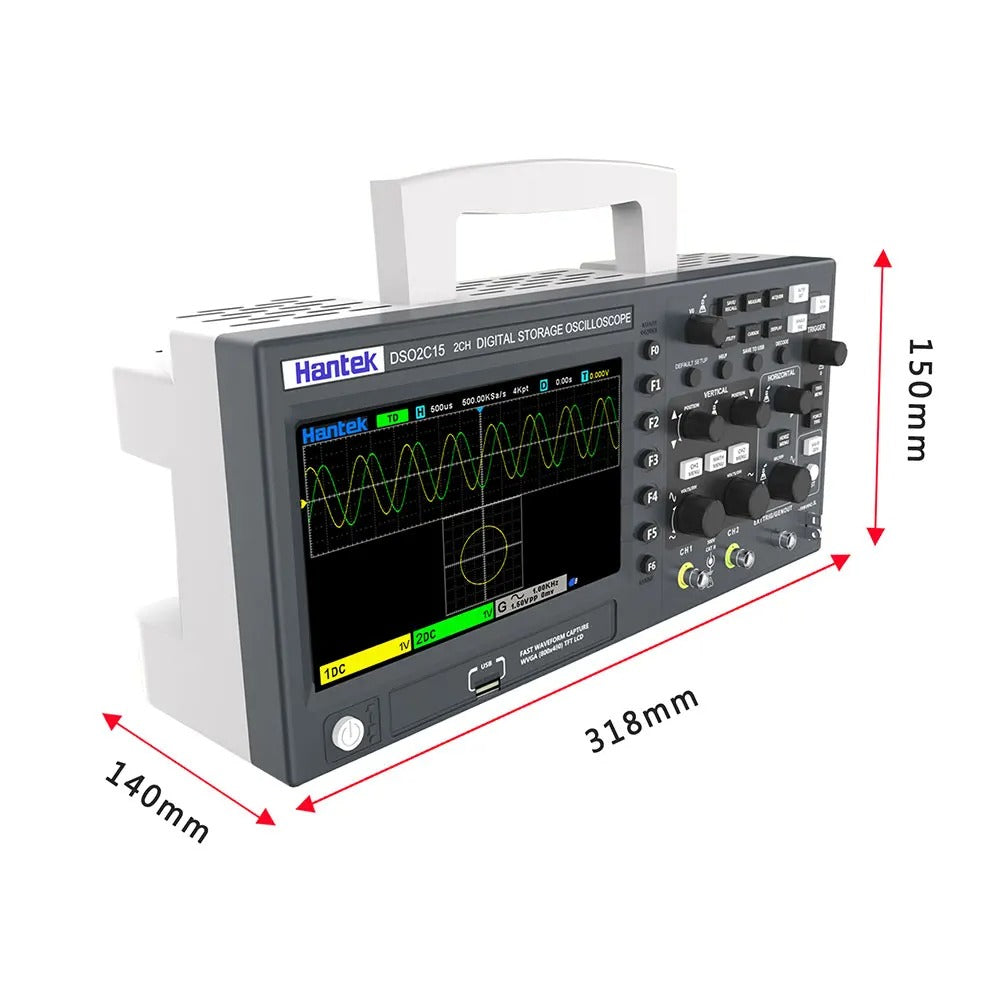

Size: 318×110×150mm
Core Advantages
High-Freq Precision : 150MHz bandwidth captures fast signals (e.g., high-speed ICs, RF modules) without distortion; 1GSa/s sampling ensures waveform detail.
Versatile Debugging : Serial protocol trigger/decode (CAN/LIN/SPI) fits embedded/industrial electronics; 32 auto-measurements cut testing time.
Portable & Durable : Compact 1.9kg design suits on-site testing; 300V CAT II rating ensures safe operation.
Applicable Scenarios
High-Speed R&D : Debug 150MHz-range circuits (e.g., IoT modules, high-frequency amplifiers).
Industrial Electronics : Analyze CAN/LIN bus signals in automotive or factory control systems.
Lab Teaching : Demonstrate high-frequency waveform analysis and serial protocol decoding.
Production QC : Verify performance of high-frequency electronics in manufacturing lines.
Why Choose DSO2C15?
High-Freq Value : 150MHz bandwidth at cost-effective price; no need for expensive specialized scopes.
User-Friendly : Intuitive interface reduces learning curve for engineers/students.
Reliable Brand : Hantek’s industrial-grade build ensures long-term stable use.
Upgrade your high-frequency testing! Click “Add to Cart” to get the Hantek DSO2C15.
