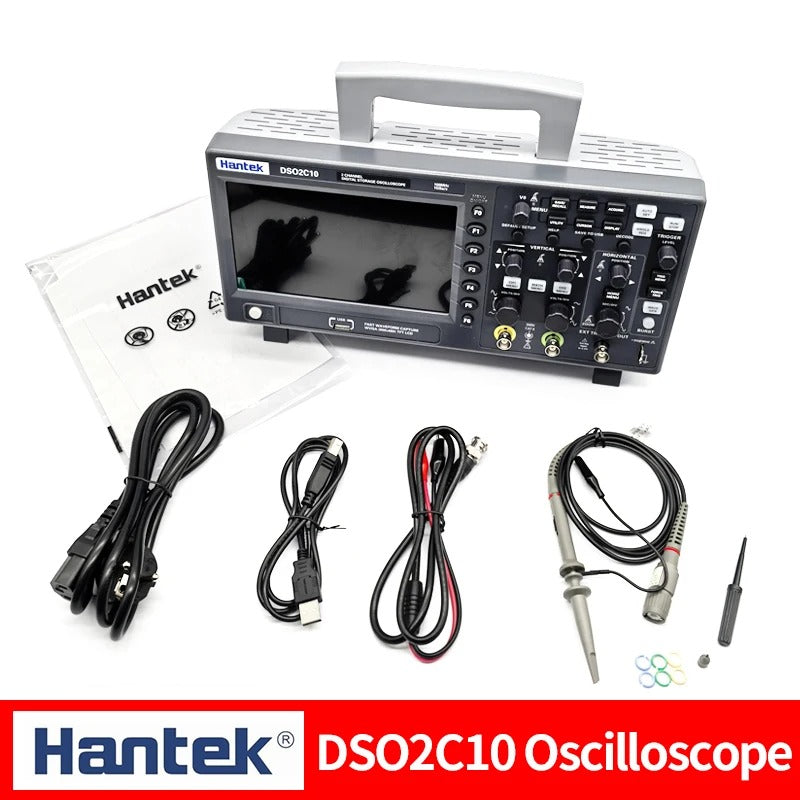

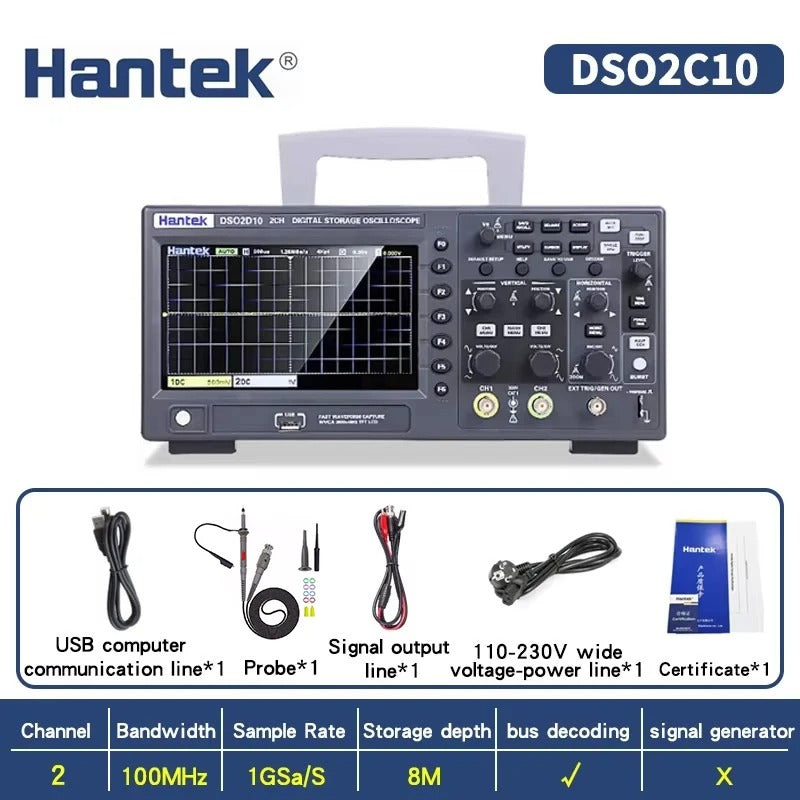

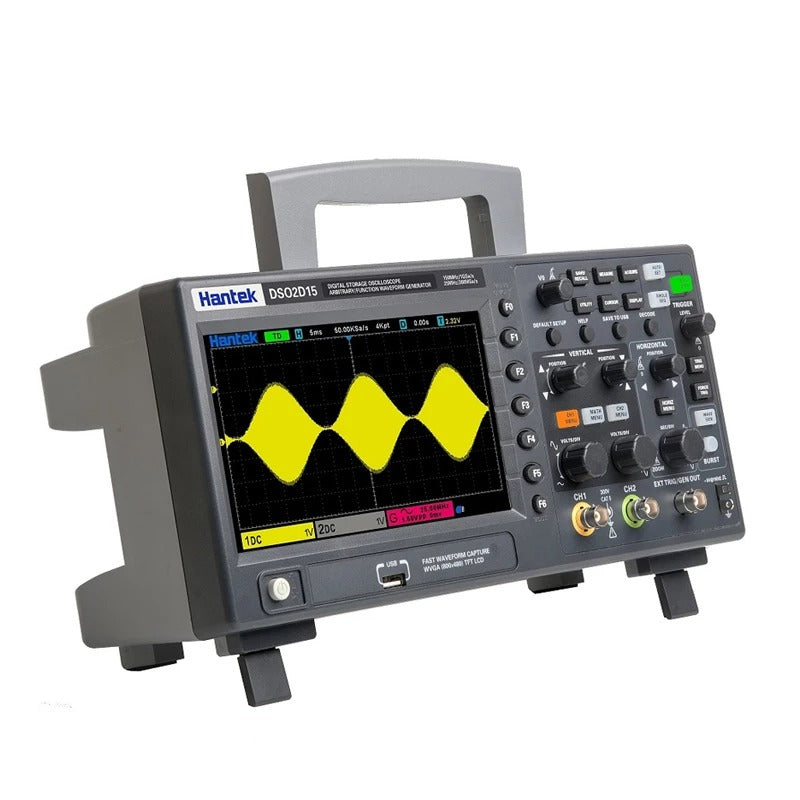

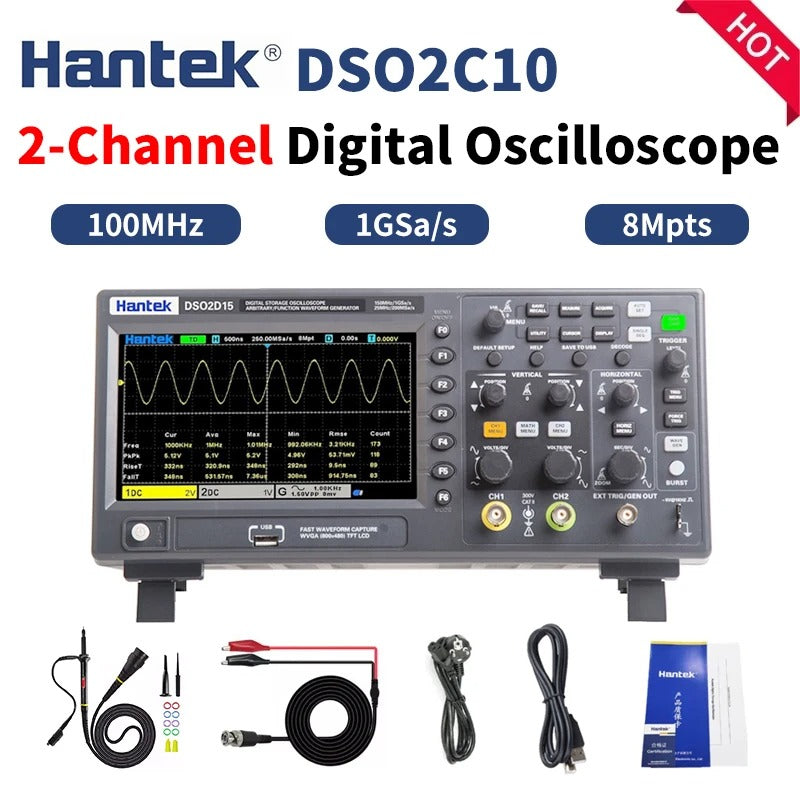

Hantek DSO2C10 Digital Storage Oscilloscope: 2CH 100MHz Precision Testing
Need a reliable oscilloscope for electronics debugging and testing? The Hantek DSO2C10 offers 2-channel 100MHz bandwidth + 1GSa/s sampling rate, with rich trigger/decode functions—ideal for R&D labs, embedded systems, communication testing, and education.
User-Friendly Design

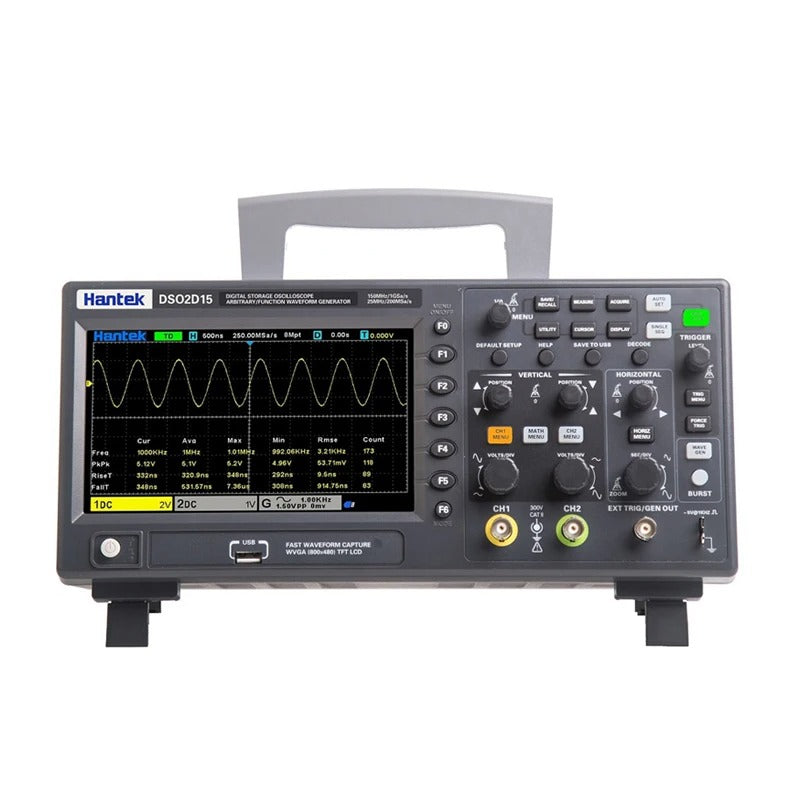

Clear Display : 7-inch 800×480 TFT LCD (16M color); adjustable brightness/grid; supports dual-window display for easy waveform comparison.
Easy Operation : 32 auto-measurements (frequency/peak-to-peak/rising time, etc.) with statistics; 2 sets of DVM (DC/AC RMS) + 6-digit hardware frequency meter.
Practical Features : USB Host/Device for data storage (settings/waveforms/CSV/pictures); supports SCPI remote control for automated testing.

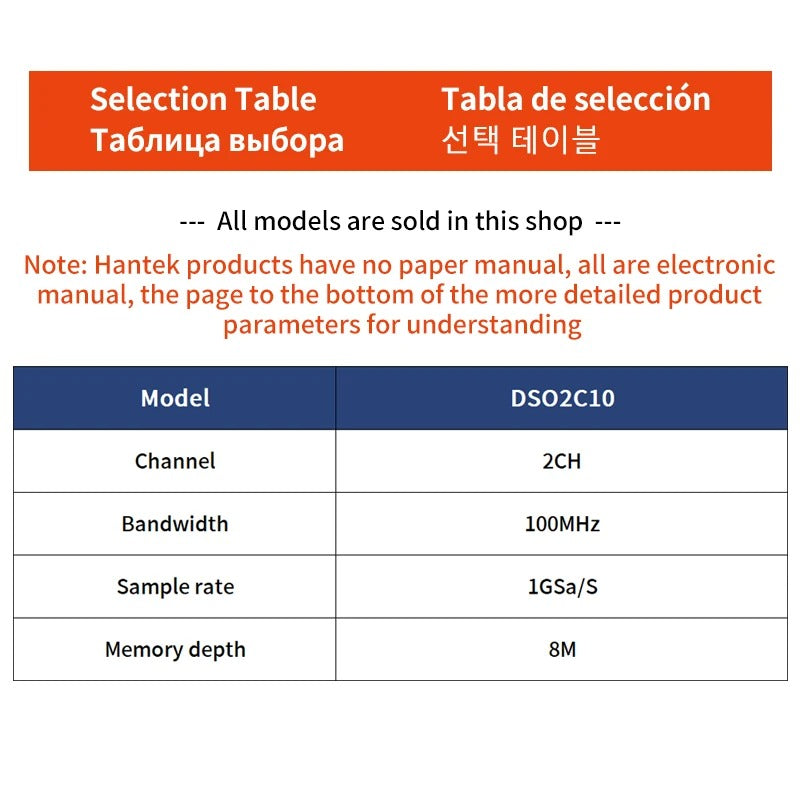

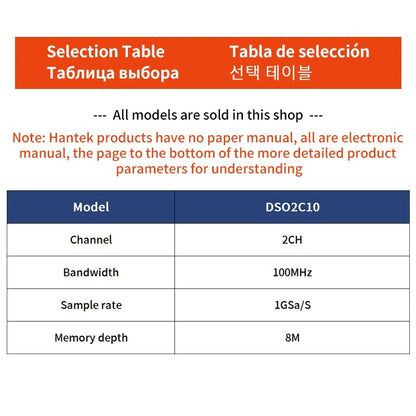

Key Specifications
Parameter
Detail
Model
Hantek DSO2C10
Core Performance
Bandwidth: 100MHz (2 channels); Sampling rate: 1GSa/s (single CH), 500MSa/s (dual CH); Memory depth: 8M (single CH), 4M (dual CH)
Acquisition Modes
Normal, Peak, Average (4-128x), High Resolution (up to 12bit)
Trigger Functions
14 types: Edge/Pulse/Video/Slope/Overtime/Window/Pattern/Interval/Under Amp + UART/LIN/CAN/SPI/IIC serial triggers
Protocol Decode
RS232/UART, I2C, SPI, CAN, LIN (hex format; supports baud rate customization)
Vertical Performance
Sensitivity: 2mV/div~10V/div;
Offset range: ±1V (≥200mV/div), ±50V (<200mV/div);
Gain accuracy: ±3% (10V/div~10mV/div)
Input Specifications
Coupling: DC/AC/GND;
Impedance: 1MΩ±2% ‖13pF±3pF;
Max input voltage: 300VRMS (10X probe);
Probe attenuation: 1X/10X/100X/1000X
Horizontal Control
Scale range: 2ns/div~100s/div;
Time base modes: Y-T, X-Y, Roll;
Delta time accuracy: ±(1 sample interval+100ppm×reading+0.6ns)

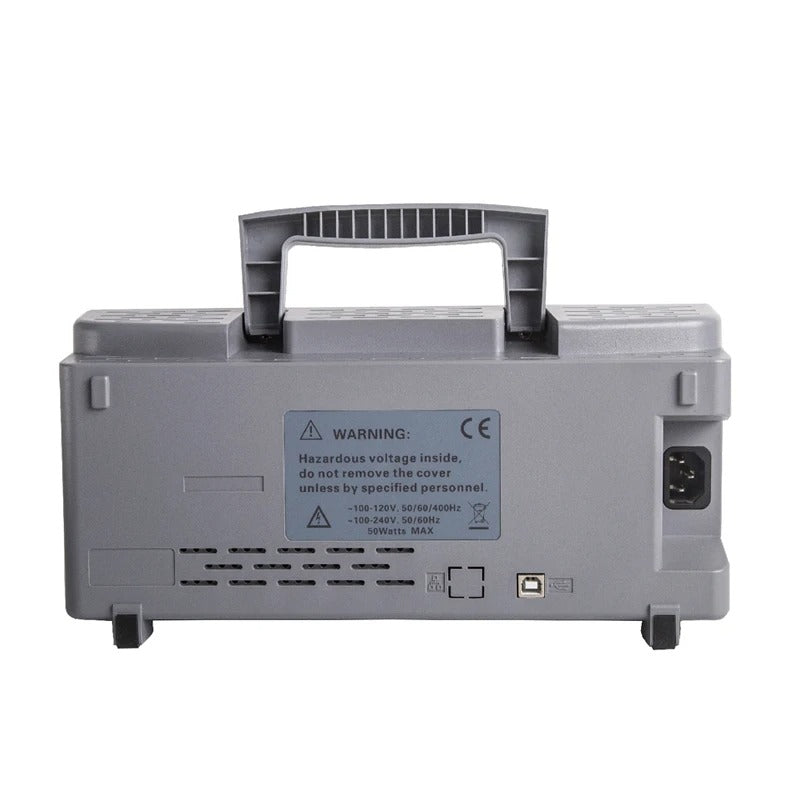

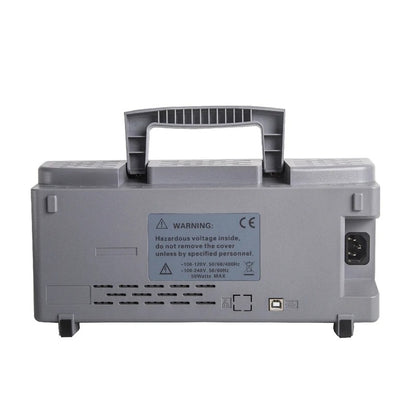

Power & Env
AC 100-240V±10% (45-66Hz);
Power consumption: <30W;
Operating temp: 0~50℃;
Weight: 1.9kg; Size: 318×110×150mm
Core Advantages
High Precision : 100MHz bandwidth + 1GSa/s sampling rate captures fast signals without distortion; 8M memory depth restores real waveforms.
Versatile Testing : Serial protocol trigger/decode fits embedded/communication debugging; 32 auto-measurements save testing time.
Durable & Portable : Compact design (1.9kg) suits lab/on-site use; 300V CAT II rating ensures safe operation.
Applicable Scenarios
Embedded Systems : Debug UART/SPI/IIC communication signals for microcontrollers.
Communication Testing : Analyze LIN/CAN bus signals in automotive/industrial electronics.
Education : Teach waveform analysis, trigger principles, and protocol decoding.
R&D Labs : Validate circuit performance for analog/digital prototypes.
Why Choose DSO2C10?
Cost-Effective : Balances 100MHz performance with affordable price; no redundant functions.
User-Centric : Intuitive interface + auto-measurements reduce learning curve for beginners.
Reliable Brand : Hantek’s industrial-grade design ensures long-term stable use.
Upgrade your signal testing! Click “Add to Cart” to get the Hantek DSO2C10.
