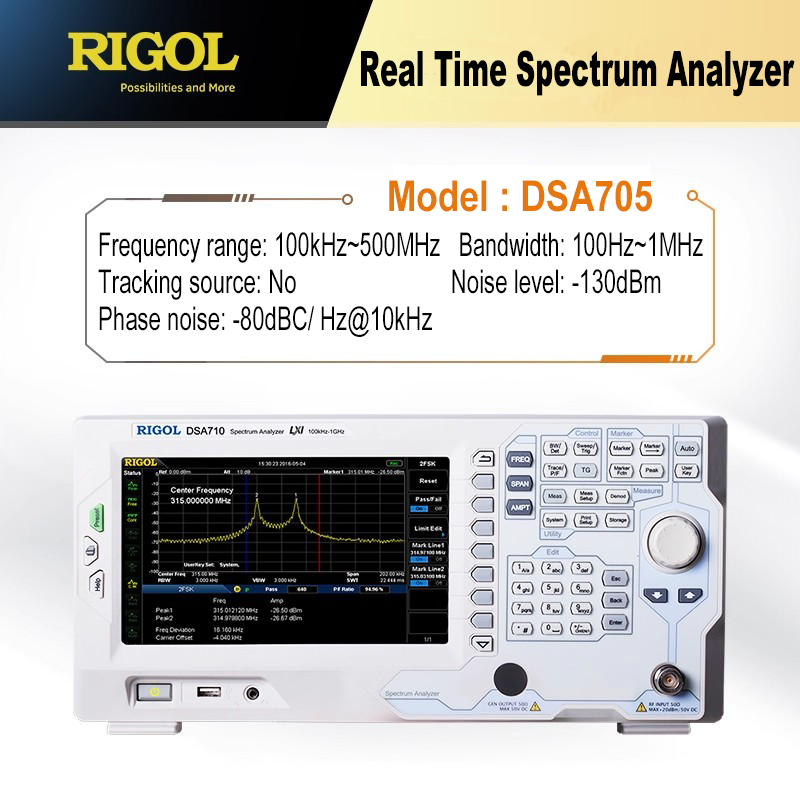

RIGOL Spectrum Analyzer DSA705 DSA710 Real Time Spectrum Analyzer Frequency Range 100kHz - 500MHz 100kHz - 1GHz 8 - inch WVGA display
RIGOL Spectrum Analyzer DSA705 DSA710 Real Time Spectrum Analyzer Frequency Range 100kHz - 500MHz 100kHz - 1GHz 8 - inch WVGA display
Regular price
$929.00 USD
Regular price
Sale price
$929.00 USD
Unit price
/
per
Couldn't load pickup availability
English Mannel
Overview
RIGOL's DSA705 and DSA710 are high - performance real - time spectrum analyzers, ideal for precise and efficient signal analysis in various electronic and communication scenarios.
Key Features
- Low Resolution Bandwidth: Down to 100Hz, enabling effective distinction of adjacent equal - amplitude signals.
- EMI Pre - Compliance Testing: Equipped with an EMI filter (6dB) and quasi - peak detector for accurate EMI prediction and diagnosis.
- Low Noise Floor: Display average noise level as low as - 130dBm (normalized to 100Hz), reducing impact on weak signal testing.
- ASK/FSK Signal Capture: Capable of capturing ASK/FSK signals, with built - in 2FSK testing function.
- Intuitive Display & Interface: 8 - inch WVGA (800×480) display and user - friendly operation panel.
Technical Specifications
|
Parameter
|
DSA705
|
DSA710
|
|
Frequency Range
|
100kHz - 500MHz
|
100kHz - 1GHz
|
|
Resolution Bandwidth
|
100Hz - 1MHz
|
100Hz - 1MHz
|
|
Phase Noise
|
- 80dBc/Hz@10kHz
|
- 80dBc/Hz@10kHz
|
|
Display Average Noise Level
|
- 130dBm (normalized to 100Hz)
|
- 130dBm (normalized to 100Hz)
|
|
With Tracking Source
|
No
|
No
|
|
Display Type
|
8 - inch WVGA (800×480)
|
8 - inch WVGA (800×480)
|
|
Interfaces
|
LAN (LXI), USB Host, USB Device, USB - GPIB (optional)
|
LAN (LXI), USB Host, USB Device, USB - GPIB (optional)
|
|
Dimensions
|
361.6 (W) × 178.8 (H) × 128 (D) mm
|
361.6 (W) × 178.8 (H) × 128 (D) mm
|
|
Weight
|
4.25 kg
|
4.25 kg
|
Selection Tips
- Choose DSA705 if your signal analysis needs fall within the 100kHz - 500MHz frequency range.
- Opt for DSA710 when you require signal analysis up to the 1GHz frequency range.
Application Scenarios
- Telecommunications: Analyze wireless communication signals for network optimization.
- Electronics R & D: Test and debug electronic circuits during product development.
- EMI Testing: Conduct pre - compliance electromagnetic interference testing for product certification.
- Education: Teach spectrum analysis principles in electronics and communication courses.
- RF Component Testing: Evaluate radio frequency components like antennas and filters.
- IoT Device Development: Capture and analyze ASK/FSK signals from IoT and small wireless devices.
Get RIGOL DSA705 or DSA710 now for precise real - time signal analysis!
