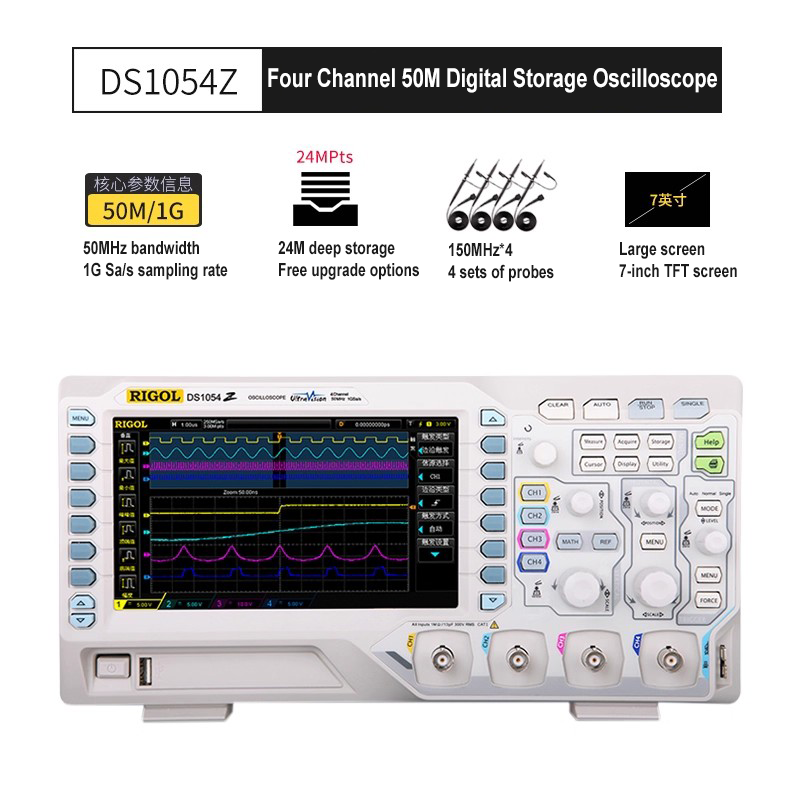

RIGOL Digital Storage Oscilloscope 4 Analog Channel DS1054Z DS1074Z-Plus DS1074Z-S-Plus 7-inch TFT screen 50MHz 70MHz Bandwidth

$579.90 USD

Sale Sold out

Model DS1054Z DS1074Z Plus(16 Digital Channels) DS1074Z-S Plus(2CH Signal Source)

Quantity

English Manual

Overview

The DS1000Z Series, including DS1054Z, DS1074Z - Plus, and DS1074Z - S - Plus, are high - performance digital oscilloscopes. With 4 analog channels as standard, they offer excellent signal measurement and analysis capabilities for various engineering and electronics applications.

Key Features

4 Analog Channels: Standard 4 analog channels for simultaneous multi - signal measurement.

High Sampling & Storage: Up to 1GSa/s real - time sampling rate and 24Mpts maximum storage depth (selectable) for detailed signal capture.

Fast Waveform Capture: 30,000wfm/s maximum waveform capture rate for real - time signal monitoring.

Advanced Analysis Functions: Support serial bus triggering/decoding (RS232/UART, I2C, SPI), hardware waveform recording/playback, and mixed signal analysis (MSO upgrade available for DS1000Z Plus).

Clear Display & Expandability: Digital fluorescence display for clear waveform visualization; optional 16 digital channels (probe required) and built - in signal source (2CH for DS1074Z - S - Plus).

Technical Specifications

Parameter	DS1054Z	DS1074Z - Plus	DS1074Z - S - Plus
Analog Bandwidth	50MHz	70MHz	70MHz
Analog Channels	4	4	4
Max Real - time Sampling Rate	1GSa/s	1GSa/s	1GSa/s
Max Storage Depth	24Mpts	24Mpts	24Mpts
Max Waveform Capture Rate	30,000wfm/s	30,000wfm/s	30,000wfm/s
Digital Channels	-	16 (Probe opt.)	16 (Probe opt.)
Built - in Signal Source	-	-	2CH

Application Scenarios

Electronics Design & Development: Analyze and debug analog/digital signals in circuit design.

Embedded Systems Testing: Monitor and decode serial communications (I2C, SPI, RS232/UART) in embedded projects.

Educational Institutions: Teach oscilloscope operation and signal analysis in electronics courses.

Maintenance & Repair: Troubleshoot electronic equipment by observing signal abnormalities.

Research Labs: Conduct precise signal measurement and analysis for scientific research.

Industrial Electronics: Test and validate signals in industrial control systems.

Choose theDS1054Z/DS1074Z - Plus/DS1074Z - S - Plus and order now for accurate signal testing!
