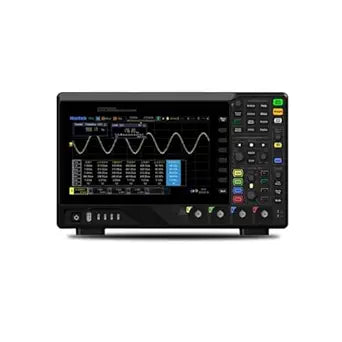

Hantek DPO7000 Series Oscilloscopes: 4CH High-Performance Testing for Diverse Signals
Need reliable 4-channel testing for complex signals? The Hantek DPO7000 Series (DPO7104C/DPO7354C/DPO7504C) offers 4CH operation + 2GSa/s sampling rate + 2Gpts memory depth , with bandwidth options (100MHz/350MHz/500MHz)—perfect for R&D, electronics manufacturing, and lab validation.
1. Shared Core Functions & Design
High-Speed Capture : 500,000 wfms/s waveform capture rate (grabs rare glitches), 2Gpts single-channel memory depth (preserves long signals).

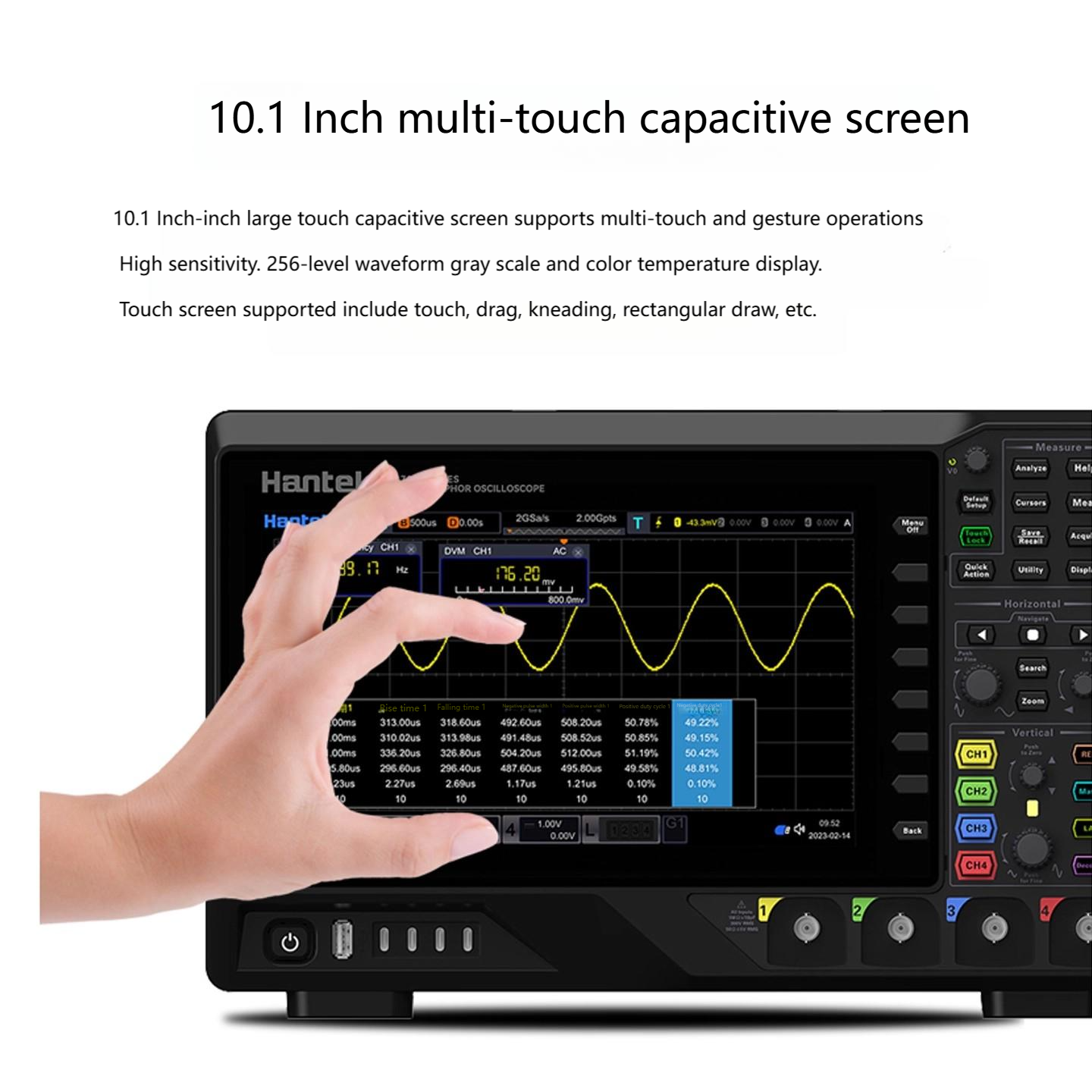

Clear Display : Large screen with 256-level grayscale + adjustable color temperature for sharp waveform viewing.

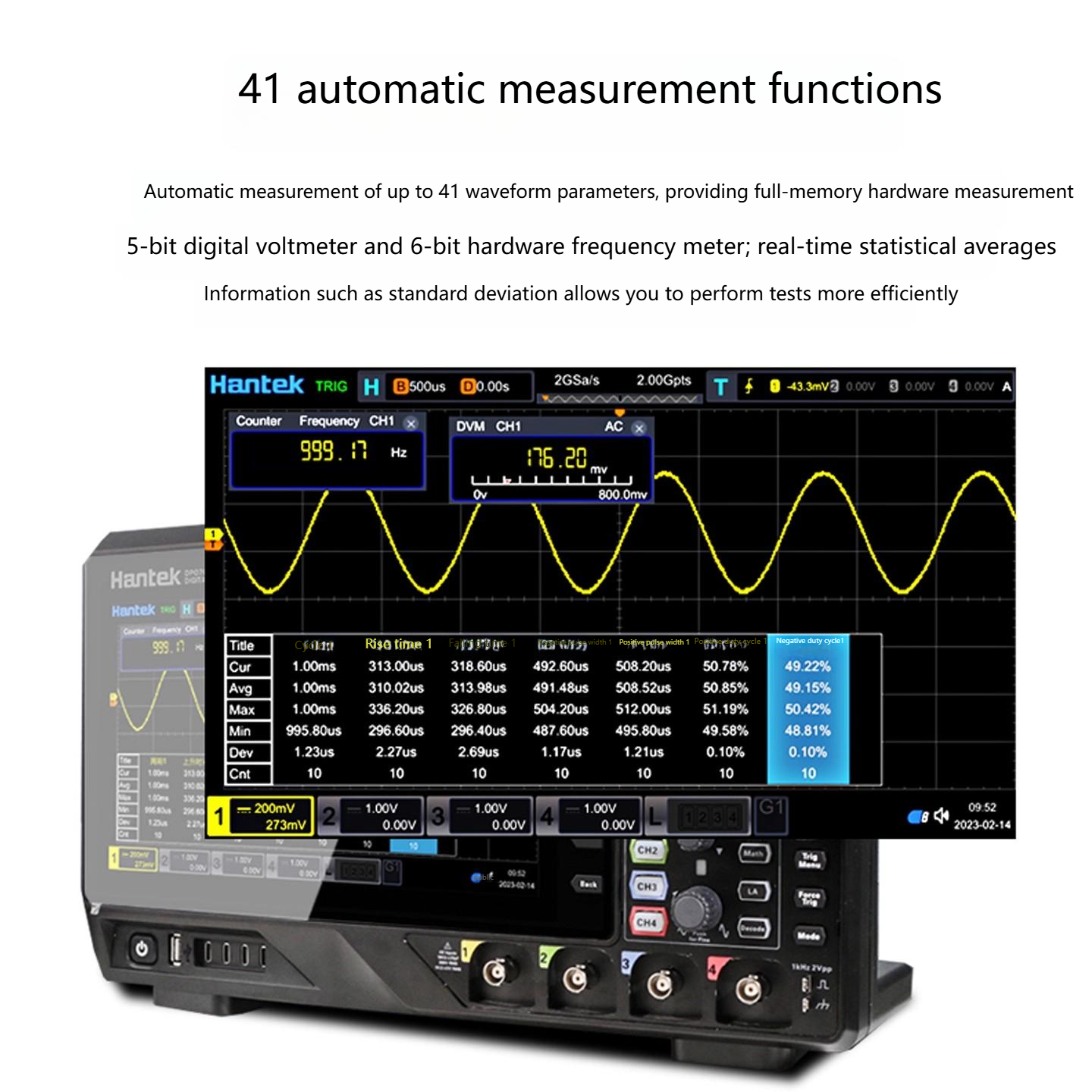

Pro Tools : 51 auto-measurements, 18 trigger types (UART/LIN/CAN/SPI/IIC included), and FFT/signal analysis.
Connectivity : USB Host/Device (data transfer), LAN; optional HDMI/serial port for expansion.
Safety : 300V CAT II max input; operating temp 0–50℃, storage temp -40–71℃.
2. Model Differences: Bandwidth & Key Specs
Model
Bandwidth
Rise Time
Core Strength
DPO7104C
100MHz
≤3.5ns
Cost-effective for mid-speed signals
DPO7354C
350MHz
≤1ns
Balances speed & precision for high-freq tasks
DPO7504C
500MHz
≤700ps
Ultra-fast for 500MHz-range ultra-high-freq testing
3. Key Shared Specifications
Parameter
Detail
Channels
4 analog channels
Sampling Rate
2GSa/s (single CH), 1GSa/s (dual CH)
Memory Depth
2Gpts (single CH), 1Gpts (dual CH)
Vertical Range
500μV/div–10V/div (1MΩ); 500μV/div–1V/div (50Ω)
Trigger Accuracy
±1ppm time base accuracy
Analysis Tools
DVM, frequency meter, power analyzer, etc.
4. Ideal Use Scenarios (By Model)
DPO7104C (100MHz)
Industrial Electronics : Debug 4G modules, PLCs, and motor control circuits.
Education : Teach waveform analysis in university labs with intuitive controls.
Entry-Level R&D : Validate low-to-mid frequency designs (e.g., Arduino systems).
DPO7354C (350MHz)
High-Speed Embedded Systems : Test 5G auxiliary modules, high-speed ADC/DAC.
Aerospace Auxiliary Testing : Analyze mid-range high-freq avionics signals.
Premium QC : Ensure specs of high-end industrial controllers/medical devices.
DPO7504C (500MHz)
5G Core R&D : Debug 5G base station RF modules, ultra-fast serial buses (PCIe).
Aerospace Main Systems : Validate 500MHz-range avionics/satellite signals.
Top-Tier Labs : Precision test high-frequency RF components, radar signals.
5. Why Choose DPO7000 Series?
Precise : 2GSa/s sampling + 2Gpts memory captures all signal details.
User-Friendly : Large screen + auto-measurements simplify complex testing.
Durable : Industrial-grade build for stable long-term use.
6. How to Choose?
Pick DPO7104C for mid-speed industrial/educational tasks.
Pick DPO7354C for high-speed embedded/aerospace auxiliary work.
Pick DPO7504C for 5G core/aerospace main system R&D.
Upgrade your 4-channel testing! Select your model and click “Add to Cart” for Hantek DPO7000 Series.
