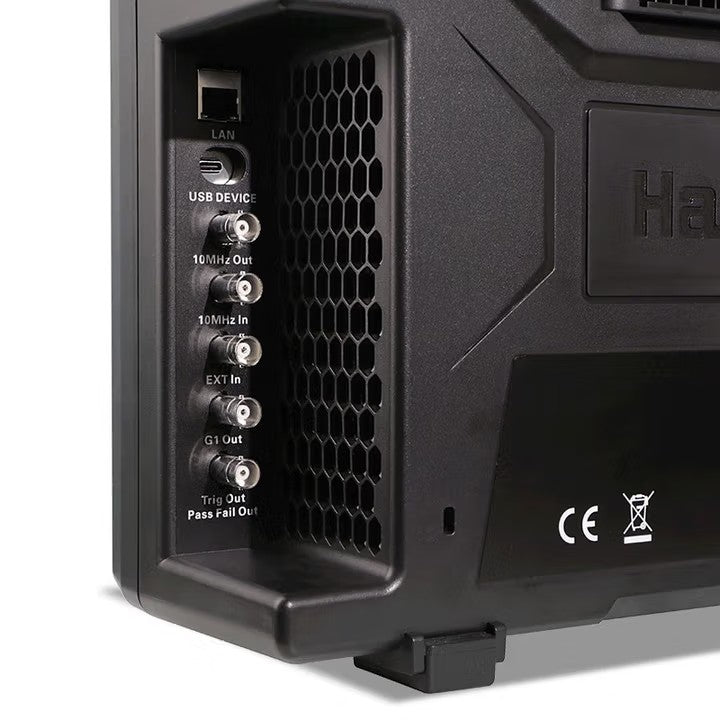

Rich Connectivity: USB Host/Device (data storage/PC analysis), LAN; optional HDMI/serial port for extended use.
Safety & Durability: 300V CAT II max input, convection cooling (quiet); operating temp 0~50℃, storage temp -40~71℃.
2. Model Differences: Bandwidth & Strengths
Parameter
DPO7102C
DPO7352C
DPO7502C
Bandwidth
100MHz
350MHz
500MHz
Time Base Range
2ns/div~1ks/div
1ns/div~1ks/div
500ps/div~1ks/div
Core Strength
Cost-effective for mid-speed signals
Balances speed & precision for high-freq tasks
Ultra-fast for 500MHz-range ultra-high-freq testing
3. Key Shared Specifications
Parameter
Detail
Channels
2 analog channels
Sampling Rate
2GSa/s (single CH), 1GSa/s (dual CH)
Memory Depth
2Gpts (single CH), 1Gpts (dual CH)
Vertical Performance
500μV/div~10V/div (1MΩ);
500μV/div~1V/div (50Ω);
8-bit resolution
Trigger & Decoding
Supports UART/LIN/CAN/SPI/IIC triggers/decoding;
±1ppm time base accuracy
Analysis Tools
DVM, frequency meter, power analyzer, histogram, waveform recording (2M+ frames)
Power
100-240VAC±10% (45-66Hz);
power consumption: <30W
4. Ideal Use Scenarios (By Model)
DPO7102C (100MHz)
Industrial Electronics: Debug 4G modules, PLCs, and motor control circuits—capturing mid-speed analog signals (e.g., sensor outputs, CAN bus) with precision.
Tech Education: Teach high-performance waveform analysis in university labs, with intuitive touch control for students.
Entry-Level R&D: Validate low-to-mid frequency circuit designs (e.g., Arduino-based systems, simple power supplies).
DPO7352C (350MHz)
High-Speed Embedded Systems: Test 5G auxiliary modules, high-speed ADC/DAC, and industrial Ethernet signals (e.g., 100Mbps+ serial buses).
Aerospace Auxiliary Testing: Analyze mid-range high-freq control signals in avionics subsystems (e.g., navigation sensors).
Premium QC: Ensure signal specs of high-end industrial controllers and medical imaging devices.
DPO7502C (500MHz)
5G Core R&D: Debug 5G base station RF modules, high-speed microwave components, and ultra-fast serial buses (e.g., PCIe).
Aerospace Main Systems: Validate 500MHz-range control signals in aircraft avionics and satellite communication systems.
Top-Tier Labs: Perform precision testing of high-frequency RF components, radar signals, and quantum electronics.
5. Why Choose DPO7002C Series?
Ultra-Precise: 2GSa/s sampling + 2Gpts memory ensures no high-freq signal detail is missed.
User-Friendly: 10.1-inch touchscreen + auto-measurements reduce learning curve for pro engineers.
Durable Reliable: Industrial-grade build for long-term stable use in harsh R&D/lab environments.
6. How to Choose?
Pick DPO7102C for mid-speed industrial/educational tasks.
Pick DPO7352C for high-speed embedded/aerospace auxiliary testing.
Pick DPO7502C for 5G core/aerospace main system R&D.
Elevate high-freq 2-channel testing! Select your model and click “Add to Cart” for Hantek DPO7002C Series.
