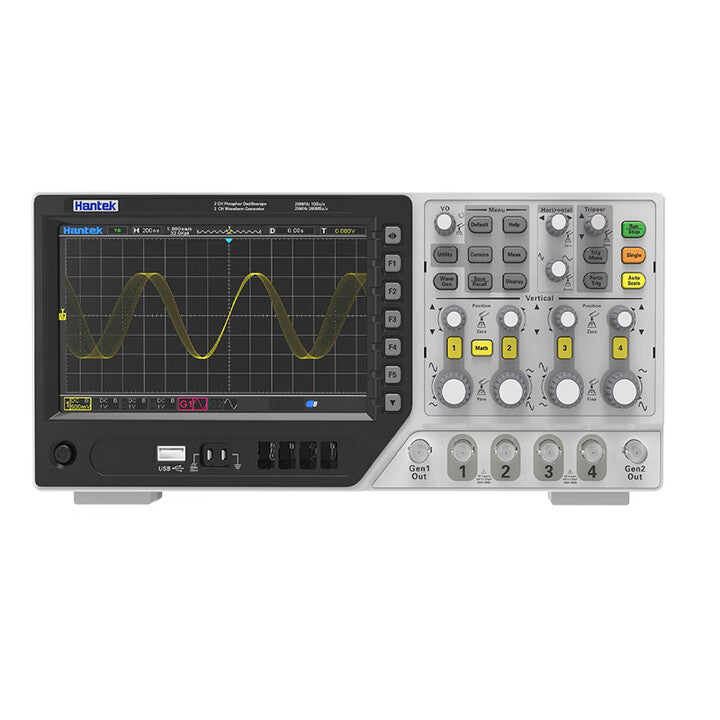

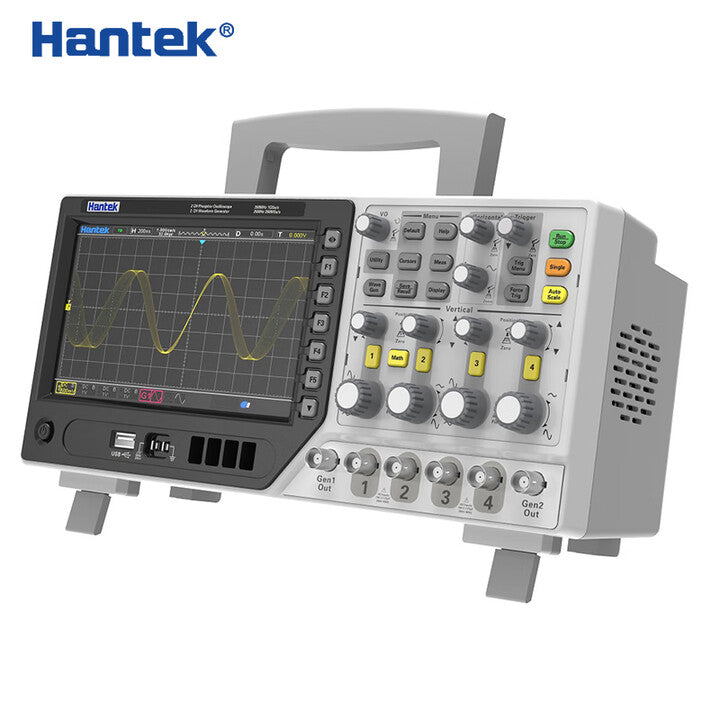

Hantek DPO6004C Series Oscilloscopes: 4CH + 2CH AWG for Pro-Level All-in-One Testing
Need high-speed multi-signal testing with built-in signal generation? The Hantek DPO6004C Series (DPO6104C/DPO6204C) delivers 4-channel oscilloscope + 2CH 25MHz AWG , 1GSa/s sampling rate, and bandwidth options (100MHz/200MHz)—perfect for aerospace R&D, 5G/4G debugging, and advanced labs.
1. Shared Core Functions & Design
All-in-One Efficiency : 4CH scope + 2CH AWG (13 standard waveforms + 4 arbitrary waveforms) + 6-in-1 tools (serial decoder/FFT/DVM/Bode diagram/segmented acquisition); supports 16-channel logic analyzer (plug-and-play).
High-Speed Capture : 400,000 FPS waveform capture rate + 64M single-channel memory depth, capturing fast/random signals (e.g., glitches) without distortion.
User-Friendly Touchscreen : 7-inch 800×480 capacitive touch display (16M color, 256-grade color temperature), with adjustable brightness/grid.
Pro-Grade Tools : 16 trigger types (UART/LIN/CAN/SPI/IIC included), 42 auto-measurements (with stats), and 8ns minimum test pulse width.
Safety & Connectivity : 300V CAT II input; USB Host/Device, LAN (LXI compliant); convection cooling (quiet); -40~71℃ storage temp.
2. Model Differences: Bandwidth & Use Cases
Parameter

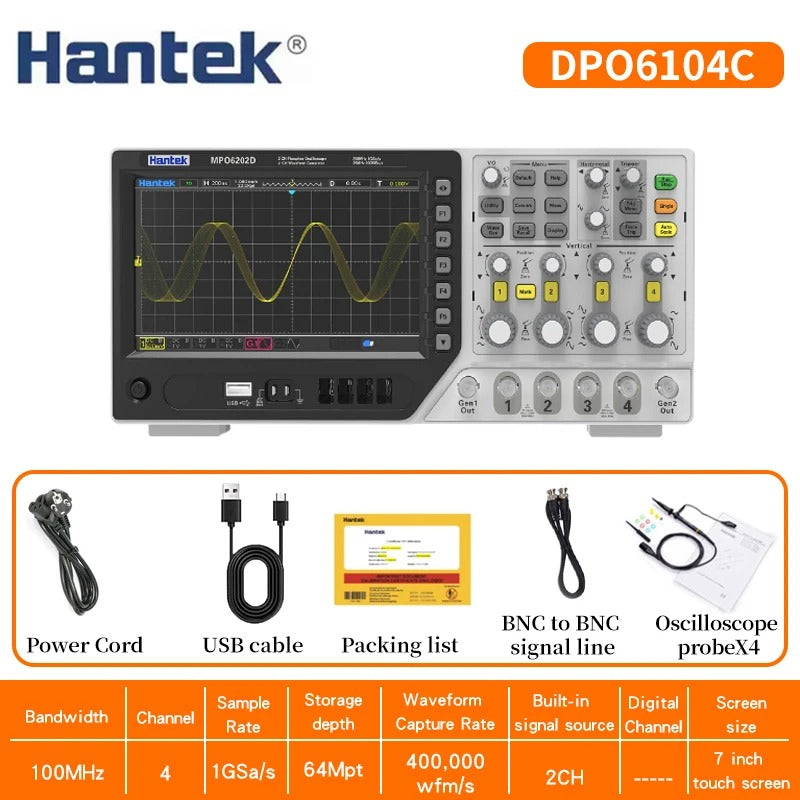

DPO6104C

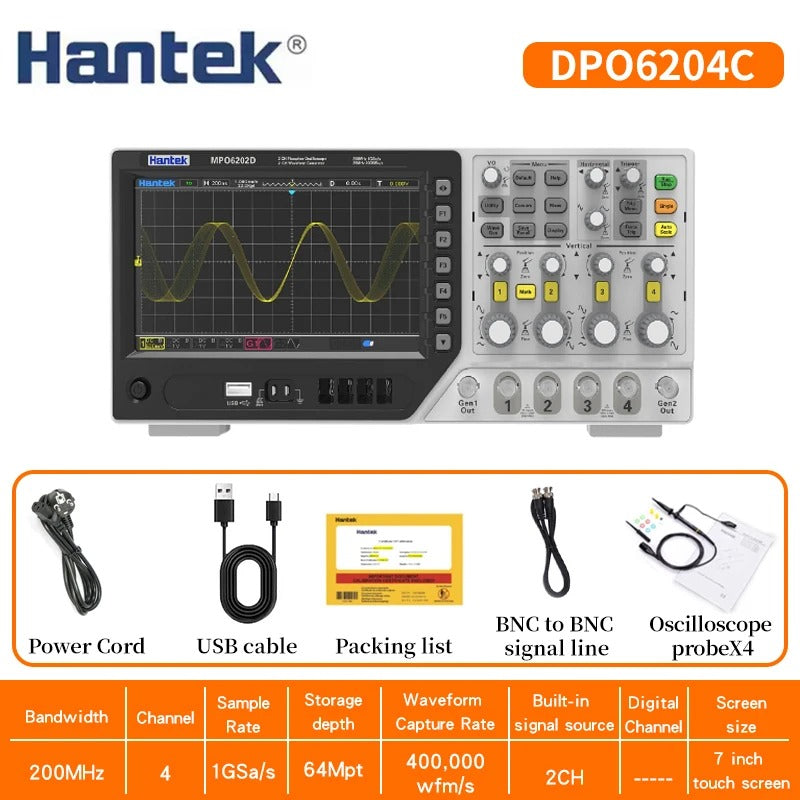

DPO6204C
Bandwidth
100MHz
200MHz
Typical Rise Time
≤3.5ns
≤1.8ns
Core Strength
Balances speed & cost for mid-range tasks
Ultra-fast for high-frequency signals
3. Key Shared Specifications
Parameter
Detail
Sampling Rate
1GSa/s (single CH), 500MSa/s (dual CH), 250MSa/s (3-4 CH)
Memory Depth
64M (single CH), 32M (dual CH), 16M (3-4 CH)
AWG Performance
25MHz max freq, 200MSa/s sampling, 12-bit resolution; 10mV~7Vp-p (High-Z)
Vertical Sensitivity
500μV/div~10V/div, ±3% DC gain accuracy
Time Base Range
2ns/div~100s/div
Power
100-240VAC±10% (45-66Hz), <30W
4. Use Scenario Templates (By Model)
DPO6104C (100MHz) Ideal For:
Industrial Debugging : Test 4G modules, PLCs, and motor controllers—capturing mid-speed bus signals (e.g., CAN/LIN) with precision.
Embedded R&D : Validate microcontroller (MCU) peripherals (UART/SPI) and sensor outputs, using the AWG to simulate sensor signals.
Tech Education : Teach advanced waveform analysis and protocol decoding in university labs, with intuitive touch control for students.
DPO6204C (200MHz) Ideal For:
5G/High-Speed RF : Debug 5G RF modules and high-speed serial buses (e.g., 100Mbps+ data links), capturing 200MHz signals without loss.
Aerospace Electronics : Analyze high-frequency control signals in avionics, using Bode diagrams to test circuit frequency response.
Premium Lab Testing : Validate high-speed ADC/DAC performance and microwave components, leveraging 400,000 FPS capture for rare glitches.
5. Why Choose DPO6004C Series?
Cost-Saving : 2CH AWG + scope eliminates external signal sources, cutting equipment costs.
Precision : 64M memory + high capture rate ensures no signal detail is missed.
Ease of Use : Touchscreen + auto-measurements reduce debugging time for engineers.
6. How to Choose?
Pick DPO6104C for 4G/industrial/mid-speed tasks.
Pick DPO6204C for 5G/aerospace/high-frequency R&D.
Upgrade your pro testing setup! Select your model and click “Add to Cart” for Hantek DPO6004C.
