Product Details

Hantek DPO6004B Series Oscilloscopes: DPO6104B/DPO6204B for Pro-Grade Multi-Signal Testing

Need high-performance testing for complex electronics? The Hantek DPO6004B Series (DPO6104B/DPO6204B) offers 4-channel oscilloscope + 6-in-1 integrated functions, with 1GSa/s sampling rate and bandwidth options (100MHz/200MHz)—ideal for aerospace, communication R&D, embedded systems, and advanced labs.

Shared User-Friendly Design & Core Functions

  • 6-in-1 Efficiency: 4CH scope + serial protocol analyzer + FFT spectral analysis + digital voltmeter; supports 16-channel logic analyzer (plug-and-play) and Bode diagram function.
  • High-Speed Capture: Up to 400,000 FPS waveform capture rate; 64M memory depth (single channel) to restore long-period waveforms without distortion.
  • Clear Display: 7-inch 800×480 capacitive touch screen (16M color); 256-grade color temperature display for vivid waveform details.
  • Pro Tools: 16 trigger types (including 5 serial protocol triggers), 42 auto-measurements (with statistics), and segmented acquisition (up to 80,000 sections).
  • Connectivity & Safety: USB Host/Device, LAN (LXI CORE 2011 compliant); 300V CAT II max input; convection cooling (quiet); -40~71℃ storage temperature.

Model Differences: Choose Your Bandwidth

Parameter
DPO6104B
DPO6204B
Bandwidth
100MHz
200MHz
Typical Rise Time
≤3.5ns
≤1.8ns
Ideal Scenarios
Mid-speed embedded systems, 4G module testing, industrial controller debugging
High-speed communication (5G RF), aerospace electronics, premium R&D labs

Key Shared Specifications

Parameter
Detail
Core Configuration
4 analog channels; 1GSa/s (single CH), 500MSa/s (dual CH), 250MSa/s (3-4 CH)
Memory Depth
Single channel: 64M; dual channels: 32M; 3-4 channels: 16M
Vertical Performance
500μV/div~10V/div sensitivity; 8-bit resolution; ±3% DC gain accuracy
Trigger & Decode
Supports UART/LIN/CAN/SPI/IIC triggers/decoding; 8ns minimum test pulse width
Time Base & Display
2ns/div~100s/div range; 7-inch capacitive touch screen (adjustable brightness/grid)
Power
100-240VAC±10% (45-66Hz); power consumption: <30W

Core Advantages (All Models)

  • High-Speed Precision: 400,000 FPS capture rate + 64M memory depth captures fast/random signals (e.g., glitches, high-frequency bursts).
  • Multi-Function Integration: Eliminates need for separate analyzers, saving equipment costs and bench space.
  • Easy Operation: Touch screen + auto-measurements reduce learning curve for pro engineers.

How to Choose the Right Model?

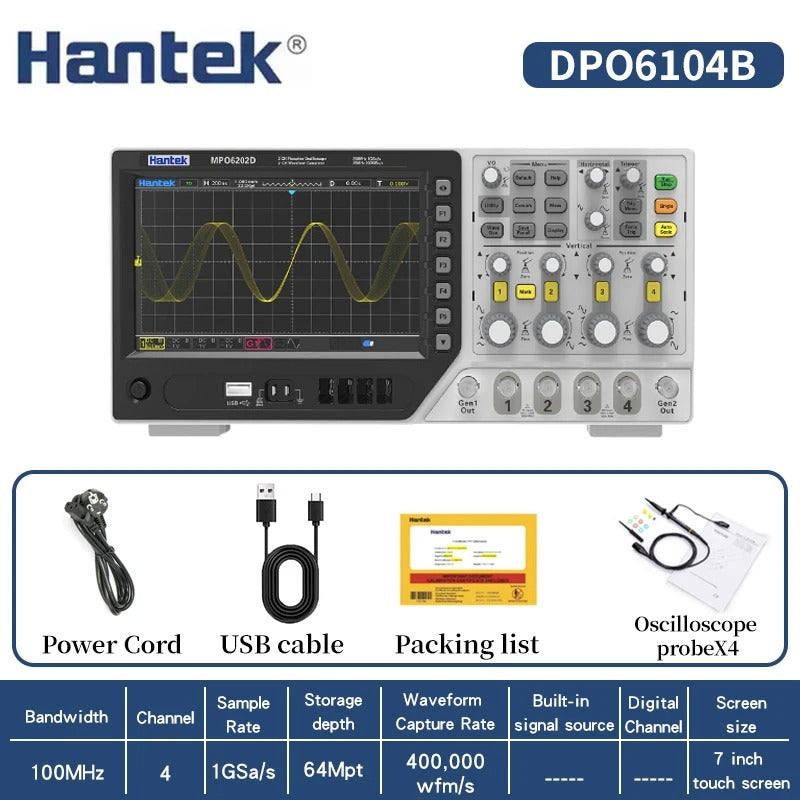

  1. DPO6104B (100MHz): Mid-range choice for 4G, industrial controllers, and embedded system testing.

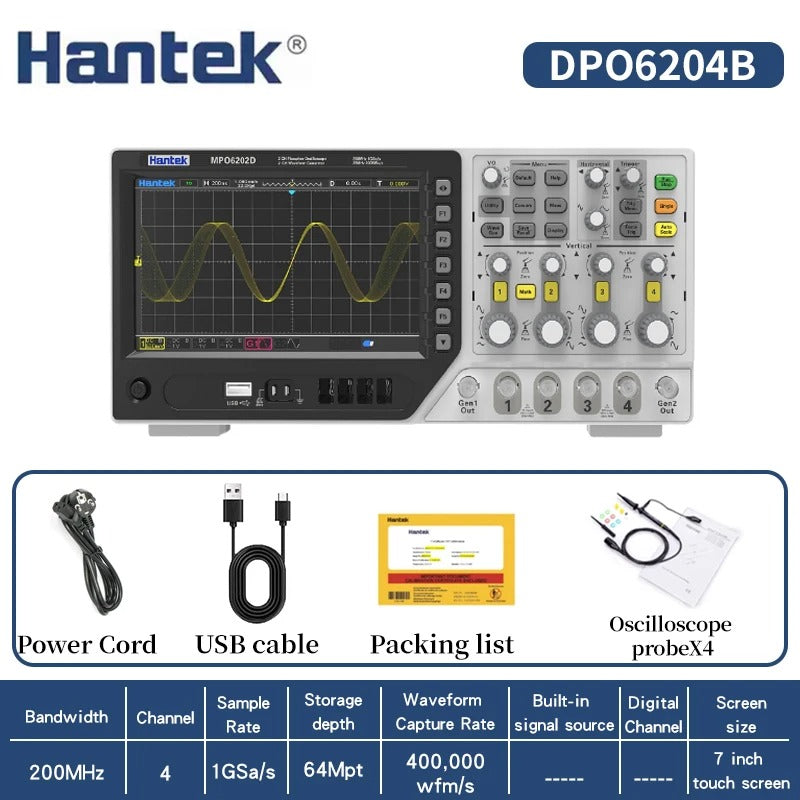

  1. DPO6204B (200MHz): Premium option for 5G RF, aerospace, and high-speed communication R&D.
Upgrade pro-grade multi-signal testing! Select your model and click “Add to Cart” for Hantek DPO6004B Series.
