Product Details

Overview

This series of desktop oscilloscopes is engineered for precise signal analysis and versatile functionality, catering to electronic R&D, testing, and educational applications. With advanced features and high performance, they deliver clear waveform visualization, accurate measurements, and flexible operation for a wide range of electrical signal scenarios.

Key Features

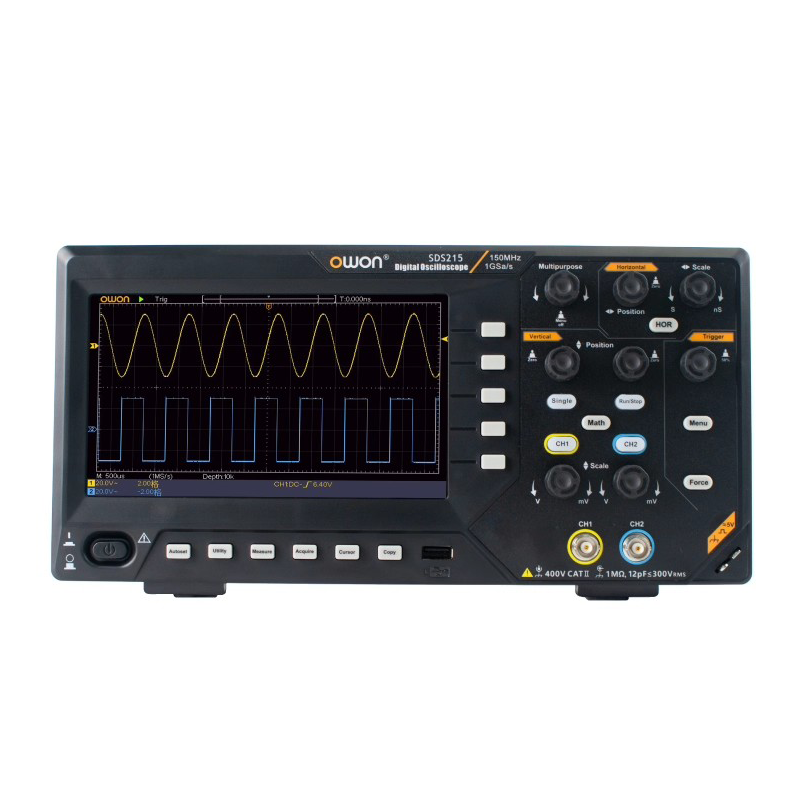

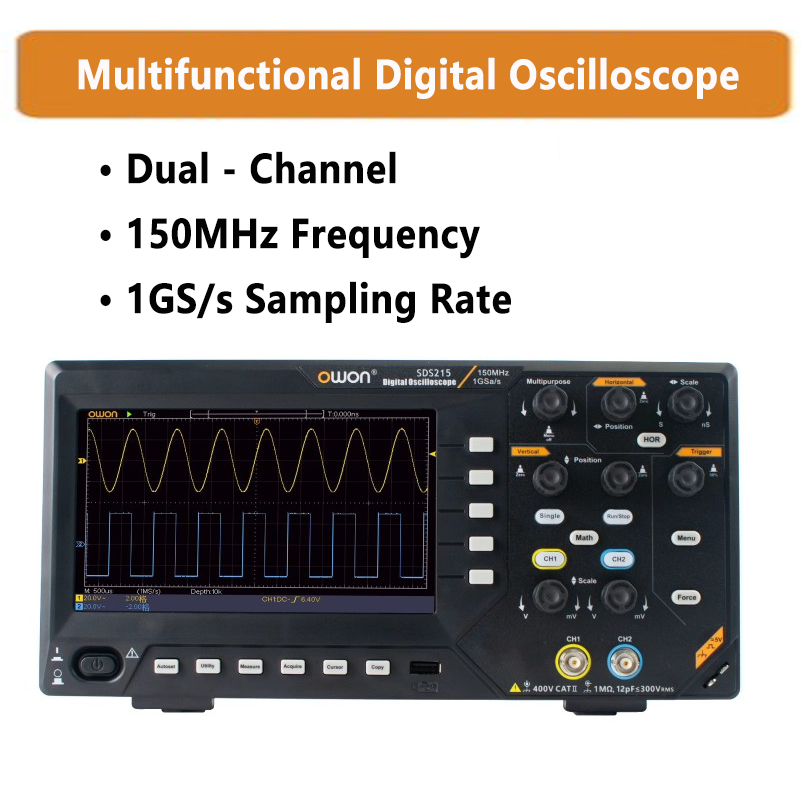

  • High Bandwidth and Dual-Channel: Model 1 offers a 150MHz bandwidth with dual-channel operation. Model 2, additionally, includes a 25MHz arbitrary waveform signal generator channel, expanding its capabilities for signal generation and analysis.
  • Ultra-Fast Sampling Rate: Both models feature dual-channel independent 1GS/s real-time sampling rate (under 1K storage depth) to capture fast-changing signals with precision.
  • Multiple Sampling Modes: Support normal sampling, peak detection, and average sampling modes to adapt to different signal characteristics.
  • Flexible Input Options: Provide DC, AC, and ground input coupling, along with 1MΩ±2% input impedance (parallel with 12 pF±5 pF) and multiple probe attenuation coefficients (1X, 10X, 100X, 1000X).
  • Comprehensive Automatic Measurement: Offer 30+ types of automatic waveform measurements, including period, frequency, peak values, and more, enabling quick and accurate signal analysis.
  • Advanced Mathematical and FFT Analysis: Support mathematical operations (+, -, ×, ÷) and FFT (Fast Fourier Transform) for spectral analysis, helping identify harmonic and noise components.
  • Large Storage and Trigger Modes: Feature 20M storage depth and edge, video trigger modes for capturing and analyzing complex signals.
  • High-Resolution Display: Equipped with a 7-inch (800×480) LCD display for clear waveform visualization and a wide viewing angle, ideal for production lines and labs.
  • USB Communication and Data Storage: Support data storage in multiple formats (waveforms, CSV, images) and remote control via USB.

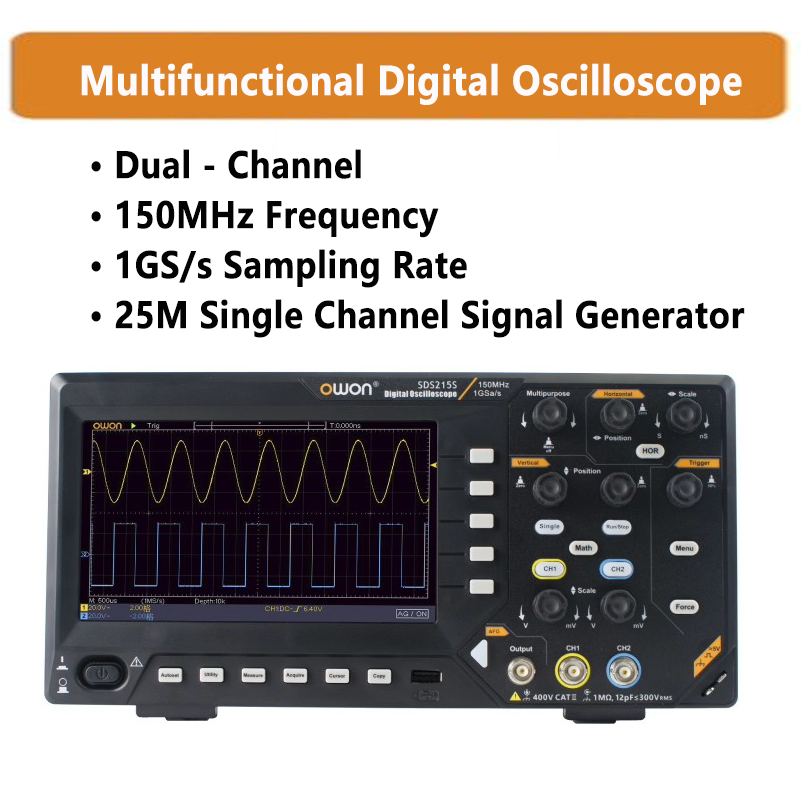

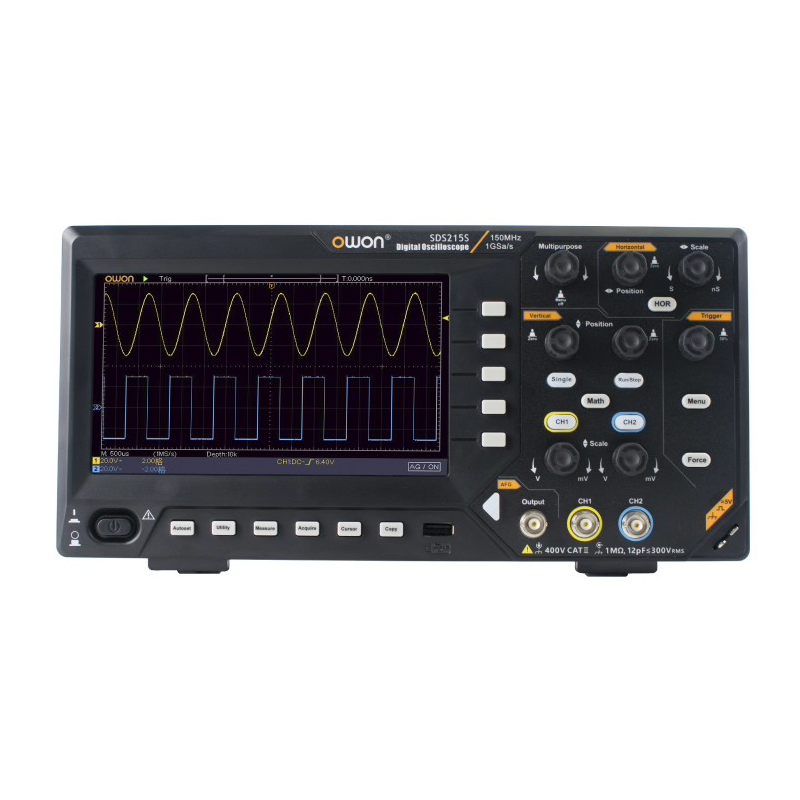

  • Signal Generator (Model 2 Only): Includes a 25MHz arbitrary waveform signal generator with 16+ waveform types (sine, square, sawtooth, etc.), 125MSa/s sampling rate, 8k waveform length, and 50Ω output impedance, perfect for signal stimulation and testing.

Technical Specifications

Parameter
Model 1
Model 2
Bandwidth
150MHz
150MHz
Channels
Dual-channel
Dual-channel + 25MHz signal generator channel
Real-Time Sampling Rate
Dual-channel independent 1GS/s
(1K storage depth)
Dual-channel independent 1GS/s
(1K storage depth)
Sampling Modes
Normal, peak detection, average
Normal, peak detection, average
Input Coupling
DC, AC, ground
DC, AC, ground
Input Impedance
1 MΩ±2%, parallel with 12 pF±5 pF
1 MΩ±2%, parallel with 12 pF±5 pF
Probe Attenuation Coefficient
1X, 10X, 100X, 1000X
1X, 10X, 100X, 1000X
Storage Depth
20M
20M
Sweep Speed Range (S/div)
2 ns/div ~ 1000 s/div (1~2~5 binary step)
2 ns/div ~ 1000 s/div (1~2~5 binary step)
Sensitivity (V/div) Range
2 mV/div ~ 10 V/div
2 mV/div ~ 10 V/div
Automatic Measurement
30+ types
30+ types
Mathematical Operations
+, -, ×, ÷, FFT
+, -, ×, ÷, FFT
Storage Waveforms
16 groups
16 groups
Trigger Modes
Edge, video
Edge, video
Communication Interface
USB
USB
Display
7-inch (800×480) LCD
7-inch (800×480) LCD
Signal Generator (Model 2)
-
25MHz arbitrary waveform, 16+ waveforms, 125MSa/s, 8k length, 50Ω output impedance
Dimensions (L×H×D)
301mm×152mm×70mm
301mm×152mm×70mm
Weight
~1.1 kg
~1.1 kg


Model Selection Tips

  • Model 1: Ideal for users who need a high-performance 150MHz dual-channel oscilloscope for signal analysis, waveform measurement, and basic electrical testing in labs, production lines, or educational settings.
  • Model 2: Perfect for those requiring both oscilloscope and signal generator functionality. It’s a top choice for R&D engineers who need to generate and analyze signals within a single instrument, streamlining workflows and saving space.

Application Scenarios

  1. High-Speed Electronic Design: Analyze signals in high-speed digital circuits, such as PCB traces and serial communications, with the 150MHz bandwidth.
  1. Analog Circuit Debugging: Identify distortions and noise in analog circuits like amplifiers and filters during R&D and prototyping.
  1. Embedded System Testing: Verify signals from microcontrollers, sensors, and actuators in embedded system development projects.
  1. Educational Laboratories: Teach students about advanced signal characteristics, waveform analysis, and oscilloscope operation in electronics engineering courses.
  1. Power Electronics Analysis: Examine waveforms of power supplies, inverters, and motor drives to ensure efficiency and stability.
  1. Signal Generation and Testing (Model 2): Create custom test signals and evaluate circuit responses, making it suitable for product development and quality control.
Get this desktop oscilloscope now to achieve precise signal analysis and versatile functionality for your electronic testing and development needs!
