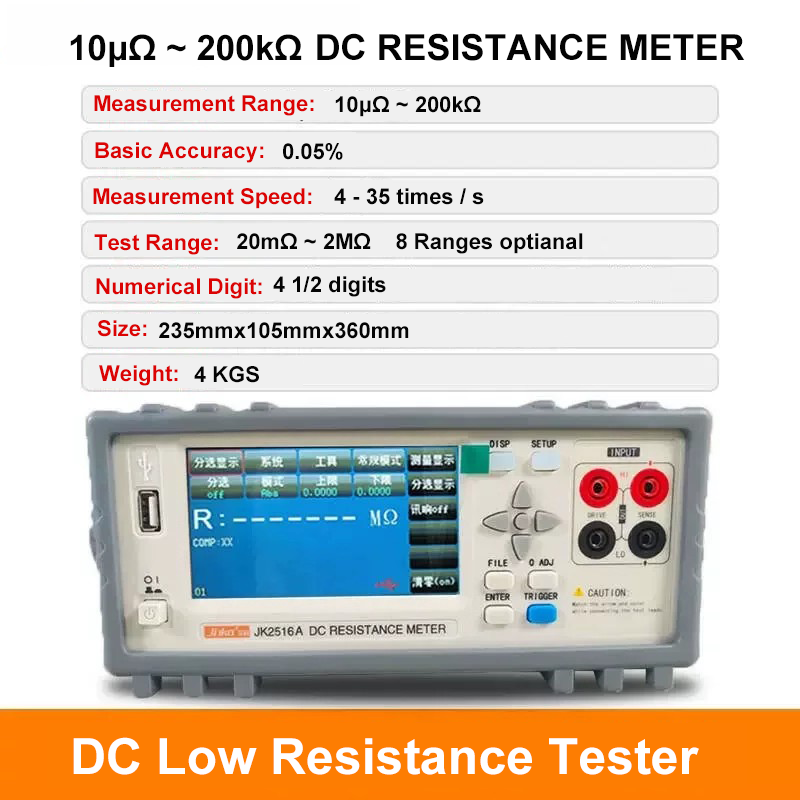

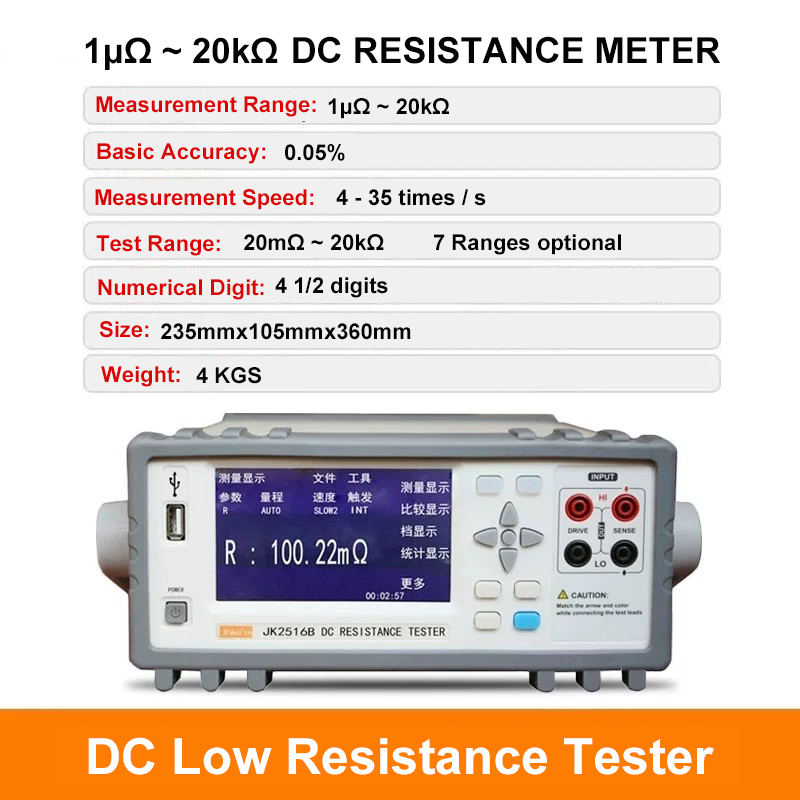

Our DC Low Resistance Tester offers precise resistance measurement with two models for different range needs. Ideal for accurate and efficient resistance testing in various fields.
Key Features
High Accuracy : Basic accuracy of 0.05% for reliable results.
Fast Measurement Speed : 4 - 35 times per second for quick data acquisition.
Multiple Ranges : 7 ranges (1μΩ ~ 20kΩ) and 8 ranges (10μΩ ~ 200kΩ) optional.
Clear Display : 4 1/2 - digit numerical display for easy reading.
Compact & Portable : Size 235mm×105mm×360mm, weight 4 KGS for convenient use.
Technical Specifications
Parameter
1μΩ ~ 20kΩ
10μΩ ~ 200kΩ
Measurement Range
1μΩ ~ 20kΩ
10μΩ ~ 200kΩ
Basic Accuracy
0.05%
0.05%
Measurement Speed
4 - 35 times/s
4 - 35 times/s
Test Range
20mΩ ~ 20kΩ, 7 ranges
20mΩ ~ 2MΩ, 8 ranges
Numerical Digit
4 1/2 digits
4 1/2 digits
Size
235mm×105mm×360mm
235mm×105mm×360mm
Weight
4 KGS
4 KGS
Interface
Standard configuration includes HANDLER, USB HOST, USB DEVICE, optional GPIB, RS232C interfaces
Standard configuration includes HANDLER, USB HOST, USB DEVICE, optional GPIB, RS232C interfaces
Temperature Measurement
--
-10.0 ℃~-99.9 ℃, sensor: PT100
Test end configuration
four-terminal
four-terminal
Low voltage measurement
--
Open circuit voltage ≤ 40mV, effective range: 2 Ω, 20 Ω, 200 Ω, 2k Ω
Application Scenarios
Electronics Manufacturing : Test resistance of resistors, capacitors and other components.
Automotive Industry : Measure resistance in automotive wiring and electrical systems.
Aerospace : Check resistance of aerospace - grade parts for reliability.
Research Labs : Conduct precise resistance experiments and data analysis.
Power Sector : Monitor resistance in power cables and transformers.
Quality Control : Ensure products meet resistance specs in various industries.
Get your DC Low Resistance Tester (1μΩ ~ 20kΩ or 10μΩ ~ 200kΩ) now for accurate resistance testing!
