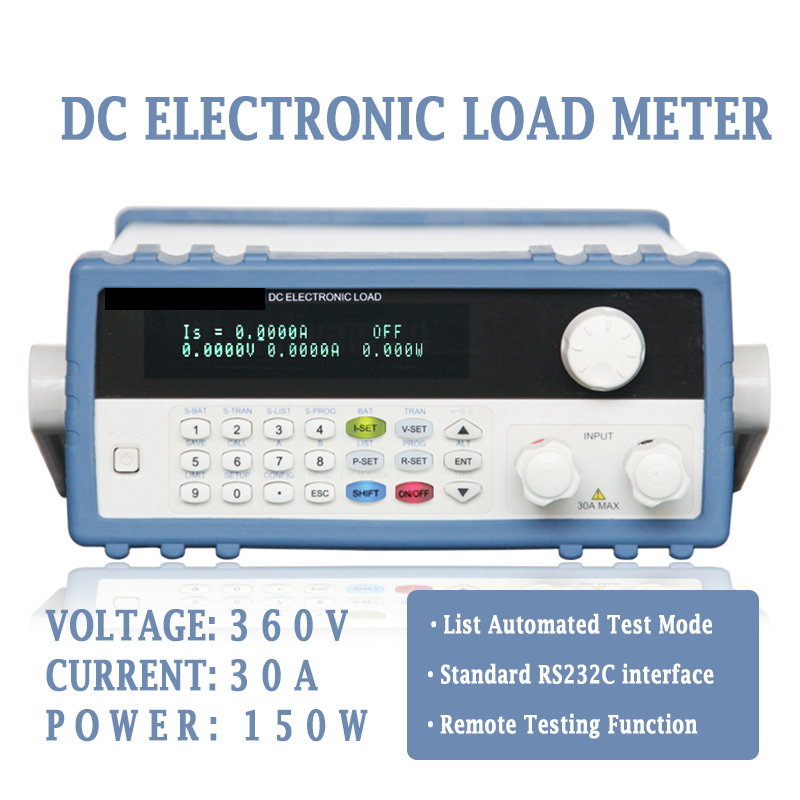

DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

$284.90
$284.90
Please hurry! Only 5 left in stock
Model: 150W 360V 30A
Subtotal: $284.90
10 customers are viewing this product

Storewide Discounts

Spend $200+ for 5% OFF | $400+ for 8% OFF | $800+ for 10% OFF. Discounts will be automatically deducted at checkout.

Free Shipping

We offer free express shipping on all orders.

You'll receive your order an estimated 7-15 working days after shipment.

Free Returns

30-Day return and refund guarantee refer to our refund policy.
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

$284.90
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface
DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

$284.90
Model: 150W 360V 30A
Product Details

Download English Manual (PDF)

Click the link above to get the full user guide for this product.

When it comes to precise testing of power sources and electronic devices, the Model 1 and Model 2 electronic loads are reliable choices. These models are designed to meet various testing needs with their comprehensive features and capabilities.

Shared Core Features

  • High - Voltage Compatibility: Both models support a maximum input voltage of 360V, making them suitable for testing non - isolated drive power supplies.
  • Multiple Test Modes: Feature constant current, constant voltage, constant resistance, and constant power modes, allowing for versatile testing scenarios.
  • Advanced Functionality: Equipped with dynamic measurement, battery test, and list automatic test modes.
  • Standard Interface: Have a standard RS232C interface for easy connection to other devices or systems.
  • Protection Mechanisms: Include over - voltage, over - current, over - power, and over - temperature protection to safeguard the device and the tested components.

Model Differences & Ideal Use Scenarios

Feature/Model
Model 1
Model 2
Input Power Rating
150W
300W
Display
High brightness VFD
High - brightness VFD
Weight
Approximately 6kg
Approximately 6.5kg
Ideal Use Scenarios
Suited for applications where lower power testing requirements are sufficient.  Need a reliable load for general - purpose testing without the need for high - power handling.
Recommended for scenarios that demand higher power handling,
like testing larger power supplies or industrial - grade electronic components.

Detailed Technical Specifications

Parameter
Model 1
Model 2
Input Voltage Range
0 - 360V
0 - 360V
Input Current Range
1mA - 30A
1mA - 30A
Load Accuracy (Voltage)
0 - 36V: ±(0.05% + 0.03%FS), 1mV resolution 0 - 360V: ±(0.05% + 0.03%FS), 10mV resolution
0 - 36V: ±(0.05% + 0.03%FS), 1mV resolution 0 - 360V: ±(0.05% + 0.03%FS), 10mV resolution
Load Accuracy (Current)
0 - 3A: ±(0.05% + 0.05%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.05%FS), 1mA resolution
0 - 3A: ±(0.05% + 0.05%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.05%FS), 1mA resolution
Constant Voltage Mode Accuracy
1.5V - 36V: ±(0.05% + 0.03%FS), 1mV resolution 1.5V - 360V: ±(0.05% + 0.03%FS), 10mV resolution
1.5V - 36V: ±(0.05% + 0.03%FS), 1mV resolution 1.5V - 360V: ±(0.05% + 0.03%FS), 10mV resolution
Constant Current Mode Accuracy
0 - 3A: ±(0.05% + 0.03%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.03%FS), 1mA resolution
0 - 3A: ±(0.05% + 0.03%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.03%FS), 1mA resolution
Constant Resistance Mode Accuracy
Multiple ranges with different accuracies (e.g., 0.05Ω - 5Ω: ±(0.2% + 0.2%FS), 0.001Ω resolution)
Multiple ranges with different accuracies (e.g., 0.05Ω - 5Ω: ±(0.2% + 0.2%FS), 0.001Ω resolution)
Constant Power Mode Accuracy
Multiple ranges with different accuracies (e.g., 0 - 50W: ±(0.1% + 0.1%FS), 1mW resolution)
Multiple ranges with different accuracies (e.g., 0 - 50W: ±(0.1% + 0.1%FS), 1mW resolution)
Battery Test Function
Input voltage: 0.8 - 360V, max capacity: 999A/H, resolution: 0.1mA, discharge time: 1 - 60000sec
Input voltage: 0.8 - 360V, max capacity: 999A/H, resolution: 0.1mA, discharge time: 1 - 60000sec
Dynamic Test Mode
T1&T2 (A value or B value test time): 0.1mS - 999S, error < 2.5% + 0.1mS
T1&T2 (A value or B value test time): 0.1mS - 999S, error < 2.5% + 0.1mS
Protection Range
> Rated conditions 5%
> Rated conditions 5%
Input - End Impedance
≥200KΩ
≥200KΩ
Dimensions (W x H x D)
230mm x 100mm x 350mm
230mm x 100mm x 350mm
Choose the electronic load based on your power requirements and display preferences. Add to cart now and enhance your testing capabilities.
