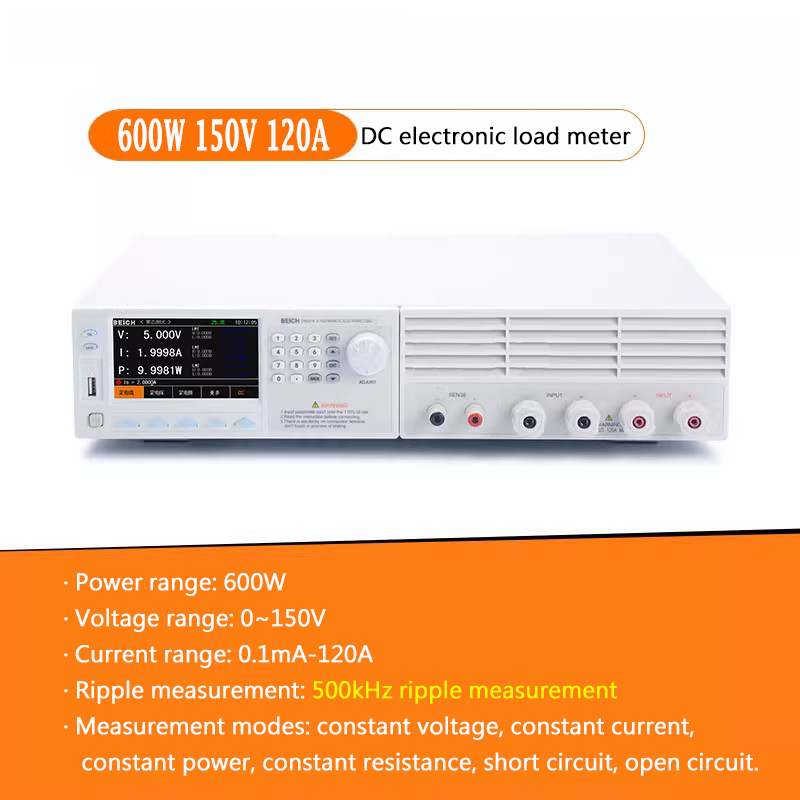

DC Electronic Load Meter 500KHz 600W 900W 1200W Battery withstand voltage capacity tester 150V Multiple measurement modes

English Manual

The Model1/2/3 is a precise program-controlled DC electronic load for power electronics testing. It uses a high-performance ARM processor and 500kHz high-speed sampling AD, with a 4.3-inch TFT color screen (Chinese/English optional), 0.0001 display resolution, USB HOST for data/firmware management, and full protection (over-voltage/current/power/heat, reverse polarity). Standard RS232C/HANDLER interfaces enable easy integration, compatible with mainstream serial protocols.

Key Features (All Models)

Technical Specifications (Model Comparison)

Parameter	Model 1	Model 2	Model 3
Input Voltage Range	0~150V	0~150V	0~150V
Input Current Range	0.1mA~120A	0.1mA~120A	0.1mA~240A
Input Power Rating	600W	900W	1200W
Voltage Load Accuracy	0-9.9999V: ±(0.05%+0.03%FS); 10V-99.999V: ±(0.05%+0.03%FS); 100V-150V: ±(0.05%+0.03%FS)	0-9.9999V: ±(0.05%+0.03%FS); 10V-99.999V: ±(0.05%+0.03%FS); 100V-150V: ±(0.05%+0.03%FS)	0-9.9999V: ±(0.05%+0.03%FS); 10V-99.999V: ±(0.05%+0.03%FS); 100V-500V: ±(0.05%+0.03%FS)
Voltage Load Resolution	0-9.9999V: 0.1mV; 10V-99.999V: 1mV; 100V-150V: 10mV	0-9.9999V: 0.1mV; 10V-99.999V: 1mV; 100V-150V: 10mV	0-9.9999V: 0.1mV; 10V-99.999V: 1mV; 100V-500V: 10mV
Current Load Accuracy	0-9.9999A: ±(0.05%+0.03%FS); 10-99.999A: ±(0.05%+0.03%FS); 100-120A: ±(0.05%+0.03%FS)	0-9.9999A: ±(0.05%+0.03%FS); 10-99.999A: ±(0.05%+0.03%FS); 100-240A: ±(0.05%+0.03%FS)	0-9.9999A: ±(0.05%+0.03%FS); 10-60A: ±(0.05%+0.03%FS)
Current Load Resolution	0-9.9999A: 0.1mA; 10-99.999A: 1mA; 100-120A: 10mA	0-9.9999A: 0.1mA; 10-99.999A: 1mA; 100-240A: 10mA	0-9.9999A: 0.1mA; 10-60A: 1mA
Battery Test Function	Input: 2-150V; Max capacity: 9999A/H; Max discharge time: ＞7 days	Input: 2-150V; Max capacity: 9999A/H; Max discharge time: ＞7 days	Input: 2-500V; Max capacity: 9999A/H; Max discharge time: ＞7 days
Dynamic Test Mode	Min pulse width: 0.010ms;  Max pulse width: 999s; Edge resolution: 0.010ms	Min pulse width: 0.010ms; Max pulse width: 999s; Edge resolution: 0.010ms	Min pulse width: 0.010ms; Max pulse width: 999s; Edge resolution: 0.010ms
Dimensions (WHD)	430mm88mm450mm	430mm88mm450mm	430mm88mm450mm

Application Scenarios (By Model)

Model 1 (600W, 0~150V, 0.1mA~120A)

For low-to-medium power devices: Small chargers, low-power switching power supplies, 12V/24V lead-acid batteries, household appliance transformers.

Model 2 (900W, 0~150V, 0.1mA~120A)

For high-current, medium-power needs: Medium-power switching power supplies, high-power chargers, large-capacity lead-acid batteries, small industrial transformers.

Model 3(1200W, 0~150V, 0.1mA~240A)

For high-voltage, high-power industrial use: High-voltage switching power supplies, high-voltage chargers, high-voltage battery packs, industrial control transformers.
