Product Details

English Manual

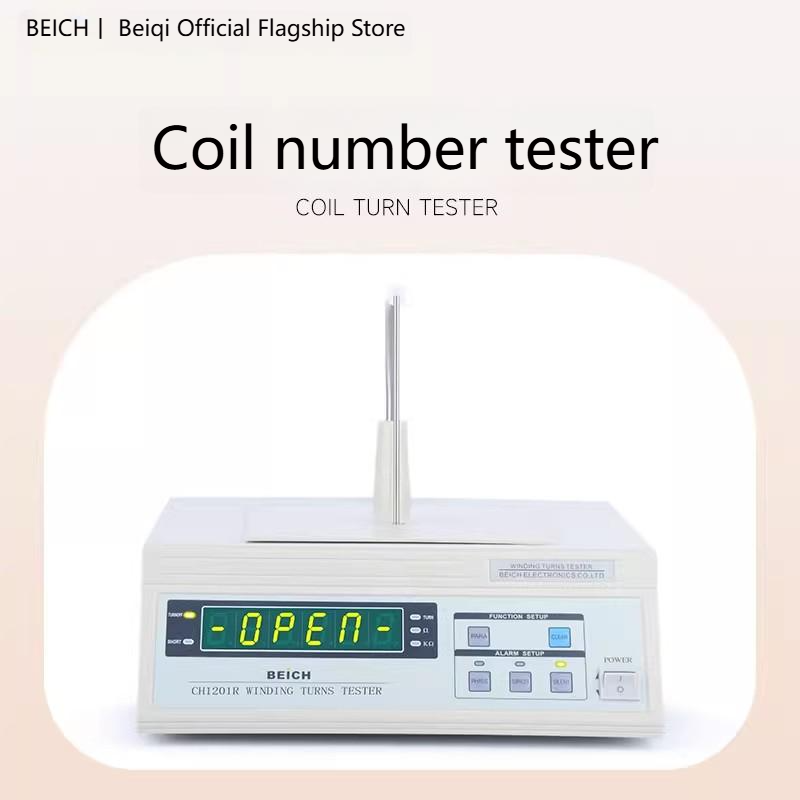

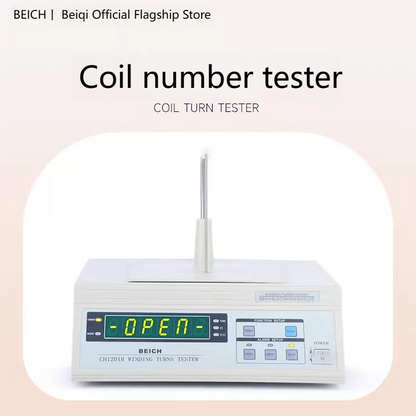

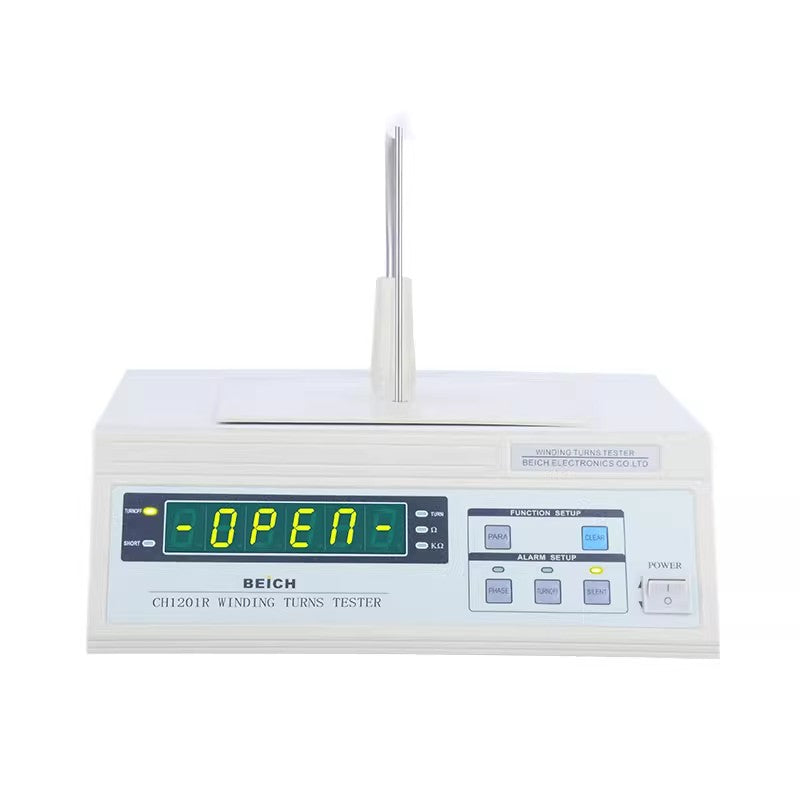

Need a reliable tool to test coil turns and (for R-model) DC resistance? The Model 1 and Model 2—delivers high accuracy, fast speed, and easy operation, ideal for manufacturing, maintenance, and quality control of winding coils.

1. Shared Core Features (Both Models)

  • High-Precision Coil Turns Testing: Designed for motors, transformers, generators, and relay coils; no manual calibration or range switching needed.
  • Wide Coil Compatibility: Tests coils with inner diameter >4mm, outer diameter <120mm, and height <110mm (use Φ9.5 sensor for coils with inner diameter >30mm to ensure accuracy).
  • Efficient Measurement: Automatic range selection and 6-bit LED display for clear, real-time readings.
  • Practical Functions: Optional "Open/Phase/Mute" signal settings to adapt to different testing scenarios.
  • Durable & Stable Build: Operates in 0℃~40℃ (≤90%RH); dimensions 335mm×320mm×290mm, weight ~6Kg; power requirement 198-242VAC 47.5-52.5Hz (power consumption ≤30VA).

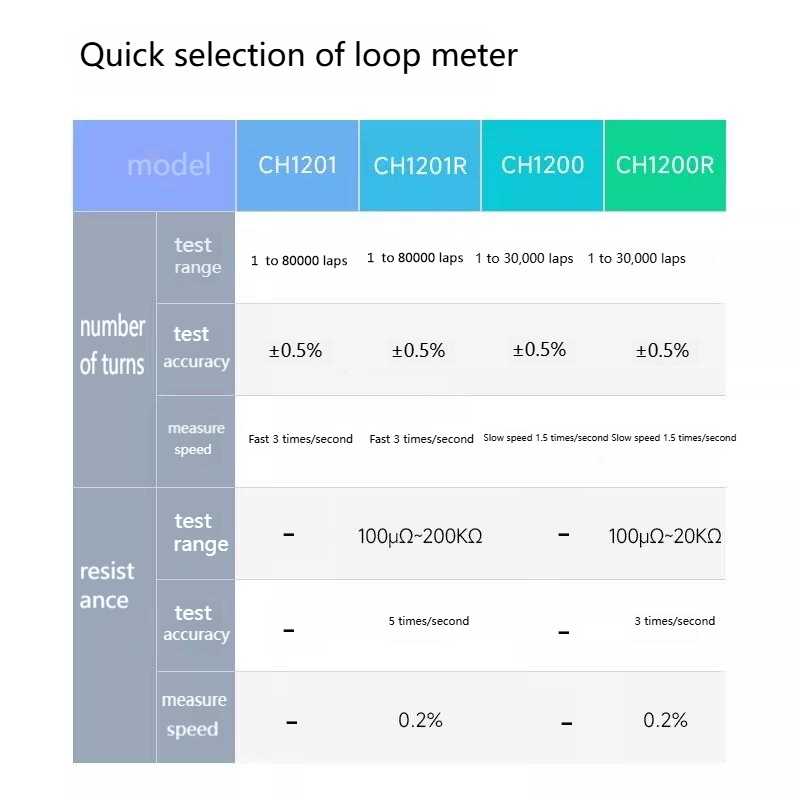

2. Model Differences & Ideal Use Scenarios

Specifications

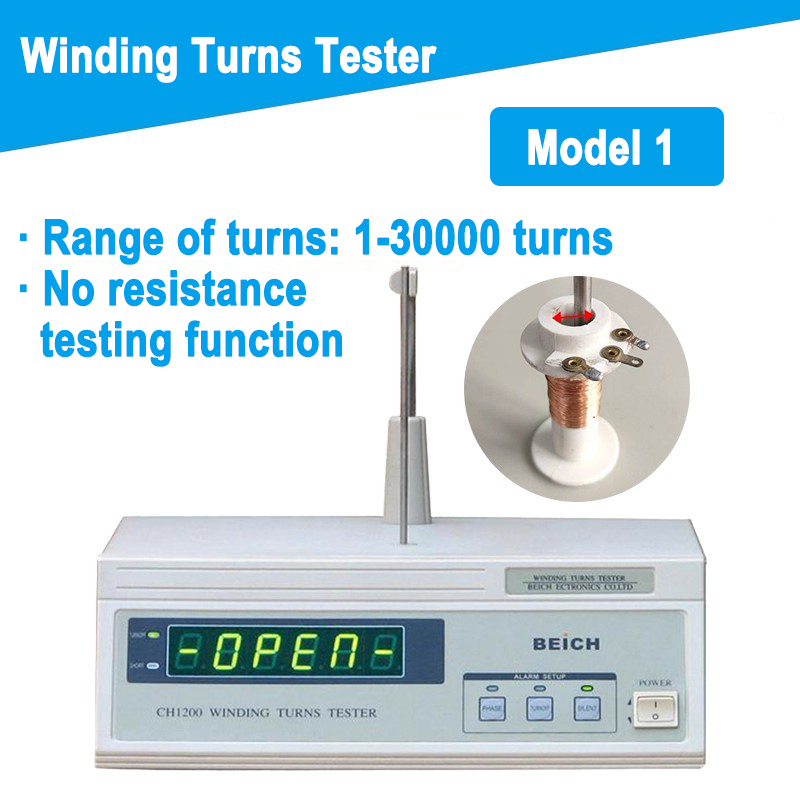

Model 1
Model 2
Coil Turns Test Range
1~30,000 turns
1~30,000 turns
Turns Test Accuracy
1~500 turns: ±1 turn; 500~30,000 turns: ±0.3%
1~500 turns: ±1 turn; 500~30,000 turns: ±0.3%
Turns Measurement Speed
Fast: 3 times/sec; Slow: 1.5 times/sec
Fast: 3 times/sec; Slow: 1.5 times/sec
DC Resistance Test
Not supported
Supported (100μΩ～20KΩ)
Resistance Measurement Speed
—
3 times/sec
Resistance Test Accuracy
—
±0.20%
Ideal Use Scenarios
Basic coil turns testing (e.g., small motor coils, relay coils) where resistance measurement is not required. Suitable for entry-level quality checks in small workshops or repair shops.
Comprehensive coil testing (e.g., transformer windings, generator coils) that requires both turns verification and DC resistance measurement. Ideal for professional manufacturing lines or labs with strict quality control.

3. Detailed Technical Specifications

Parameter
Model 1 & Model 2
Test Sensor Specifications
Φ9.5mm, Φ6mm, Φ4mm (included)

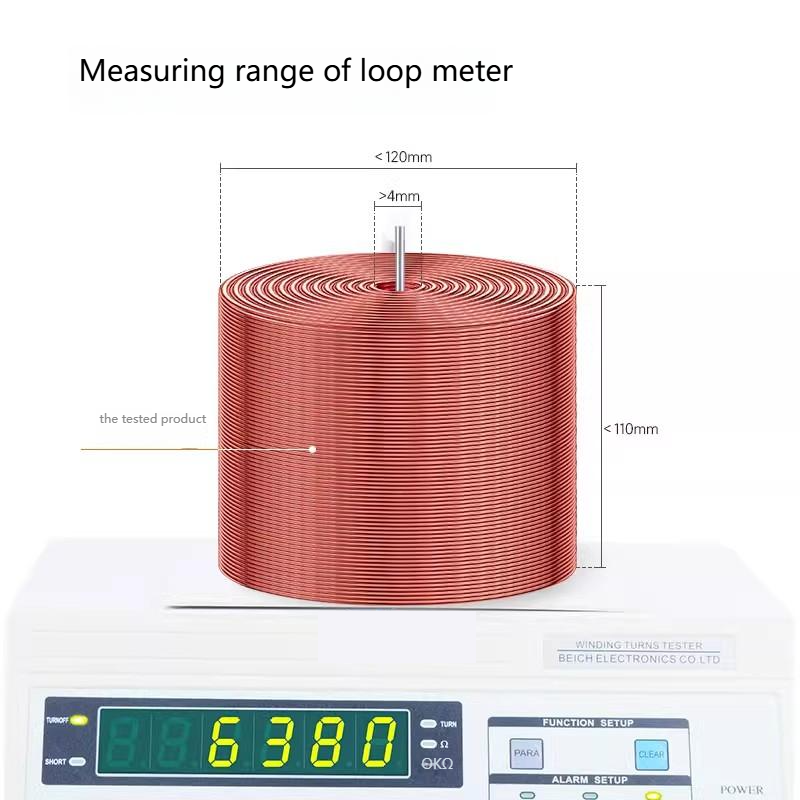

Measured Coil Dimensions
Inner diameter >4mm; Outer diameter <120mm; Height <110mm
Turns Test Range
1~30,000 turns
Turns Test Accuracy
1~500 turns: ±1 turn; 500~30,000 turns: ±0.3%
Turns Measurement Speed
Fast mode: 3 times/second; Slow mode: 1.5 times/second
DC Resistance Test (CH1200R only)
Range: 100μΩ～20KΩ; Accuracy: ±0.20%; Speed: 3 times/second
Range Mode
Automatic selection
Display
6-bit LED display
Signal Options
Open, Phase, Mute (selectable)
Physical Size (W×H×D)
335mm × 320mm × 290mm
Weight
Approximately 6Kg
Operating Environment
Temperature: 0℃～40℃; Humidity: ≤90%RH (non-condensing)
Power Supply
198-242VAC, 47.5-52.5Hz
Power Consumption
≤30VA

4. Why Choose our products?

  • Time-Saving: No manual calibration or range adjustment—start testing immediately.
  • Reliable Accuracy: Consistent results for coil turns (and resistance for CH1200R) to meet quality standards.
  • Versatile: Works with most common winding coils (motors, transformers, relays, generators).

5. Package Includes

  • 1 × CH1200/CH1200R Coil Turns Tester
  • 3 × Test Sensors (Φ9.5mm, Φ6mm, Φ4mm)
  • 1 × Power Cable
  • 1 × User Manual
Upgrade your coil testing workflow—add your model to cart now!
