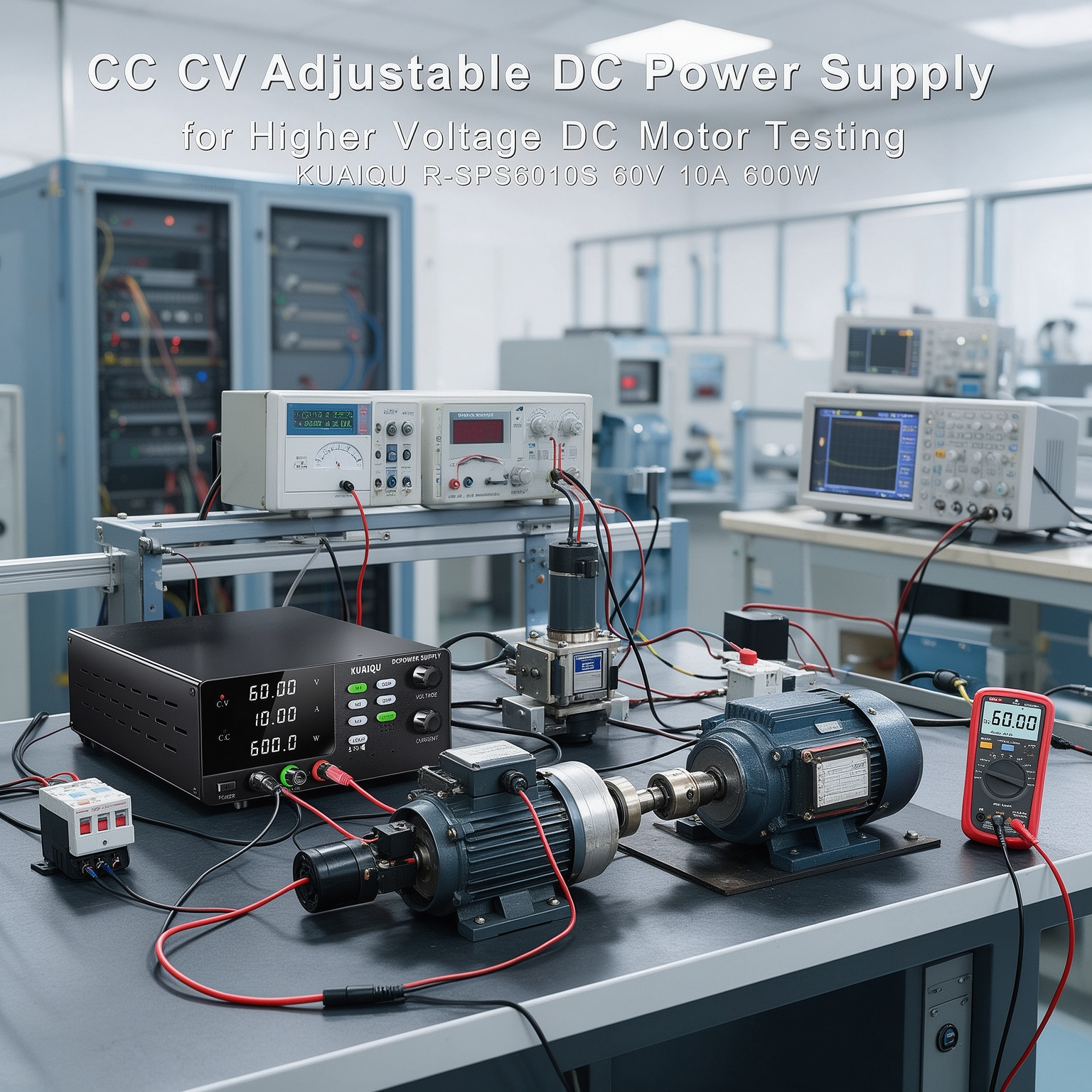

CC CV Adjustable DC Power Supply for
Higher Voltage DC Motor Testing KUAIQU
R-SPS6010S 60V 10A 600W
The KUAIQU R-SPS6010S is a 60V 10A 600W CC CV Adjustable DC Power Supply designed for Higher Voltage DC Motor Testing and related motor development work. Its 0–60V adjustable output provides a wider DC voltage range for testing compatible DC motors and motor-related circuits that require higher voltage supply conditions.
During motor testing, engineers can adjust voltage and current according to the required test condition while monitoring voltage, current, and power through the four-digit display. Precision Encoder adjustment, M1-M3 memory presets, Output ON/OFF control, OCP, OVP, and Panel Lock support controlled and repeatable DC motor test setups.
Key Features
60V 10A 600W CC CV Adjustable DC Power Supply
The R-SPS6010S provides a 0–60V adjustable output, up to 10A current, and 600W maximum power. The wider voltage range makes it suitable for compatible DC motor testing applications that require higher DC supply voltages within the rated output range.
Adjustable Voltage for Higher Voltage DC Motor Testing
Different DC motors may require different supply voltage conditions during evaluation. The adjustable 0–60V output allows engineers to establish the required DC voltage for compatible higher voltage motor tests instead of relying on a fixed supply level.
Adjustable Current for Motor Test Conditions
The adjustable current setting allows users to configure the available output current according to the motor and test setup requirements. This provides greater control when establishing different operating conditions during DC motor evaluation.
Precision Encoder for Controlled Adjustment
The Precision Encoder provides convenient adjustment of voltage and current settings. This is useful when motor test conditions need to be changed gradually or when engineers need to establish repeatable output parameters.
Four-Digit Voltage, Current, and Power Display
The four-digit display provides real-time voltage, current, and power readings. During DC motor testing, these readings allow users to observe the electrical input conditions while the motor is operating under the selected test setup.
OCP Protection for DC Motor Testing
Over Current Protection provides an additional protection function when the connected motor or test circuit draws excessive current. This helps keep the power supply and motor test setup under controlled conditions.
OVP Protection for Controlled Motor Testing
Over Voltage Protection helps protect the power supply and connected test setup when an over-voltage condition occurs. This provides additional control when different voltage levels are applied during higher voltage DC motor testing.
Output ON/OFF Control
The Output ON/OFF function allows users to start or stop the DC output while retaining the configured voltage and current settings. This can simplify repeated motor connection, testing, and test condition changes.
M1-M3 Memory Presets for Repeated Motor Tests
Three memory groups, M1-M3, allow frequently used voltage and current settings to be stored and recalled. This is useful when different motor test conditions need to be repeated during development or laboratory evaluation.
Panel Lock for Consistent Motor Test Conditions
The Panel Lock Button helps prevent unintended changes to voltage and current settings during testing. Once a desired motor test condition has been established, the panel can be locked to help maintain the selected parameters.
Front and Rear Output Connections
The R-SPS6010S provides front and rear output connections for different laboratory and engineering configurations. The front output is intended for applications below 5A, while the rear output can be used at the full rated output.

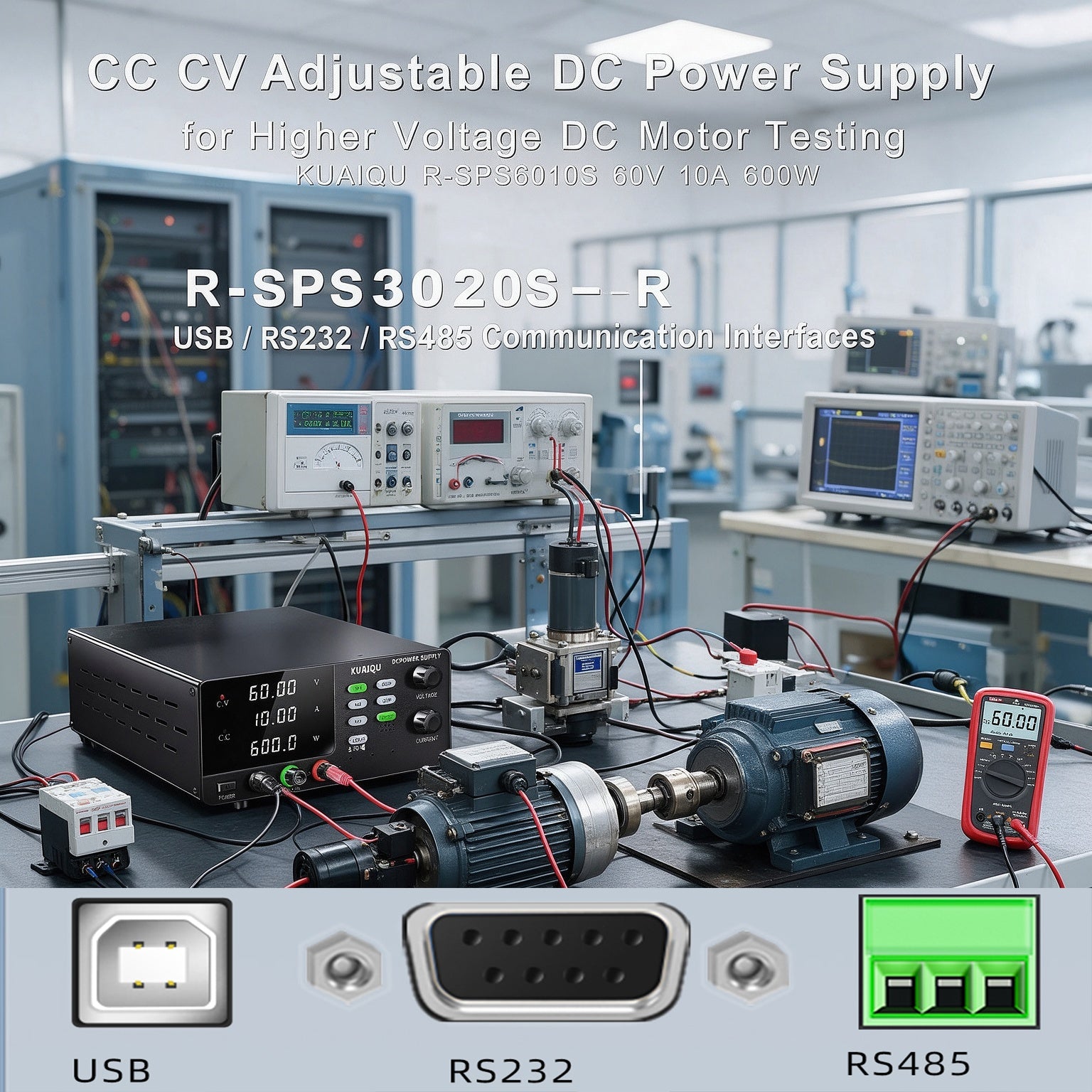

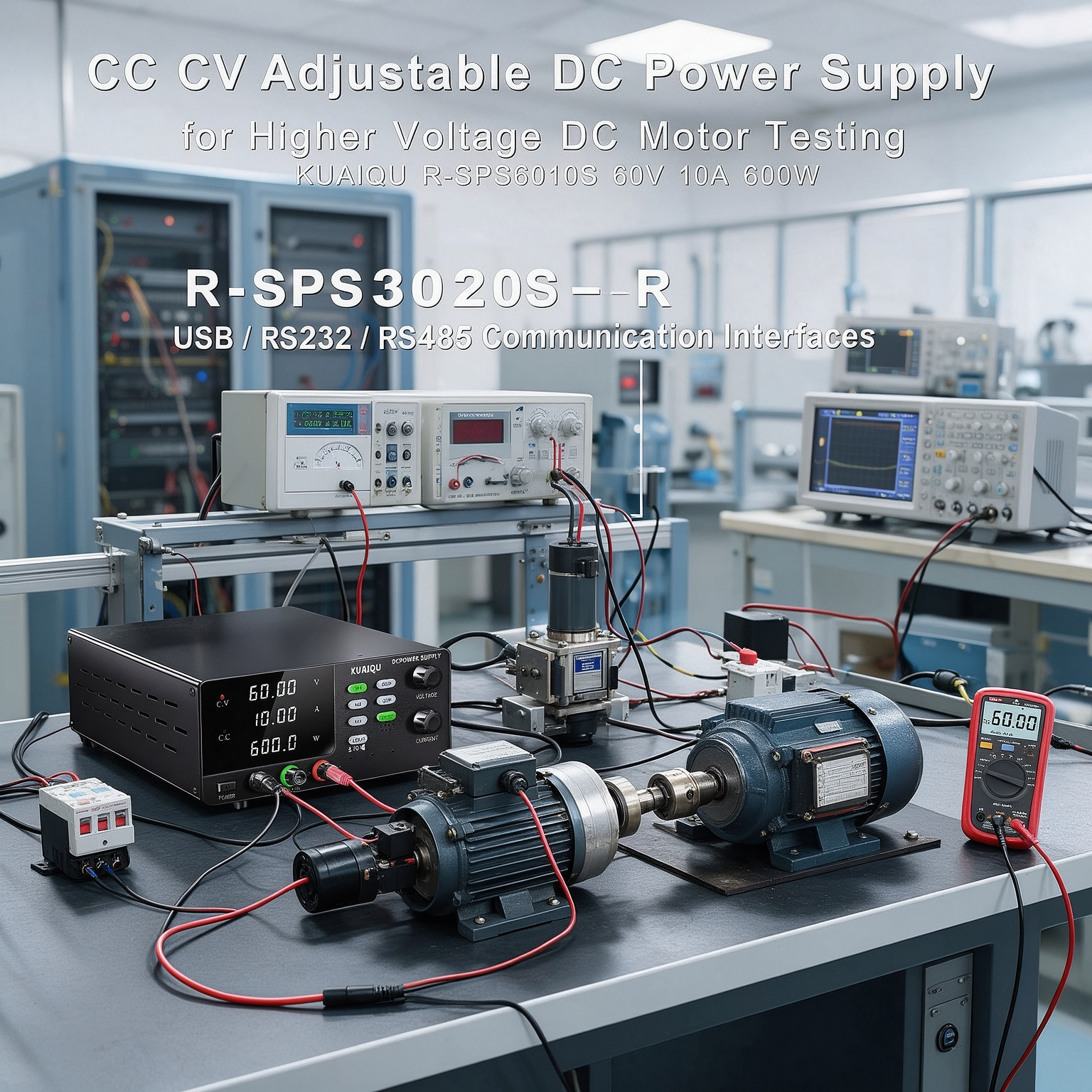

USB and Optional RS232/RS485 Communication Interfaces
The R-SPS6010S includes a standard USB port, with RS232/RS485 available as optional communication interfaces. These interfaces provide connectivity options for compatible motor testing environments and external equipment.
Applications
Higher Voltage DC Motor Testing
Provide adjustable DC power for compatible DC motors that require higher supply voltage conditions within the 0–60V output range of the R-SPS6010S.
DC Motor Operating Condition Testing
Adjust the DC output voltage and current to establish different motor test conditions while monitoring the actual electrical input through the voltage, current, and power display.
DC Motor Development Testing
Use the R-SPS6010S as an adjustable DC power source during DC motor development, allowing engineers to establish different supply conditions for compatible motor prototypes and test circuits.
Higher Voltage Motor Prototype Evaluation
Provide adjustable DC input power for evaluating compatible higher voltage DC motor prototypes under selected voltage and current conditions.
DC Motor Voltage Testing
Use the 0–60V adjustable output to evaluate motor operation under different voltage conditions within the motor's specified operating range.
DC Motor Current Condition Testing
The up to 10A current capability provides a DC source for motor tests requiring higher current within the rated output capability of the R-SPS6010S.
Motor Startup Testing
Use the Output ON/OFF control and adjustable DC output to establish controlled power conditions when evaluating the startup behavior of compatible DC motors.
Motor Operating Power Testing
Monitor voltage, current, and power through the four-digit display while the motor operates under a selected test condition, providing direct visibility into the electrical input to the test setup.
Repeated DC Motor Testing
Use M1-M3 memory presets to store frequently used voltage and current settings and recall them when repeating the same or similar motor test conditions.
Laboratory Higher Voltage Motor Testing
The 60V 10A 600W output, Precision Encoder, four-digit monitoring display, OCP, OVP, memory presets, Output ON/OFF control, and Panel Lock provide a practical DC power source for laboratory higher voltage DC motor testing.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS6010S |
| Product Type |
CC CV Adjustable DC Power Supply |
| Output Voltage |
0-60V |
| Output Current |
0-10A |
| Rated Power |
600W |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.1% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤400mVp-p / ≤60mVrms |
| Current Ripple |
≤20mArms |
| Rise Time, No Load |
≤150ms |
| Rise Time, Full Load |
≤200ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Memory Presets |
M1-M3, 3 Groups |
| Protection |
OCP, OVP |
| Display |
Four-Digit Voltage, Current, and Power Display |
| Output Control |
Output ON/OFF |
| Communication Interface |
Standard USB, Optional RS232/RS485 |
| Output Connections |
Front and Rear |
| Front Output Rating |
Below 5A |
| Rear Output |
Full Rated Output |
| Operating Temperature |
0°C–40°C |
| Dimensions |
Approx. 26.5 × 19 × 8.5 cm |
| Net Weight |
Approx. 2.5 kg |
Why Choose KUAIQU R-SPS6010S?
The KUAIQU R-SPS6010S is designed for higher voltage DC motor testing where a wider adjustable DC voltage range is required. Its 0–60V output provides room to establish different supply conditions for compatible DC motors, while the 10A current capability and 600W rated power support motor test setups within the power supply's rated output range.
The Precision Encoder makes voltage and current adjustment convenient when changing motor test conditions. The four-digit display provides direct voltage, current, and power readings, allowing engineers to observe the electrical input during motor operation and compare different test conditions.
For repeated motor evaluation, M1-M3 memory presets provide three groups of stored settings for frequently used voltage and current conditions. OCP and OVP add protection functions to the test setup, while Output ON/OFF control and Panel Lock help maintain more controlled and repeatable operating conditions.
With its 60V 10A 600W capacity, CC CV Adjustable DC Power Supply configuration, Precision Encoder, memory presets, four-digit monitoring display, OCP, OVP, and adjustable output, the R-SPS6010S provides a flexible DC power source for Higher Voltage DC Motor Testing, motor development, prototype evaluation, voltage testing, current condition testing, and repeated laboratory motor testing.
