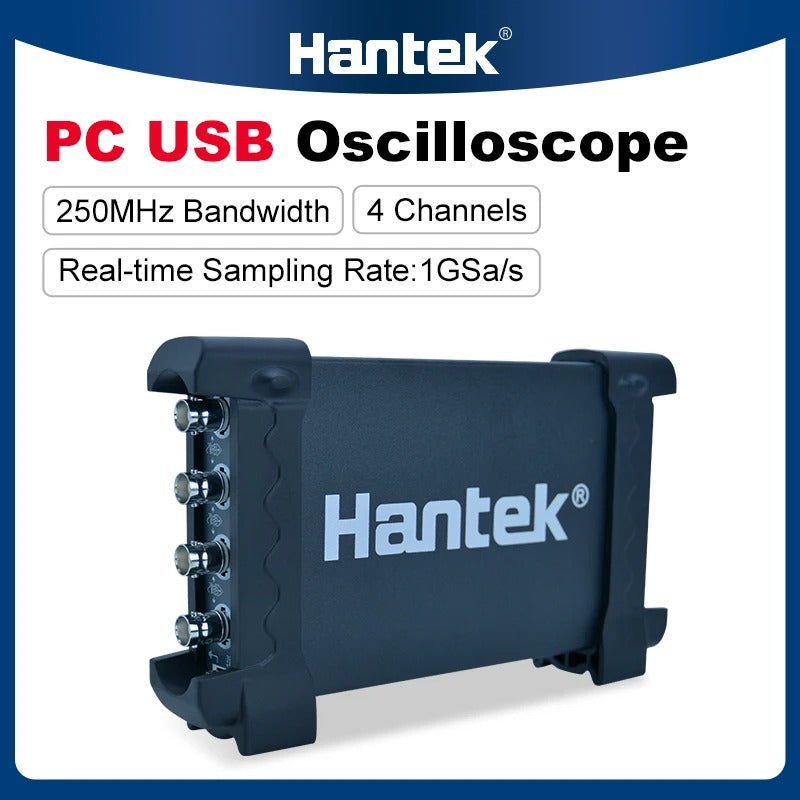

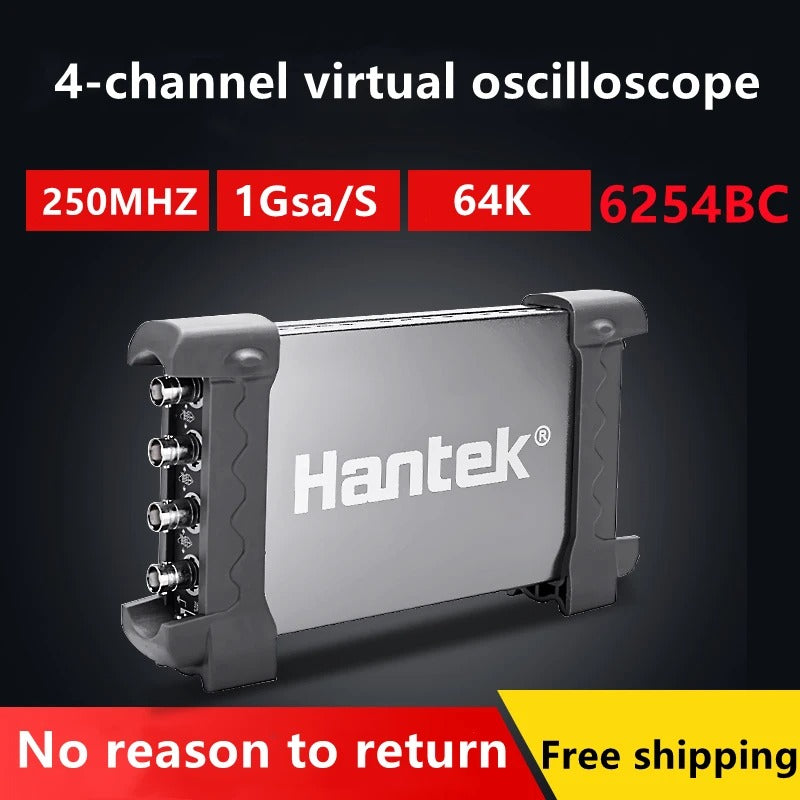

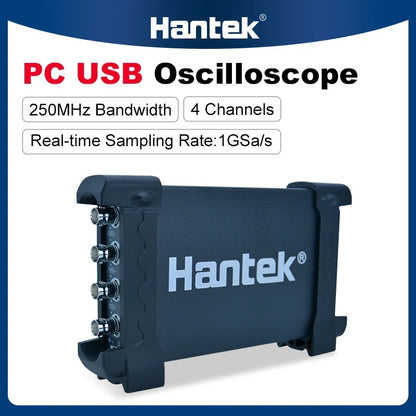

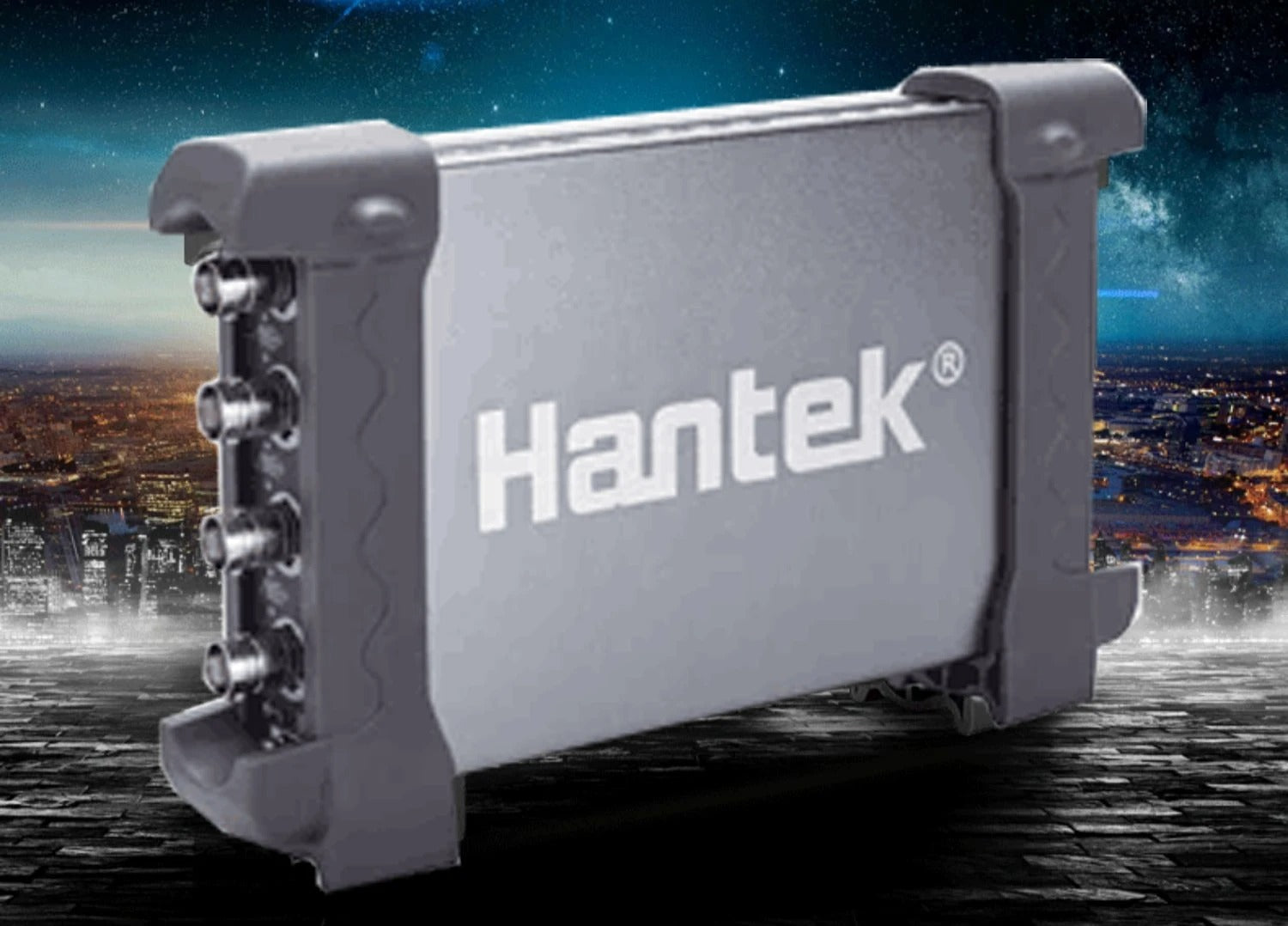

Hantek 6254BC Digital Oscilloscope: 4-Channel, 250MHz Precision for Pro Testing
Tired of oscilloscopes lagging in complex signal analysis? The Hantek 6254BC delivers 4-channel simultaneous measurement + 250MHz bandwidth—ideal for electronics R&D, industrial maintenance, and education.

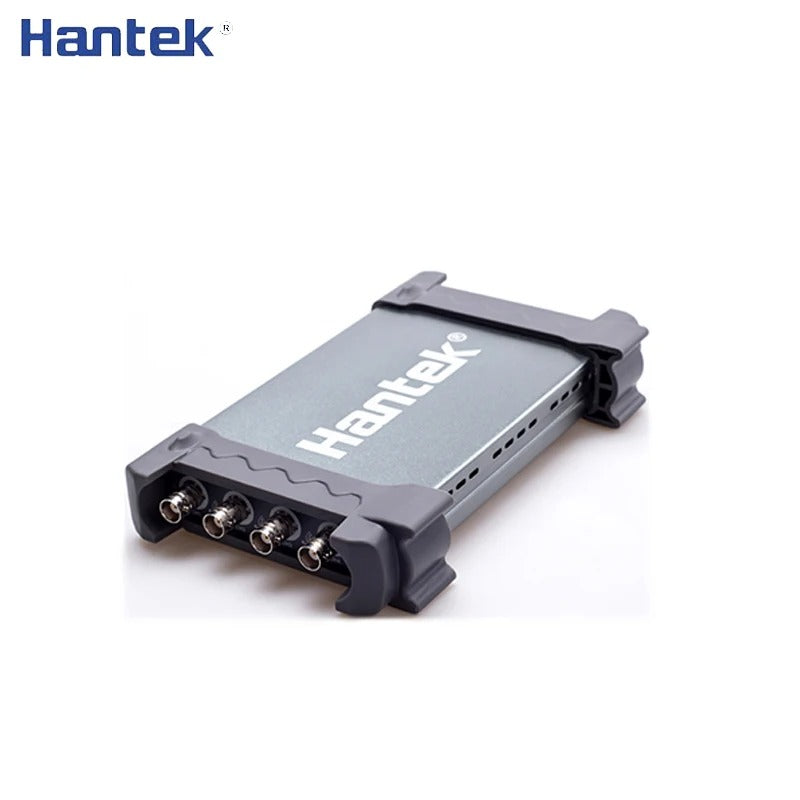

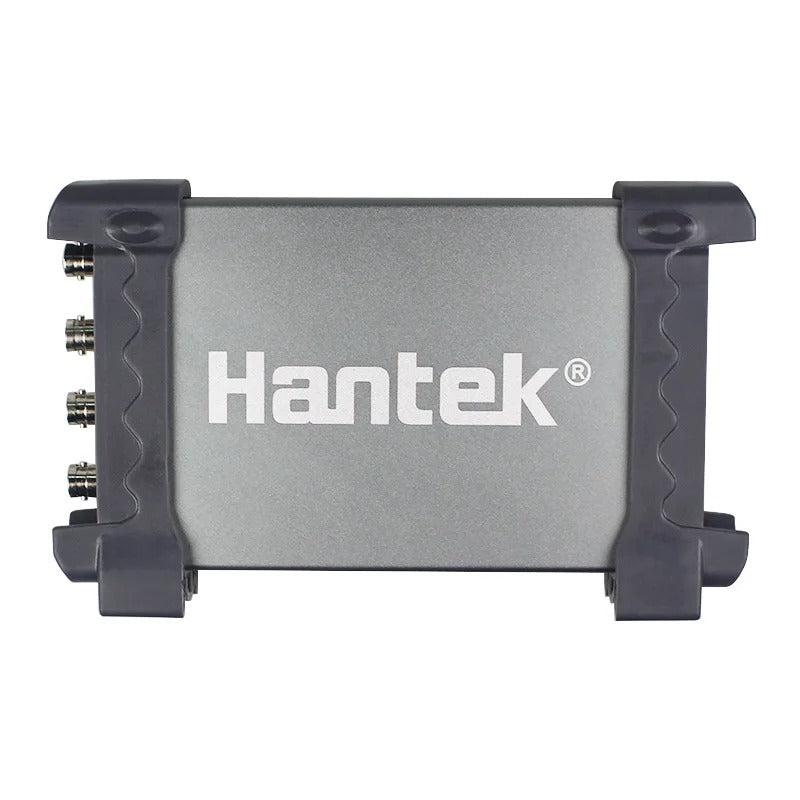

Compact & Durable
175×105×25mm, 0.9KG: portable for field use, rugged for daily wear. Intuitive controls reduce learning curves for all users.
Key Specifications
Parameter
Detail
Model
Hantek 6254BC

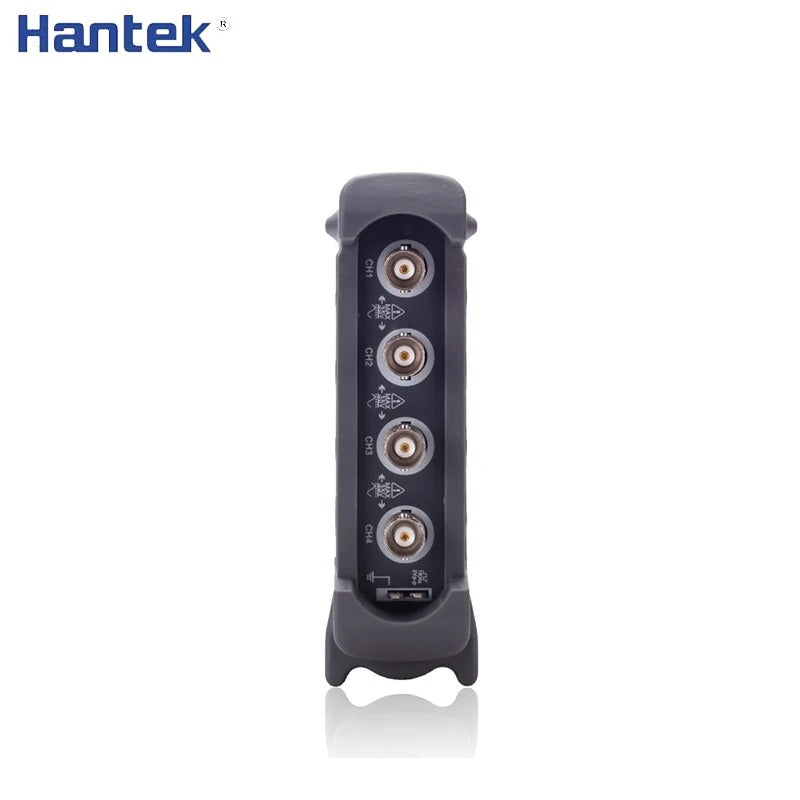

Channels
4 (simultaneous digital)
Bandwidth
250MHz
Real-time Sampling Rate
1GSa/s
Memory Depth
64K
Input Impedance
1MΩ, 25pF
Input Sensitivity
2mV/div - 10V/div
Trigger Modes/Sources
Edge/Pulse/Video/Alternative; CH1-CH4
Signal Process
+, -, ×, ÷, FFT, Invert
Auto Measurement
Vpp, frequency, rise time, etc. (19 parameters)

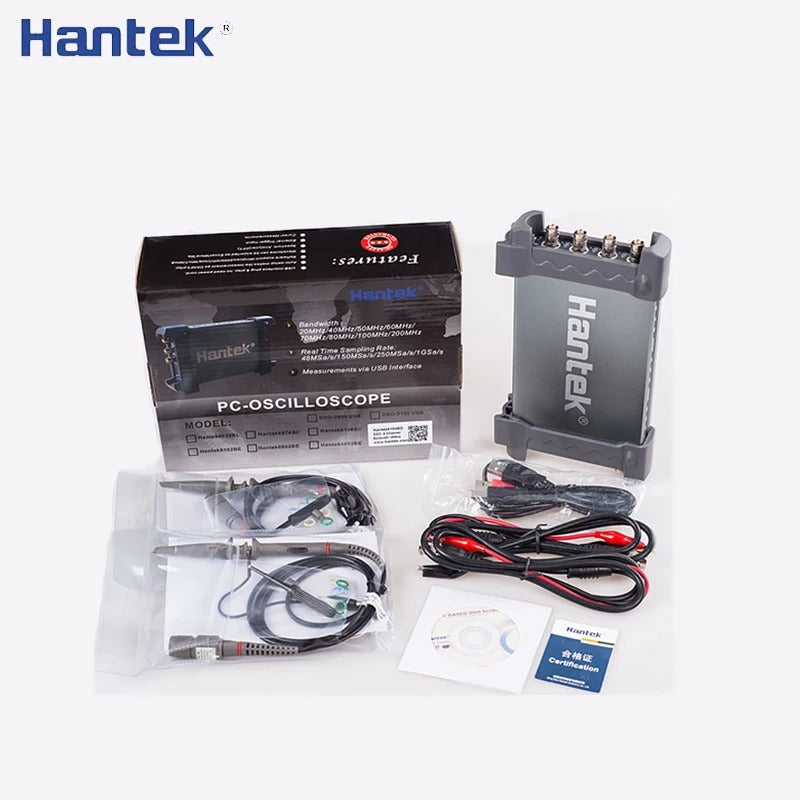

Accessories
2 passive probes, 2 gator clips
Core Advantages

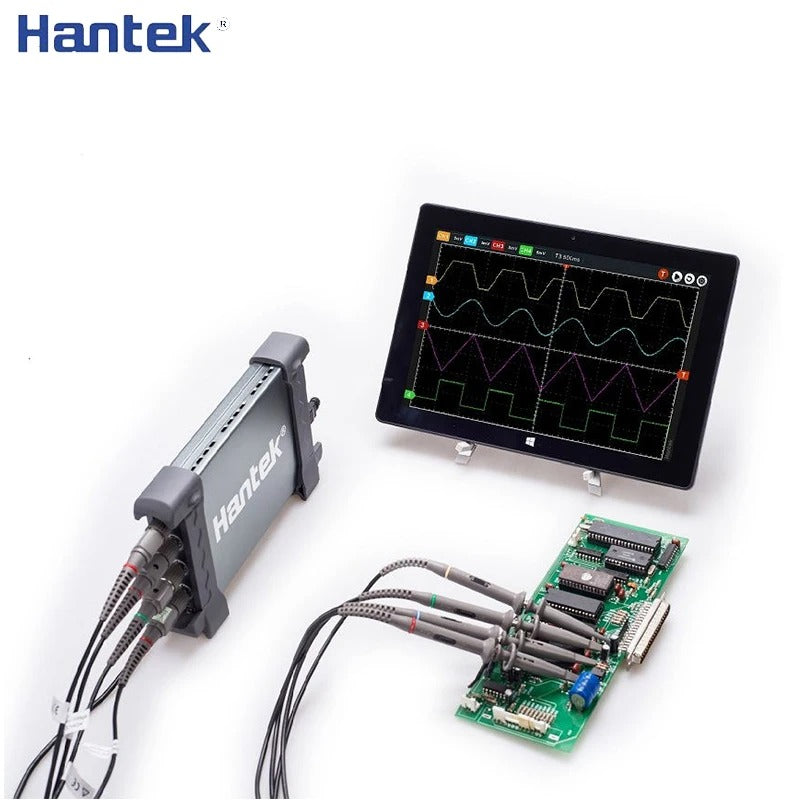

4-Channel Efficiency: Test multi-circuit systems (power modules, control boards) without probe switching.
High-Speed Capture: 250MHz bandwidth + 1GSa/s sampling for fast signals (RF, high-speed digital circuits).
Precise Analysis: FFT, auto/cursor measurement for in-depth troubleshooting.
Reliable Triggering: Lock onto critical waveforms in dynamic environments.
