Hantek 6104BC PC USB Oscilloscope 4 Digital Channels 100MHz Bandwidth 1GSa/s 2mV-10V/DIV Input Sensitivity Electronics R & D

Hantek 6104BC PC USB Oscilloscope 4 Digital Channels 100MHz Bandwidth 1GSa/s 2mV-10V/DIV Input Sensitivity Electronics R & D

$259.00 USD
$259.00 USD
Sale Sold out

Hantek6104BC Digital Oscilloscope: 4 - Channel Precision for Professional Testing

Tired of oscilloscopes that can't keep up with complex signal analysis? The Hantek6104BC offers 4 - channel testing, 100MHz bandwidth, and versatile features—ideal for electronics R & D, industrial maintenance, and lab work!

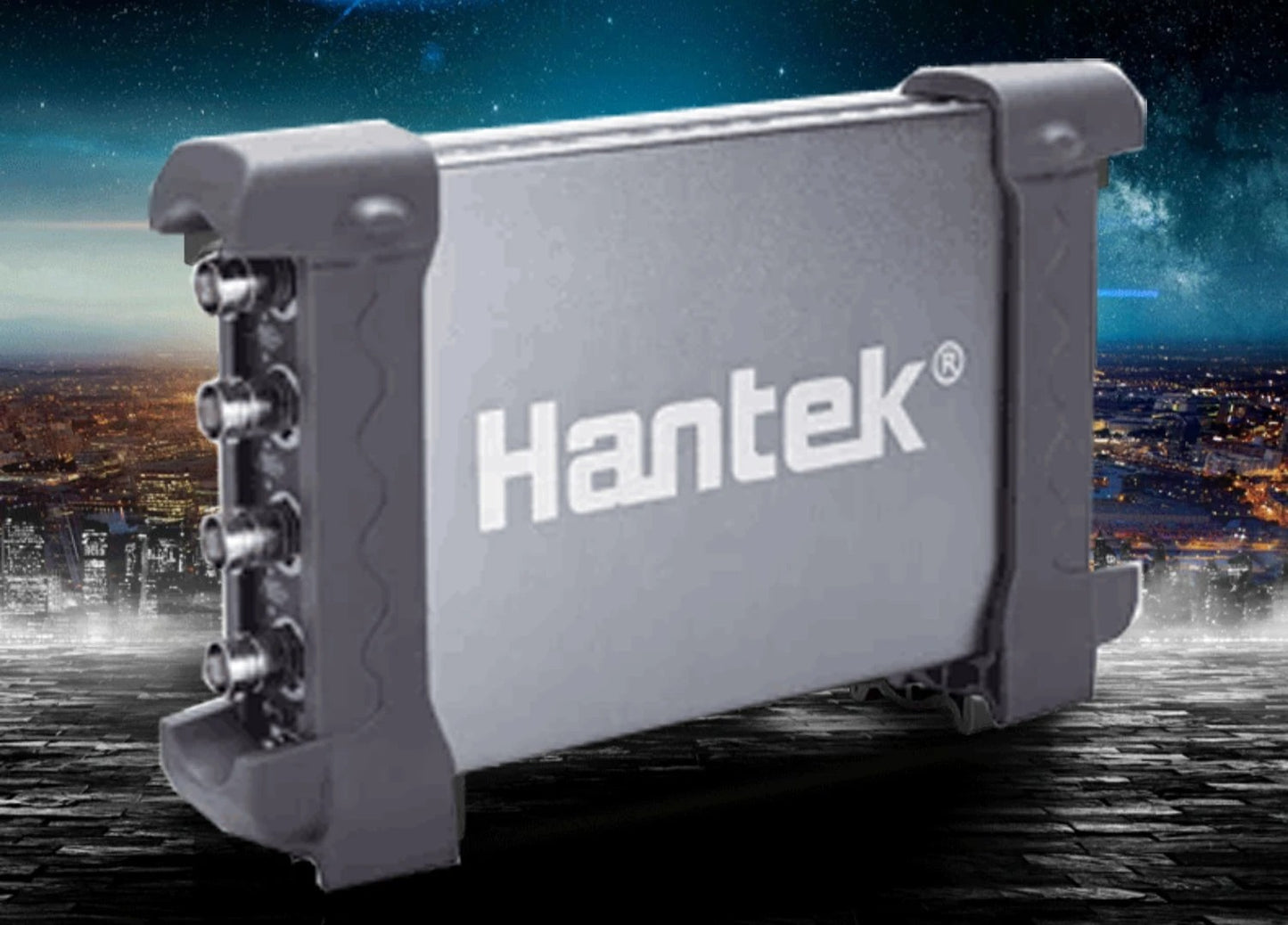

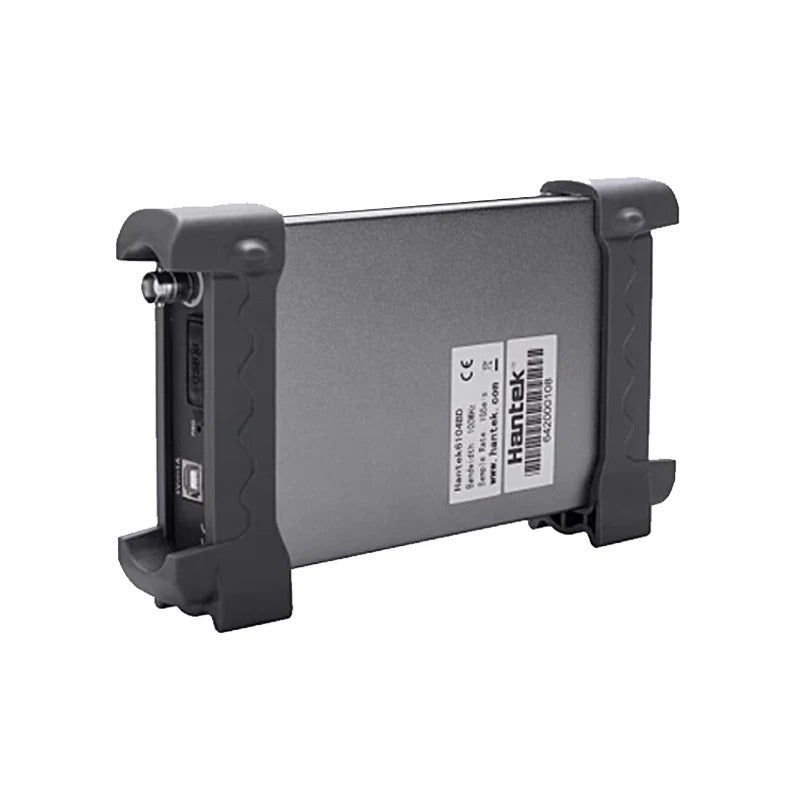

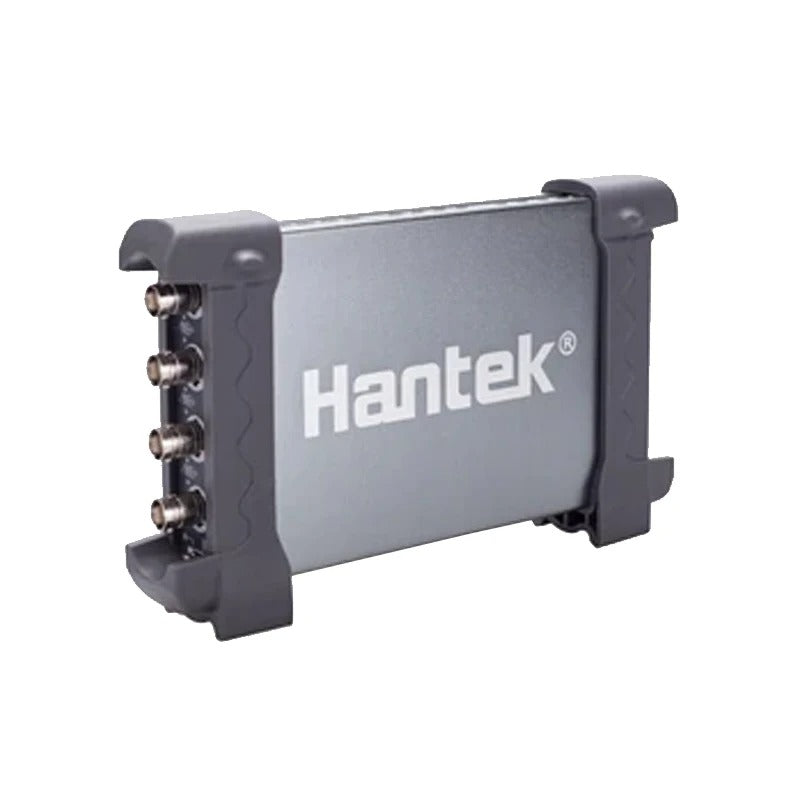

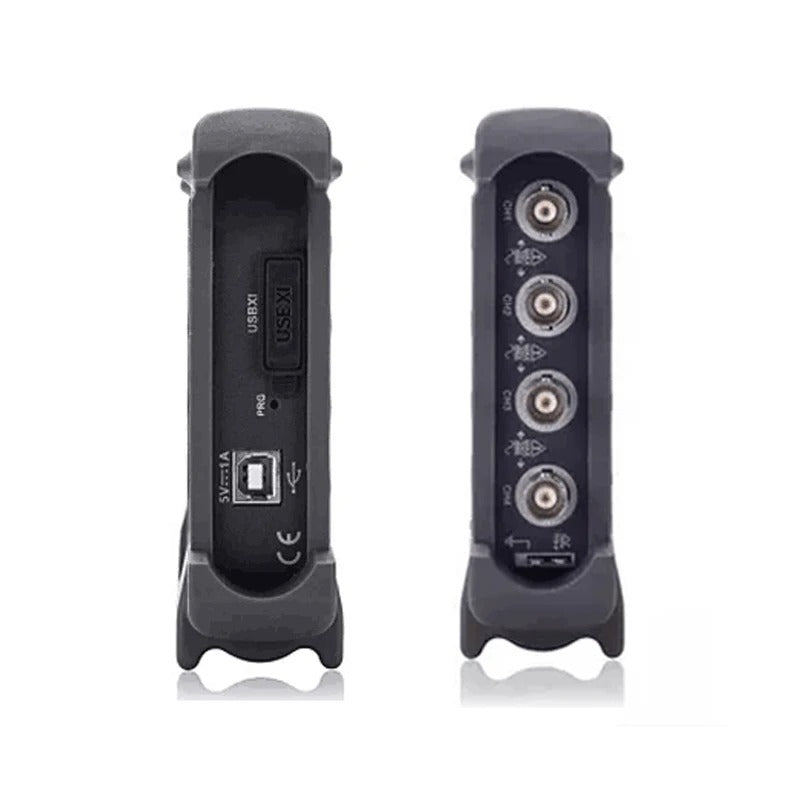

Sleek & Practical Design

Compact and rugged, it fits easily on workbenches or in field toolkits. The durable housing withstands daily use, and the intuitive control layout ensures smooth operation during long - term testing. Lightweight enough for on - site jobs, balancing portability and stability.

Key Specifications

Parameter
Detail
Model
Hantek6104BC
Channels
4 Digital Channels (simultaneous measurement)
Bandwidth
100MHz
Real - time Sampling Rate
1GSa/s
Memory Depth
64K
Time Base Precision
±50ppm
Time Base Range
2ns/div - 1000s/div (1 - 2 - 4 sequences)
Input Impedance
1MΩ 25pF
Input Sensitivity
2mV/div - 10V/div
Vertical Resolution
8Bit
Vertical Displacement Range
2mV - 10V/div @×1 probe; 20mV - 100V/div @×10 probe; 200mV - 1000V/div @×100 probe; 2V - 10000V/div @×1000 probe
DC Gain Accuracy
±3%
Bandwidth Limit
20MHz
Trigger Mode
Edge, Pulse, Video, Alternative
Trigger Source
CH1, CH2, CH3, CH4
Waveform Signal Process
+, -, ×, ÷, FFT, Invert
Cursors Measurement
Cross, Trace, Horizontal, Vertical
Auto Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume
175mm * 105mm * 25mm
Weight
0.9KG

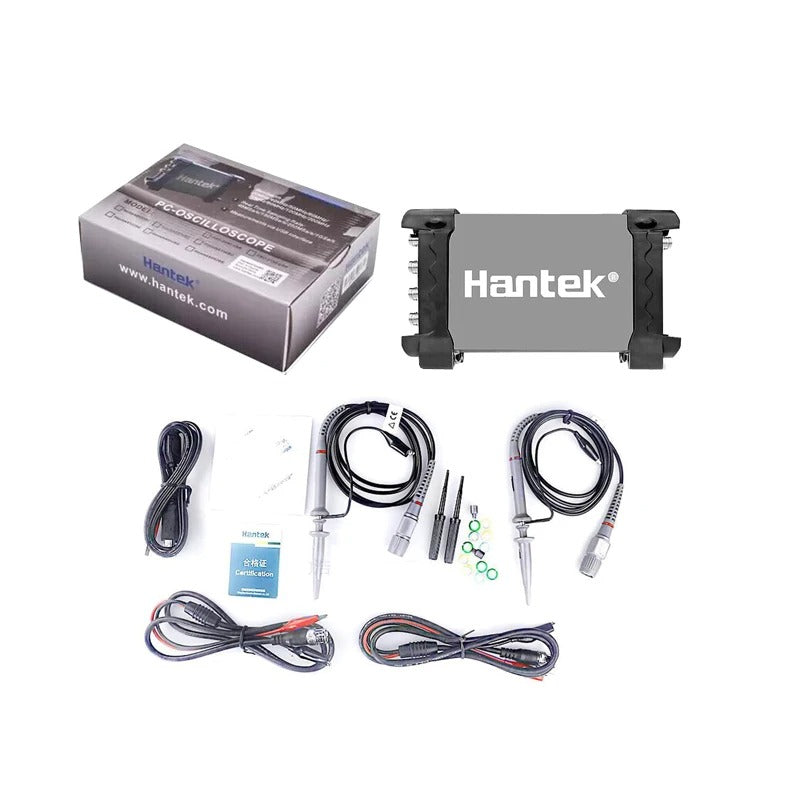

Accessory
2 passive probes, 2 gator clip lines

Core Functions

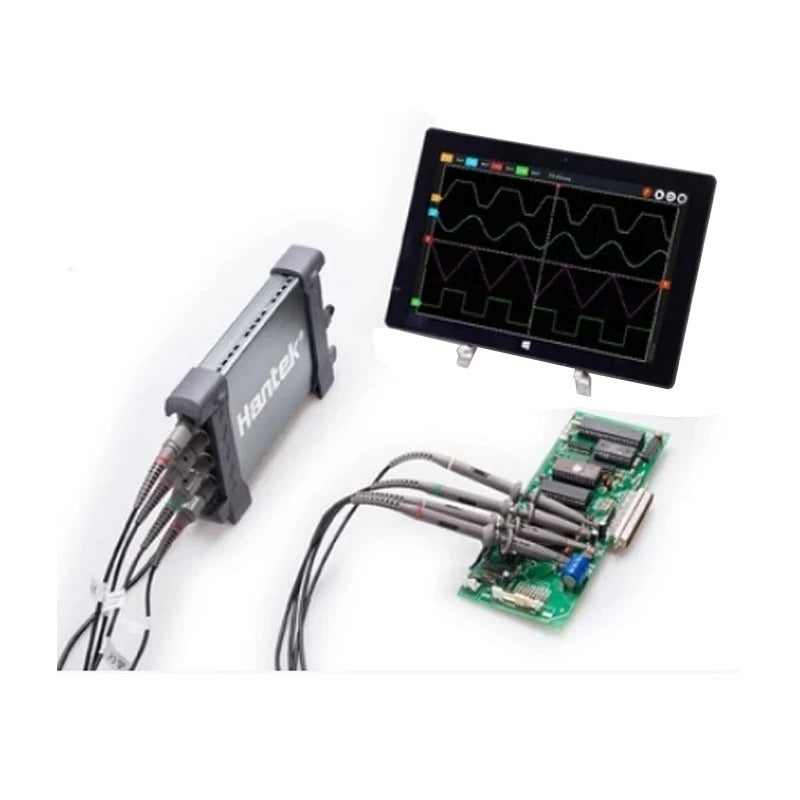

  • 4 - Channel Versatility: Test 4 signals at the same time, perfect for analyzing multi - circuit systems like power modules and control boards without probe switching.
  • Precise Signal Analysis: Accurately read signals for troubleshooting, identifying waveform anomalies, voltage fluctuations, and timing issues with ease.
  • Rich Signal Processing: With functions like FFT and various math operations, plus auto - measurement and cursor tools, it enables in - depth signal analysis.
  • Wide Application: Suitable for diverse electronics, from small circuits to industrial equipment.

Applicable Scenarios

  1. Electronics R & D: Analyze 4 - channel signals in prototype testing to ensure circuit performance meets design goals.
  1. Industrial Maintenance: Troubleshoot industrial control systems, motors, and power supplies, detecting problems before equipment failure.
  1. Lab Testing: Ideal for lab environments, supporting complex signal analysis for academic and research projects.
  1. Education & Training: Teach multi - channel oscilloscope operation in electronics courses and technical training.

Why Choose Hantek 6104BC?

  • 4 - Channel Efficiency: Save time by testing multiple signals simultaneously compared to 2 - channel scopes.
  • Comprehensive Analysis: From basic waveform viewing to advanced FFT analysis, it meets diverse testing needs.
  • Durable & Portable: Built to last and easy to carry, suitable for both bench and on - site testing.
Ready to upgrade your 4 - channel testing? Click “Add to Cart”—the Hantek6104BC’s 100MHz bandwidth and versatile features make it a pro’s top choice. Secure yours for reliable signal analysis now!
