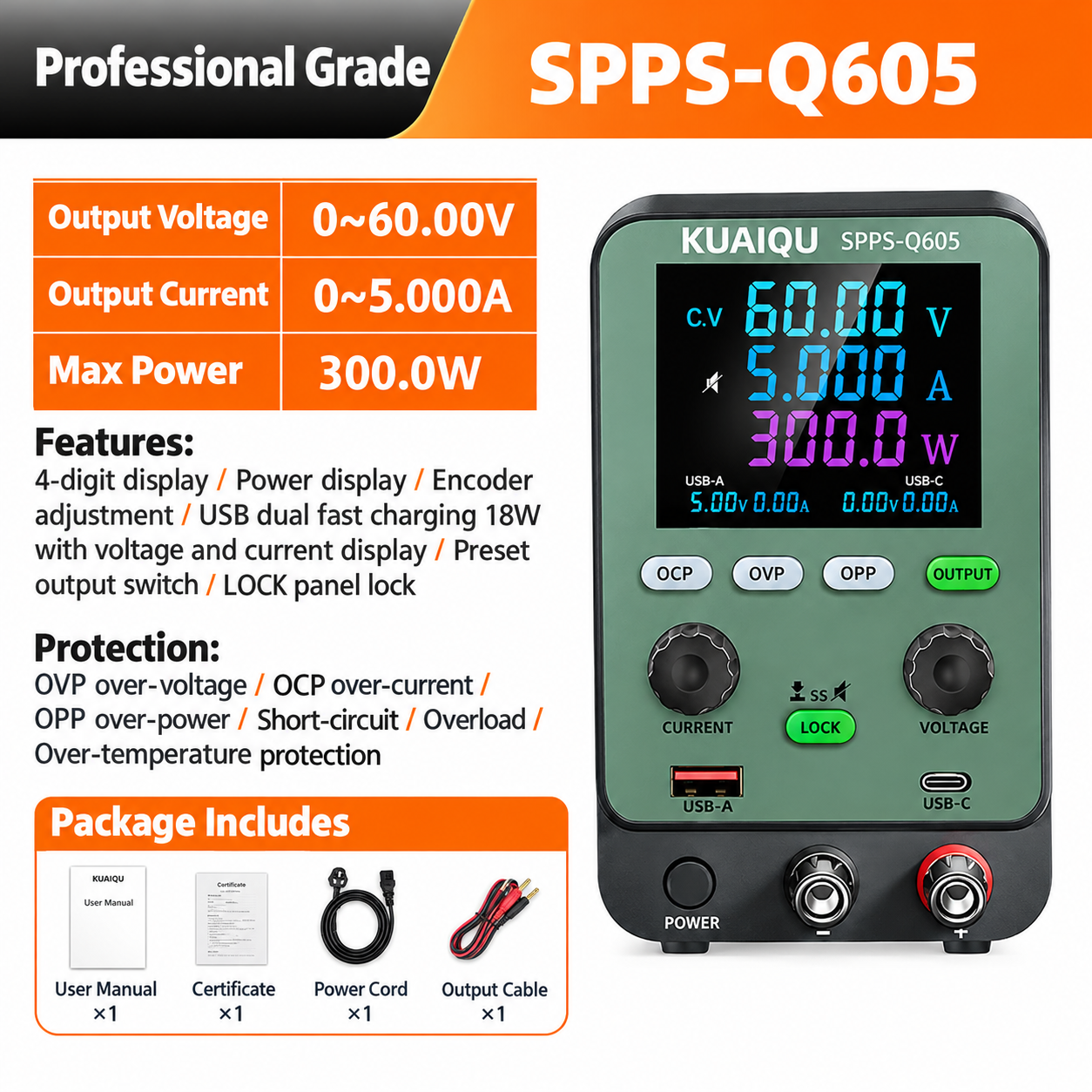

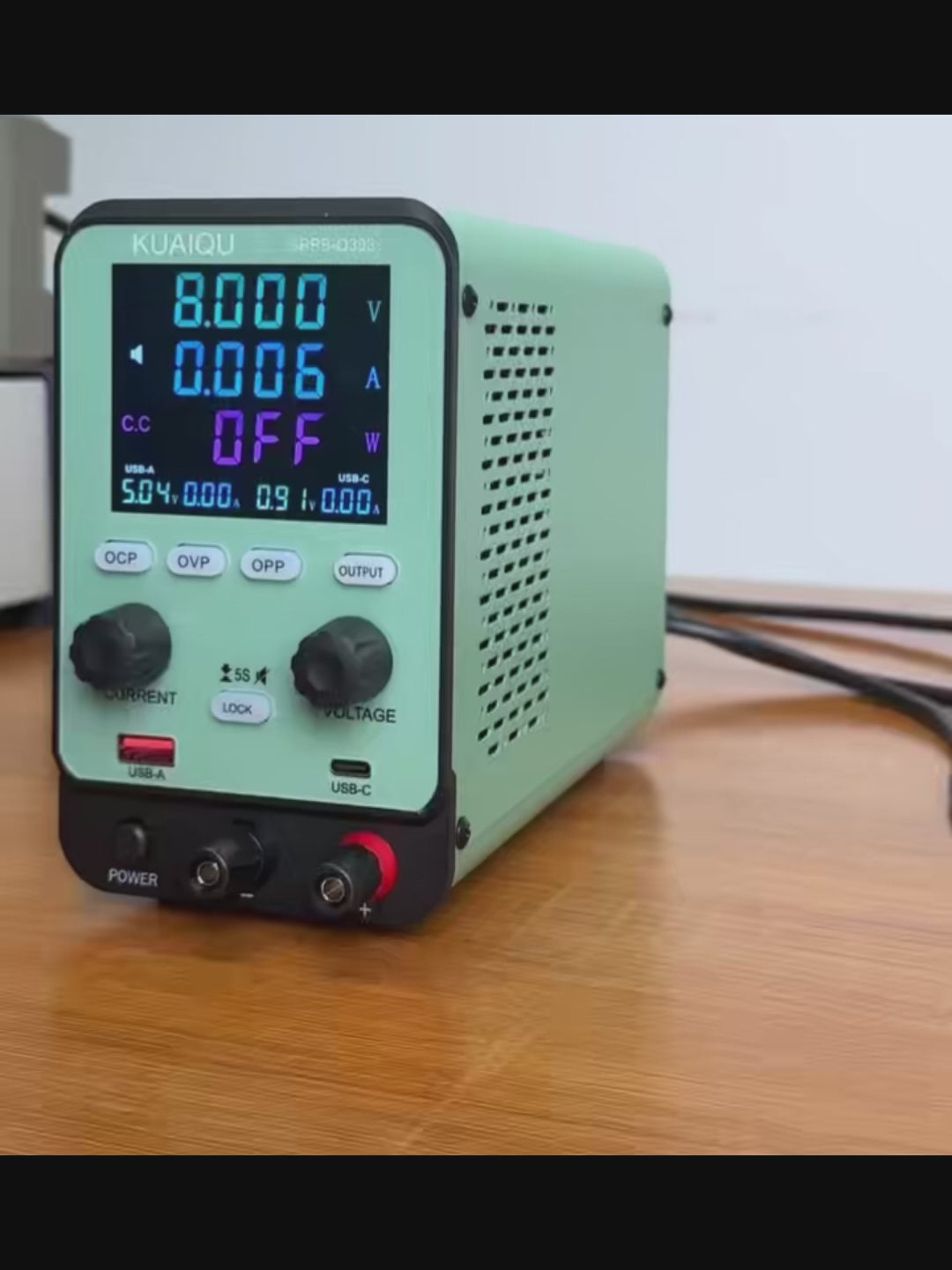

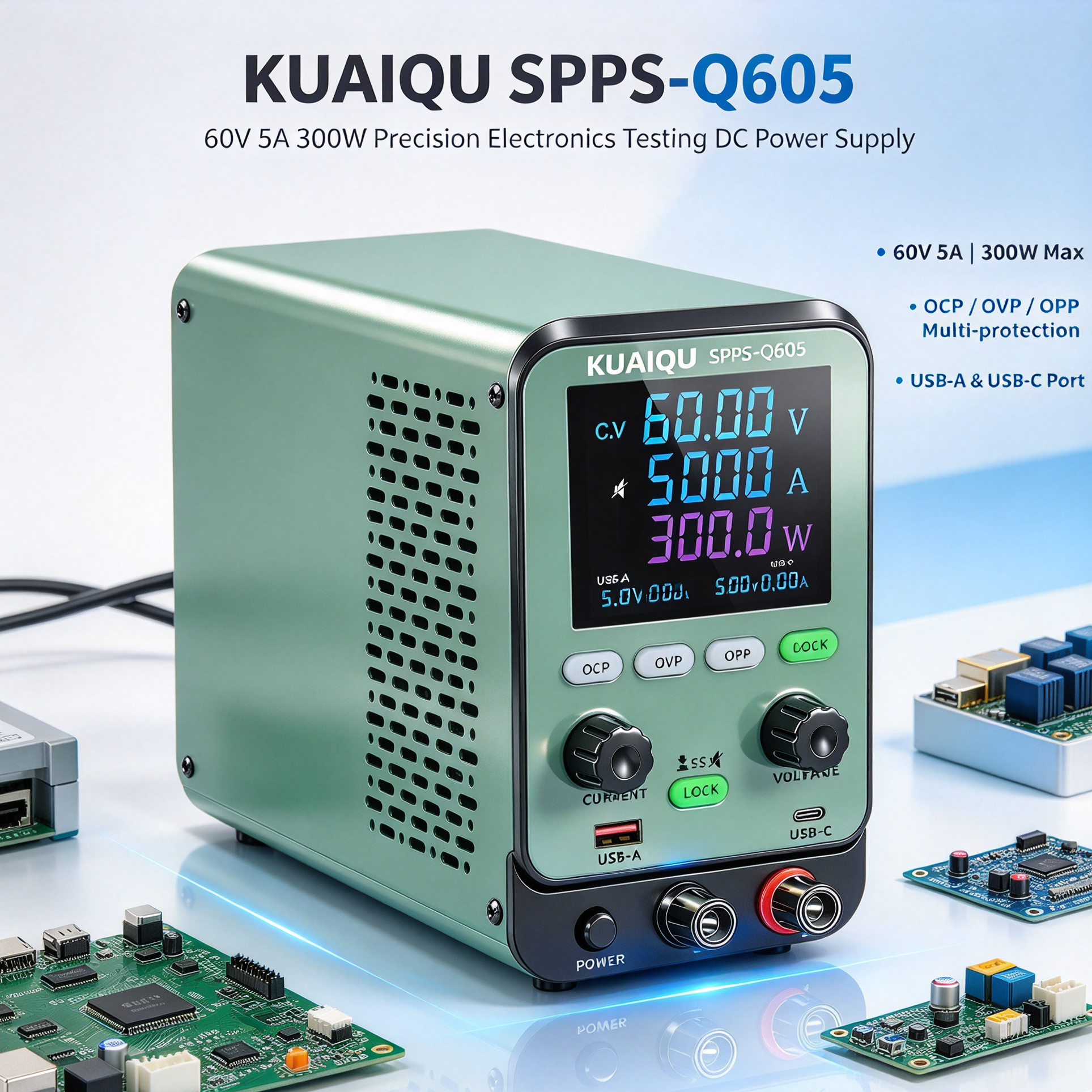

The KUAIQU SPPS-Q605 is a 60V 5A 300W adjustable DC power supply designed for precision electronics testing, PCB debugging, and electronic module testing. Featuring a color LCD, OCP/OVP/OPP protection, fine low-voltage display resolution, and USB-A/USB-C fast charging, it is ideal for electronics R&D, circuit testing, and equipment maintenance.
60V 5A 300W Adjustable DC Power Supply: Provides a 0–60V adjustable voltage range and up to 5A output current for precision electronics testing, circuit development, and electronic equipment troubleshooting.
Precision Electronics Testing: Suitable for powering and evaluating electronic circuits, PCB assemblies, DC power modules, and electrical components during R&D, inspection, and functional testing.
Color LCD Voltage and Current Display: Clearly displays operating parameters to support DC bench testing, circuit debugging, and electronic module evaluation.
Fine Low-Voltage Display Resolution: Displays voltage to three decimal places below 10V, supporting detailed voltage adjustment and observation in low-voltage electronic circuit testing.
OCP, OVP, and OPP Protection: Integrated over-current protection, over-voltage protection, and over-power protection help reduce the risk of damage to connected circuits and electronic devices.
Output ON/OFF Control: Allows convenient control of DC output when connecting test circuits, adjusting setups, or performing electronics maintenance.
Panel LOCK Function: Helps prevent accidental changes to voltage and current settings during experiments and electronic module testing.
USB-A and USB-C Fast Charging: Dual USB charging ports provide up to 18W output and automatically adapt to compatible charging protocols.
Real-Time USB Monitoring: Displays USB output voltage and current for convenient monitoring of compatible USB-powered devices.
Automatic A/mA and W/mW Conversion: Automatically switches current and power display units for easier reading across different operating ranges.
Audible Alarm with Mute: Provides audible alerts for relevant operating or protection events, with a mute option for quieter laboratory operation.
Precision Electronics Testing: Adjustable DC power for testing electronic circuits, electrical components, and electronic assemblies under controlled voltage and current conditions.
PCB Testing and Circuit Debugging: Suitable for powering printed circuit boards, prototype circuits, and electronic assemblies during development, troubleshooting, and repair.
Electronic Module Testing: Supports functional testing of DC-powered modules, control boards, voltage regulation circuits, and power management components within the rated output range.
DC-DC Converter Testing: Provides an adjustable DC input source for evaluating compatible DC-DC converters, voltage regulation modules, and power conversion circuits.
Electronics R&D Laboratories: Supports circuit development, prototype validation, electrical experiments, and bench-level testing for engineers and research technicians.
Electronic Equipment Repair: Helps technicians supply adjustable DC power when troubleshooting electronic devices, testing circuit boards, and checking DC-powered assemblies.
Low-Voltage Circuit Testing: The three-decimal-place voltage display below 10V supports detailed voltage adjustment and observation in low-voltage circuits.
USB Device Testing: Integrated USB-A and USB-C ports provide up to 18W output with real-time voltage and current monitoring for compatible USB-powered devices.
| Parameter Item | SPPS-Q605 | |
|---|---|---|
| Rated Values | Voltage | 0~60V |
| Current | 0~5A | |
| Power | 300W | |
| Load Regulation | Voltage | ≤ 0.01%+25mV |
| Current | ≤ 0.1%+15mA | |
| Line Regulation | Voltage | ≤0.01%+15mV |
| Current | ≤0.1%+5mA | |
| Setting Resolution | Voltage | <10V: 1mV
|
| Current | 1 mA | |
| Readback Resolution (Display Resolution) | Voltage | <10V: 1mV
|
| Current | < 20mA: 10 uA
|
|
| Setting Accuracy | Voltage | ≤0.02%+30mV |
| Current | ≤0.1%+15mA | |
| Readback Accuracy (Display Accuracy) | Voltage | ≤0.02%+30mV |
| Current | <20mA: 0.1%+100uA
|
|
| Ripple (20Hz～20MHz) | Voltage | ≤100mV(p-p)
|
| Current | ≤50mA(rms) | |
| Rise Time (No Load) | Voltage | ≤100ms |
| Rise Time (Full Load) | Voltage | ≤1200ms |
| Fall Time (No Load) | Voltage | ≤10000ms |
| Fall Time (Full Load) | Voltage | ≤100ms |
| Efficiency (Full Power) | / | ≥83% |
| Input Voltage Range | Vac | 200Vac~240Vac |
| Minimum Display Current | mA | 0.01mA |
| Fuse | 220v Input | 3.15A |
| Product Dimensions | / | 218mm89mm150mm |
| Product Weight | / | 1.2KG |
