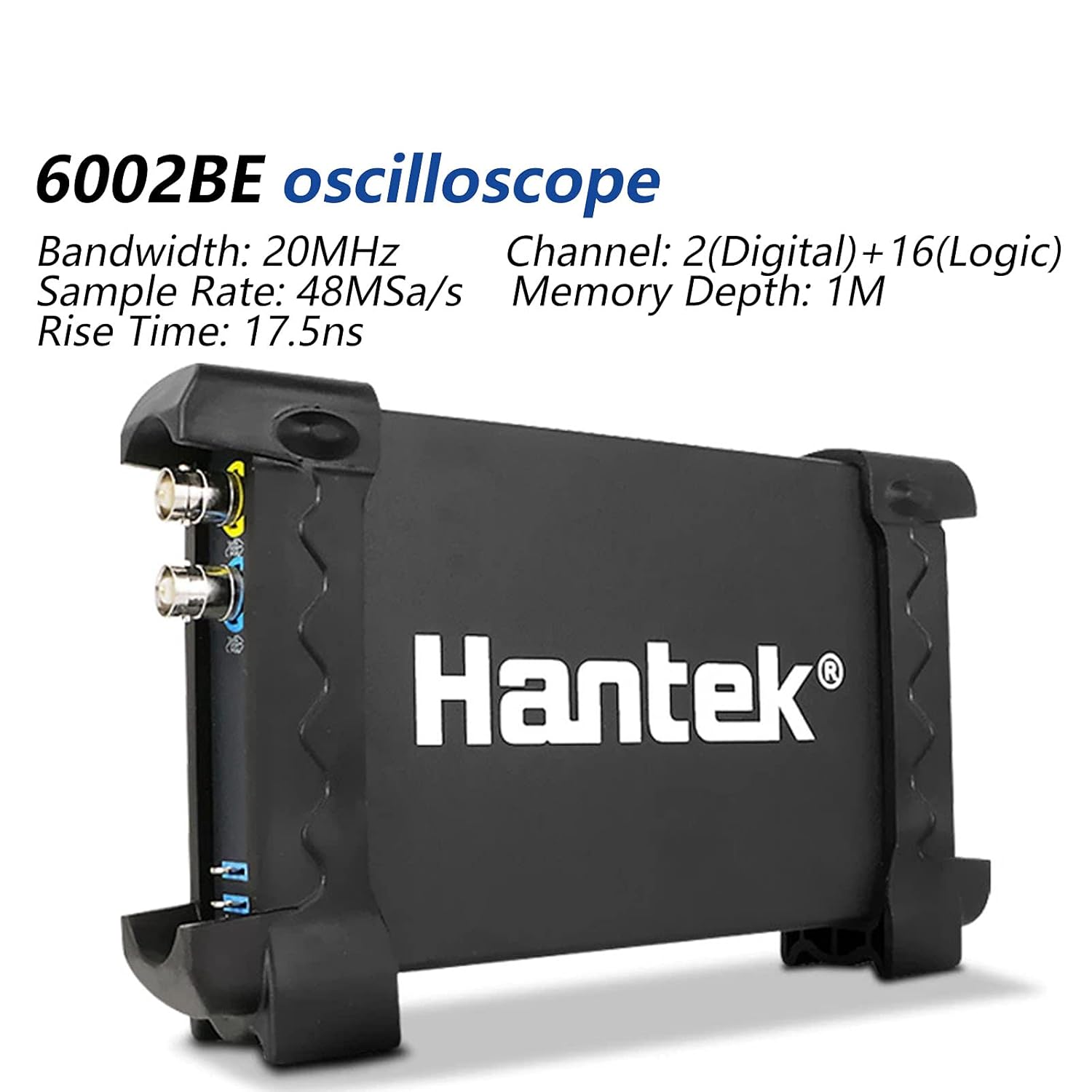

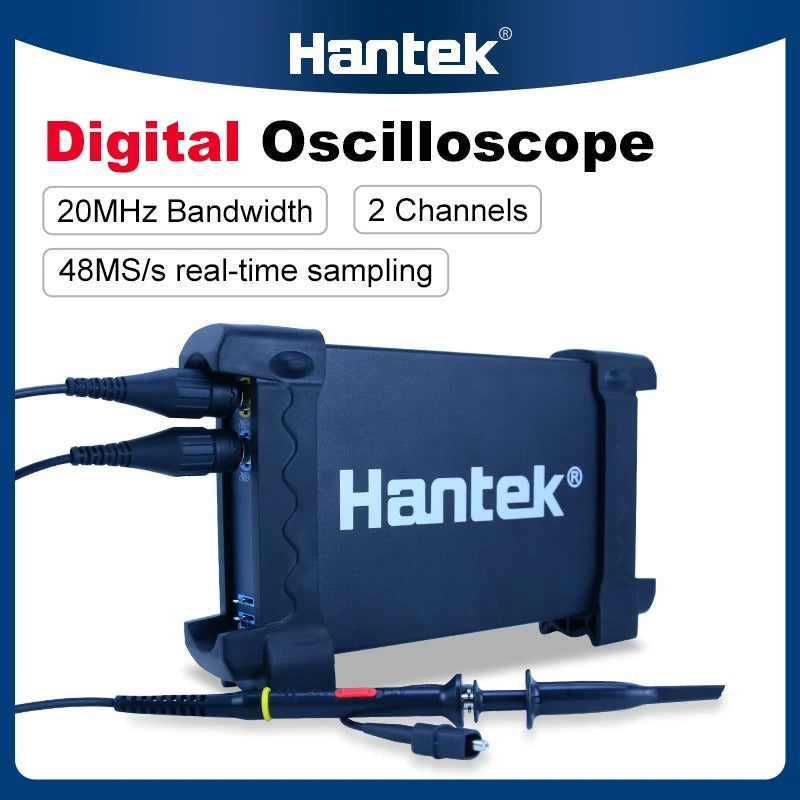

Hantek6022BE USB Oscilloscope: Portable Precision for On-the-Go Testing
Tired of bulky oscilloscopes that limit mobility or skimp on performance? The Hantek6022BE delivers 2-channel flexibility + 20MHz bandwidth—perfect for notebooks, fieldwork, and production lines!
Sleek & Durable Design

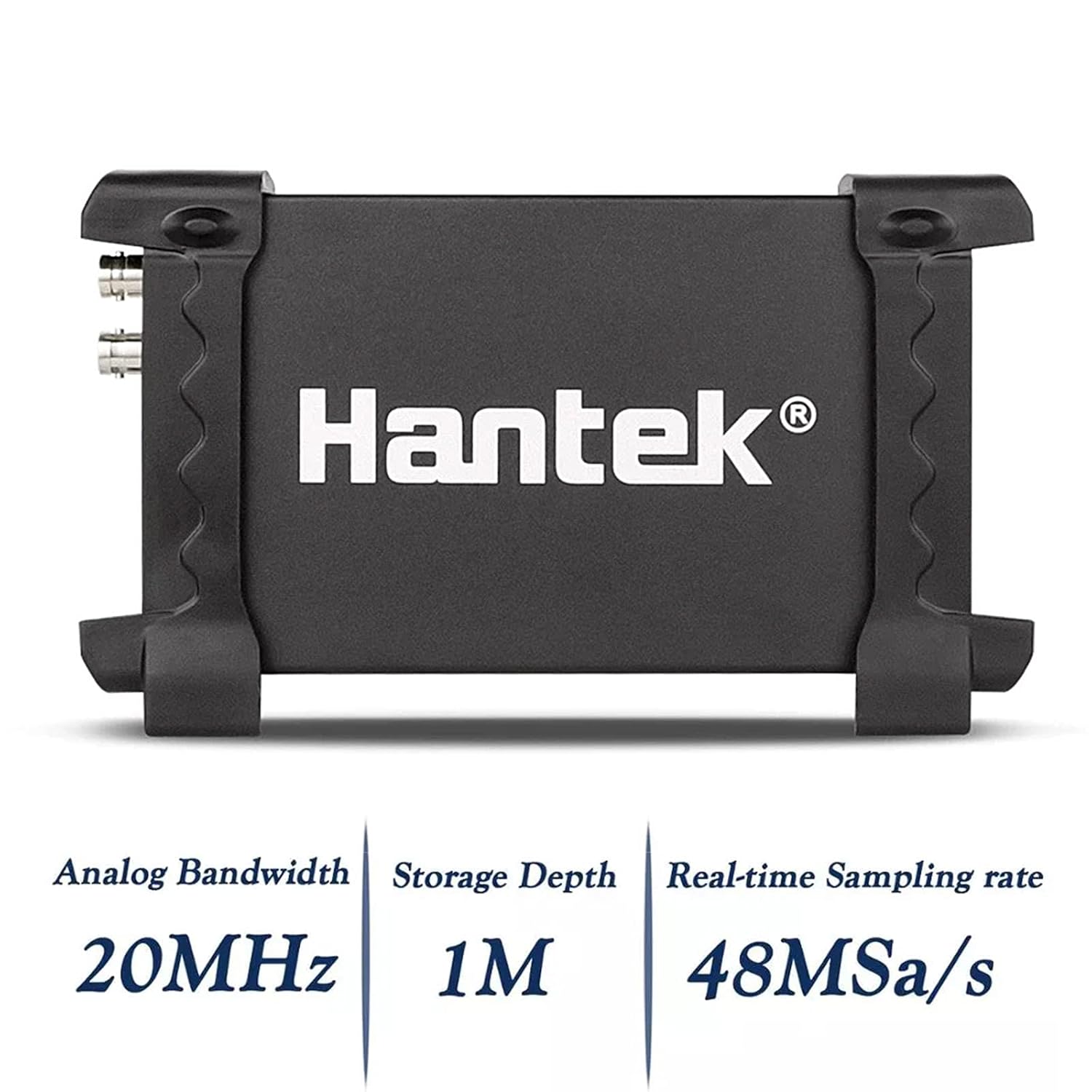

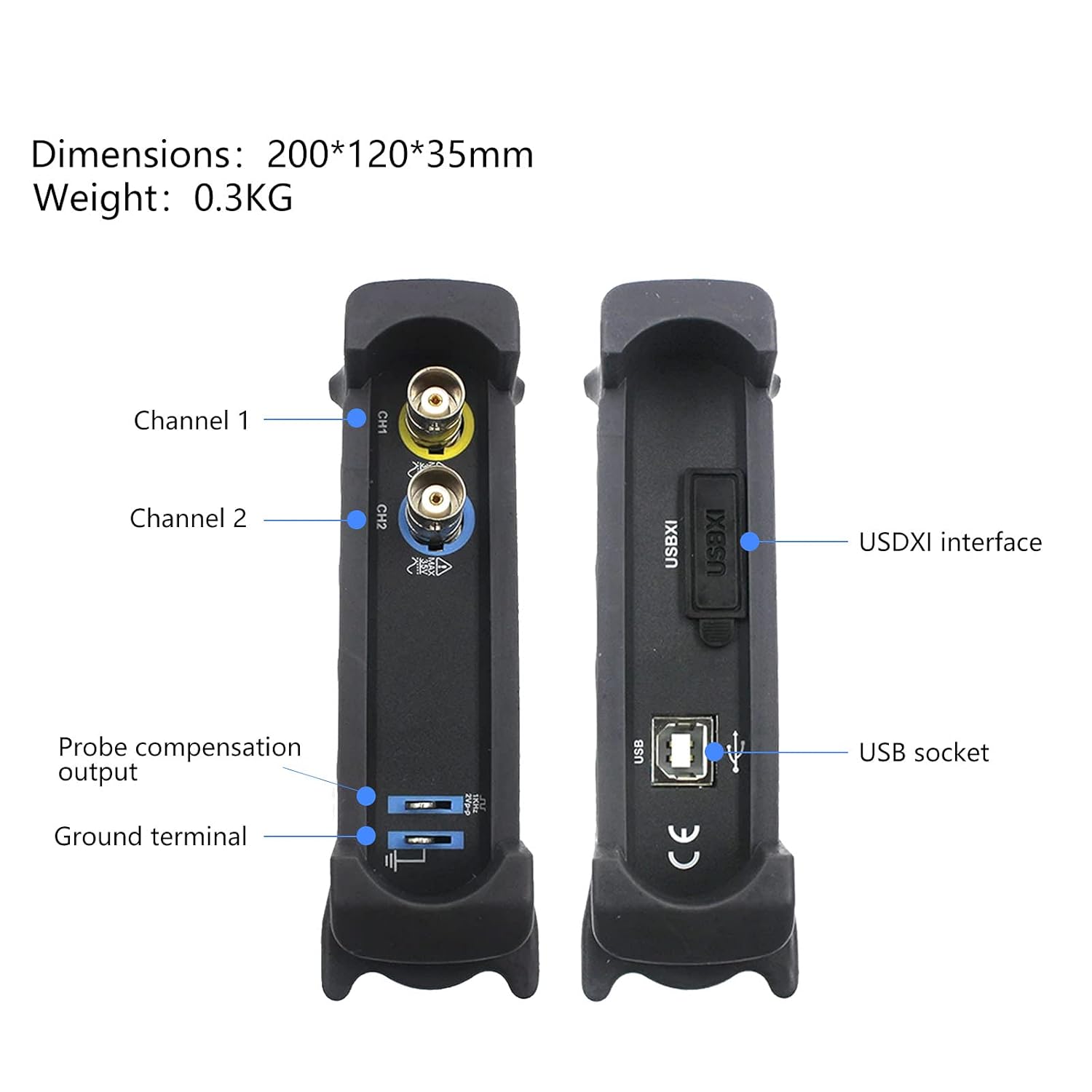

Anodized aluminum casing (same as iPad) for premium look and durability—enhances surface hardness, heat resistance, and wearability. Compact size (205×120×35mm) and lightweight build make it easy to carry; fits laptop bags for business trips or on-site maintenance.
Key Specifications
Parameter
Detail
Model
Hantek6022BE
Channels

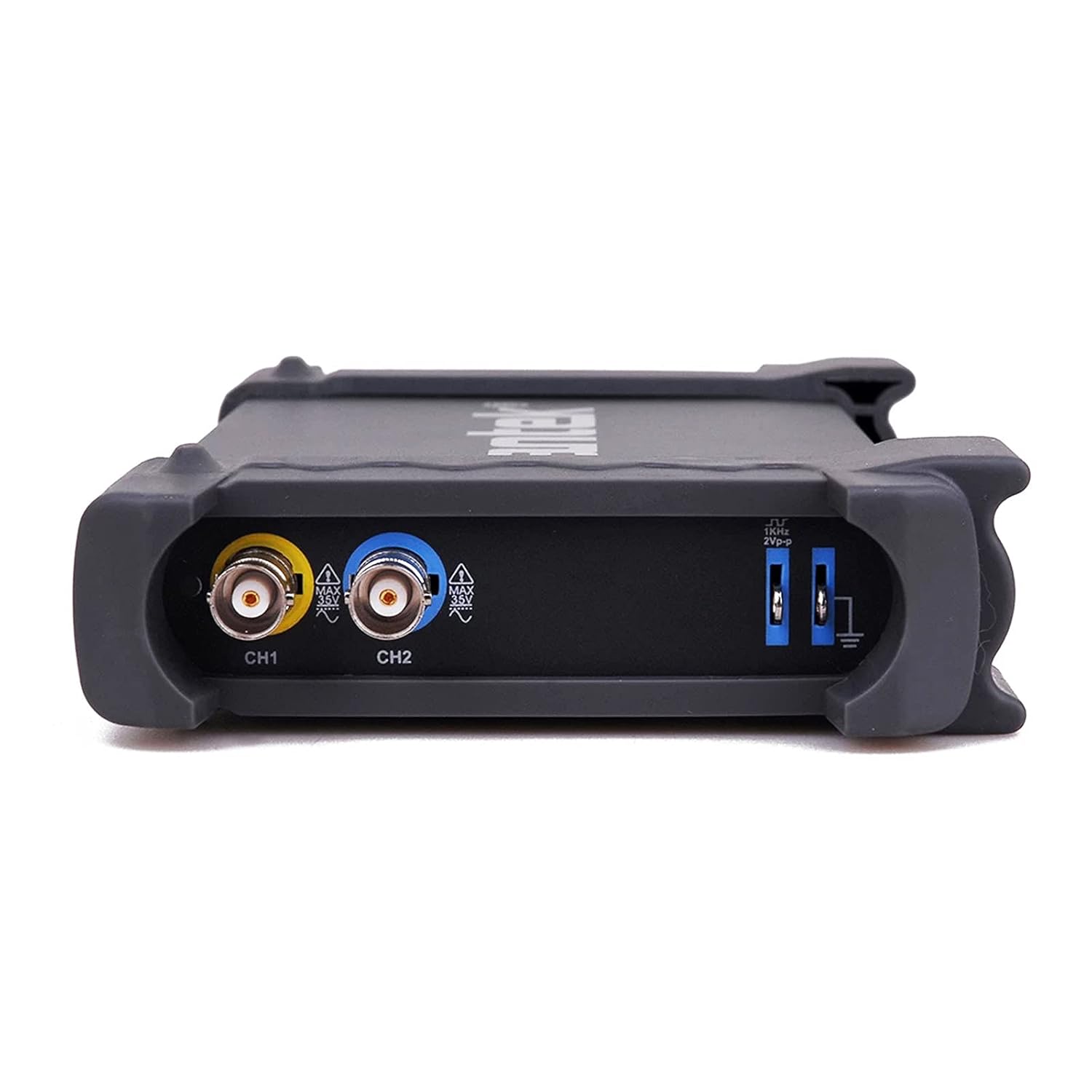

2 Channels
Bandwidth
20MHz
Max Sample Rate
48MS/s (real-time)
Input Impedance
1MΩ, 25pF
Coupling Mode
DC
Vertical Resolution
8Bit
Gain Range
20mV–5V
DC Accuracy
±3%
Timebase Range
4ns–5ks
Buffer Size
1M
Trigger Modes
Auto, Normal, Single
Trigger Source
CH1, CH2
Interface
USB2.0 (no external power needed)
Compatible OS
Windows XP/VISTA/7/8/10/NT
Key Functions
Plug-and-Play Convenience: USB2.0 power + connection—no external adapter required. Works seamlessly with notebooks, ideal for on-the-go testing.

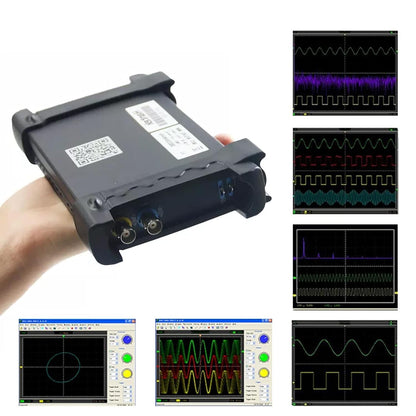

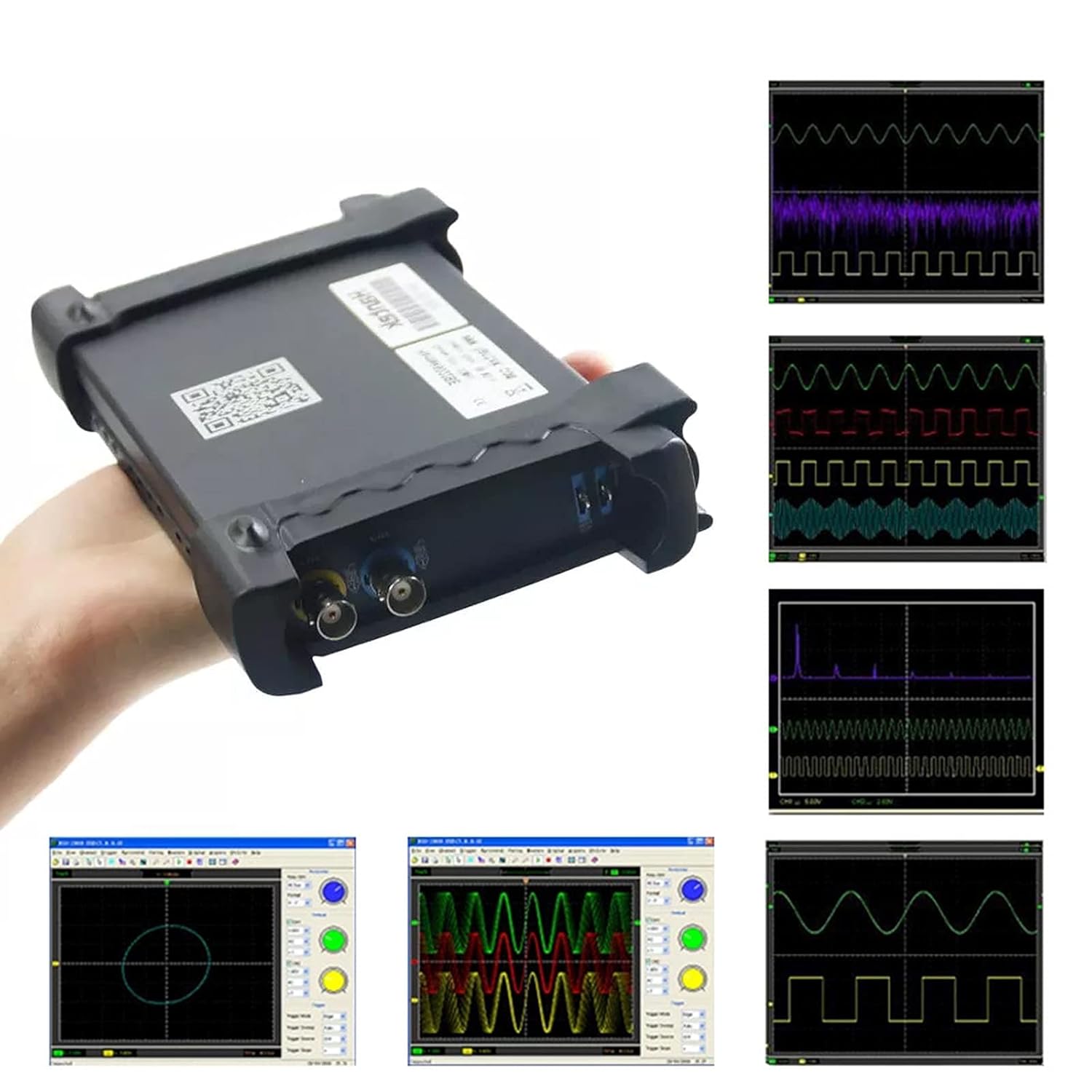

2-Channel Testing: Simultaneously measure two signals; supports waveform modes (average, persistence, intensity) and math functions (addition, subtraction, multiplication, division, FFT).
23 Measurement Functions: Includes PASS/FAIL check for quick quality verification; cursor measurement for precise frequency/voltage readings.
Flexible Data Saving: Export waveforms as text files, JPG/BMP images, or MS Excel/Word docs—easy to share or document.
Applicable Scenarios

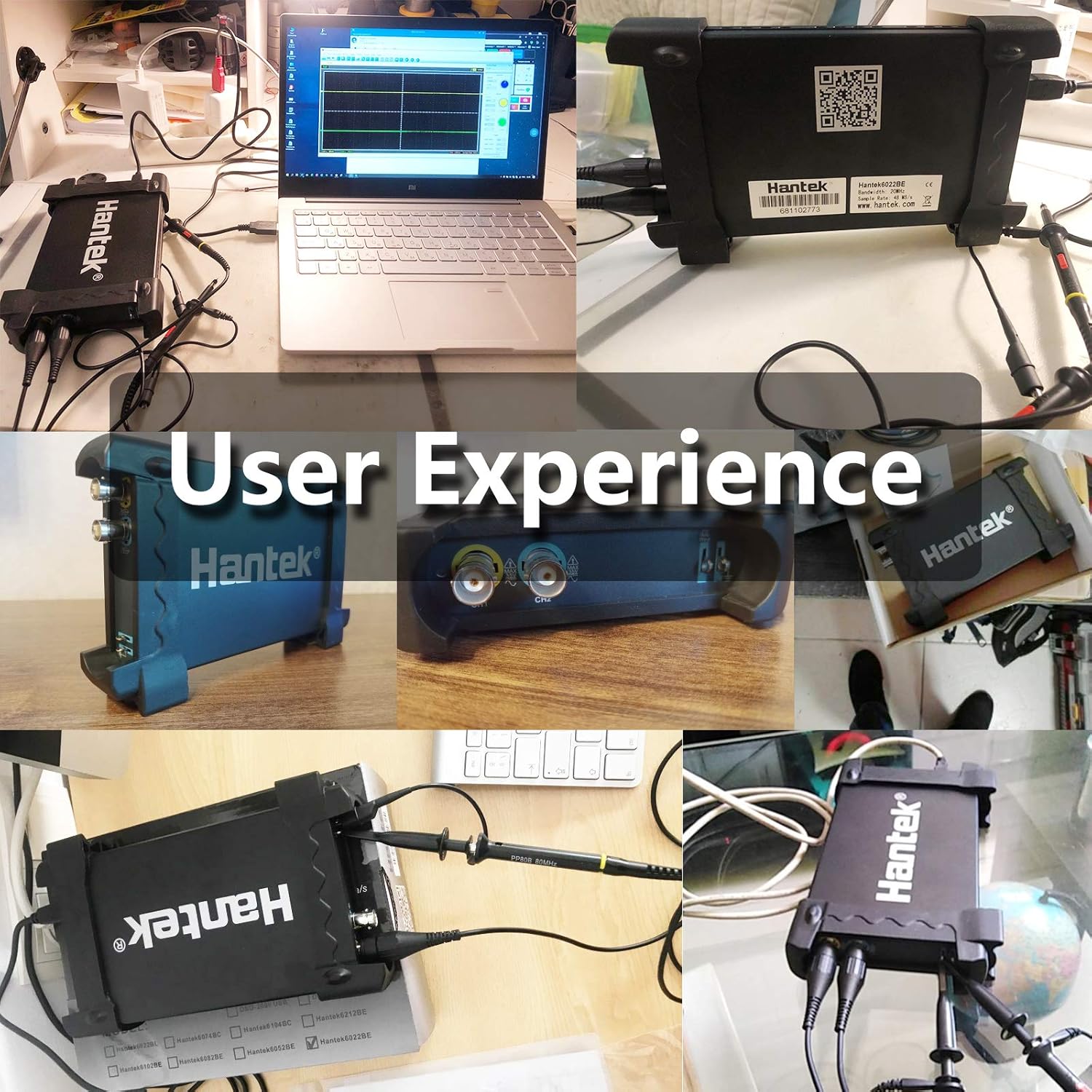

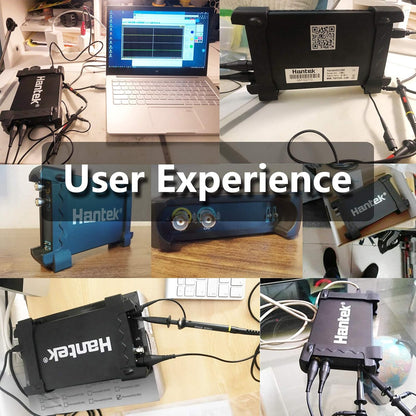

Field Maintenance: Troubleshoot product lines, repair electronics, or test equipment on-site—portable design fits tight spaces.
with aLaptop : Pair with laptops for business trips; analyze signals in client offices or remote workspaces.
Hobbyist & Education: Learn oscilloscope operation, test DIY electronics projects, or conduct basic lab experiments.
Small-Scale Production: Use PASS/FAIL check to quickly validate product signal quality, boosting assembly line efficiency.
Why Choose Hantek6022BE?
Portability: Compact, lightweight, and USB-powered—perfect for mobile testing.
Practical Performance: 20MHz bandwidth + 48MS/s sampling covers most basic to mid-level signal analysis needs.
User-Friendly: Intuitive software, 23 measurement functions, and easy data saving—suitable for beginners and pros alike.
Ready to upgrade your portable testing gear? Click “Add to Cart”—the Hantek6022BE’s convenience and reliability make it a must-have for on-the-go engineers, hobbyists, and technicians. Secure yours today!
