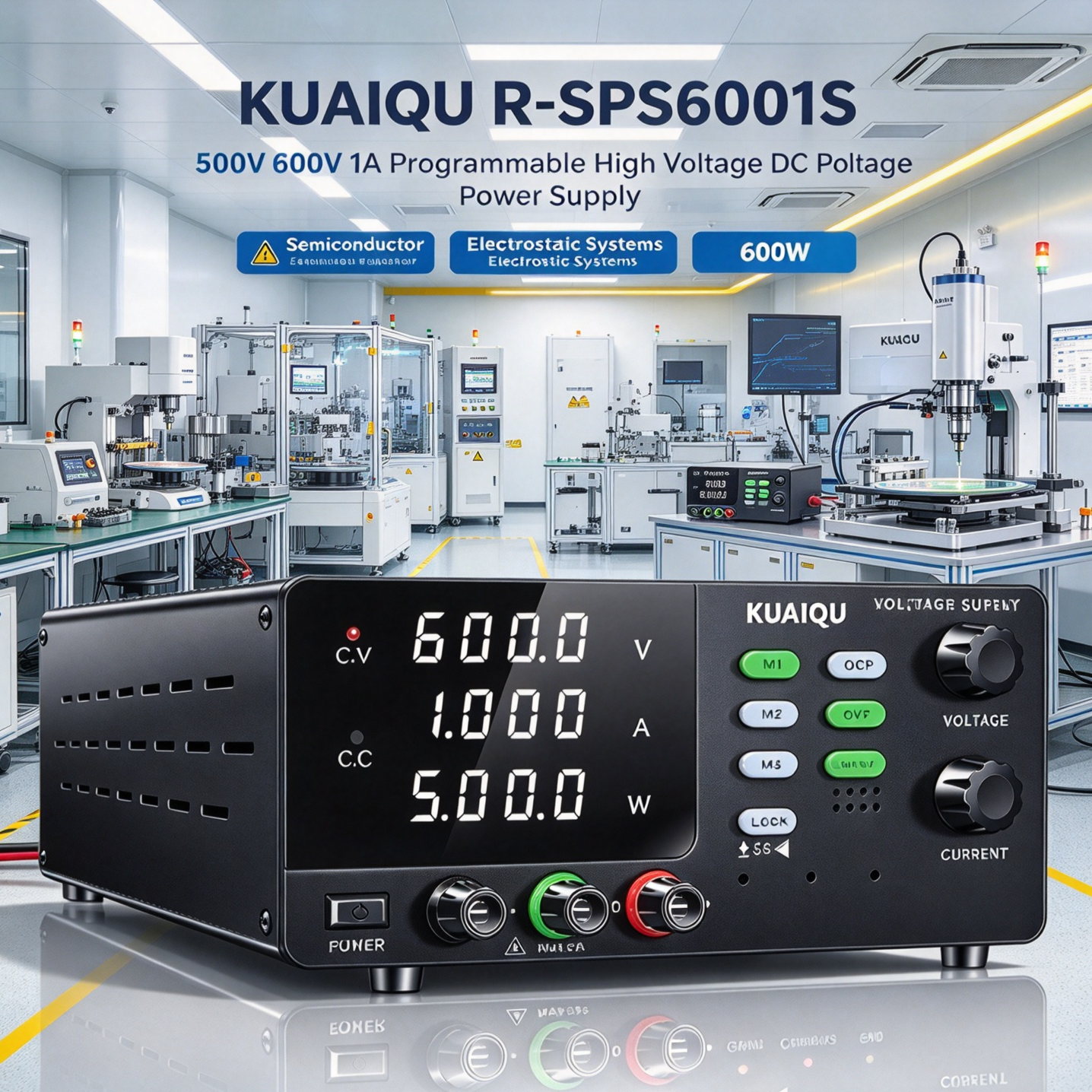

The KUAIQU R-SPS6001S Semiconductor Equipment Power Supply delivers adjustable 0–600V DC, 0–1A output and up to 600W power for semiconductor equipment, electrostatic systems, electrostatic chuck applications and high-voltage process equipment development. This 600V programmable high voltage DC power supply provides a stable and controllable DC source for semiconductor equipment development, electrostatic control systems and applicable wafer-handling equipment. With a 4-digit digital display, memory presets, output switch and comprehensive protection, it supports precise and repeatable engineering workflows.
600V Programmable High Voltage DC Output – Adjustable 0–600V DC, 0–1A and up to 600W output provides a flexible 600V high voltage DC power supply for semiconductor and electrostatic equipment applications.
Semiconductor Equipment Power Supply – Provides a controlled DC source for semiconductor manufacturing equipment, process equipment and high-voltage equipment development.
Electrostatic Systems Power Supply – Suitable for applicable electrostatic control systems requiring adjustable and stable high-voltage DC output.
Electrostatic Chuck Power Supply – The adjustable 600V output can serve as a controlled DC source for electrostatic chuck system development and related equipment evaluation, where the required voltage and current fall within the product's specifications.
High Voltage, Low Current Output – The 600V/1A configuration is suited to high-voltage applications where controlled voltage is more important than high-current output.
4-Digit Digital Display – Provides clear voltage and current monitoring for convenient adjustment and repeatable operating conditions.
Three Memory Presets – M1–M3 memory storage allows commonly used voltage and current parameters to be saved and recalled efficiently.
Stable Regulated DC Output – Provides consistent DC output for semiconductor equipment development and electrostatic system engineering.
Output ON/OFF Control – Allows the high-voltage DC output to be controlled independently during equipment setup and development.
Comprehensive Protection – OVP, OCP, short-circuit and external circuit protection help protect the power supply and connected equipment.
Panel Lock Function – Helps prevent accidental parameter changes during extended operation or repeated equipment development procedures.
600W High Voltage Bench Power Supply – Combines programmable 600V output with a practical bench configuration for laboratory and semiconductor equipment development.
Semiconductor Equipment Development – Provides a programmable 600V DC power source for semiconductor equipment and process equipment development.
Electrostatic Systems – Suitable for high-voltage DC requirements in applicable electrostatic control and electrostatic processing systems.
Electrostatic Chuck Development – Provides adjustable DC power for electrostatic chuck system development and related equipment engineering within the rated output range.
Semiconductor Process Equipment – Controlled high-voltage DC source for applicable semiconductor process equipment development and evaluation.
Wafer Handling Equipment – Can support applicable wafer handling equipment requiring controlled high-voltage DC power.
Electrostatic Control Equipment – Suitable as an electrostatic equipment power supply for development and evaluation of controlled electrostatic systems.
Semiconductor Manufacturing Equipment – Provides stable DC power for applicable equipment development and engineering applications.
High Voltage Process Equipment – Adjustable 0–600V output for engineering systems requiring a programmable high-voltage DC source.
Precision Electrostatic Equipment – Supports development of applicable electrostatic equipment requiring stable and adjustable DC voltage.
Semiconductor Equipment Laboratory Development – Functions as a 600V programmable DC power supply for laboratory prototyping and engineering development.
| Specification | R-SPS6001S |
|---|---|
| Output Voltage | 0-600V |
| Output Current | 0-1A |
| Max Power | 600W |
| Working Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | ≤80% RH |
| Voltage Stability | ≤0.5% +20mV |
| Load Stability (CV) | ≤0.5% +2mV |
| Ripple Noise (CV) | ≤1% |
| Current Stability | ≤0.5% +30mA |
| Load Stability (CC) | ≤0.5% +30mA |
| Ripple Noise (CC) | ≤1% |
| Display Accuracy | 1% +4 digits |
| Display Resolution | 1V / 0.001A |
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
