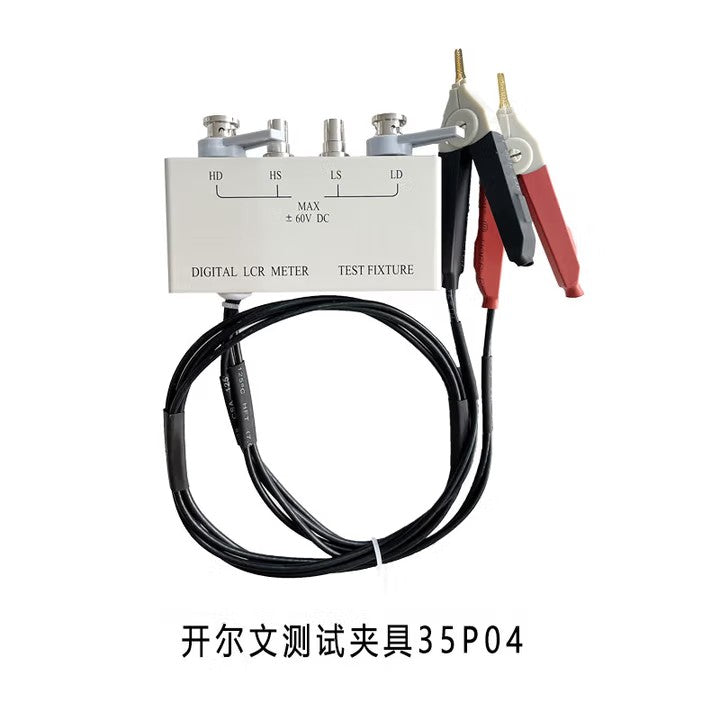

Kelvin Test Fixture: High-Precision Low-Resistance Measurement Tool
Need accurate low-resistance testing for components? The Kelvin Test Fixture uses 4-wire Kelvin principle to eliminate lead resistance interference, delivering reliable results for resistors, connectors, and circuit boards—ideal for electronics labs, manufacturing QC, and component validation.
User-Friendly Design
Secure Connection: Spring-loaded probes ensure tight, stable contact; compatible with most benchtop multimeters/ohmmeters.
Durable Build: High-quality copper probes (anti-oxidation) + ABS housing; resistant to wear for long-term use.
Easy Operation: Compact size (fits bench/assembly lines); no complex setup—plug-and-test.
Key Specifications
Parameter
Detail
Type
4-Wire Kelvin Test Fixture
Measurement Range
1mΩ~200MΩ (optimized for low-resistance <10Ω)
Probe Material
Copper alloy (high conductivity, anti-oxidation)
Contact Force
Spring-loaded (50~100g, adjustable)
Compatibility
Works with multimeters/ohmmeters with 4-wire input (e.g., ET32 series, Fluke, Keysight)
Housing Material
ABS plastic (heat-resistant, impact-proof)
Dimensions
80×50×30mm (compact, space-saving)
Weight
~100g (lightweight for portability)
Core Advantages
Eliminate Lead Resistance: 4-wire design separates current/voltage paths, ensuring accurate low-resistance readings.
