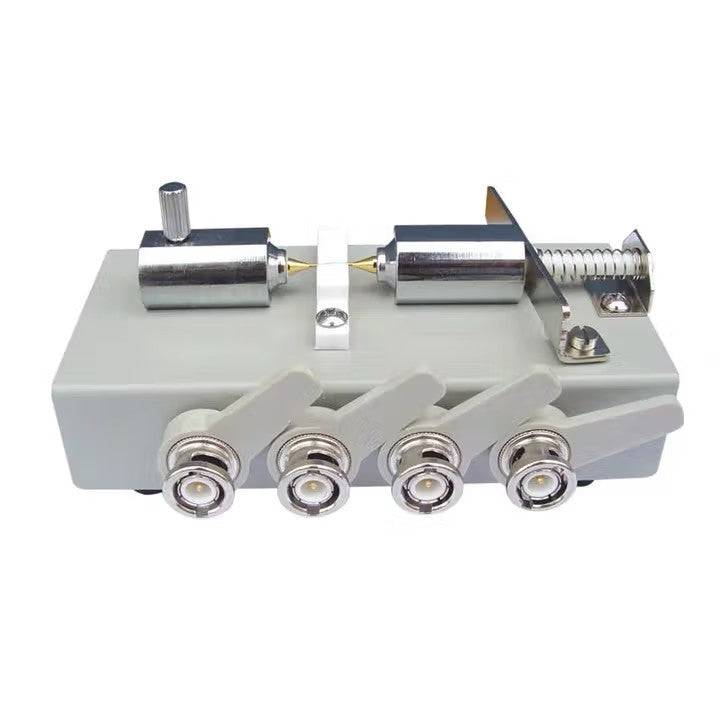

Surface Mount Testing Fixture 35P02: Precise SMD Component Testing
Need reliable testing for surface mount (SMD) components? The Surface Mount Testing Fixture 35P02 features 35-pin precision layout and stable contact design, enabling accurate measurement of SMD resistors, capacitors, inductors, and small ICs—ideal for electronics labs, SMD assembly lines, and component quality checks.
User-Friendly Design
SMD-Specific Fit : 35-pin configuration matches common SMD footprints (0402~2512); adjustable pressure plate ensures tight, non-damaging contact.
Durable Construction : Gold-plated copper pins (low resistance, anti-corrosion) + flame-retardant PC housing; withstands frequent industrial use.
Easy Operation : Plug-and-test with multimeters/LCR meters; compact size (fits bench/portable setups) and clear pin labeling for quick setup.
Key Specifications
Parameter
Detail
Model
Surface Mount Testing Fixture 35P02
Pin Count
35 pins (compatible with SMD footprints: 0402~2512, SOIC, SOT)
Compatible Components
SMD resistors, capacitors, inductors, diodes, SOIC/SOT small ICs
Pin Material
Gold-plated copper (high conductivity, anti-oxidation)
Contact Pressure
Adjustable pressure plate (30~80g, prevents SMD damage)
Compatibility
Works with multimeters, LCR meters (e.g., ET32 series, Fluke, Keysight)
Housing Material
Flame-retardant PC plastic (heat-resistant, insulation protection)
Dimensions
88×58×32mm (compact, space-saving)
Weight
~105g (lightweight for portability)
Core Advantages
Precise Contact : Gold-plated pins reduce contact resistance, ensuring accurate test data for small SMD components.
Wide Compatibility : 35-pin layout fits most common SMD sizes; works with standard test equipment.
Safe & Durable : Flame-retardant housing + adjustable pressure protects SMDs from damage during testing.
Applicable Scenarios
SMD Component Testing : Measure resistance, capacitance, inductance of SMD passives.
Assembly Line QC : Check SMD functionality before/after PCB soldering.
Lab R&D : Validate SMD performance in prototype circuit debugging.
Component Sorting : Classify SMDs by electrical parameters for inventory management.
Why Choose Surface Mount Testing Fixture 35P02?
SMD-Focused Design : Solves "hard-to-hold" issues for tiny SMD components, improving testing efficiency.
Cost-Effective : Eliminates need for specialized SMD testers; upgrades existing meters.
Portable & Practical : Compact size suits lab, workshop, or on-site testing needs.
Upgrade your SMD testing workflow! Click “Add to Cart” to get the Surface Mount Testing Fixture 35P02.
