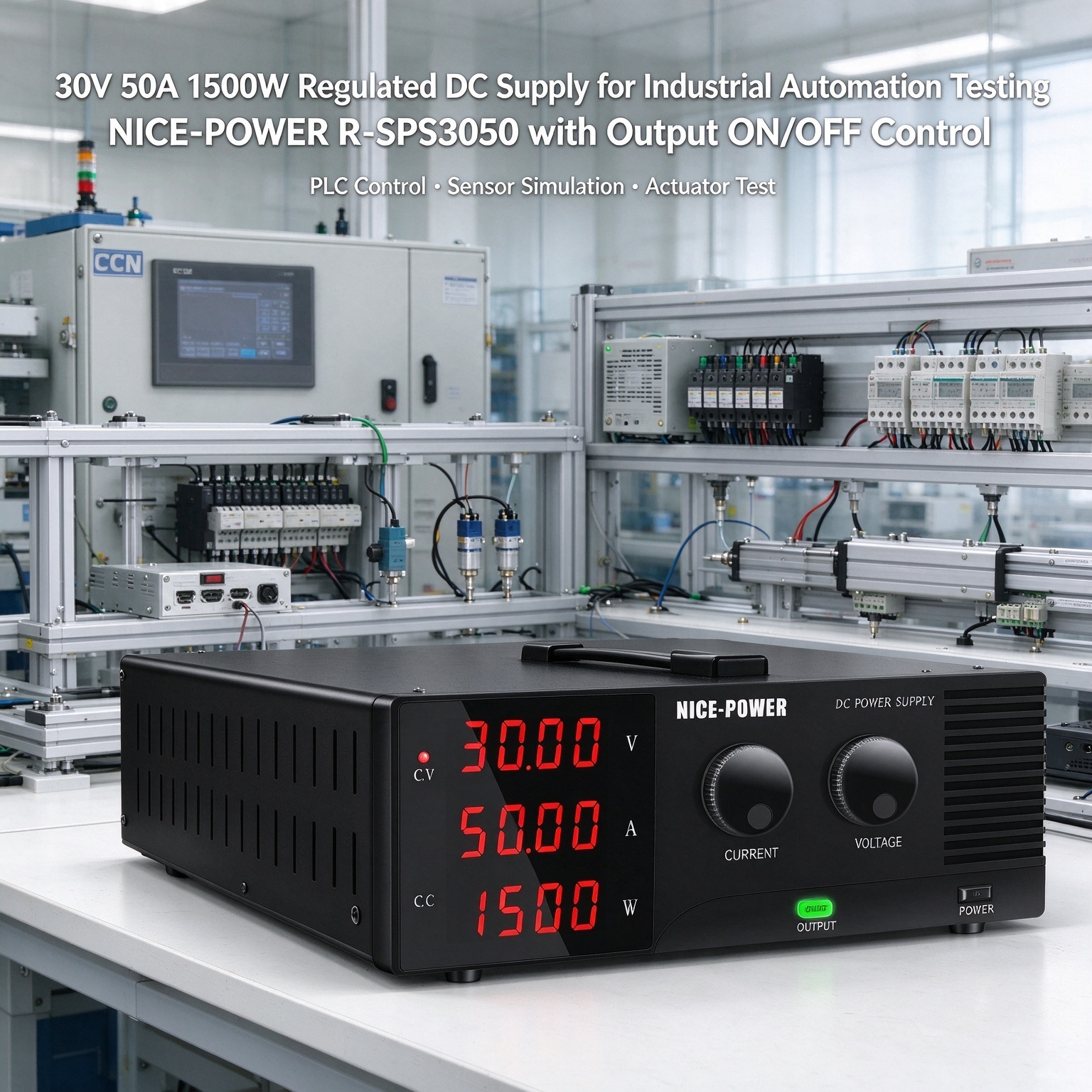

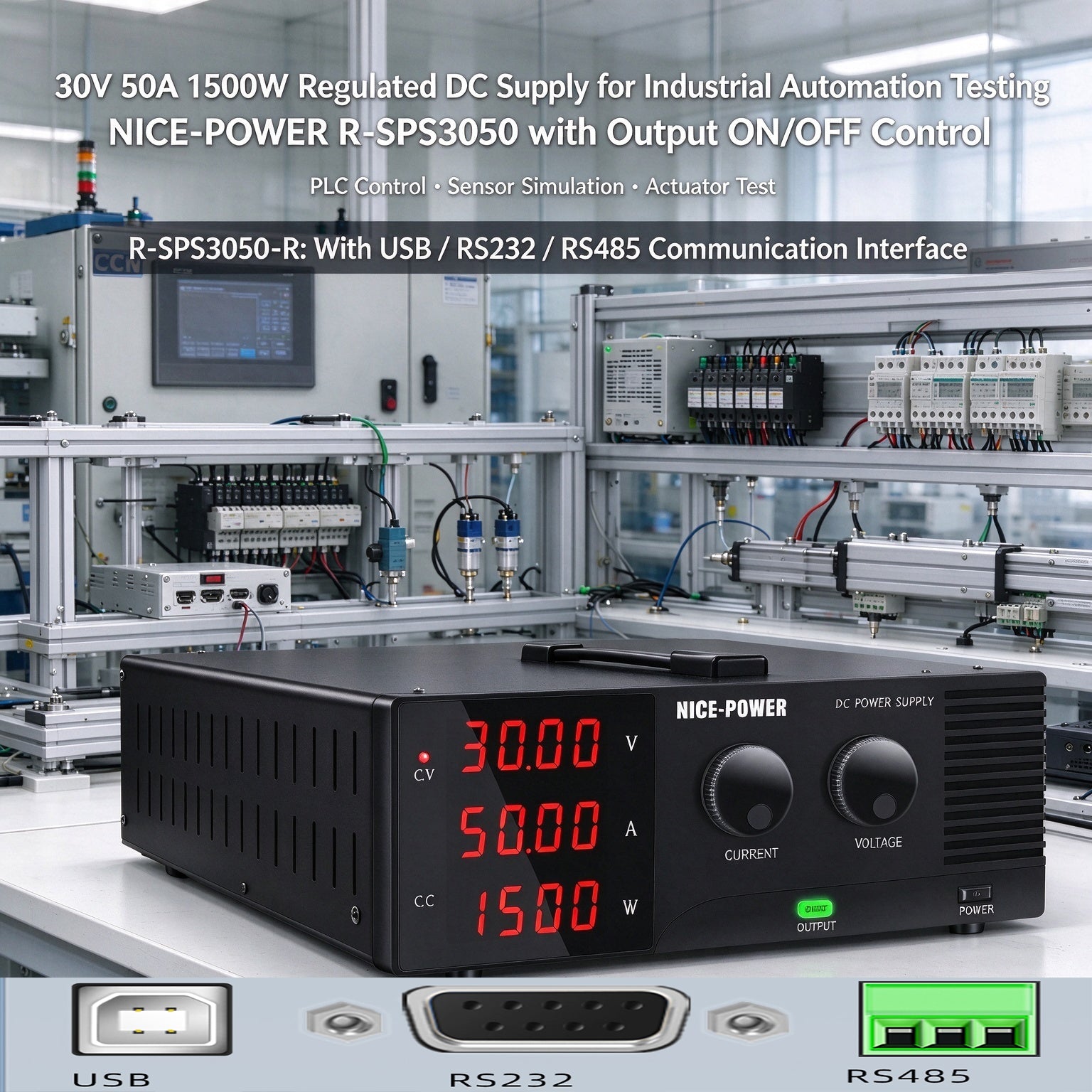

30V 50A 1500W Regulated DC Supply for

Industrial Automation Testing NICE-POWER

R-SPS3050 with Output ON/OFF Control

During industrial automation development, control boards and electronic modules often need to be powered and checked individually before they are incorporated into a larger system. The NICE-POWER R-SPS3050-R provides an adjustable 0–30V DC output, up to 50A output current, and 1500W rated output power for compatible electronic assemblies that require a DC supply within these limits.

Rather than replacing a complete industrial test system, this regulated DC supply serves as a bench power source for electrical checks on compatible control electronics. Its front-panel voltage and current readings, power display, encoder adjustment, and Output ON/OFF control let technicians configure the supply and observe its output while evaluating a device under test. The CV/CC indicators also provide a visible reference to the supply's operating mode during bench work.

Key Features

Adjustable 0–30V Output for Control Electronics Validation

Industrial control boards and electronic modules can have different DC input requirements. The adjustable 0–30V output lets technicians set a suitable supply voltage for compatible equipment when carrying out initial power-up checks, module inspection, and control circuit verification.

50A Maximum Output Current for Higher-Current DC Loads

The R-SPS3050-R supports output current up to 50A, with a rated power of 1500W. This capacity is relevant when the electronic assembly under test requires more current than a typical low-current bench circuit. The selected operating point must remain within the power supply's ratings and the device manufacturer's limits.

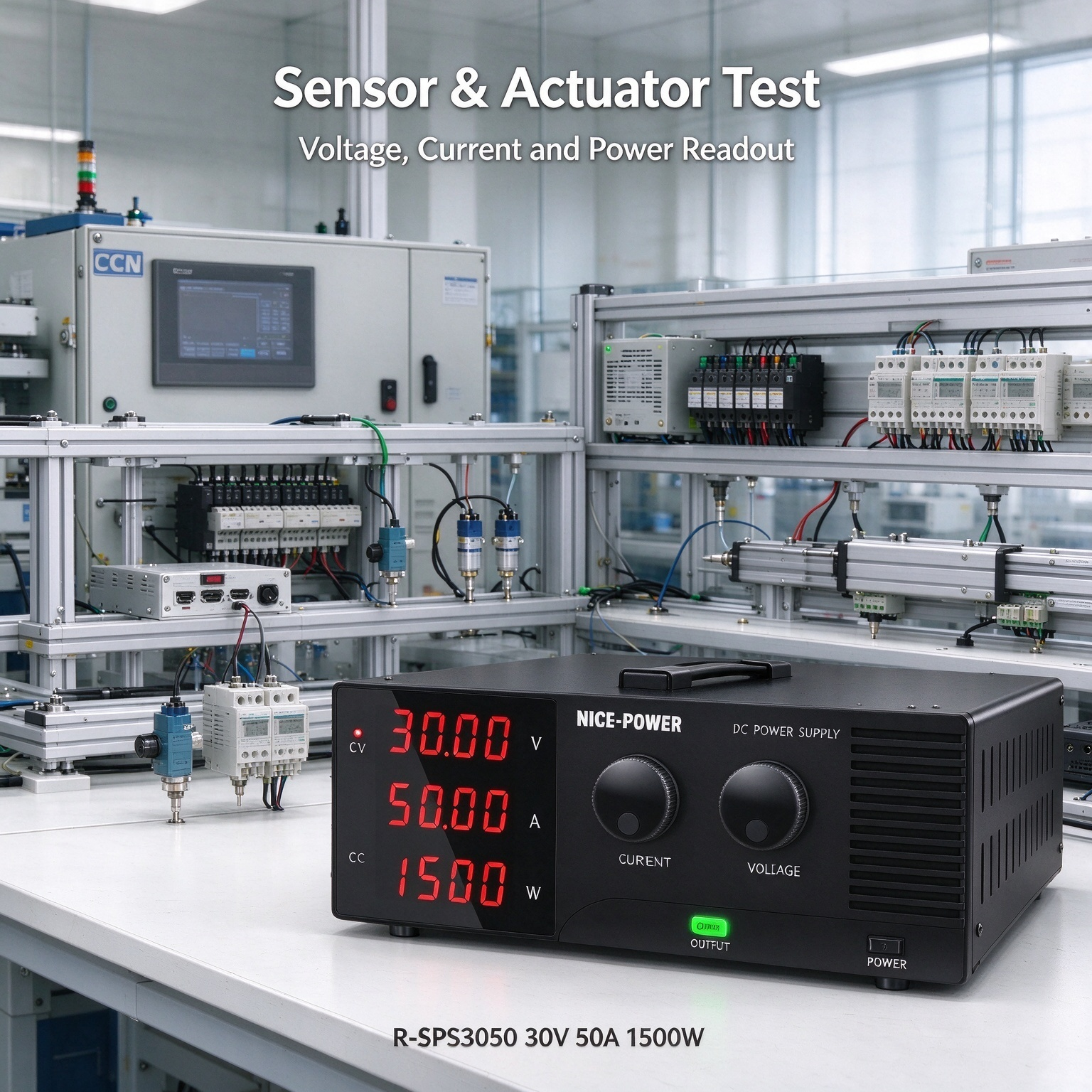

Live Voltage, Current, and Power Readouts

During industrial electronics testing, knowing the supply settings alone is not enough; technicians also need to observe the electrical output. The front-panel four-digit voltage and current display, together with the power readout, provides information that can be recorded or compared during bench checks. These readings show supply output conditions rather than diagnosing faults in the connected equipment.

Encoder Adjustment for Setting Test Conditions

The encoder knobs provide a manual way to adjust voltage and current settings before or during a test procedure. This is useful when technicians need to configure different supply conditions for compatible control boards or electronic modules without relying on a fixed-output source.

CV/CC Indicators for Identifying the Operating Mode

The CV and CC indicators show whether the power supply is operating in constant-voltage or constant-current mode. When a connected load draws current, these indicators provide additional information about the supply's operating state and can help technicians interpret their bench-test observations.

Output ON/OFF Control for Connection and Inspection Work

The front-panel Output ON/OFF control allows the DC output to be enabled or disabled independently of the main power switch. Technicians can use this control as part of a bench procedure when preparing a connection or checking a compatible circuit. The output should be switched off before changing wiring.

1500W Regulated DC Supply for Engineering Workbenches

The combination of adjustable DC output and front-panel electrical readouts makes the R-SPS3050-R suitable for bench-level evaluation of compatible industrial electronics. It supplies DC power and displays output conditions; functions such as PLC programming, sensor simulation, automated test sequencing, and fault diagnosis require separate equipment unless independently provided by the test setup.

Applications

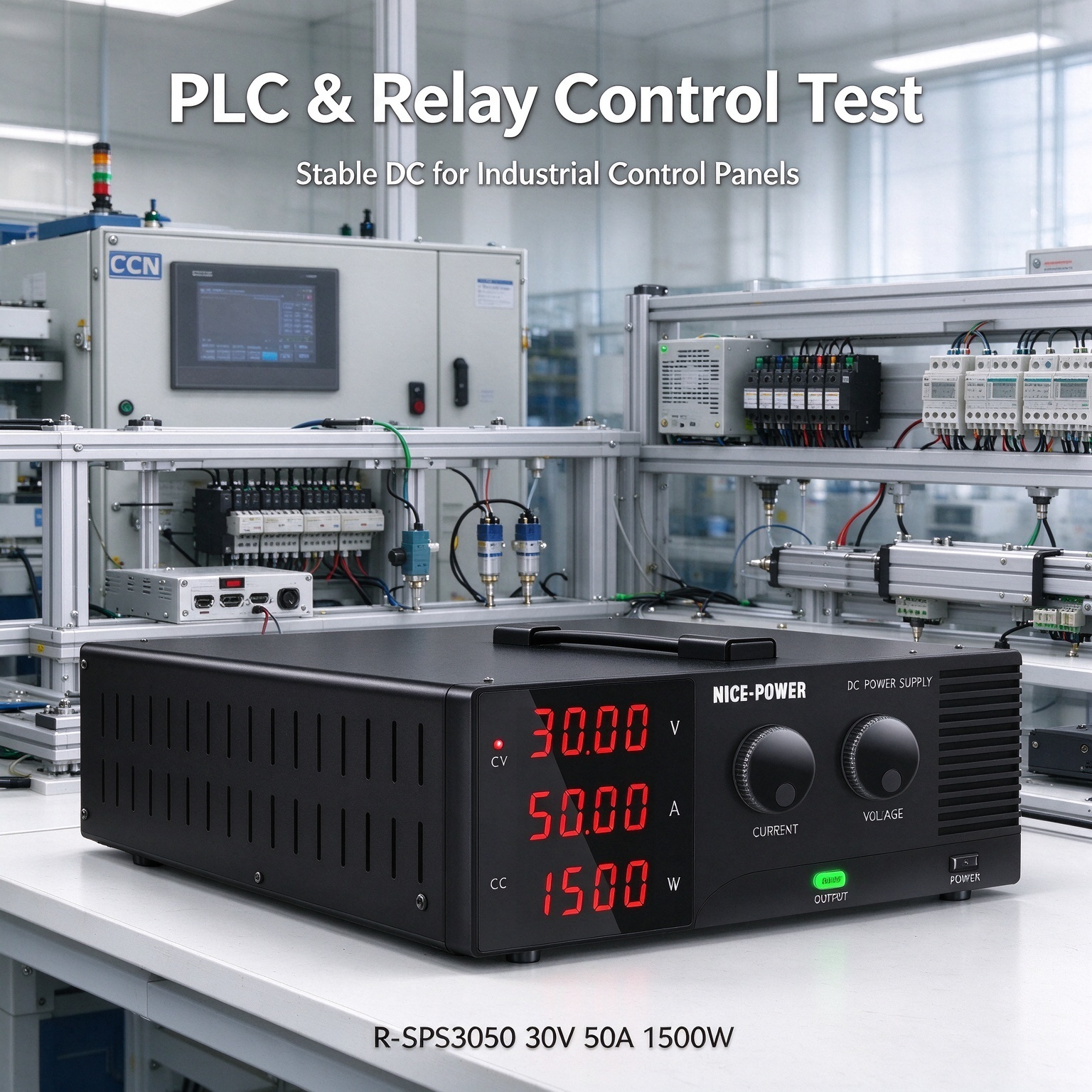

Industrial Control Board Power-Up Checks

Apply a suitable DC supply to compatible control boards during initial power-up evaluation. Confirm the required voltage, polarity, and expected current consumption before connecting the board.

Industrial I/O and Interface Module Evaluation

Provide DC power to compatible input/output or interface modules when their supply requirements fall within the unit's operating range. The power supply does not generate or simulate digital I/O signals; separate test equipment is required for signal-level testing.

DC Control Circuit Verification

Use adjustable DC power when checking compatible control circuits and electronic assemblies during development or repair. Technicians can adjust the supply setting and observe the voltage, current, and power readings under the selected test conditions.

Industrial Electronic Module Inspection

Power compatible DC-input modules individually on an engineering bench before installation in a larger automation system. This can help separate the module-level electrical check from the subsequent system integration process.

Controller and Power Board Development

Support development work on compatible controller boards and DC-powered power boards that require adjustable input power within the 0–30V, 50A maximum, and 1500W rated limits.

Bench Testing of DC-Powered Industrial Electronics

Provide an adjustable supply for industrial electronic assemblies during inspection, repair, and engineering evaluation. The connected equipment must be suitable for the selected output settings and the available power.

Engineering Training and Troubleshooting Workstations

Use the power supply on an engineering bench where technicians need to adjust a DC source, view electrical output readings, and observe CV/CC operating status during supervised testing.

Quality Check and Terms of Service:

Incoming Product Inspection

Upon receipt, check the power supply and supplied accessories for visible damage. Verify the input power requirements and inspect the output terminals before connecting a device under test.

Test Setup and Electrical Limits

Review the equipment's DC input specifications before applying power. Check polarity, wiring, expected current draw, and the total power requirement. Do not exceed the power supply's rated voltage, current, or power, and select cables and connectors suitable for the expected current.

Industrial Equipment Compatibility

Not all industrial automation devices use a 0–30V DC input, and not every device rated for DC input can safely draw 50A. Confirm that the module's electrical requirements are compatible with the selected supply settings before use. Motors, inductive loads, and other specialized equipment may require additional precautions or dedicated test arrangements.

Ventilation and Connection Procedures

Keep the ventilation openings clear during operation. Switch the DC output off before making or changing wiring connections, and follow the equipment documentation and applicable workshop safety procedures.

Warranty and Customer Support

For warranty coverage, returns, and after-sales assistance, consult the seller's published store policies and the documentation supplied with the product.

Technical Specifications

Why Choose NICE-POWER R-SPS3050-R?

Industrial automation development frequently involves checking individual electronic assemblies before they are connected to a complete control system. The NICE-POWER R-SPS3050-R provides an adjustable 0–30V DC source with up to 50A output current and 1500W rated power for compatible equipment, allowing technicians to establish suitable bench supply conditions for module-level electrical checks.

Its practical value lies in the combination of manual output adjustment, voltage and current readings, power display, CV/CC status indicators, and front-panel Output ON/OFF control. These features help engineers configure and observe DC power during control-board validation, electronic module inspection, and DC circuit development. For workbenches that need an adjustable high-current supply rather than a complete automated test system, the R-SPS3050-R provides a focused DC power solution within its rated operating limits.
