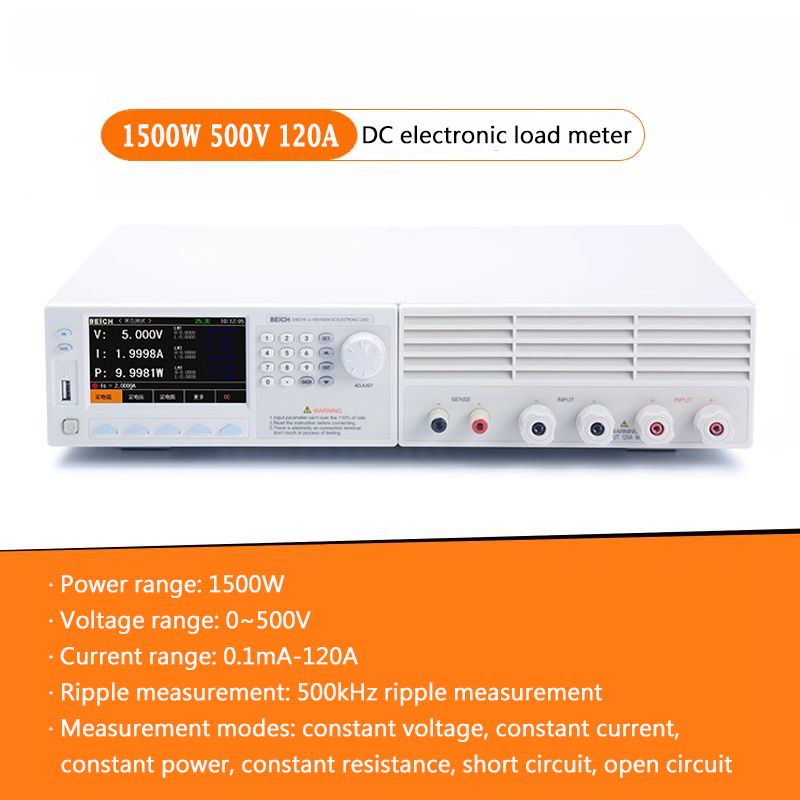

Programmable DC Electronic Load tester 1500W 150V 500V 120A 240A 500kHz Electronic Load Power Discharge Tester for CC/CV
Programmable DC Electronic Load tester 1500W 150V 500V 120A 240A 500kHz Electronic Load Power Discharge Tester for CC/CV
Couldn't load pickup availability
Overview
Key Features (Both Models)
- 4.3-inch TFT color screen, Chinese/English optional
- 500kHz high-speed sampling AD, real-time voltage/current peak-to-peak measurement
- Multiple load modes: CC (Constant Current), CV (Constant Voltage), CP (Constant Power), CR (Constant Resistance), battery discharge (real-time curve), dynamic test (up to 50kHz), list test
- OCP test: Auto-obtains OCP protection points, peak power (Pmax), and voltage/current parameters
- USB HOST: U-disk data saving/firmware upgrade; 100 internal/500 external setting files
- One-click screen copy, intelligent fan control, and efficient heat dissipation
Technical Specifications (Model Comparison)
|
Parameter
|
Model 1
|
Model 2
|
|
Power Range
|
1500W
|
1500W
|
|
Voltage Range
|
0~500V
|
0~150V
|
|
Current Range
|
0.1mA~120A
|
0.1mA~240A
|
|
Ripple Measurement
|
500kHz ripple measurement
|
500kHz ripple measurement
|
|
Measurement Modes
|
Constant voltage, current, power, resistance, short circuit, open circuit
|
Constant voltage, current, power, resistance, short circuit, open circuit
|
|
Load accuracy
|
0-9.9999V:±（0.05%+0.03%FS）0.1mV;
10V-99.999V:±（0.05%+0.03%FS）1 mV;
100V-150V/500V:±（0.05%+0.03%FS）10mV. |
0-9.9999V:±（0.05%+0.03%FS）0.1mV; 100V-150V/500V:±（0.05%+0.03%FS）10mV. |
|
Rated voltage
|
1.5V-15V:±（0.05%+0.03%FS）0.1mV/1mV
|
1.5V-15V:±（0.05%+0.03%FS）0.1mV/1mV
|
|
Rated current mode
|
0-6A/12A/24A:±（0.05%+0.05%FS）0.5mA; 0-60A/120A/240A:±（0.05%+0.05%FS）10mA |
0-6A/12A/24A:±（0.05%+0.05%FS）0.5mA; 0-60A/120A/240A:±（0.05%+0.05%FS）10mA |
|
Rated resistance mode
|
0.05Ω -5Ω:±（0.2%+0.2%FS）0.0001Ω;
0.5Ω -50Ω:±（0.1%+0.1%FS）0.001Ω;
5Ω -500Ω:±（0.1%+0.1%FS）0.01Ω;
500Ω -5KΩ:±（1%+1%FS）0.1Ω. |
0.05Ω -5Ω:±（0.2%+0.2%FS）0.0001Ω;
0.5Ω -50Ω:±（0.1%+0.1%FS）0.001Ω;
5Ω -500Ω:±（0.1%+0.1%FS）0.01Ω;
500Ω -5KΩ:±（1%+1%FS）0.1Ω. |
|
Rated power mode
|
0-100W:±（0.1%+0.1%FS）1mW
100-1000W:±（0.1%+0.1%FS）10mW;
1000-1200W:±（0.1%+0.1%FS）0.1W.
|
0-100W:±（0.1%+0.1%FS）1mW
100-1000W:±（0.1%+0.1%FS）10mW;
1000-1200W:±（0.1%+0.1%FS）0.1W.
|
|
Battery test function
|
Input= 2-150V/500V Max measurement capacity= 9999A/H
|
Input= 2-150V/500V Max measurement capacity= 9999A/H
|
|
Dynamic test mode
|
Maximum discharge time=1 4294967295sec( ＞ 7 days )
Minimum pulse width: 0.010ms Maximum pulse width: 999s
Edge resolution: 0.010ms Maximum edge time: 6S
|
Maximum discharge time=1 4294967295sec( ＞ 7 days )
Minimum pulse width: 0.010ms Maximum pulse width: 999s
Edge resolution: 0.010ms Maximum edge time: 6S
|
|
List test mode
|
Constant voltage. Constant current. Constant power. Constant resistance.Short circuit. Open circuit |
Constant voltage. Constant current. Constant power. Constant resistance.Short circuit. Open circuit |
Application Scenarios (By Model)
Model 1 (1500W, 0~500V, 0.1mA~120A)
- Testing high-voltage power supplies like those for industrial equipment and telecom devices.
- Evaluating performance of high-voltage battery packs and chargers.
Model 2 (1500W, 0~150V, 0.1mA~240A)
- Suitable for testing high-current power sources such as automotive power systems and large-capacity battery chargers.
- Ideal for load testing in industrial scenarios requiring high current output.
Don’t miss out on this high-precision, reliable electronic load—place your order today to elevate your testing efficiency and accuracy!
