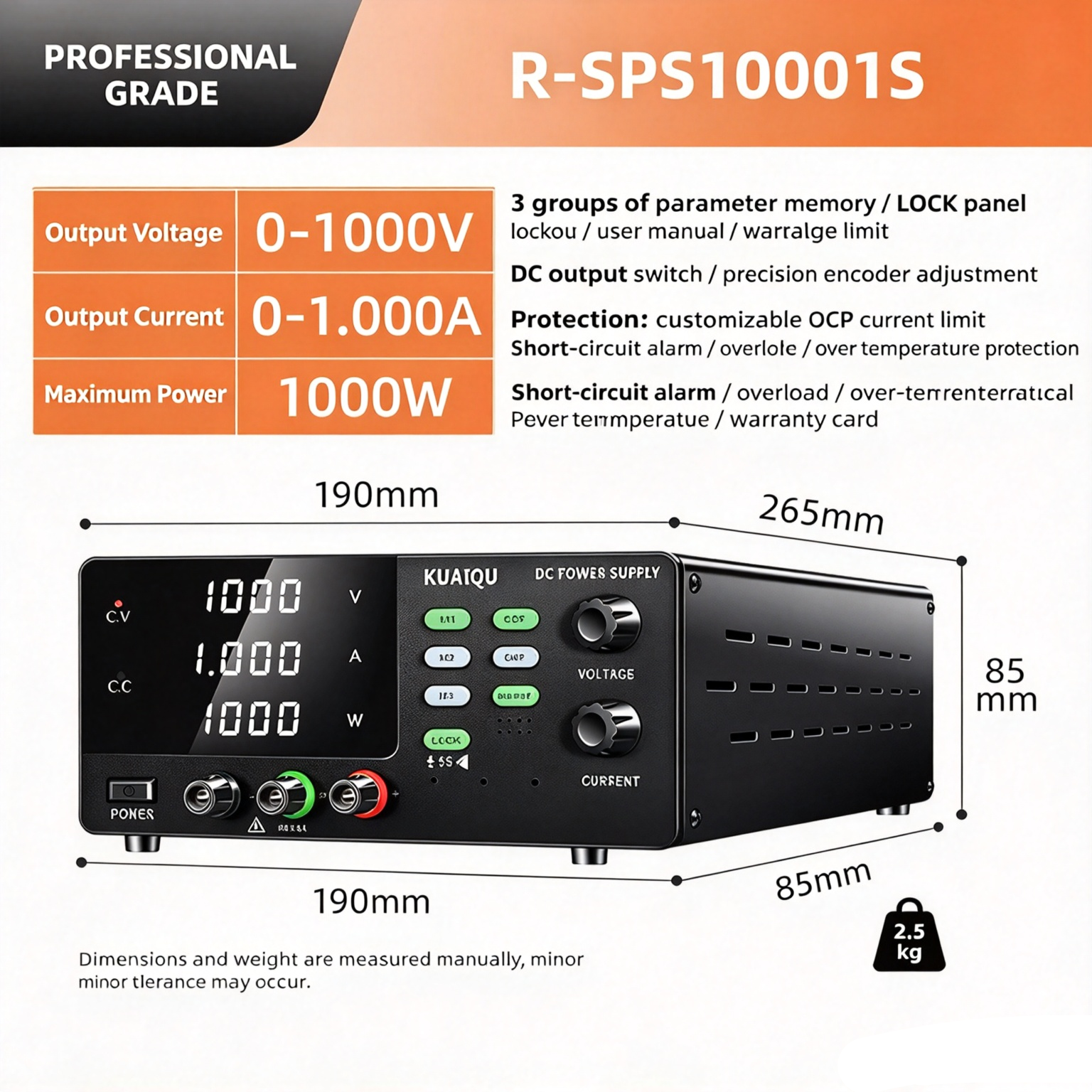

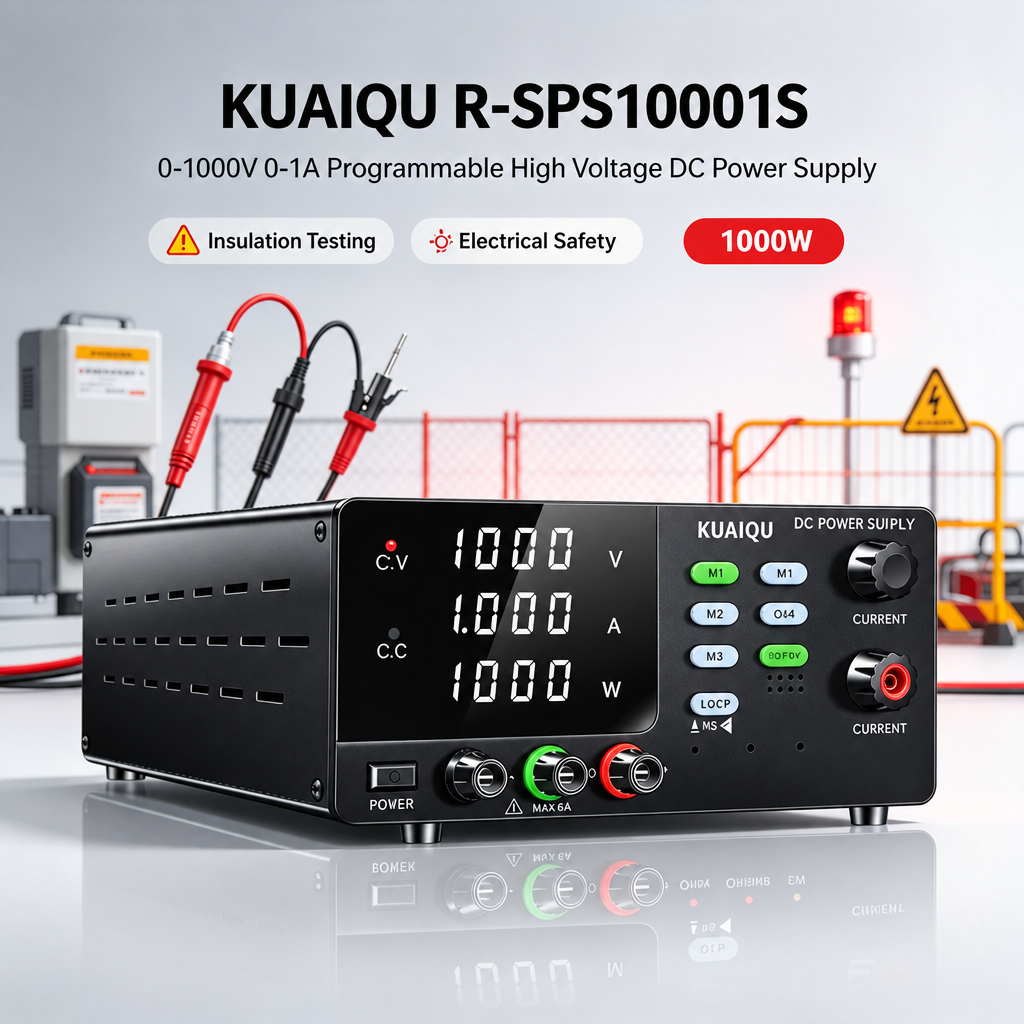

The KUAIQU R-SPS10001S Insulation Testing Power Supply delivers adjustable 0–1000V DC, 0–1A output and up to 1000W power for insulation testing equipment, electrical safety equipment, high-voltage DC test systems and electrical insulation development. As a 1000V programmable DC power supply and 1kV high voltage DC power source, it provides a stable and controllable DC excitation source for insulation test equipment and electrical safety applications. With a 4-digit digital display, memory presets, output switch and comprehensive protection functions, it supports repeatable laboratory and engineering workflows.
1000V Programmable High Voltage DC Output – Adjustable 0–1000V DC, 0–1A and up to 1000W output provides a controlled 1000V DC power supply for high-voltage electrical safety applications.
Insulation Testing Power Supply – Designed as a dedicated high voltage DC power source for insulation test equipment, providing adjustable DC excitation during insulation and electrical safety equipment development.
Electrical Safety Testing Power Supply – Provides stable high-voltage DC output for electrical safety equipment, test-system development and controlled high-voltage applications.
1000V Insulation Power Supply – The 1kV output range is suitable for engineering systems requiring controlled DC voltage during electrical insulation testing and insulation equipment development.
High Voltage DC Test Power Supply – Functions as a programmable high-voltage DC source for test fixtures, insulation equipment and electrical safety systems.
High Voltage, Low Current Configuration – The 1000V/1A configuration is suitable for applications requiring high voltage with controlled current rather than high-current power delivery.
4-Digit Digital Display – Provides clear voltage and current monitoring for convenient adjustment and repeatable operating conditions.
Three Memory Presets – M1–M3 memory storage allows commonly used voltage and current parameters to be saved and recalled quickly during repeated test procedures.
Stable Regulated DC Output – Stable output and low-ripple performance provide a consistent 1000V DC power source for laboratory and engineering applications.
Output ON/OFF Control – Enables convenient control of the high-voltage DC output during equipment setup and testing.
Comprehensive Protection – OVP, OCP, short-circuit and external circuit protection help protect the power supply and connected equipment.
Panel Lock Function – Helps prevent accidental parameter changes during extended operation and repeated electrical safety procedures.
1000W High Voltage Bench Power Supply – Combines 1kV-class programmable output with a practical bench configuration for electrical engineering laboratories and test-equipment development.
Insulation Test Equipment Development – Provides a controllable 1000V DC power source for insulation testing equipment and high-voltage electrical test systems.
Electrical Safety Equipment Development – Suitable as an electrical safety testing power supply for developing and evaluating applicable safety equipment.
Electrical Insulation Testing Systems – Provides adjustable high-voltage DC excitation for systems and fixtures used in electrical insulation evaluation.
High Voltage DC Test Equipment – Functions as a programmable high voltage DC test power supply for engineering test equipment and laboratory setups.
Insulation Test Fixture Development – Provides controlled DC voltage for development of fixtures and equipment requiring high-voltage insulation evaluation.
Electrical Safety Laboratory Applications – A 1000V programmable DC power supply for controlled high-voltage electrical engineering work.
Cable & Electrical Component Insulation Evaluation – Can provide a controlled high-voltage DC source for applicable cable, wiring and electrical-component insulation evaluation systems.
Electrical Equipment Safety Development – Supports development work involving controlled high-voltage DC excitation for electrical safety equipment.
High Voltage DC Source Applications – Adjustable 0–1000V output provides a flexible 1kV DC power supply for specialized electrical engineering and laboratory applications.
| Specification | R-SPS10001S |
|---|---|
| Output Voltage | 0-1000V |
| Output Current | 0-1A |
| Max Power | 1000W |
| Working Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | ≤80% RH |
| Voltage Stability | ≤0.5% +20mV |
| Load Stability (CV) | ≤0.5% +2mV |
| Ripple Noise (CV) | ≤1% |
| Current Stability | ≤0.5% +30mA |
| Load Stability (CC) | ≤0.5% +30mA |
| Ripple Noise (CC) | ≤1% |
| Display Accuracy | 1% +4 digits |
| Display Resolution | 1V / 0.001A |
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
