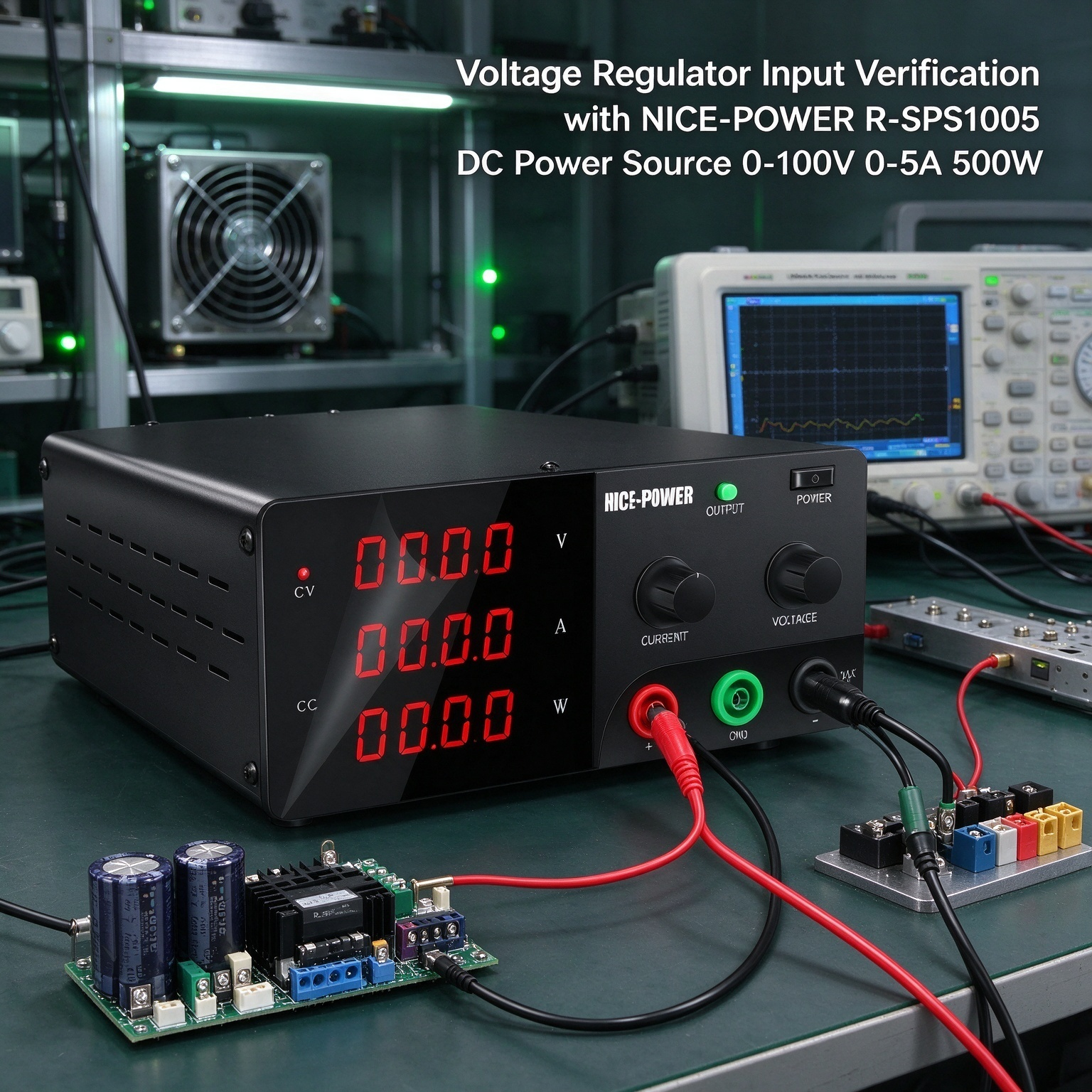

Voltage Regulator Input Verification with
NICE-POWER R-SPS1005 DC Power Source 0-100V
0-5A 500W
A voltage regulator needs a suitable input source before its output performance can be evaluated. The NICE-POWER R-SPS1005 DC Power Source provides an adjustable 0–100V DC output, up to 5A, and 500W rated power for compatible regulator circuits and power conversion prototypes. Engineers can set the input voltage required by their test setup, apply power to the circuit, and observe the source readings while using external instruments to check the regulator's output response.
Key Features
Adjustable Input Conditions for Regulator Evaluation
Use the 0–100V adjustable DC output to supply a voltage regulator circuit at a selected input level within the circuit's rated range. This is useful when preparing different input conditions for development work, provided the regulator's maximum input voltage and other component limits are respected.
500W DC Source for Power Circuit Prototypes
The R-SPS1005 provides up to 100V and 5A, with a rated output power of 500W. It can supply compatible voltage regulator boards, DC power circuits, and laboratory prototypes that fall within these limits. The selected voltage and current must suit the circuit under test; the supply does not increase its output beyond its rated capacity.
Observe Source Voltage, Current, and Power
The four-digit display shows output voltage and current, with a separate power readout. These values help users understand the electrical conditions supplied to the regulator during an experiment. To determine whether the regulator maintains its specified output, measure the regulator's output terminals with a suitable multimeter or other test instrument.
CV/CC Operation for Controlled DC Supply
Constant-voltage and constant-current operation allows the R-SPS1005 to respond to the connected circuit and the selected settings. Choose an appropriate voltage and current limit before powering the regulator board. These operating modes control the power supply's output behavior; they do not automatically test the regulator or report a pass/fail result.
Direct Output Adjustment for Bench Experiments
The front-panel encoder knob supports manual setting changes, while the output ON/OFF control allows the DC output to be enabled or disabled. This is useful when preparing the input source, powering a prototype, and safely turning off the output before changing circuit connections.
Front and Rear Connections for Different Test Setups
Front and rear output terminals allow the power supply to fit different bench arrangements. The series documentation specifies front-panel use below 5A and rear-panel use for full-power output. Select the terminals and wiring suitable for the expected current, and follow the product manual when connecting the regulator circuit.
Applications

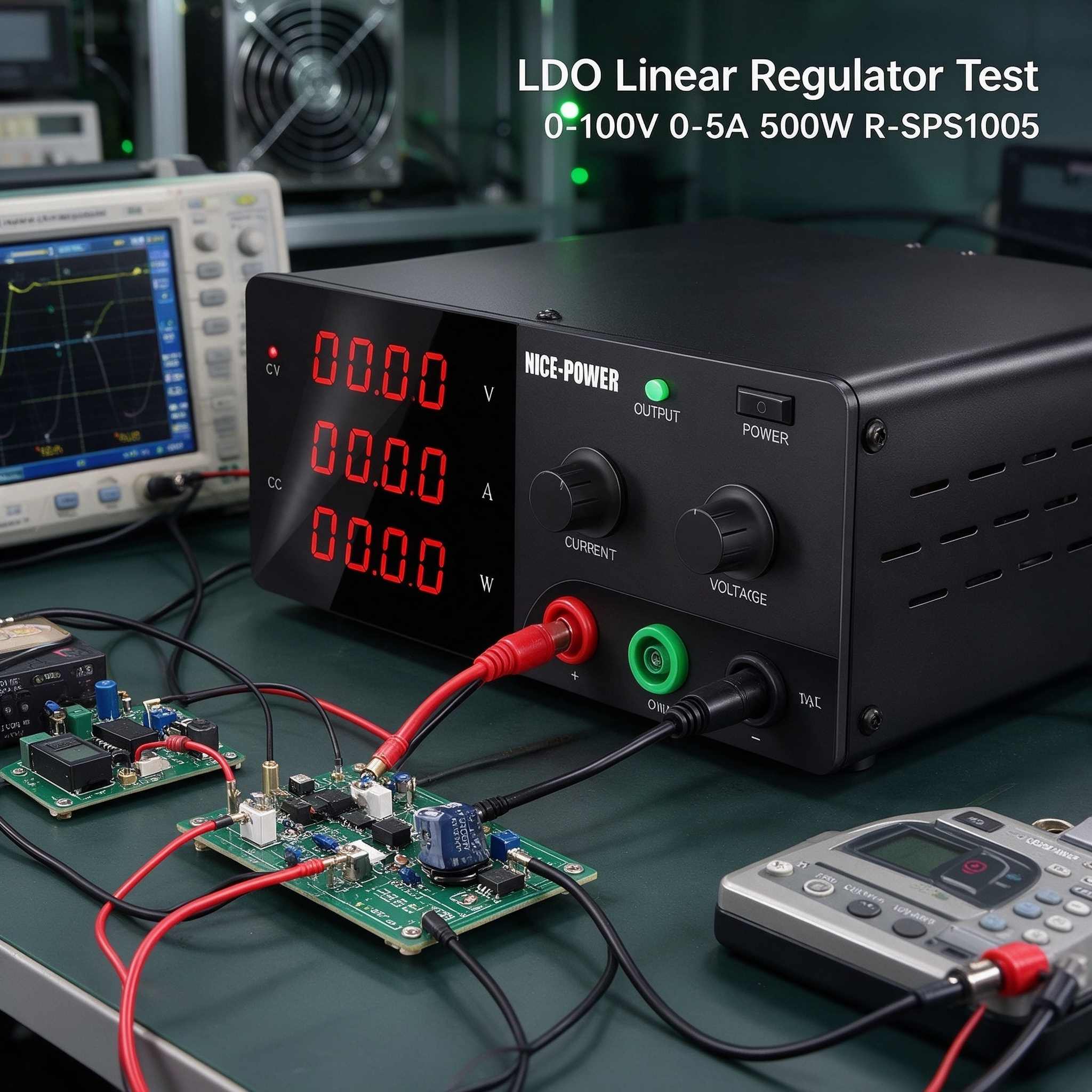

Linear Regulator Dropout and Input Range Experiments
Provide a suitable DC input to a linear regulator and measure its output as part of an input-range experiment. The R-SPS1005 supplies the adjustable input; a separate measuring instrument is needed to determine the regulator's output voltage and assess its behavior near the limits specified by the circuit design.

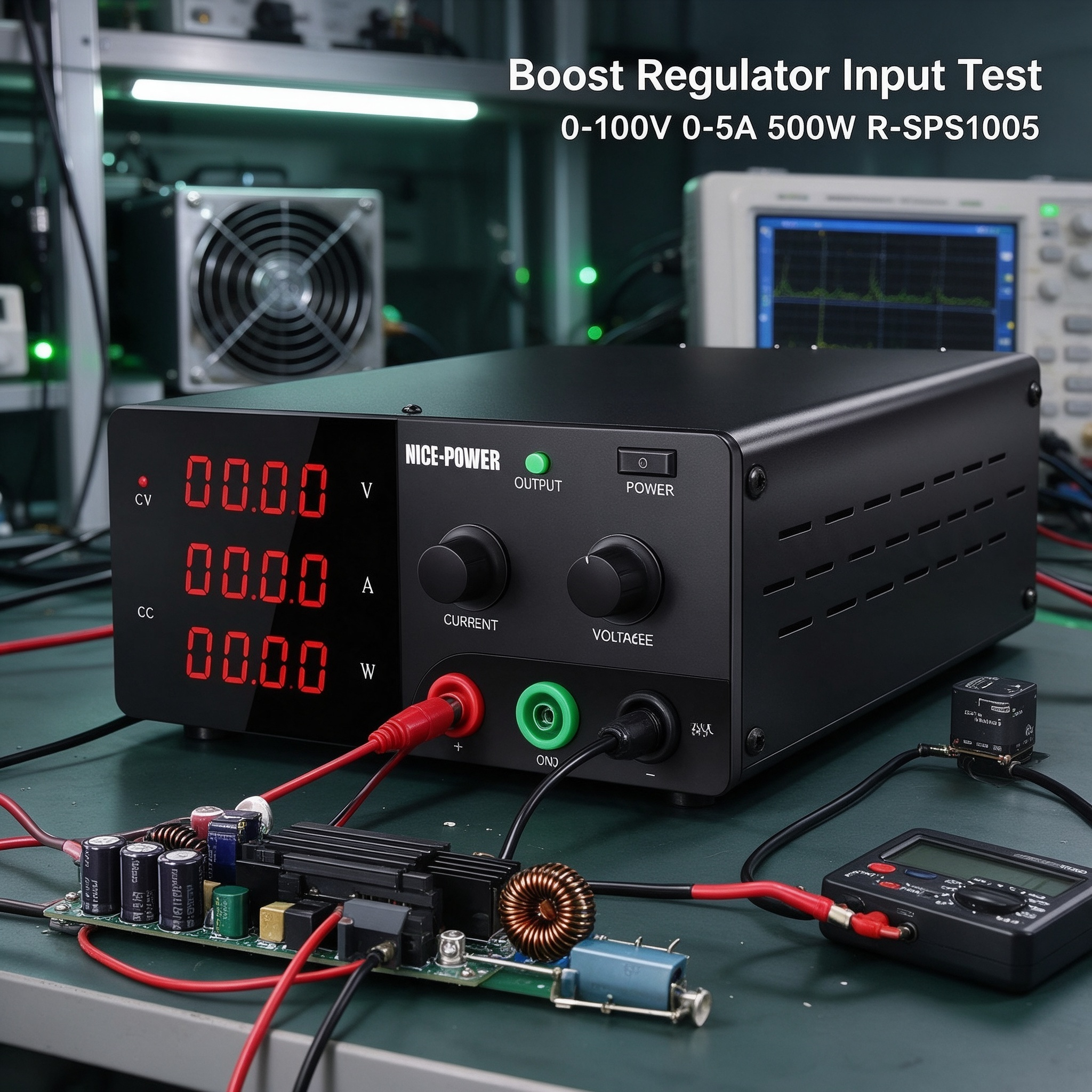

Switching Regulator Input Testing
Power a compatible switching regulator prototype from an adjustable DC source. Set the input voltage within the design limits and observe the supply readings during operation. Use an oscilloscope and appropriate probes to examine switching waveforms, output ripple, or transient behavior when these measurements are required.
DC-DC Converter Board Development
Supply DC input power to a DC-DC converter board that is compatible with the R-SPS1005's output range. This setup can support early-stage board bring-up and input-condition testing. Conversion efficiency and output regulation must be evaluated using suitable external measurements of input and output voltage and current.
Regulator Module Troubleshooting
When a regulator board does not behave as expected, use the R-SPS1005 to provide a defined DC input while checking the circuit with external instruments. Monitoring the source readings helps establish the input conditions during troubleshooting, but identifying the fault requires measurements at the relevant circuit nodes.
Power Supply Design and Laboratory Education
Use the adjustable DC source in experiments involving voltage regulation, power conversion, and input-voltage variation. Students and engineers can change the supplied input within safe operating limits and measure how the connected circuit responds, without relying on the power supply to perform circuit analysis.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.
-
Certifications: Has passed CE & FCC Certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS1005 |
| Product Type |
Regulated DC Power Supply |
| Intended Application |
Voltage Regulator Input Verification |
| Rated Output Voltage |
0–100V |
| Rated Output Current |
0–5A |
| Rated Output Power |
500W |
| Load Regulation — Voltage |
≤0.1% + 10mV |
| Load Regulation — Current |
≤0.1% + 2.5mA |
| Line Regulation — Voltage |
≤0.01% + 2.5mV |
| Line Regulation — Current |
≤0.1% + 2.5mA |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Ripple (20Hz–20MHz) |
≤200mVp-p / ≤20mVrms |
| Current Ripple (20Hz–20MHz) |
≤20mArms |
| Rise Time — No Load |
≤150ms |
| Rise Time — Full Load |
≤200ms |
| Fall Time — No Load |
≤15s |
| Fall Time — Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Operating Temperature |
0°C–40°C |
| Product Dimensions |
Approx. 26.5 × 18.5 × 8cm |
| Net Weight |
Approx. 2.8kg |
| Package Dimensions |
38 × 24.5 × 12.5cm |
| Package Weight |
Series chart lists 3 / 3.3 / 3.5kg by model and configuration; confirm the exact model package weight before publishing |
Why Choose NICE-POWER R-SPS1005 for Voltage Regulator Input Verification?
For regulator development, the input source needs to provide a suitable DC voltage and make its output conditions visible to the person conducting the test. The NICE-POWER R-SPS1005 offers a 0–100V adjustable range, 5A maximum output current, and 500W rated power, making it a practical bench source for compatible regulator and power-conversion prototypes.
Use it to establish the DC input conditions, then evaluate the regulator's actual output with the appropriate measuring equipment. This division of roles keeps the test setup clear: the R-SPS1005 supplies DC power, while external instruments verify output regulation, ripple, and dynamic performance.

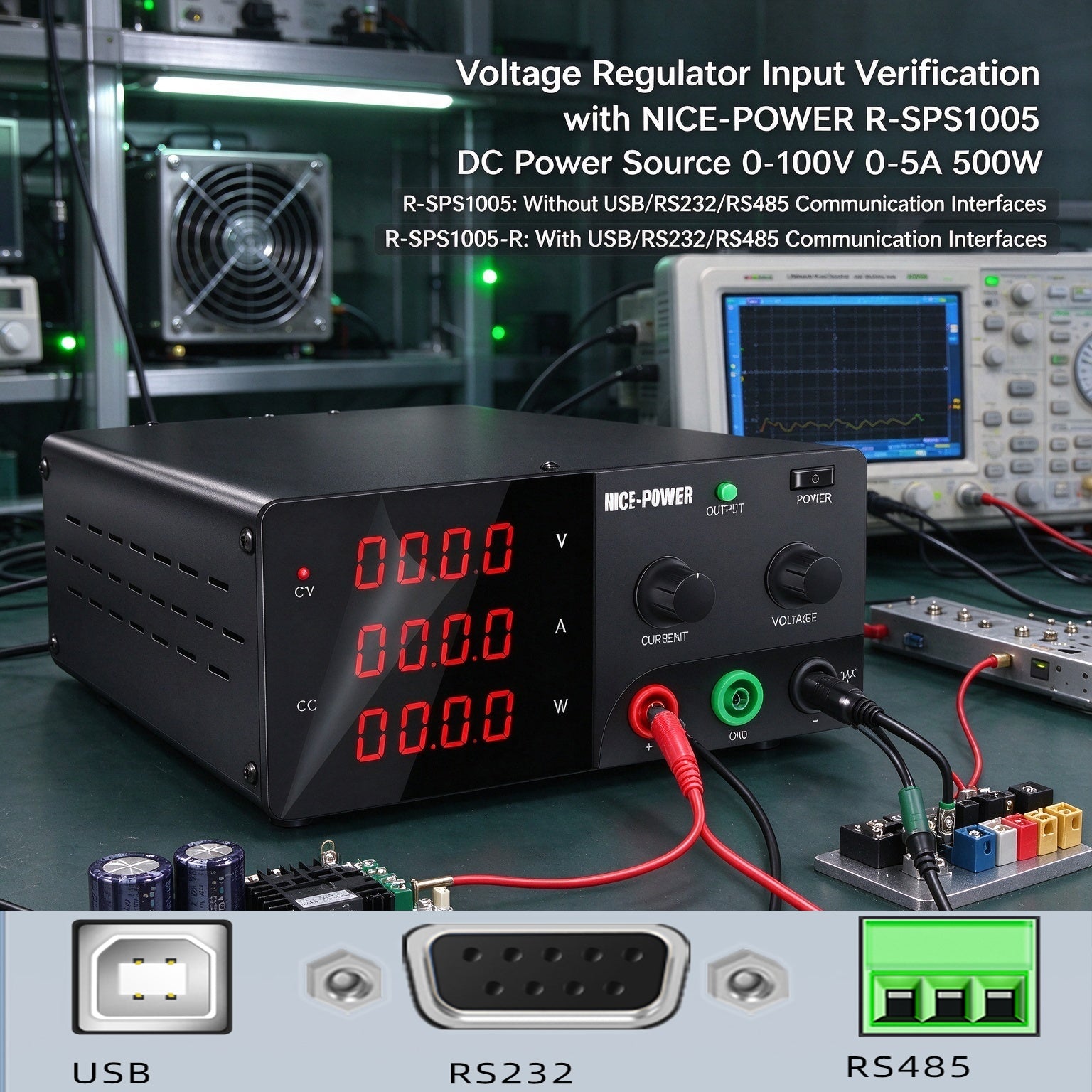

Model Configuration Note: R-SPS1005 is the standard manual-adjustment model. R-SPS1005-R is the programmable version. Confirm the R-SPS1005-R's supported programming functions and interface configuration separately. USB, RS232, and RS485 interfaces are optional configurations, not standard features on every unit.
