English Manual

Key Features:

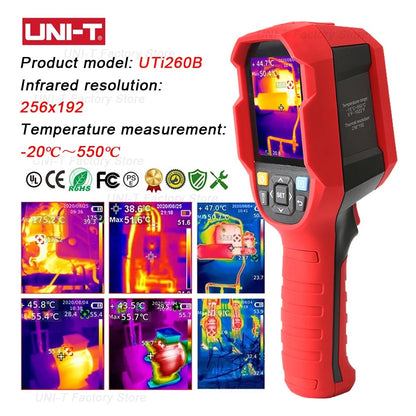

• High-Resolution Thermal Imaging: 256x192 IR resolution (49,152 pixels) with ±2℃/±2% accuracy, adjustable emissivity (0.1–0.99) for precise temperature measurement from -20℃ to 550℃.
• Advanced Imaging Modes: 7 color palettes (White Heat, Red Heat, Rainbow, etc.), high/low temperature tracking, and ROI (Region of Interest) analysis for targeted diagnostics.

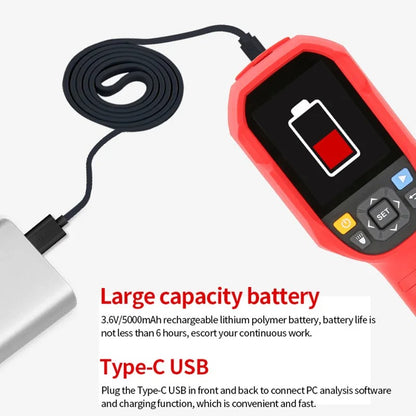

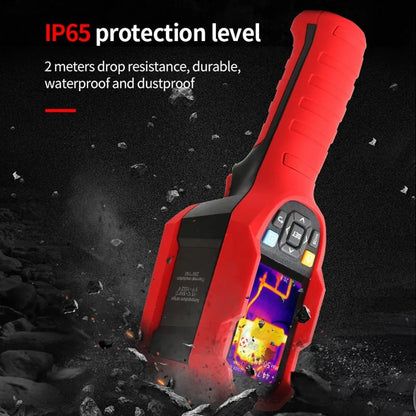

• Rugged & Portable: IP65 waterproof/dustproof, 2-meter drop resistance, and 3.6V/5000mAh rechargeable battery for field use.
• Data Management: PC software with real-time screen casting, 16GB TF card storage, and image export for reports.

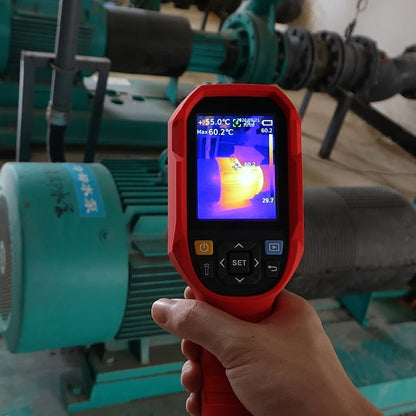

• Versatile Applications: Electrical inspections (motors, panels), HVAC systems, plumbing, automotive diagnostics, and industrial maintenance.

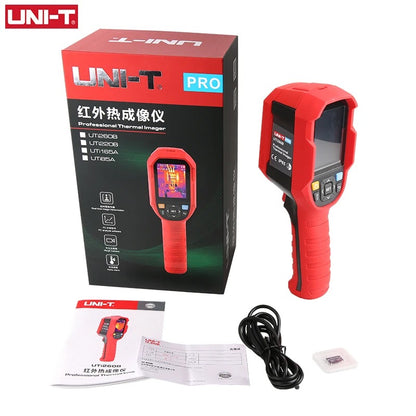

Packaging:

• 1×UTi260B Thermal Imager
• 1×16GB TF Card
• 1×Type-C USB Cable
• 1×User Manual

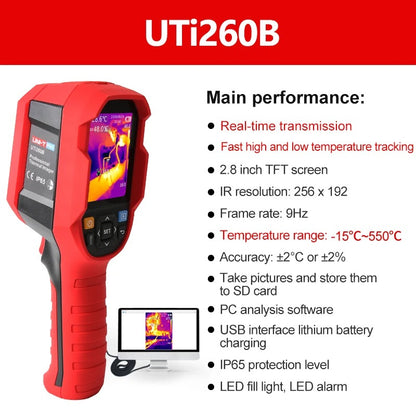

Technical Specifications:

• Display: 2.8” TFT LCD (320×240 resolution).
• Response Time: ≤500ms.
• Spectral Bandwidth: 8–14μm.
• Frame Rate: ≤25Hz.

Why Choose UTi260B?

• Professional-Grade Accuracy: Combines high resolution, wide temperature range, and adjustable emissivity for reliable results.
• Durability: IP65 and 2m drop protection for harsh environments.
• User-Friendly: Intuitive controls with LED alarms and PC software for efficient analysis.
