English Manual

Key Features:

• True RMS Measurement: Delivers accurate readings for distorted AC/DC signals (40A/600A, 4V/600V).
• NCV Non-Contact Voltage Detection: Safely identifies live wires via audible/visual alerts.
• High-Resolution Display: 4000-count LCD for precise measurements.
• Comprehensive Testing Functions:
  • AC/DC Current/Voltage: 40A/600A, 4V/600V (±(2%+5) / ±(0.8%+5)).
  • Resistance: 400Ω–40MΩ (±(0.8%+2)).
  • Capacitance: 40nF–40mF (±(4%+5)).
  • Frequency: 10Hz–10MHz (±(0.1%+4)).
  • Temperature: -40°C~1000°C (±(1.5%+5)).
• Advanced Features:
  • Zero-crossing test, Diode test, Data hold, Auto range.
  • Backlight, Low battery alert (≤2.5V), Auto power off (15min).
  • Relative mode, Max/Min recording.

Applications:

• Electrical maintenance: Measure circuits in residential/commercial panels.
• HVAC systems: Diagnose temperature, current, and voltage issues.
• Industrial troubleshooting: Detect faults in motors and power supplies.

Packaging:

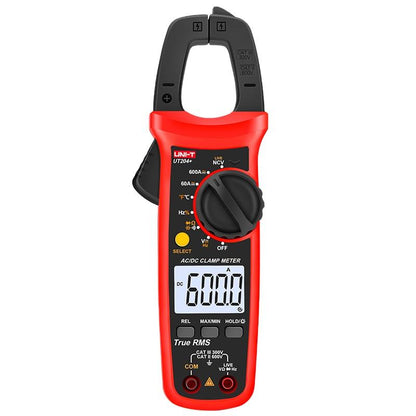

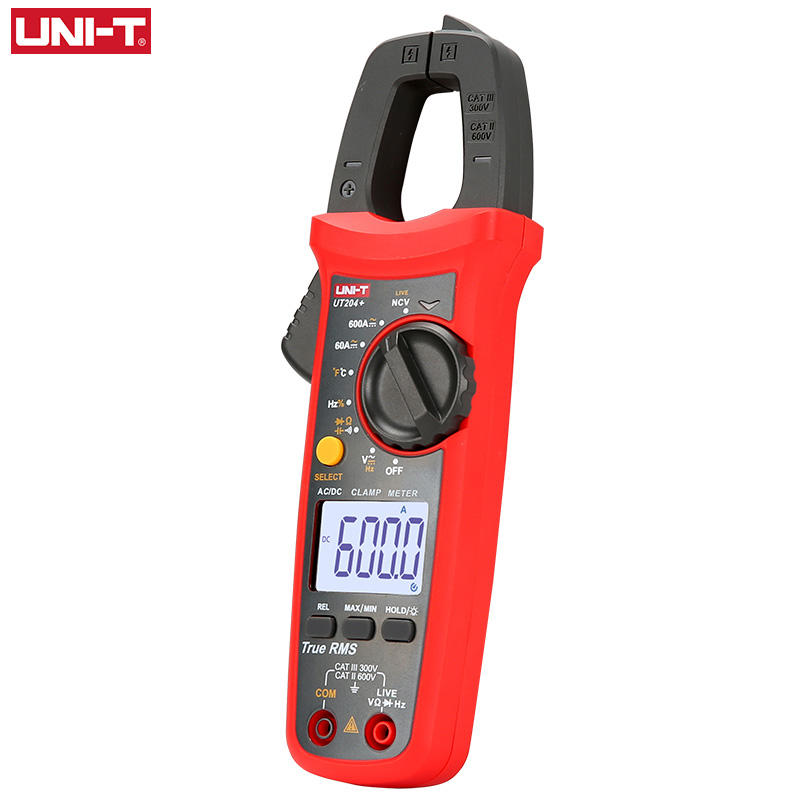

• 1×UT204+ clamp meter, 2×1.5V AAA batteries, test leads, temperature probe, carrying bag, user manual, warranty card.

Technical Specifications:

• Display: 4000-count LCD with backlight.
• Jaw Size: 28mm for tight spaces.
• Safety Compliance: CAT III 300V / CAT II 600V.
• Dimensions: 215mm×63mm×36mm; Weight: 235g.

Why Choose UT204+?

• Precision & Safety: TRMS and NCV ensure reliable measurements in hazardous environments.
• Versatile Functions: Combines 10+ tests in one rugged, portable tool.
• User-Friendly: Intuitive interface with backlight and data hold for field use.
