Shenzhen Kuaiqu Electronic Co., Ltd

Hantek TO1152D TO1202D TO1252D multi-functional full touch screen oscilloscope 150MHz 200MHz 250MHz signal generator & spectrum analyzer

$399.90 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Model TO1152D TO1202D TO1252D

Quantité

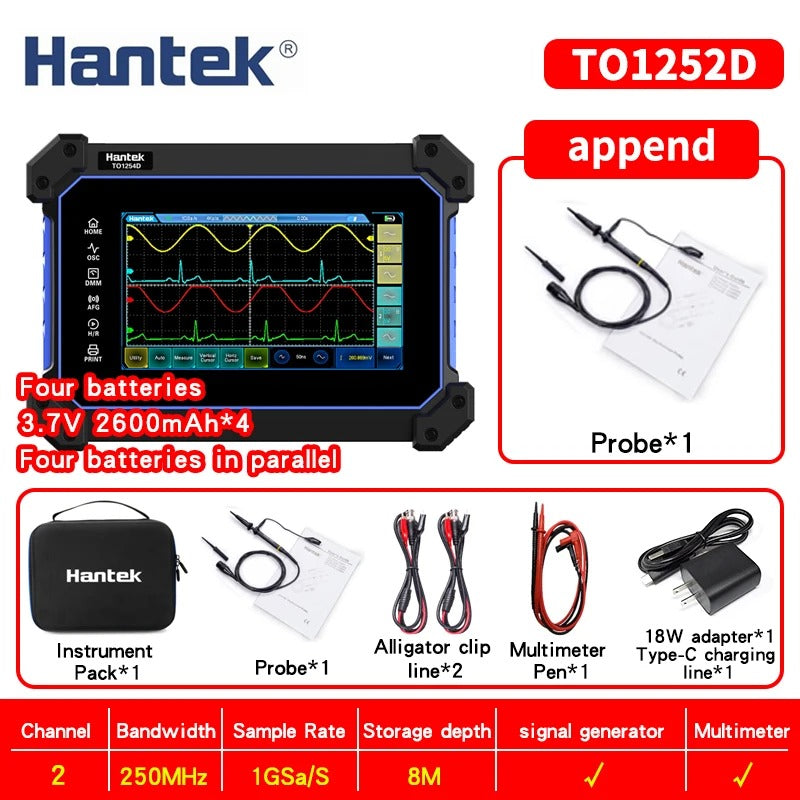

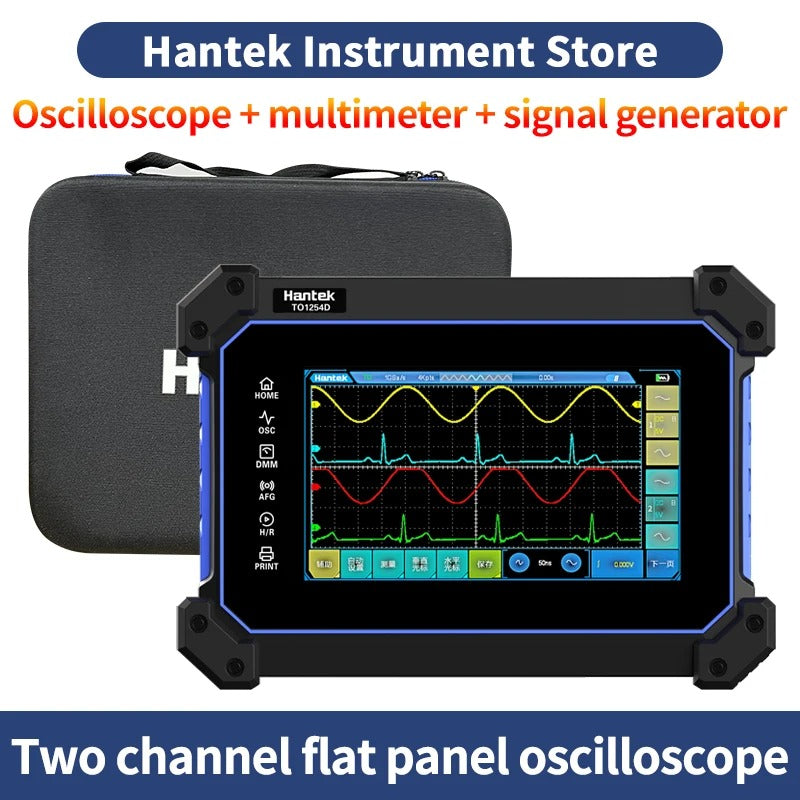

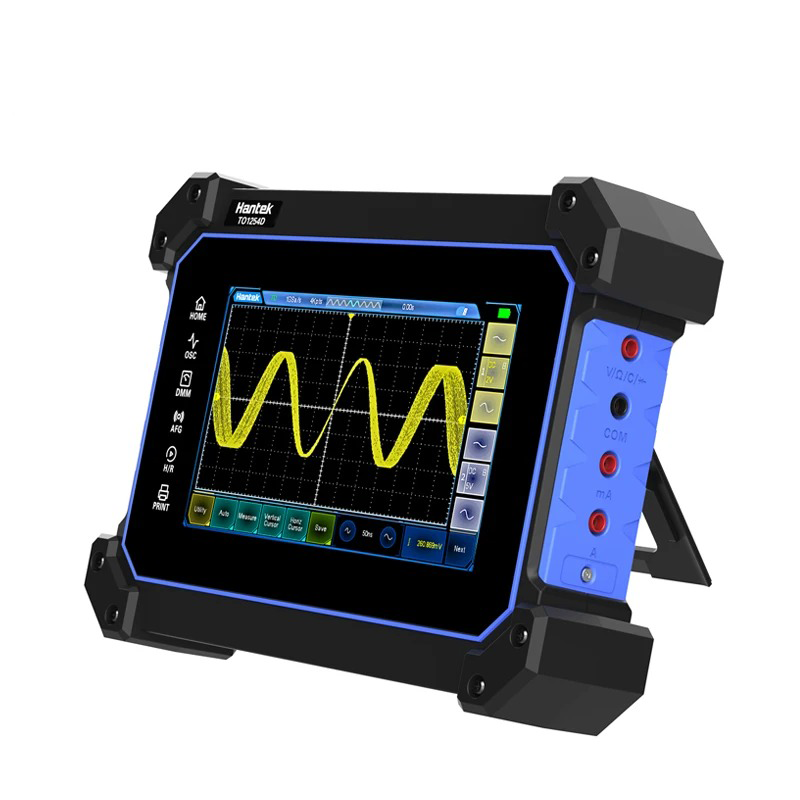

Hantek Handheld Oscilloscopes: TO1152D TO1202D TO1252D

Need a portable 2-channel oscilloscope with a built-in signal source? The Hantek TO1000 Series (TO1152D/TO1202D/TO1252D) delivers up to 250MHz bandwidth, 1GSa/s sampling, 8M storage, and a 25MHz signal source—ideal for electronics repair, R&D, and field testing.

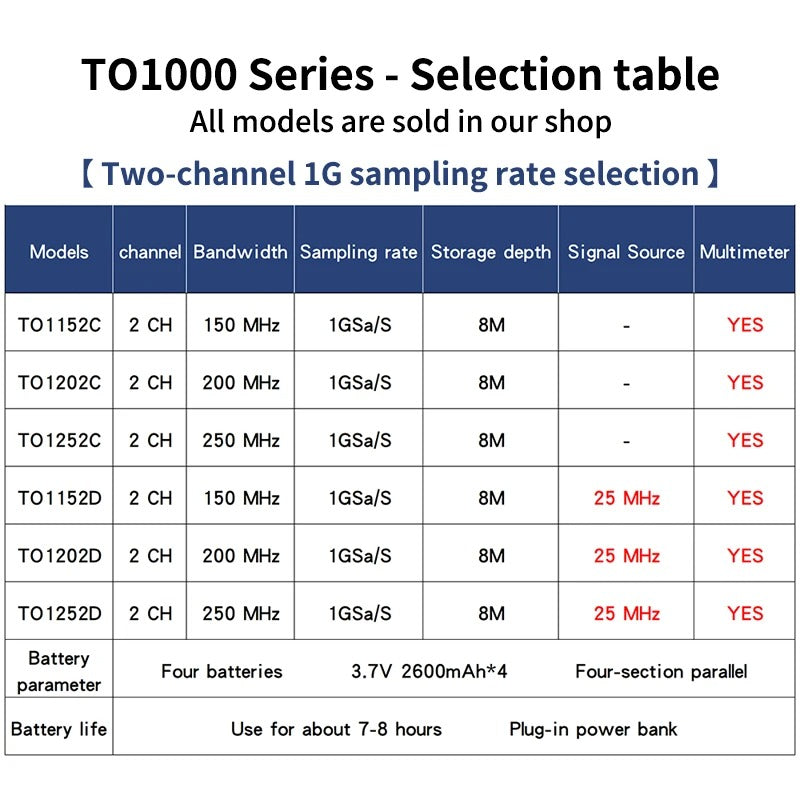

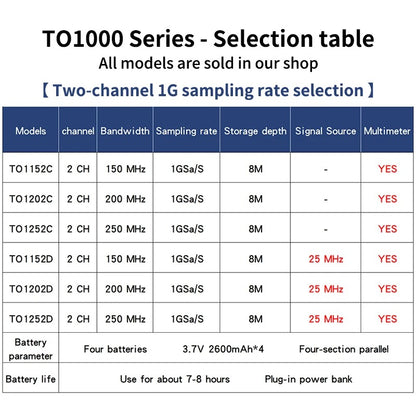

1. Model Specifications at a Glance

Model	Bandwidth	Sampling Rate	Storage Depth	Signal Source	Multimeter
TO1152D	150MHz	1GSa/s	8M	25MHz	√
TO1202D	200MHz	1GSa/s	8M	25MHz	√
TO1252D	250MHz	1GSa/s	8M	25MHz	√

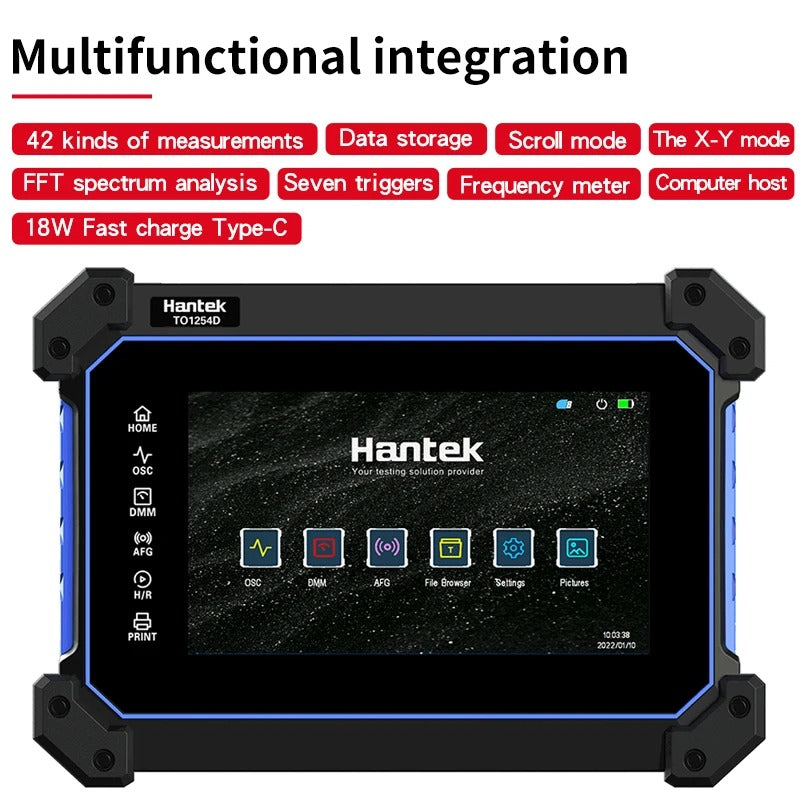

2. Shared Core Features

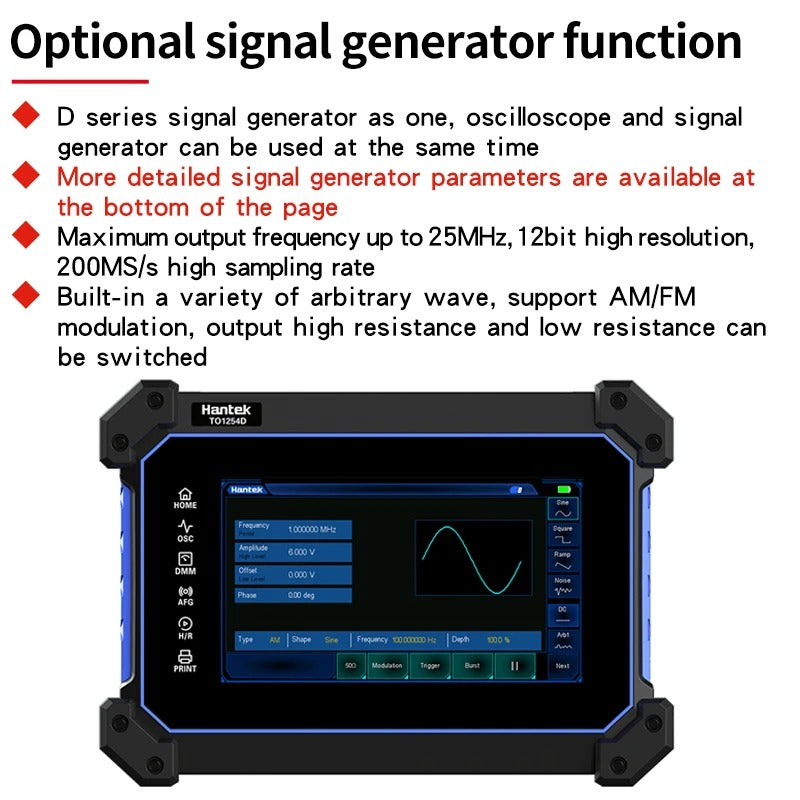

All-In-One Testing: 2-channel oscilloscope + 25MHz arbitrary waveform generator (AWG) + built-in multimeter (voltage/current/resistance/continuity).

High-Speed Capture: 1GSa/s sampling rate ensures accurate capture of fast signals; 8M memory depth preserves long waveforms.

Portable Power: 4×3.7V 2600mAh batteries (4-joint parallel) for 3–4 hours of use; power bank compatible.

Intuitive Operation: Color LCD display with easy knob/button controls (vertical: 2mV/div–5V/div; time base: 500ns/div–500s/div).

3. Ideal Use Scenarios by Model

TO1152D (150MHz): Basic signal generation + testing (e.g., 4G module debugging, home electronics repair).

TO1202D (200MHz): Mid-range R&D (e.g., industrial controller testing, automotive sensor signal analysis).

TO1252D (250MHz): Advanced high-speed work (e.g., 5G RF signal validation, aerospace component testing).

4. Why Choose the TO1000 Series?

Signal Source + Scope + DMM: Eliminates the need for separate tools, saving cost and bench space.

Precision at Speed: 1GSa/s sampling + 8M memory ensure no high-frequency detail is missed.

On-The-Go Flexibility: Battery-powered for fieldwork, from factory floors to remote sites.

5. How to Choose?

Pick TO1152D for cost-effective 150MHz signal generation + testing.

Pick TO1202D for balanced 200MHz performance in industrial/automotive apps.

Pick TO1252D for top-tier 250MHz capability in 5G/aerospace R&D.

Upgrade your portable testing kit! Select your model and click “Add to Cart” for Hantek TO1000 Series.
