Overview

This series of oscilloscopes is tailored for diverse signal analysis needs in R&D, engineering, and field testing. With distinct performance specs, intuitive interfaces, and versatile features, they enable accurate waveform visualization and measurement across various electrical applications.

Key Features

Performance Specifications:

Model 1: 100MHz bandwidth, 4 analog channels, 1GSa/s real-time sampling rate, 70Mpts storage depth, and ≤3.5ns rise time, with a maximum waveform capture rate of 130,000 wfms/s.

Model 2: 100MHz bandwidth, 4 analog channels, 1GSa/s real-time sampling rate, 110Mpts storage depth, and ≤3.5ns rise time, with a maximum waveform capture rate of 78,000 wfms/s.

Display and Operation:

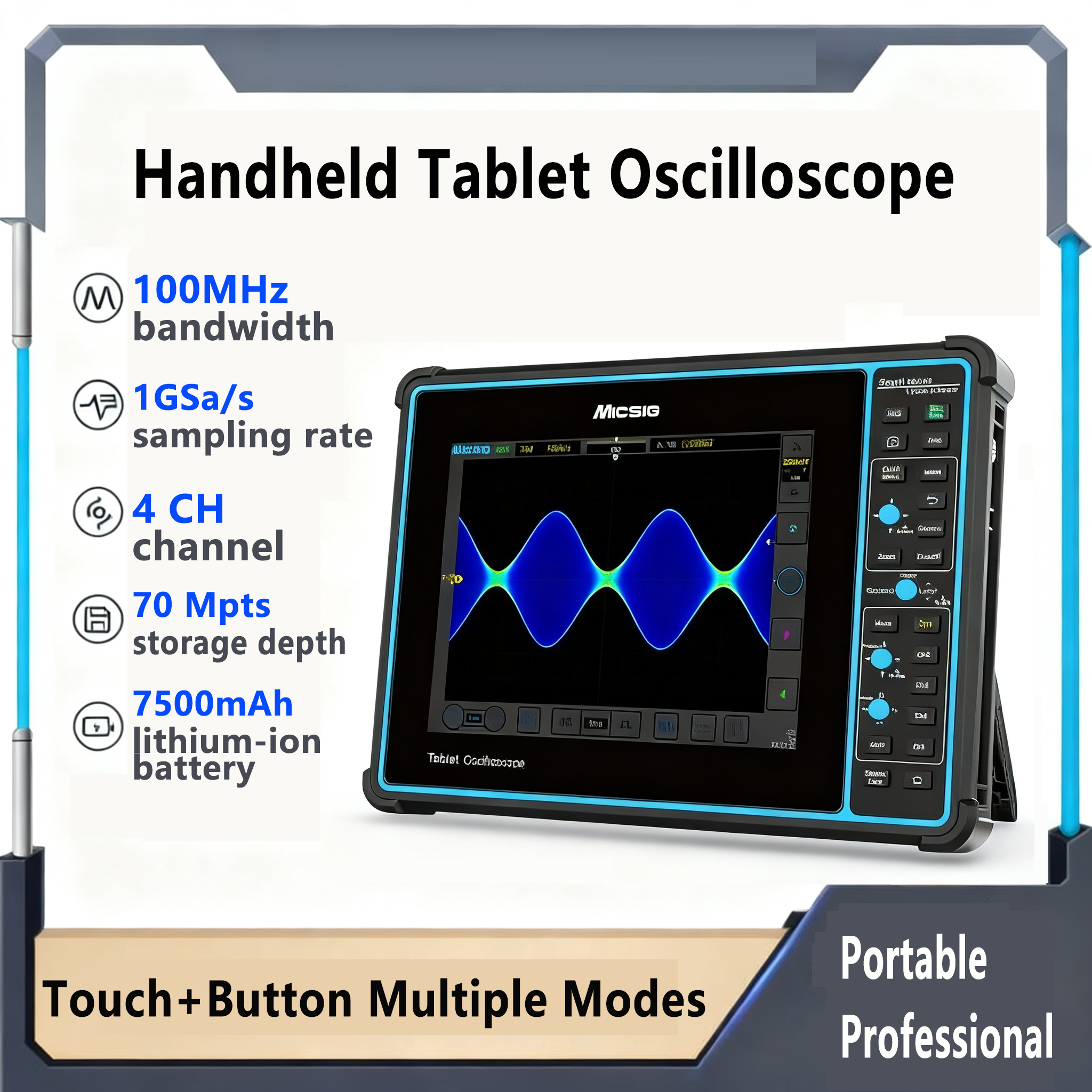

Model 1: 8-inch TFT-LCD with 800×600 resolution, ensuring clear waveform display.

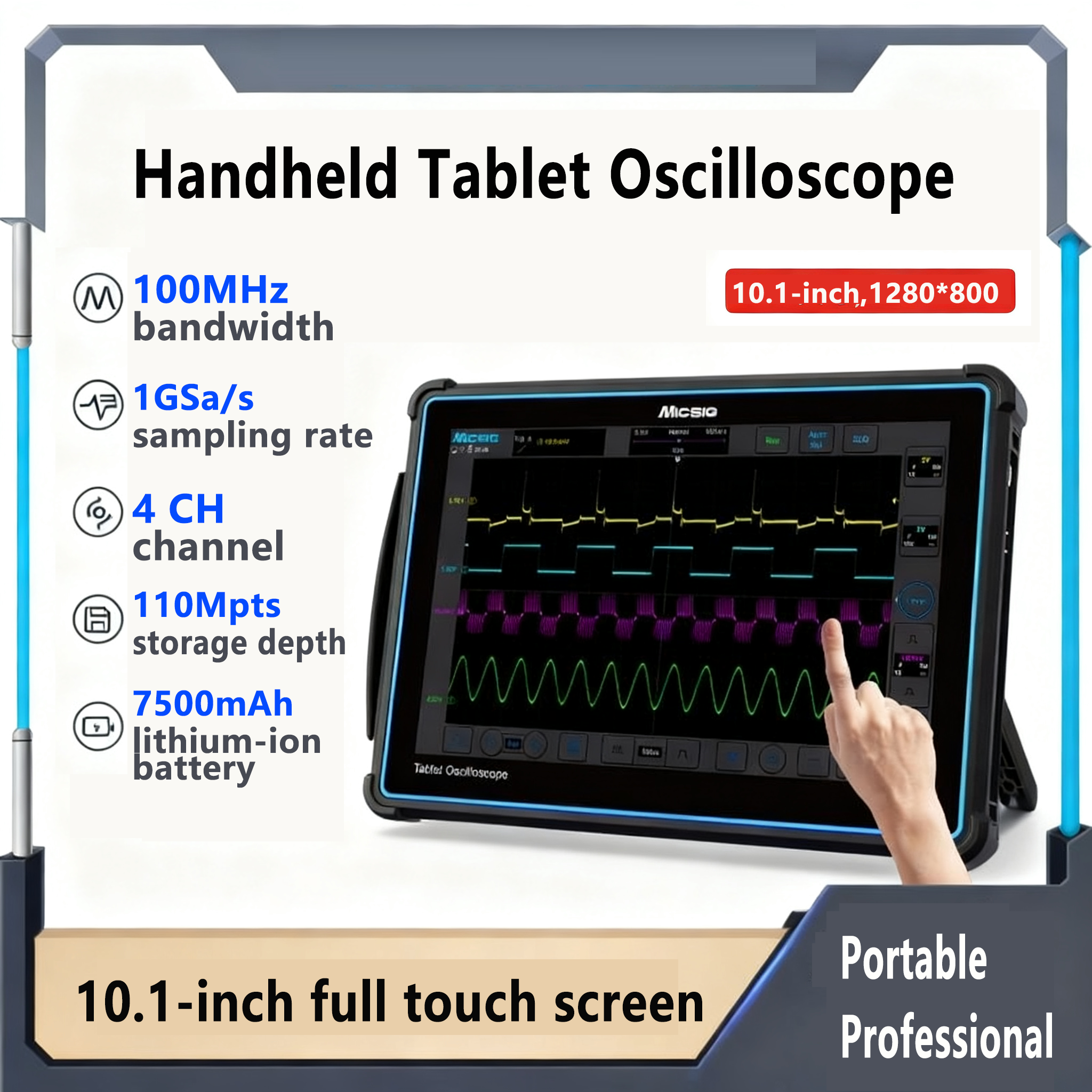

Model 2: 10.1-inch touchscreen with 1280×800 resolution, enabling intuitive gesture control and enhanced interactive waveform analysis.

Rich Connectivity: Both models feature Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, and Trigger out interfaces, supporting seamless data transfer, remote control, and external display.

Long Battery Life: Equipped with 7.4V, 7500mAh lithium-ion batteries for extended field operation.

Bandwidth Limitation: 20MHz and high-low pass (30kHz~maximum bandwidth) options to filter noise and focus on specific frequency ranges.

Advanced Analysis Features: Support multiple bus decoding (RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, etc.), hardware digital filtering, and advanced mathematical operations (FFT, etc.), facilitating in-depth signal scrutiny.

Storage and Expansion: 32G internal storage for waveform and data saving, with USB interfaces for external storage expansion.

Technical Specifications

Parameter	Model 1	Model 2
Bandwidth	100MHz	100MHz
Analog Channels	4	4
Real-Time Sampling Rate	1GSa/s	1GSa/s
Rise Time	≤3.5ns	≤3.5ns
Storage Depth	70Mpts	110Mpts
Max Waveform Capture Rate	13W times/second	7.8W times/second
Display	8-inch TFT-LCD, 800×600	10.1-inch touchscreen, 1280×800
Interfaces	Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out	Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out
Storage	32G	32G
Battery	7.4V, 7500mAh	7.4V, 7500mAh
Dimensions/Weight	265×192×50mm/1.9kg	265×192×50mm/1.9kg

Model Selection Tips

Model 1: Ideal for users needing 4 analog channels, a high waveform capture rate (130,000 wfms/s), and a compact 8-inch display, suitable for multi-channel signal capture in R&D and industrial troubleshooting.

Model 2: Perfect for those requiring deeper storage (110Mpts) and a larger, interactive 10.1-inch touchscreen, ideal for detailed waveform analysis and applications with extensive data review needs.

Application Scenarios

Electronics R&D: Analyze and debug multi-channel digital, analog, and mixed-signal circuits with precise waveform capture and advanced analysis.

Field Maintenance and Troubleshooting: Diagnose electrical issues in industrial equipment, automotive electronics, and consumer devices on-site with portable design and long battery life.

Automotive Electronics: Analyze signals from sensors, ECUs, and wiring harnesses in vehicle electronics systems, leveraging multiple bus decoding for comprehensive diagnosis.

Educational Labs: Teach students about electrical signal characteristics and oscilloscope operation, with user-friendly interfaces and multi-channel support for diverse experiments.

IoT and Embedded Systems: Debug and verify signals in IoT devices, microcontrollers, and embedded systems, using high sampling rate and storage depth to capture subtle signal variations.

Power Electronics: Test and optimize power supplies, inverters, and motor drives, utilizing hardware digital filtering to eliminate interference.

Get this oscilloscope now to achieve precise, efficient, and versatile signal analysis for your professional testing and development needs!
