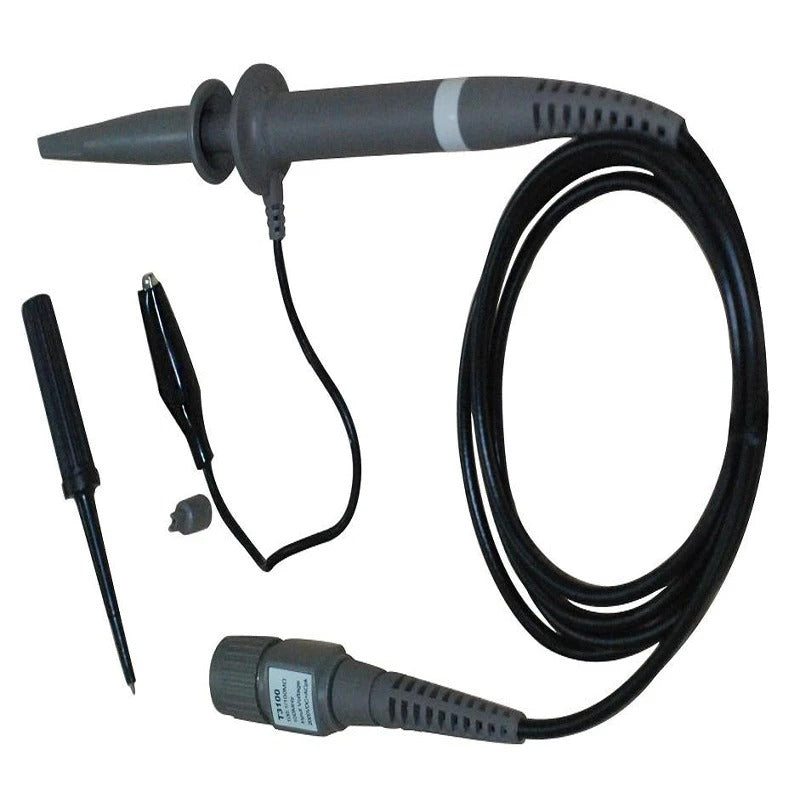

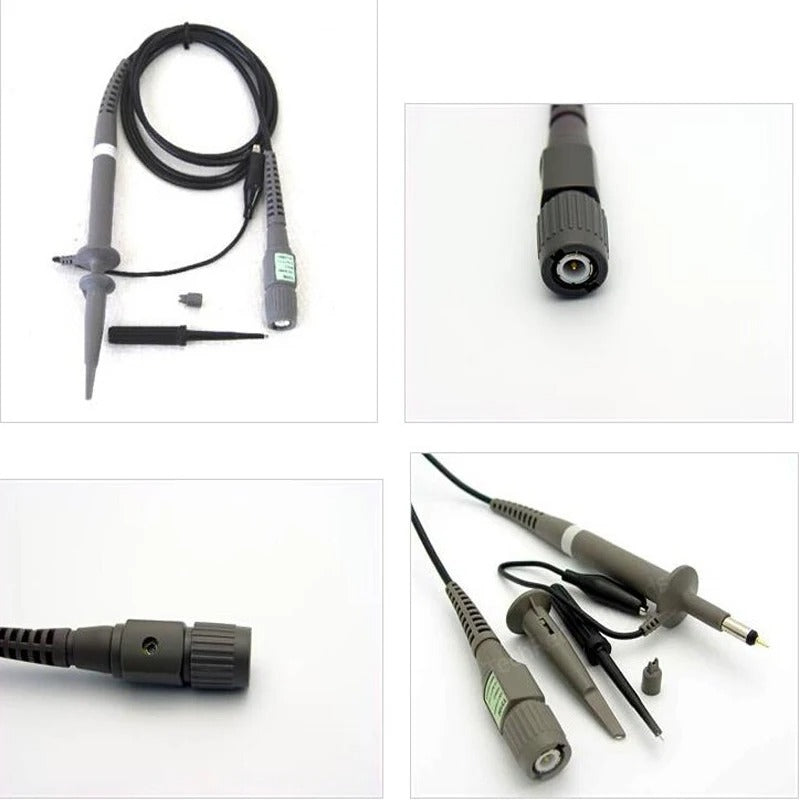

Hantek T3100 High-Voltage x100 Probe for oscilloscope,1 pcs 100MHz Oscilloscope Probe X100 Passive High Voltage Oscilloscope Probe
Hantek T3100 High-Voltage x100 Probe for oscilloscope,1 pcs 100MHz Oscilloscope Probe X100 Passive High Voltage Oscilloscope Probe
Prix habituel
$24.90 USD
Prix habituel
Prix promotionnel
$24.90 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Product Overview
The Hantek T3100 is a high - performance high voltage probe, perfect for precise signal measurement in scenarios requiring high - voltage analysis. It's CE - certified and compatible with various digital and analog oscilloscopes.
Key Features
- Fixed 100:1 Attenuation: Allows safe measurement of high voltages (up to <2000VDC + Peak AC in X100 mode), expanding your oscilloscope's voltage measurement range.
- High Input Resistance: 100MΩ input resistance ensures minimal loading effect on the circuit under test.
- Optimized Input Capacitance: X100 mode has an input capacitance of 14.5pF - 17.5pF, with a 15pF - 35pF compensation range for accurate signal capture.
- Bandwidth & Rise Time: Offers a DC - 100MHz system bandwidth, enabling capture of fast - rising signals with precision.
- Ergonomic & Durable Design: Integrated injection molding makes it solid, flexible, and reliable for long - term use. Weighs <65g with a 120cm cable length for easy maneuverability.
- Environmental Suitability: Operates in temperatures from - 10°C to + 50°C (non - operating: - 20°C to + 75°C) and humidity ≤85% relative humidity.
Ideal Use Scenarios
- Power Electronics: Analyze high - voltage waveforms in power supplies, inverters, and motor drives.
- Automotive Electronics: Test high - voltage systems in electric vehicles, such as battery management and motor control circuits.
- Industrial Equipment: Troubleshoot high - voltage components in industrial machinery, transformers, and switchgear.
- Research & Development: Conduct high - voltage signal analysis in labs for projects involving plasma, high - voltage discharge, or advanced electronics.
Specifications
|
Parameter
|
Detail
|
|
Model
|
T3100
|
|
Attenuation
|
1: 100
|
|
Input Resistance
|
100MΩ
|
|
Input Capacitance (X100)
|
14.5pF - 17.5pF
|
|
Compensation Range
|
15pF - 35pF
|
|
System Bandwidth
|
DC - 100MHz
|
|
Maximum Working Input Voltage (X100)
|
<2000VDC + Peak AC
|
|
Net Weight
|
<65g
|
|
Cable Length
|
120cm
|
|
Operating Temperature
|
- 10 - + 50°C
|
|
Non - Operating Temperature
|
- 20 - + 75°C
|
|
Humidity
|
≤85% (Relative Humidity)
|

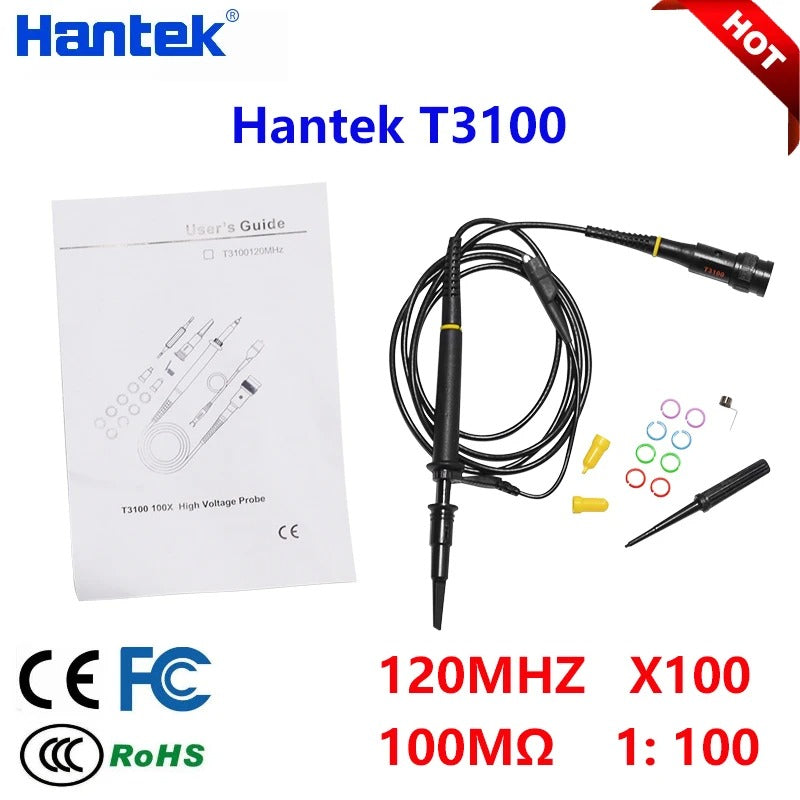

Package Includes
1 x Hantek T3100 High Voltage Probe 100MHz
Upgrade your high - voltage measurement capabilities with the Hantek T3100! Add to cart now.
