Professional-Grade Monocular Microscope for Precision Applications

The SM130X-XV1001 is a high-performance monocular microscope designed for maintenance professionals, laboratory technicians, and industrial inspectors. This versatile instrument combines optical precision with digital imaging capabilities to deliver reliable performance in demanding environments.

Key Features & Specifications:

Optical System:

• • 130X zoom capability
  • C-Mount lens system for professional-grade imaging
  • 2.4mm-32mm visual field for detailed observation
  • 50-150mm optimal working distance

Digital Imaging:

• • 13MP high-resolution CCD camera
  • SD/30FPS video recording capability

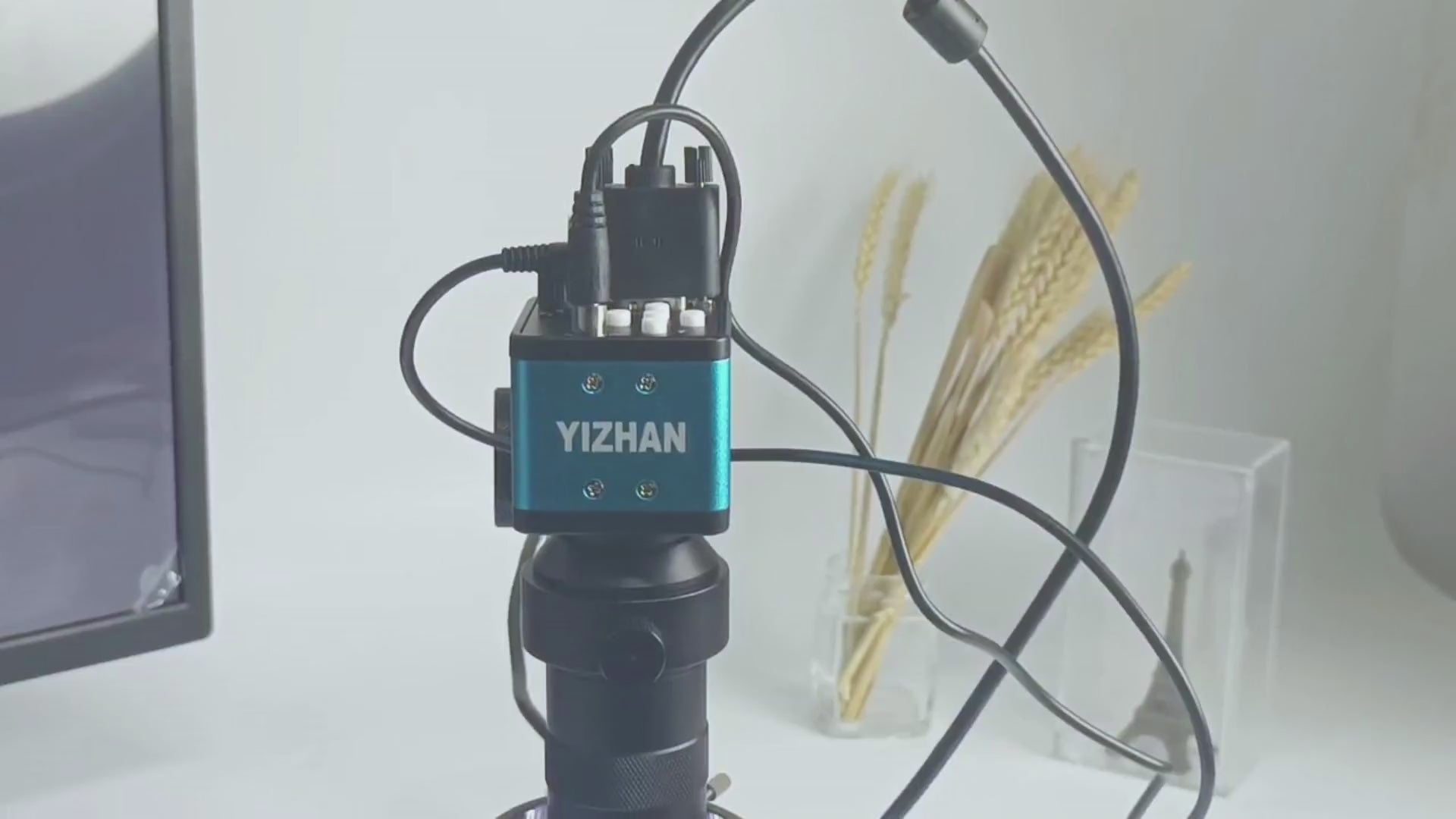

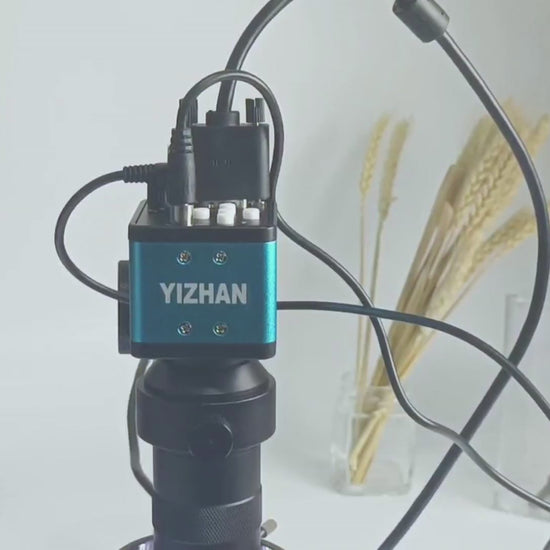

  • VGA output for monitor connectivity
  • LED ring light included for optimal illumination

Ergonomic Design:

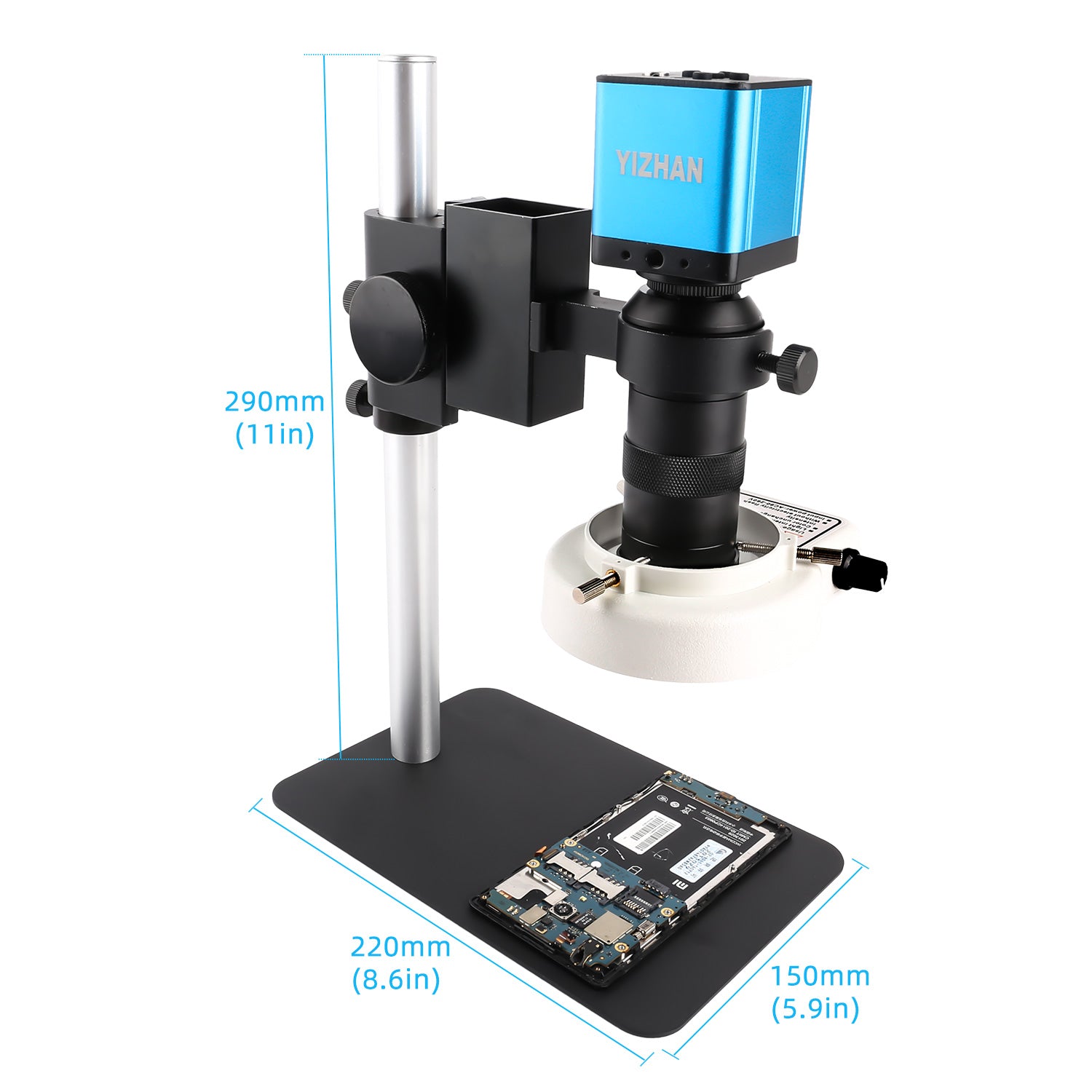

• • Compact 115mm×40mm lens dimensions
  • Manual focus adjustment for precision control
  • Durable construction for industrial environments

Technical Specifications:

• Zoom Range: 130X
• Camera Resolution: 13MP
• Video Output: SD/30FPS
• Interface: VGA
• Working Distance: 50-150mm
• Visual Field: 2.4mm-32mm
• Power Input: Standard DC power (adapter not included)
• Included Accessories: LED Ring Light, standard connection cables

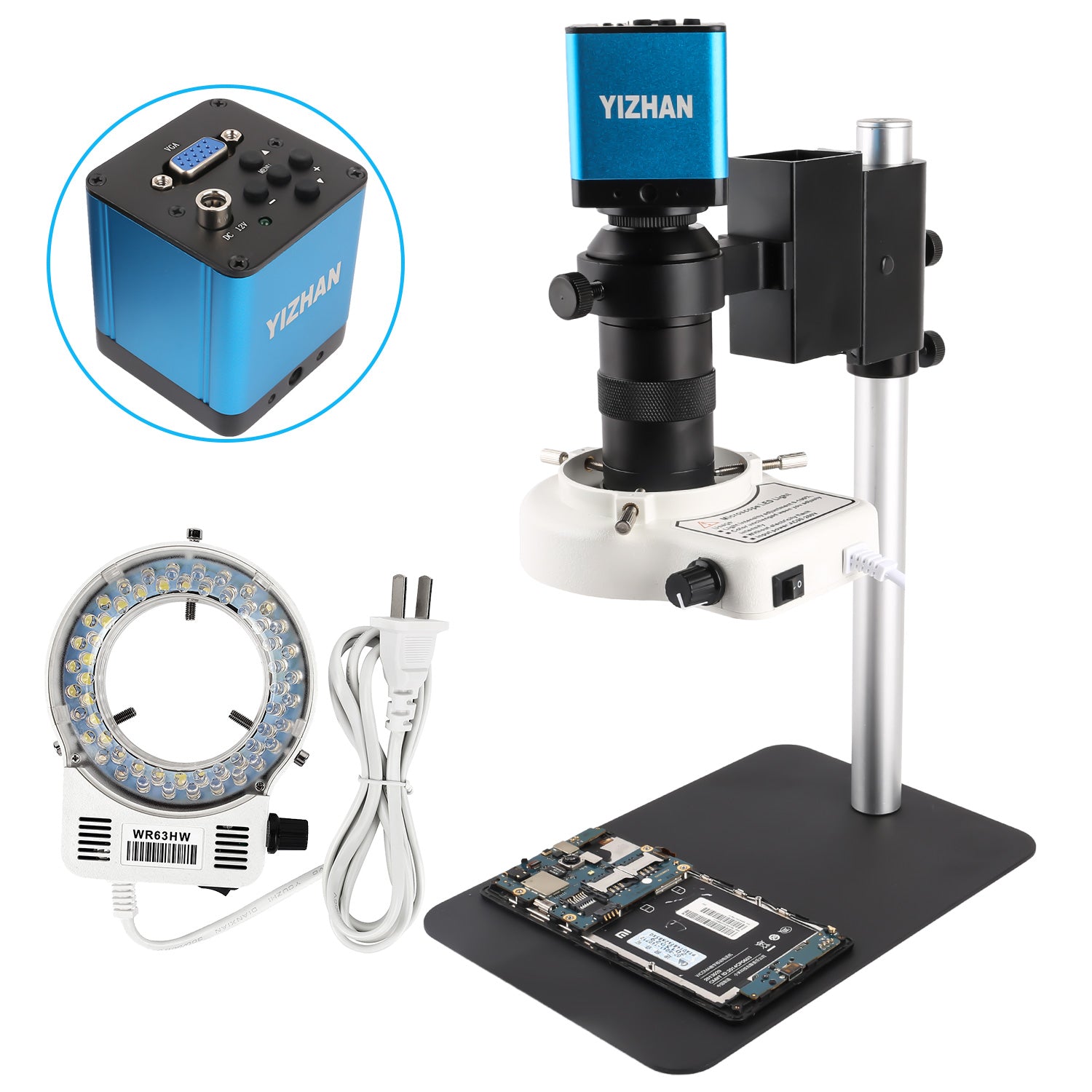

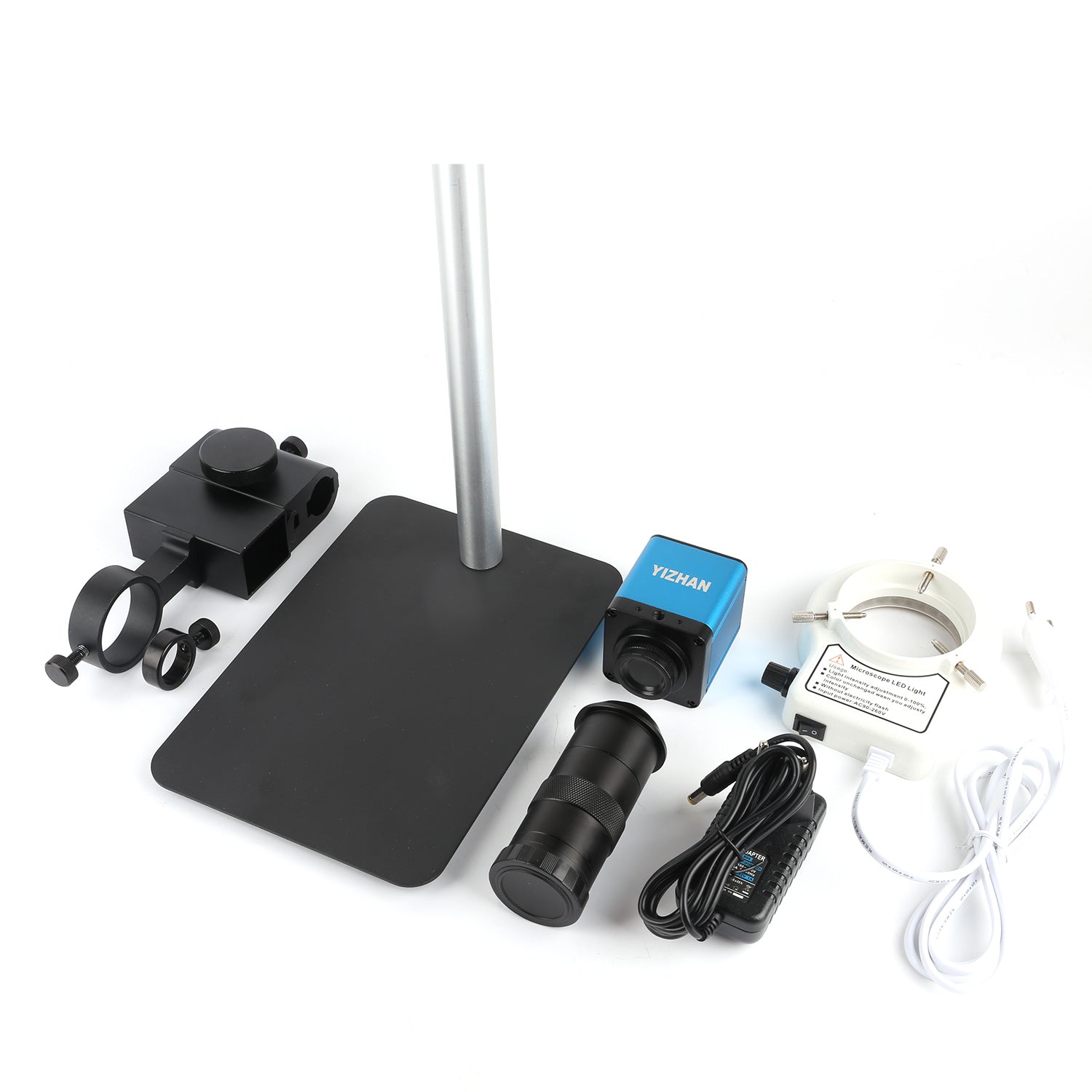

Package Contents:

• SM130X-XV1001 Monocular Microscope
• LED Ring Light


Applications:

• Maintenance & Repair: Ideal for electronics inspection and precision work
• Laboratory Research: Suitable for sample observation and documentation
• Industrial Quality Control: Perfect for production line inspections
• Educational Use: Excellent for classroom demonstrations and student labs

Why Choose SM130X-XV1001?
✔ High-quality optics with 130X zoom capability
✔ Professional 13MP digital imaging system
✔ Versatile VGA output for flexible display options
✔ Built-in LED illumination for consistent lighting
✔ Rugged construction for long-term reliability
