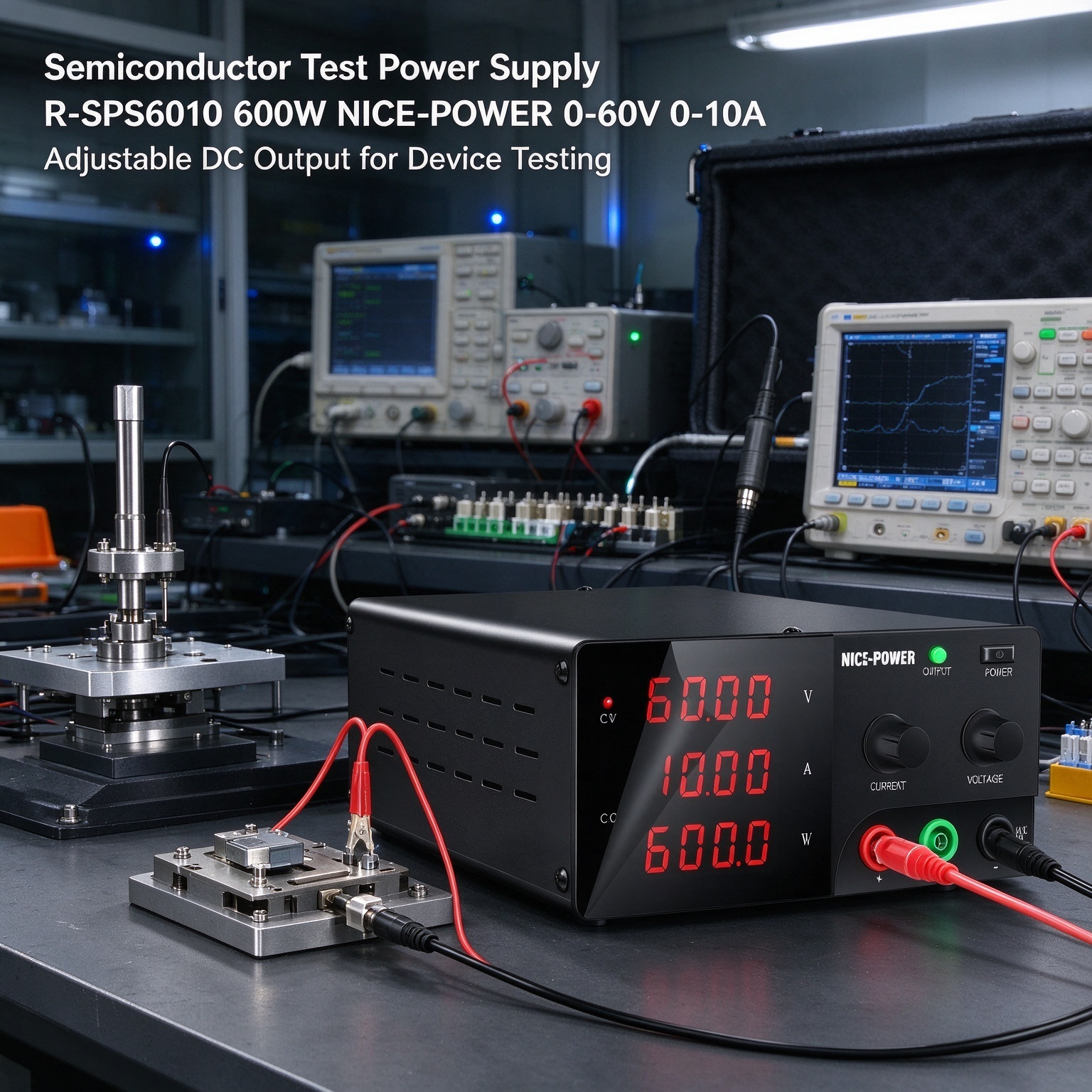

Semiconductor Test Power Supply R-SPS6010 600W

NICE-POWER 0-60V 0-10A Adjustable DC Output

for Device Testing

Semiconductor device evaluation often requires a stable, adjustable DC source to establish the supply or bias conditions used by a test circuit. The NICE-POWER R-SPS6010 provides a 0-60V adjustable output, a 0-10A current range, and 600W rated power for compatible semiconductor test fixtures and electronic evaluation circuits. Engineers can set the required DC output manually, observe the supply's voltage, current, and power readings, and control output activation during bench procedures. When paired with suitable external measurement instruments and a properly designed test circuit, the R-SPS6010 can serve as the DC power source for semiconductor device experiments and evaluation work within its specified operating limits.

Key Features

Adjustable 0-60V Output for Configurable Device Bias Conditions

Different semiconductor evaluation circuits may require different DC supply or bias conditions. The R-SPS6010's adjustable 0-60V output allows users to select an appropriate voltage for compatible test circuits rather than relying on a single fixed supply level. This is useful when preparing device evaluation setups or changing the DC input condition between manual tests. The supply provides DC output only; specialized bias sequencing and precision device-characterization functions require separate equipment where needed.

0-10A Current Range and 600W Power for Compatible Test Fixtures

The R-SPS6010 offers a rated current range of 0-10A and 600W rated output power, supporting compatible semiconductor-related circuits and power-device evaluation fixtures that require a suitable DC source. The usable operating point depends on the voltage, current, and total power drawn by the test setup. Users should verify the electrical limits of the device, fixture, wiring, and power supply before applying power.

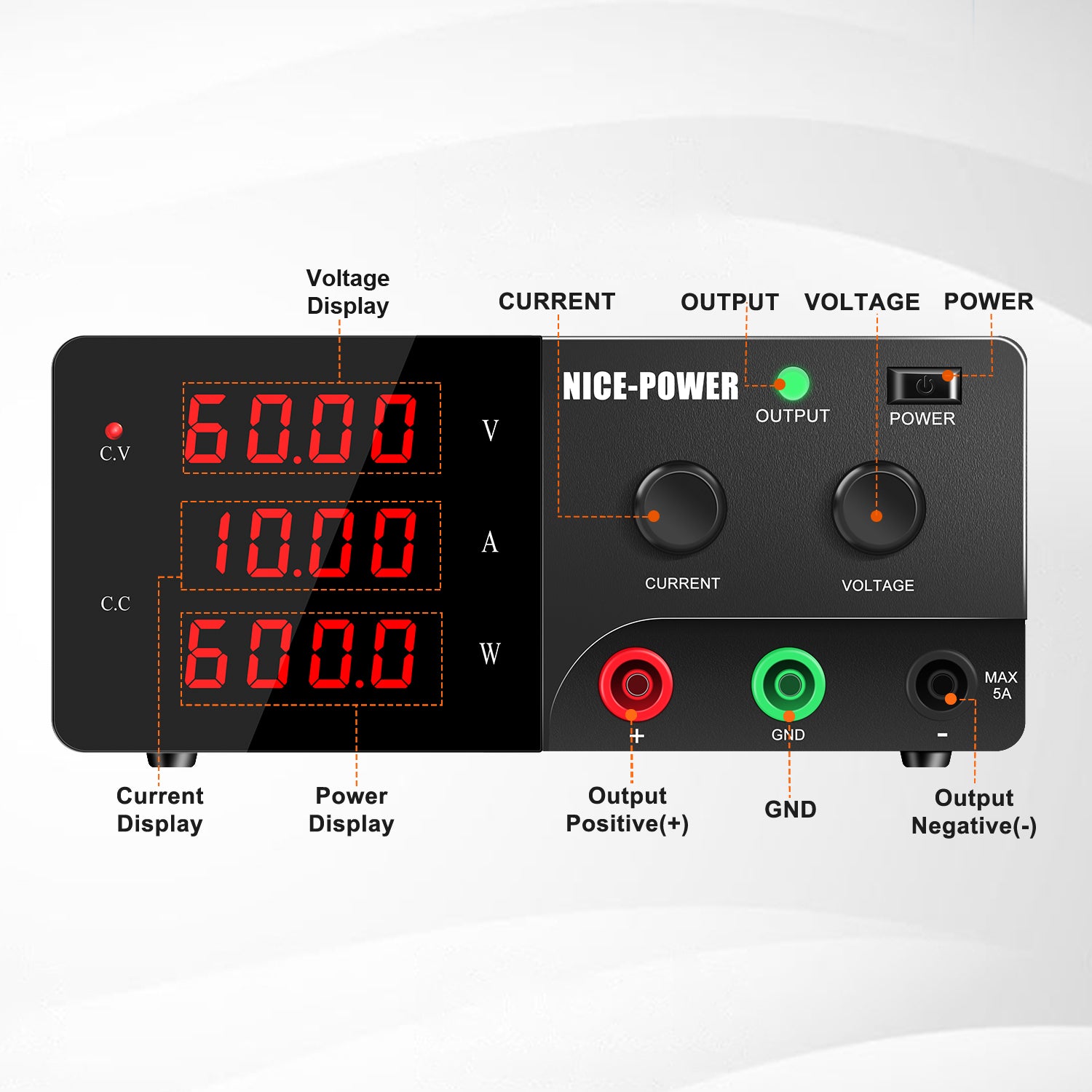

Supply Readback to Help Confirm Test Conditions

During device evaluation, the applied supply condition is an important part of the test setup. The R-SPS6010 provides a four-digit voltage and current display, together with a power display, so users can observe the power supply output while running a test procedure. These readings help confirm the source output but do not directly measure semiconductor parameters such as leakage current, threshold voltage, transconductance, or breakdown voltage.

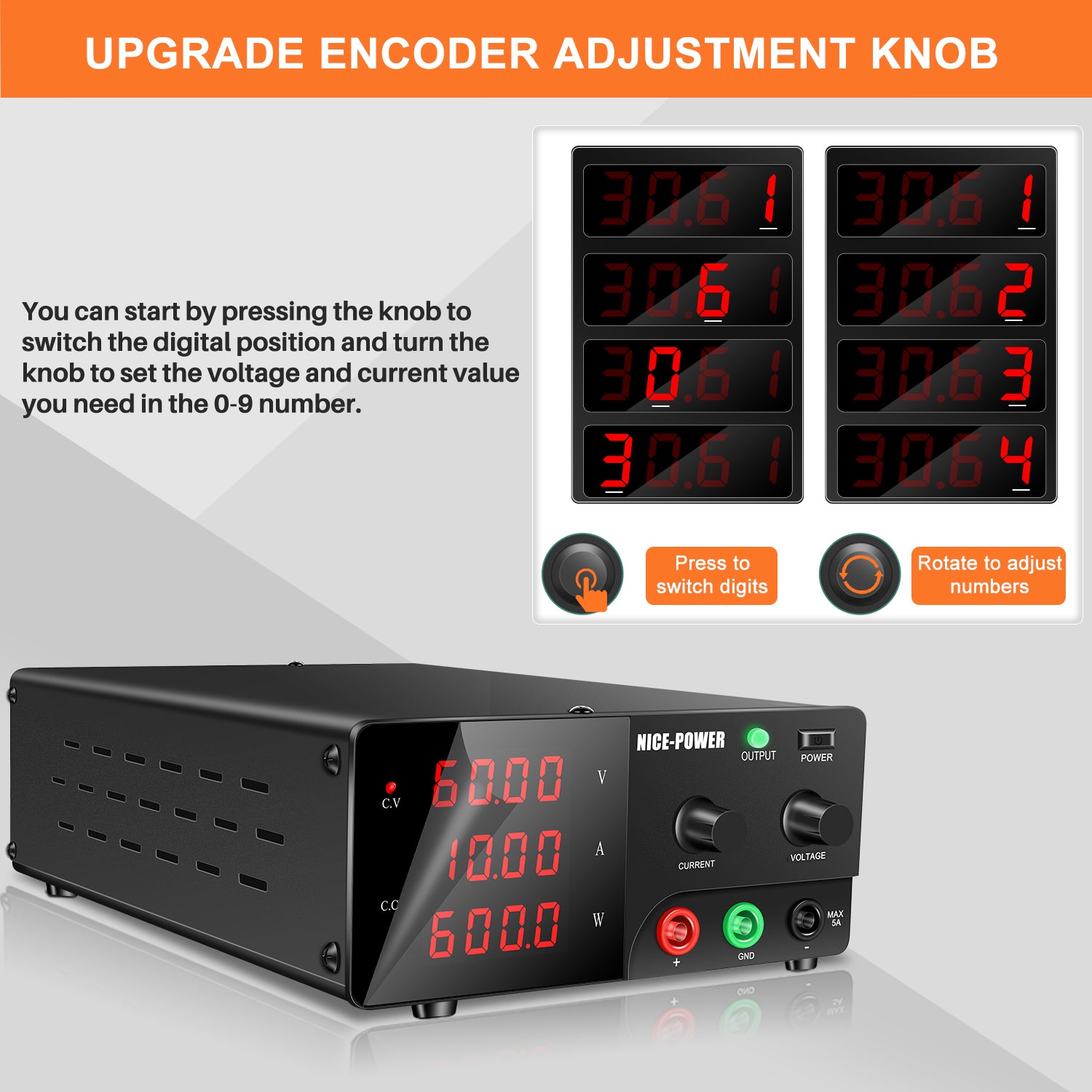

Manual Voltage and Current Adjustment for Bench Experiments

The front-panel encoder enables users to adjust the voltage and current settings manually when preparing a semiconductor test circuit. This is useful for setting the intended DC supply conditions before a measurement or changing the source setting between experiments. The R-SPS6010 supports hands-on bench operation rather than automatic parameter sweeps, stored test recipes, or computer-controlled characterization sequences.

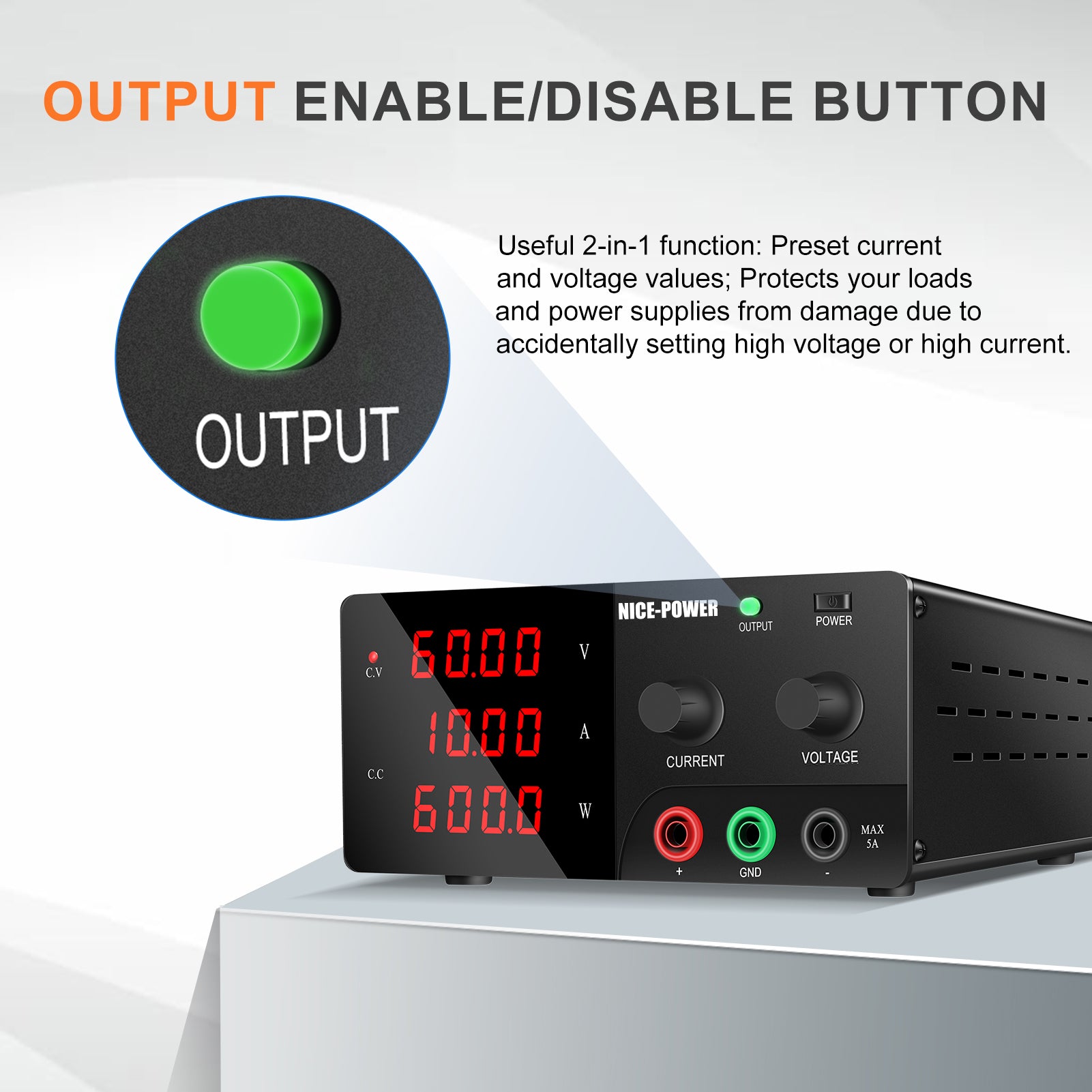

Output ON/OFF Control for Test Setup Management

The dedicated Output ON/OFF control allows users to enable or disable the DC output during test preparation and bench work. This can help separate wiring and fixture setup from the stage when power is applied to the circuit. Disable the output before changing connections and follow the test procedure required by the semiconductor device and fixture.

Front and Rear Output Connections for Different Fixture Layouts

The R-SPS6010 provides output connections on the front and rear panels, accommodating different test-bench layouts. The front-panel connection is convenient for accessible, lower-current experiments, while the rear-panel connection can be used when the application requires the full rated output. The front-panel output is rated below 5A; use the rear-panel connection for applications requiring the full rated output, according to the product specifications.

Applications

DC Supply for Semiconductor Evaluation Fixtures

Use the R-SPS6010 to provide the required DC input to compatible semiconductor test fixtures. Users can set the supply voltage and observe the source output while separate instruments measure the device parameters specified by the test procedure.

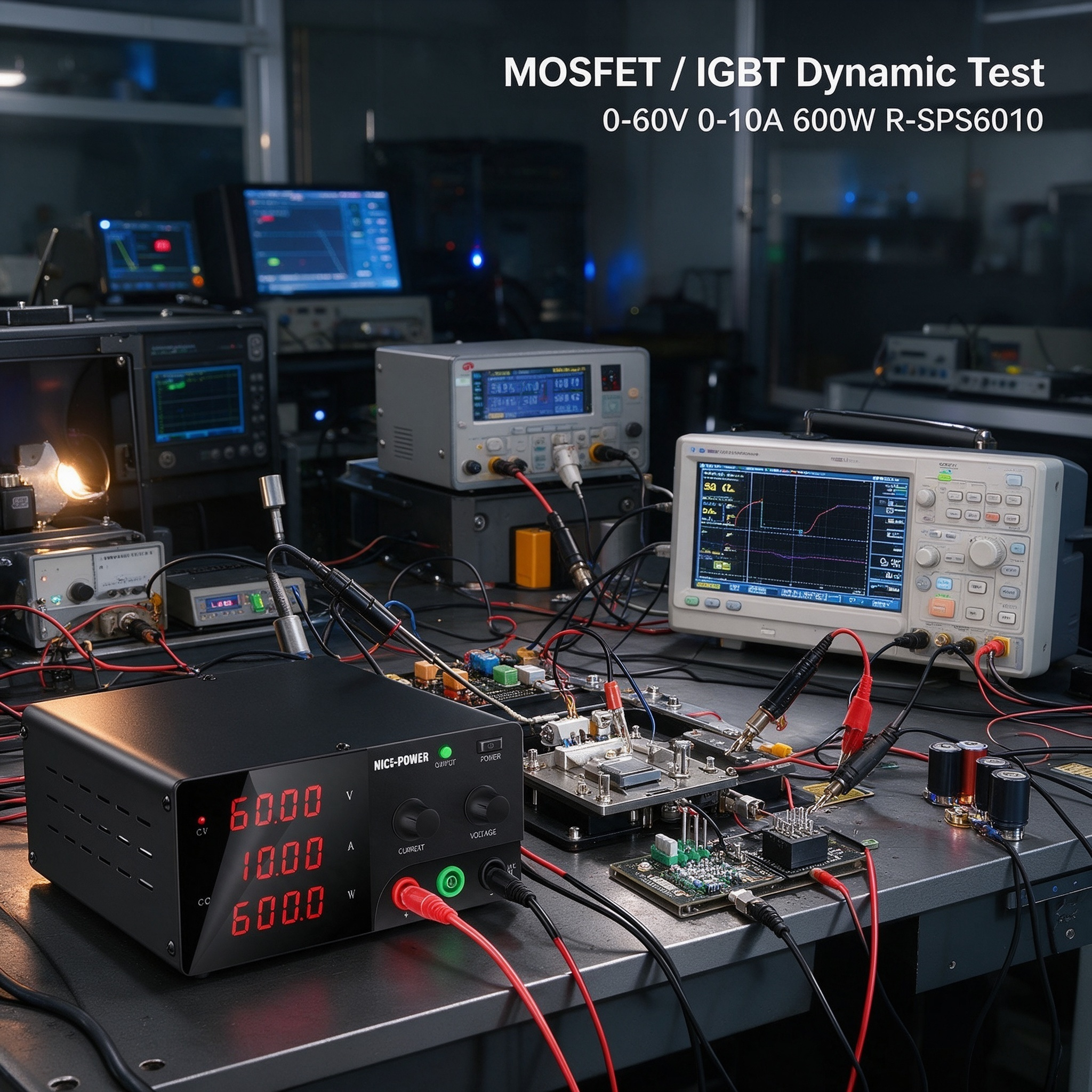

Power Device Circuit Evaluation

Semiconductor power devices are often evaluated as part of a surrounding circuit or test fixture. The R-SPS6010 can provide DC power to compatible evaluation circuits during bench experiments, prototype development, and preliminary operating checks. Device-specific electrical characteristics must be measured using suitable test equipment.

Semiconductor Research and Engineering Laboratories

In research and engineering environments, the R-SPS6010 can act as a manually adjustable DC source for compatible semiconductor experiments. Its voltage range and output readback help users configure the supply conditions for different laboratory setups without implying built-in semiconductor analysis or automated test functions.

DC Operating Condition Checks for Electronic Devices

For semiconductor devices incorporated into electronic circuits, the R-SPS6010 can supply a suitable DC input while engineers examine circuit behavior with external instruments. This is applicable to manual evaluation and troubleshooting where the circuit's power requirements fall within the supply's ratings. Specialized measurements, including high-speed switching analysis and detailed device characterization, require additional equipment.

Quality Check and Terms of Service:

Before connecting a semiconductor test fixture, verify the device ratings, permitted voltage and current, circuit configuration, polarity, and wiring. Ensure that the selected output settings remain within the limits of the power supply, device under test, and fixture. Use suitable cables and connectors, disable the output before changing connections, and follow the test procedure recommended for the device.

The R-SPS6010 is an adjustable DC power supply, not a dedicated semiconductor parameter analyzer, curve tracer, or automated semiconductor tester. It does not independently perform I-V curve tracing, leakage-current characterization, threshold-voltage measurement, breakdown testing, or high-speed switching analysis. Such measurements require an appropriate test circuit and external instruments. The built-in displays report power supply output values and should not be interpreted as direct measurements of semiconductor device characteristics.

Technical Specifications

Why Choose NICE-POWER R-SPS6010?

The NICE-POWER R-SPS6010 provides adjustable DC power for semiconductor-related experiments that require a manually configured source rather than a dedicated device analyzer. Its 0-60V output, 0-10A current range, and 600W rated power support compatible evaluation circuits within the unit's operating limits. Manual adjustment, voltage and current readback, power display, and Output ON/OFF control help users establish and observe supply conditions during bench experiments. For semiconductor device testing, it serves as a practical DC source to complement the external instruments needed for detailed electrical characterization.
