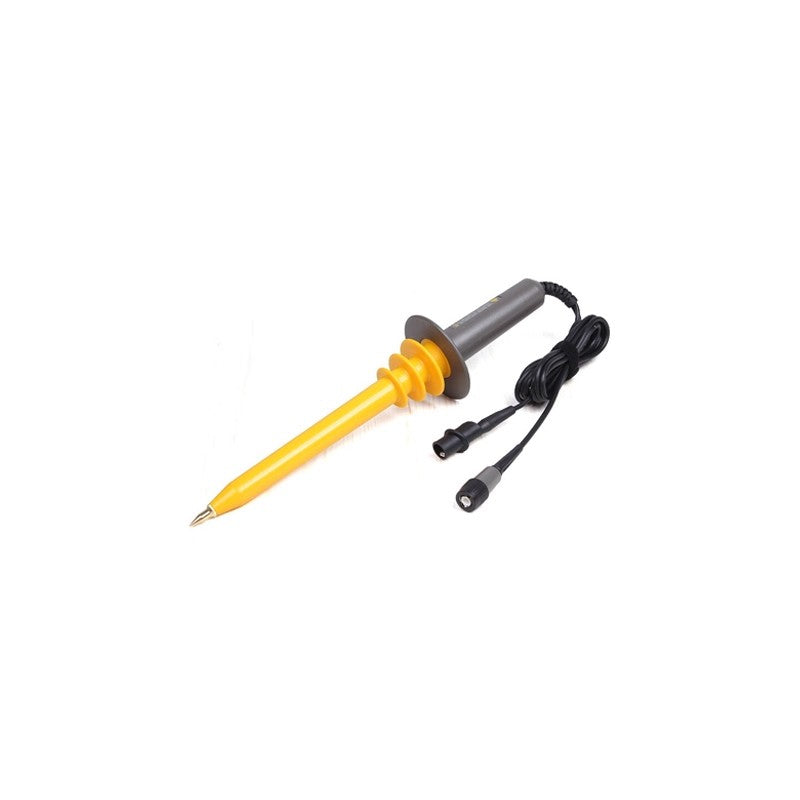

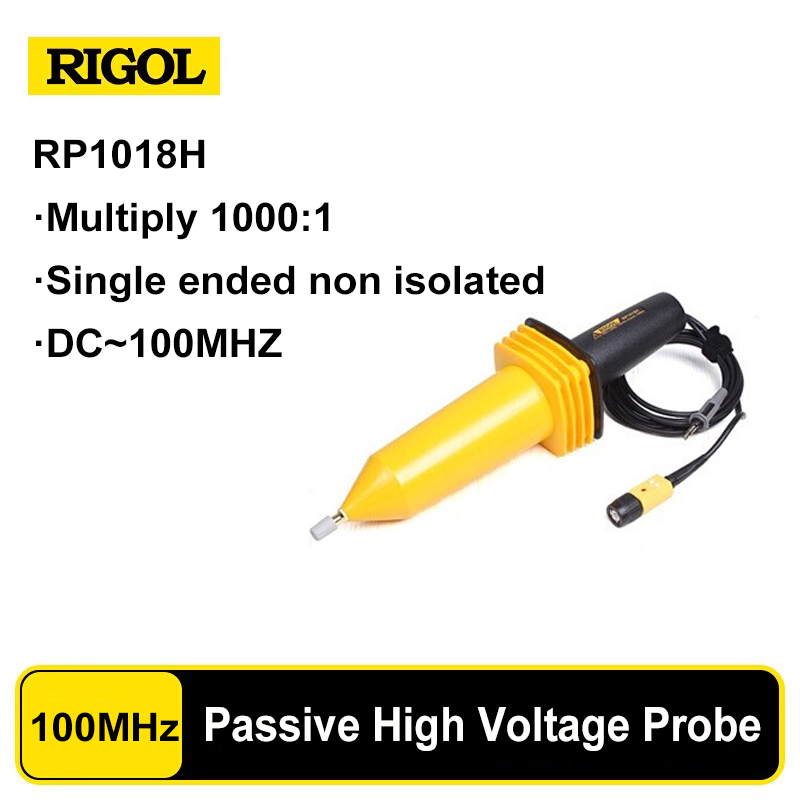

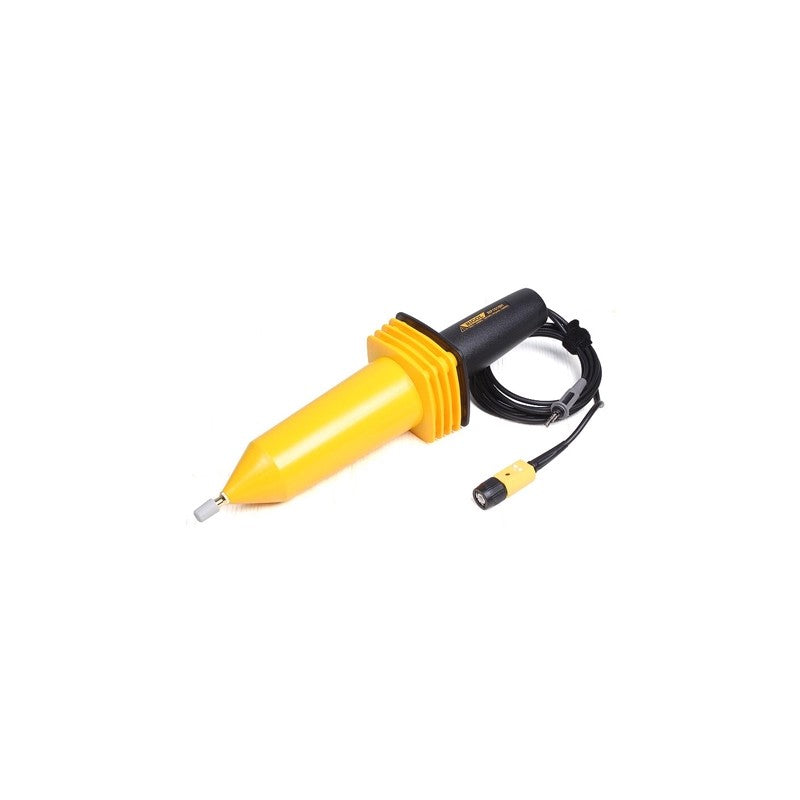

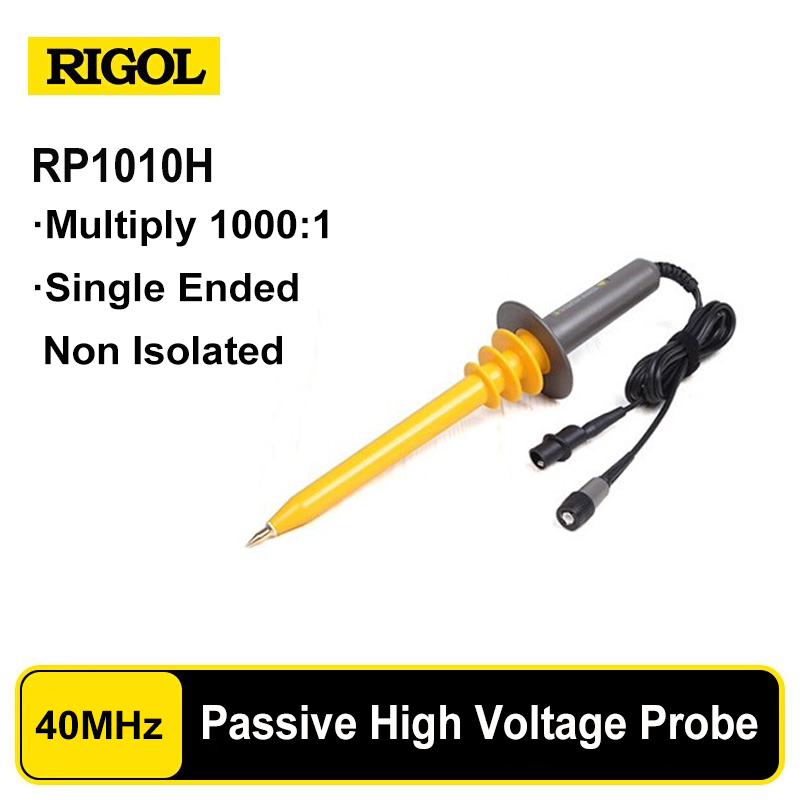

RIGOL RP1010H RP1018H Passive High-Voltage Probe DC 40 MHz 100 MHz Bandwidth 1000:1 Single Ended Non lsolated
RIGOL RP1010H RP1018H Passive High-Voltage Probe DC 40 MHz 100 MHz Bandwidth 1000:1 Single Ended Non lsolated
Prix habituel
$399.00 USD
Prix habituel
Prix promotionnel
$399.00 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Overview
RIGOL's RP1010H and RP1018H are high - performance passive high - voltage probes, designed for accurate high - voltage signal measurement in various electronic and engineering applications.
Key Features
- High Voltage Handling: Capable of handling significant DC and AC voltages.
- Good Signal - to - Noise Ratio: Ensures clear signal acquisition.
- Wide Bandwidth: Suitable for measuring signals across a broad frequency range.
- Precise Attenuation: Accurate signal attenuation for safe measurement.
- Reliable Safety Compliance: Meet relevant safety standards for secure operation.
Technical Specifications
|
Parameter
|
RP1010H
|
RP1018H
|
|
Max Working Voltage
|
DC: 0 - 10 kV; AC pulse: ≤ 20 kV peak - to - peak; AC sine wave: ≤ 7 kVrms
|
Max Input (DC + AC peak): 18kV CAT II; Max Input (AC RMS, pulse voltage): 12kV CAT II, < 12kVp - p
|
|
Signal/Noise Ratio
|
DC ≥ 60 dB (1 kHz); ≤ 50 dB (1 MHz)
|
> 60dB at 1kHz; > 50dB at 1MHz
|
|
Bandwidth
|
DC - 40 MHz (-3 dB)
|
DC ~ 100 MHz
|
|
Division Ratio
|
1000:1
|
1000:1
|
|
Rise Time
|
≤ 8.8 ns
|
3.5 ns
|
|
Input Impedance
|
100 MΩ ± 5%
|
200 MΩ
|
|
Input Capacitance
|
3.0 pF ± 0.5 pF
|
1.5 pF
|
|
Compensation Range
|
5 pF ~ 50 pF
|
10 pF ~ 35 pF
|
|
Cable Length
|
2.0 meter (± 0.2 M)
|
2M ± 0.2M
|
|
Temperature Coefficient
|
200 PPM / °C
|
≤ 200 PPM / °C
|
|
Accuracy (DC)
|
± 3% (DC to 10 kV)
|
≤ 3% full range
|
|
Accuracy (AC)
|
± 3% (1 kHz); - 3dB at 40 MHz
|
≤ 3% at 1 kHz
|
|
Safety Approval
|
-
|
Complies with EN 61010 - 031 CAT II
|
|
Operating Temperature
|
0 ~ 50 °C
|
- 10 ~ 55 °C
|
|
Weight/Dimension
|
250 g / ∅75 x 340 mmL
|
460 g / 80 (W) x 80 (H) x 320 (L) mm
|
Selection Tips
- Choose RP1010H if your voltage measurement needs are within 10kV DC, 20kV AC pulse, and you need a 40MHz bandwidth probe with a compensation range of 5pF - 50pF.
- Opt for RP1018H for higher voltage handling (up to 18kV DC + AC peak), a wider 100MHz bandwidth, and compliance with EN 61010 - 031 CAT II safety standard.
Application Scenarios
- Power Electronics: Measure high - voltage signals in power supplies and inverters.
- Automotive Engineering: Test high - voltage systems in electric vehicles.
- Industrial Testing: Monitor high - voltage signals in industrial machinery.
- Research Labs: Conduct precise high - voltage signal analysis in experiments.
- Electronics Manufacturing: Quality control testing of high - voltage electronic components.
- Aerospace: Measure signals in aerospace - related high - voltage electronics.
Get RIGOL passive high - voltage probes now for accurate high - voltage signal measurement!
